Product Description

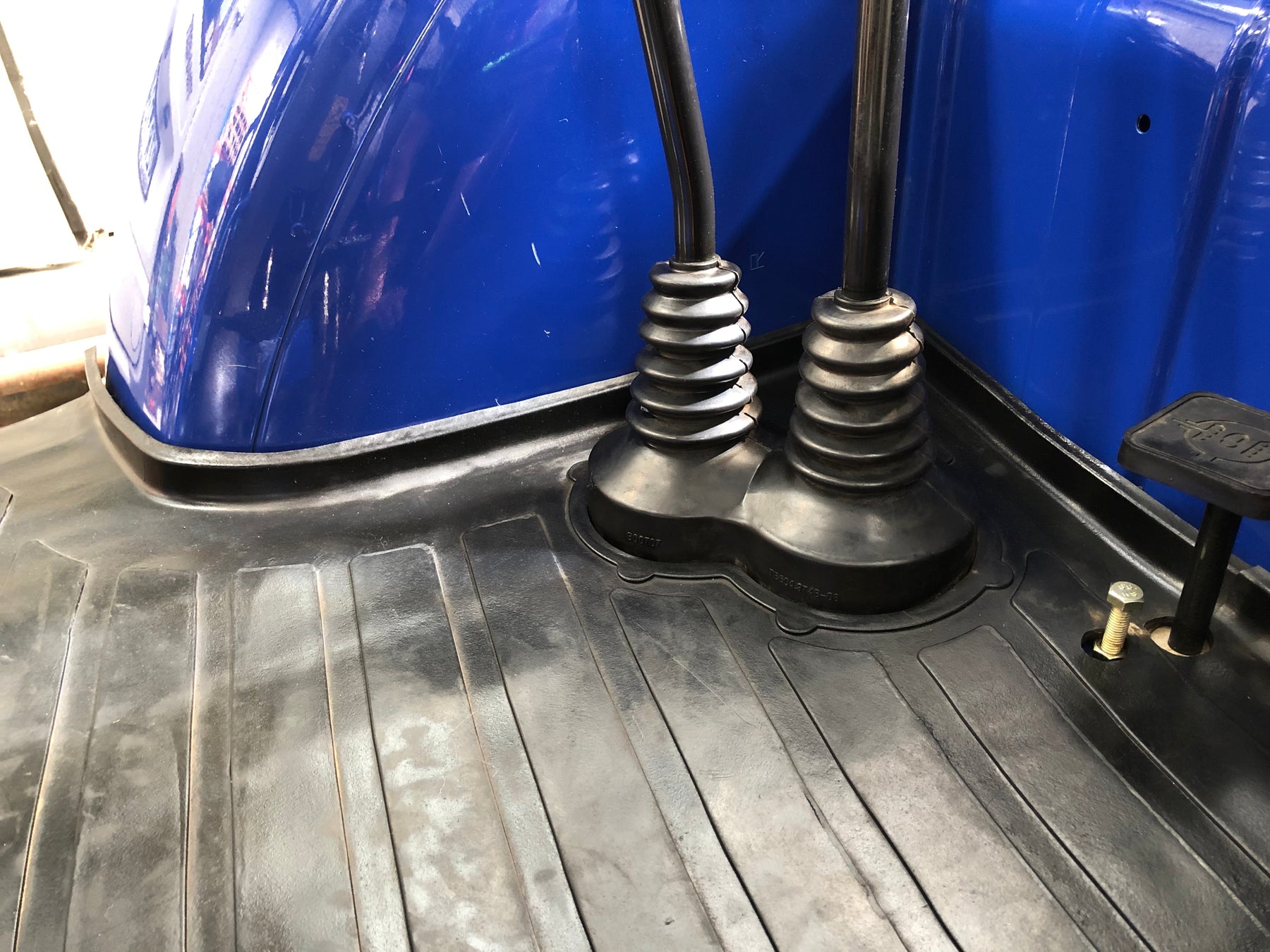

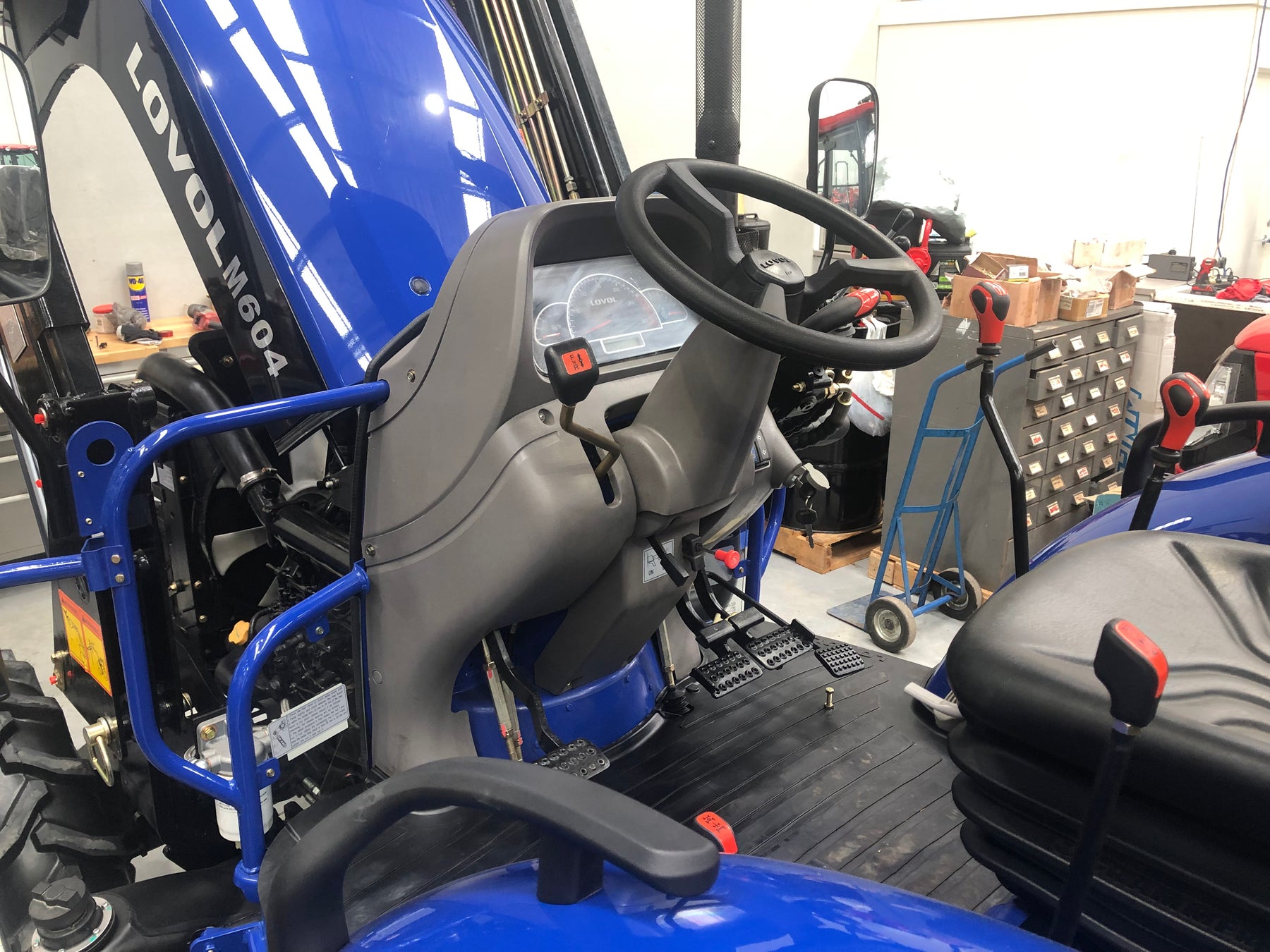

In Stock NOW is our NEW Range of Lovol tractors ranging from 35-80hp. Come on down and inspect these top quality Tier 1 tractors. With their attention to detail from molded floor mats to very friendly joystick controlled front end loader and a top quality Gammer seat you can be sure you will be very happy in the new Gen-3 designed cabin with its heater/Aircon and very well insulated cabin. But it doesn’t stop there they have paired this long lasting and proven engine with a 12 speed synchromesh gearbox, rear remotes, dual element air cleaner and many more great features. The quality in these tractors is outstanding and an inspection is a must!! Call us now to find out more! Attachments available and in stock – Backhoes – Post Hole Diggers – Augers – Rippers – Slashers – Tow Bars – Bale Spears – Pallet Forks – Wood Chippers & More!!
Key Features
- 11inch Ceramic plate clutch with cushion springs
- Syncromesh Gearbox

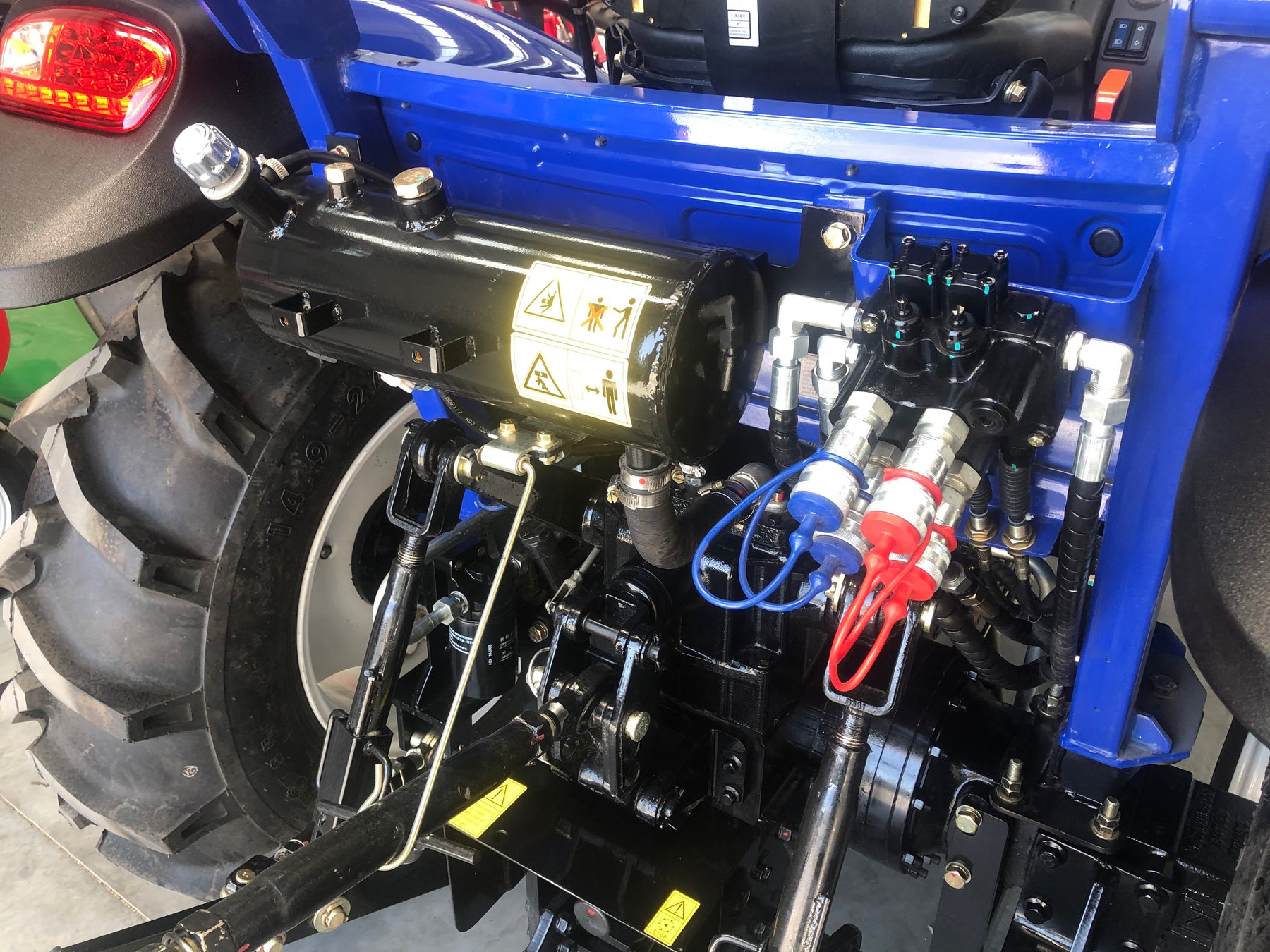

- Dual rear remotes
- Dual wheel weights
- Quiet Exhaust

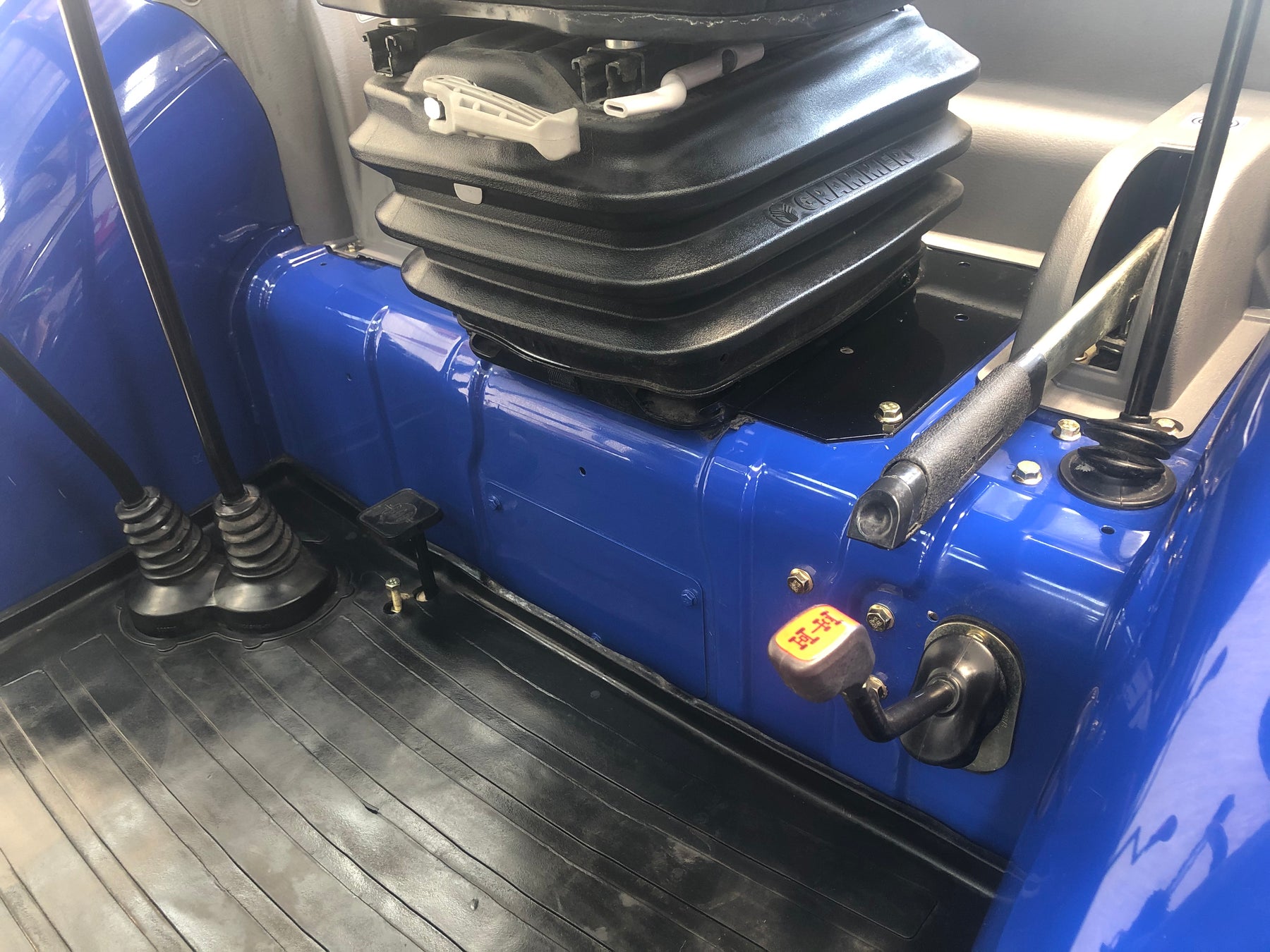

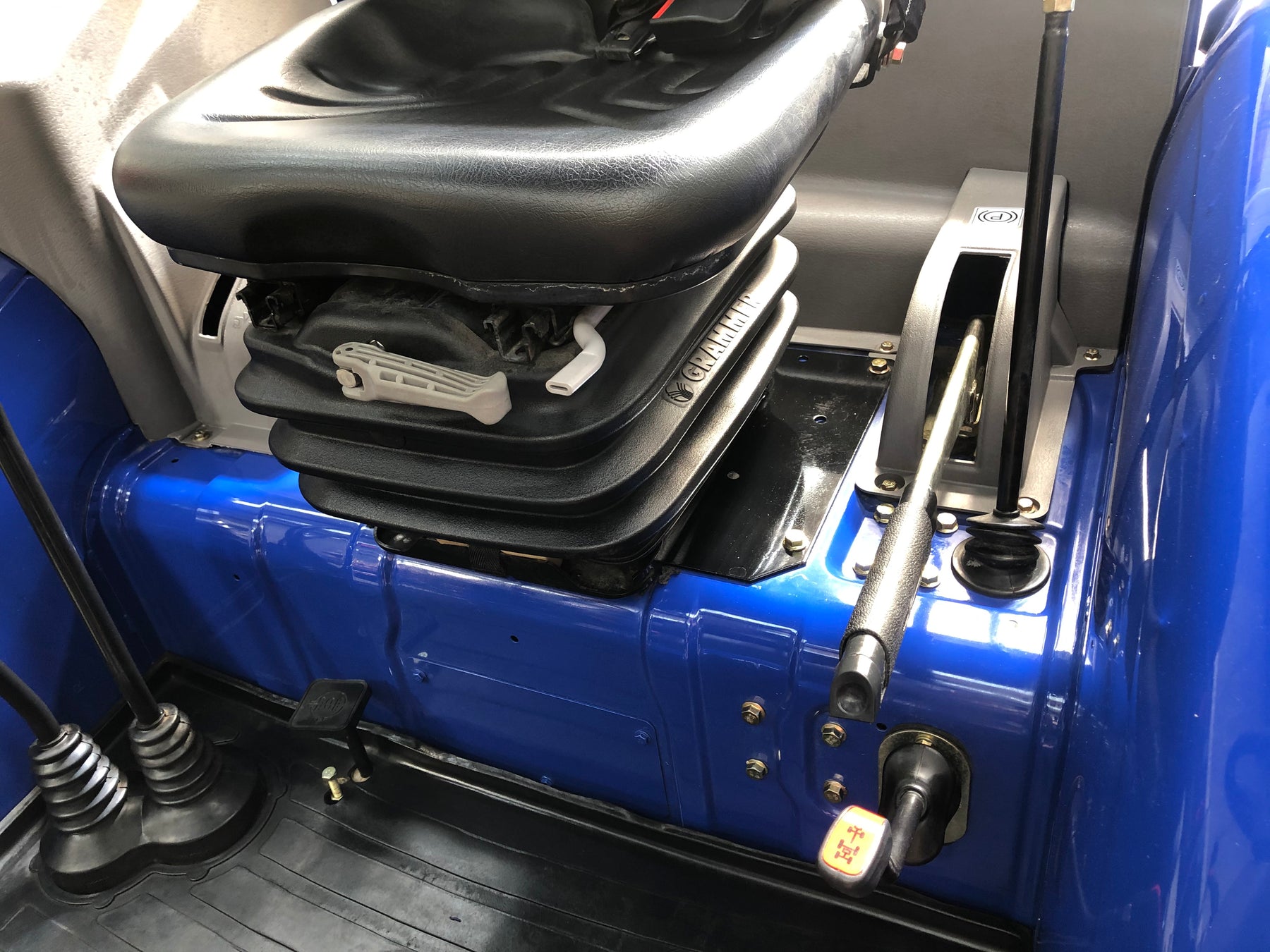

- Gammer Seat
- Sealed Wiring Looms
- Radial Tyres
- 3 Year Warranty

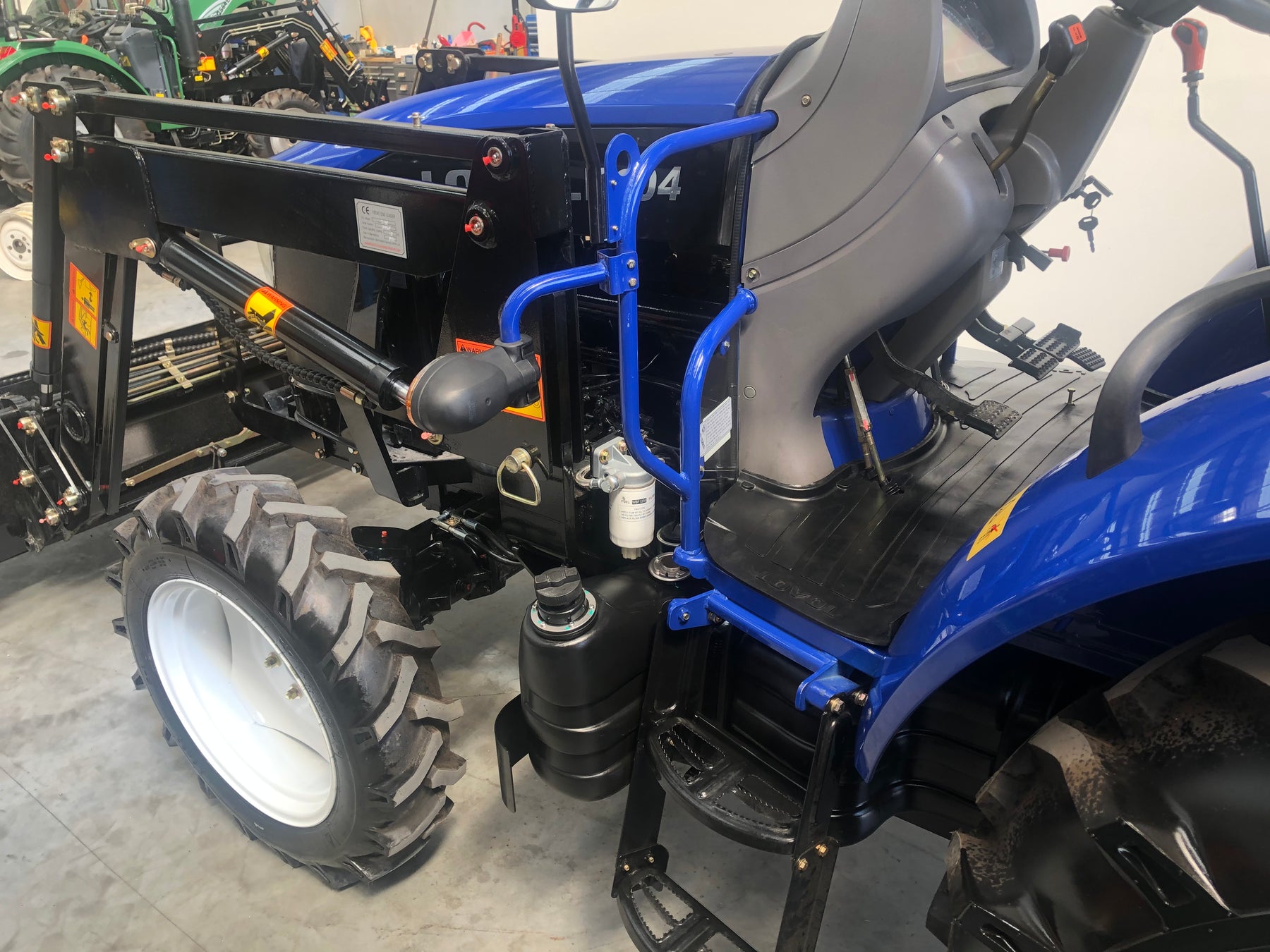

- 600kg SWL Front end Loader
- 4in1 Euro Mount Quick Hitch Bucket
- Gen III Design with Quality Finishes
- Genuine LOVOL Tractor
Compare the Lovol M604 Specs with other tractors and see for yourself how well they stand up against the competition.
|
Model |
M604 Cabin |
M604 Rops |
|
|
Engine Gross Power |
HP(kw) |
59(44) |
59(44) |
|
Rated Revolution |
rpm |
2400 |
2400 |
|
PTO HorsePower |
HP(kw) |
50 (37.5) |
50 (37.5) |
|
Type |
Natural |
natural |
|
|
No.of Cylinders |
4 |
4 |
|
|
Total Displace |
cc |
4087 |
4087 |
|
Bore&stroke |
mm |
||
|
Combustion System |
DI |
DI |
|
|
Battery |
Ah/h |
100 |
100 |
|
Cooling System |
Coolant/Water |
Coolant/Water |
|
|
Capacity |
|||
|
Fuel Tank |
L |
60 |
60 |
|
Engine Crankcase(Included Filter) |
L |
9 |
9 |
|
Engine Coolant |
L |
10.75 |
8.75 |
|
Transmission Case |
L |
27 |
27 |
|
Support of Front Axle |
L |
7 |
7 |
|
PTO |
|||
|
Maximum PTO Power |
HP |
50 |
50 |
|
Rear PTO |
6 Spline |
6 Spline |
|
|
Type |
dual speed |
dual speed |
|
|
Revolution |
rpm |
540/540E (760) |
540/540E (760) |
|
Hydraulic |
|||
|
Steering |
hydraulic |
hydraulic |
|
|
3 Point Lift Control Type |
draft/position |
draft/position |
|
|

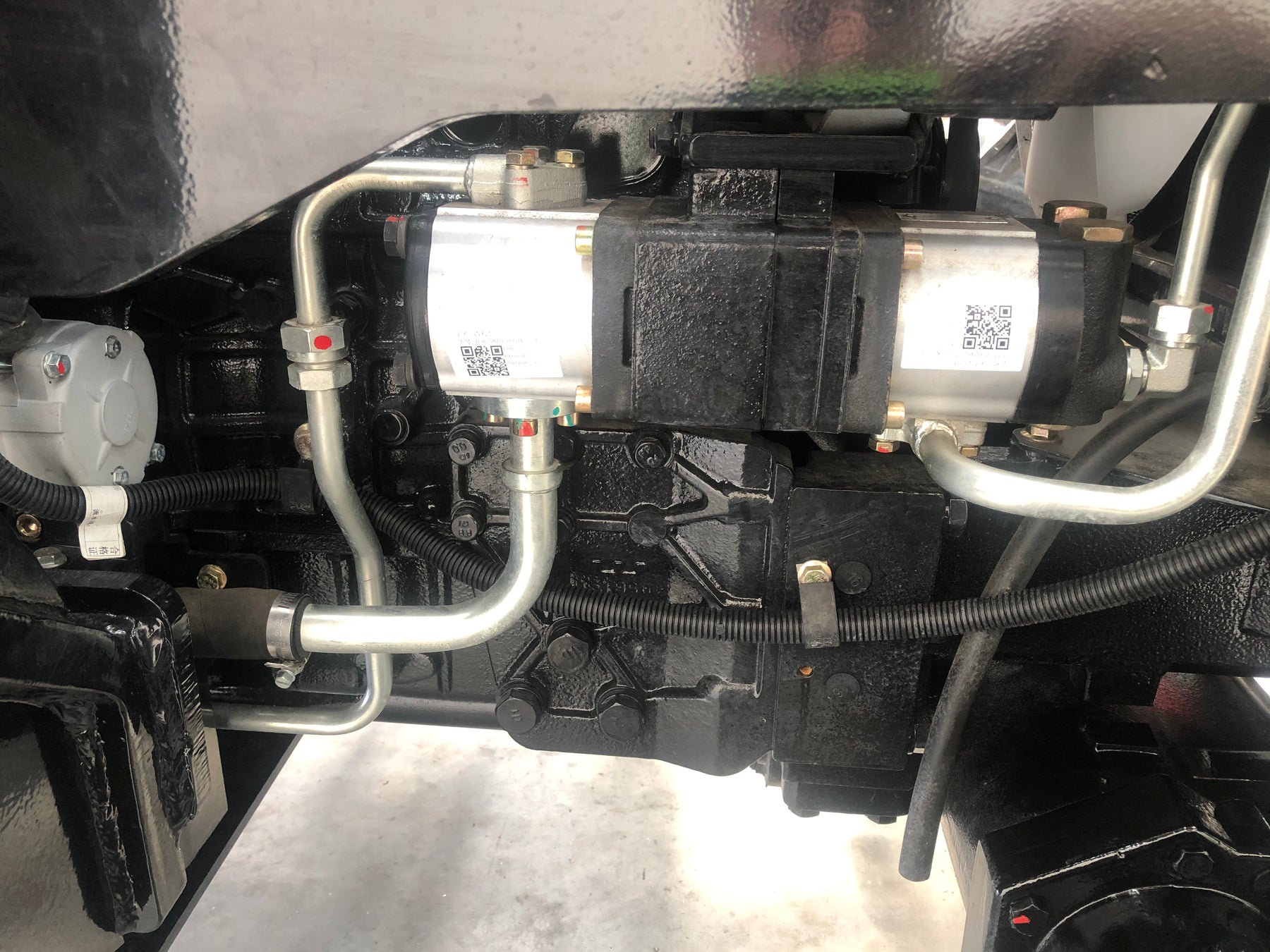

Implement Pump |
L/min |
40 |
40 |
|
Power Steering Pump |
L/min |
13 |
13 |
|
Total Hydraulic Flow |
L/min |
53 |
53 |
|

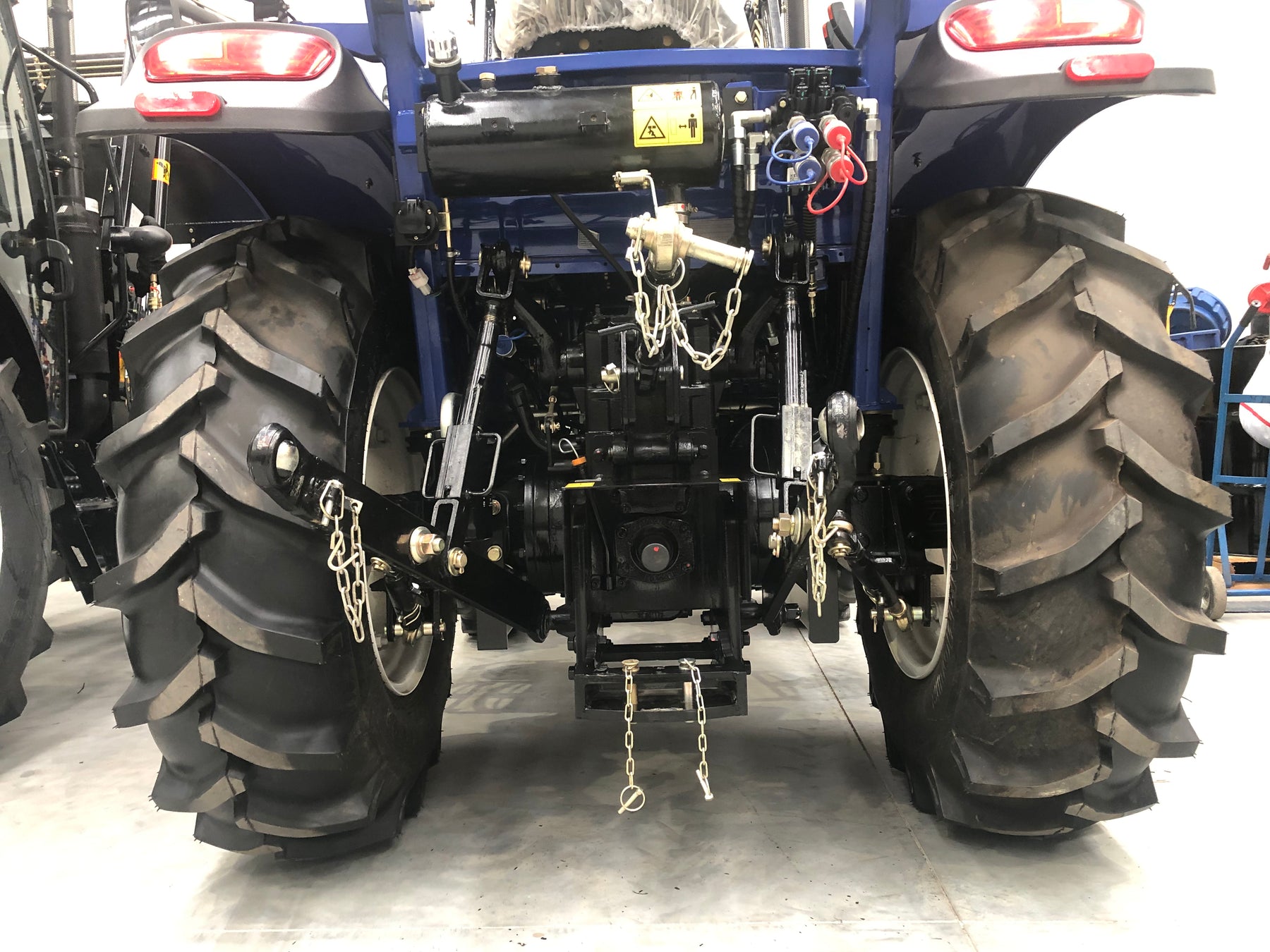

3-point Hitch Type |
cat II |
cat II |
|
|
Lower Link Type |
hinge |
hinge |
|
|
Check Link Type |
lever |
lever |
|
|
Top Link Type |
hinge |
hinge |
|
|
Lift rod type |
thread |
thread |
|
|
Lift capacity at lift point |
KN |
2,294 kgf |
2,294 kgf |
|
Lift capacity at 24 in.behind lift point |
KN |
1,428 kgf |
1,428 kgf |
|
Drawbar type |
swing |
swing |
|
|
Max. Trailer Loading Weight |
kg |
6000 |
6000 |
|
No.of Standard Remote Valve's Ports (Rear) |
2 Sets |
2 Sets |
|
|
Towing Capacity (based on 7.5km/h) |
|||
|
Maximum Towing Power |
KN |
>13.2 |
>13.2 |
|
Drive Train |
|||
|
Transmission |
|||
|
Main Gear Shift x Range Gear Shift |
4x3 range |
4x3 range |
|
|
No. of Speeds |
F12+R12 |
F12+R12 |
|
|
Shuttle Type |
mechanical shuttle |
mechanical shuttle |
|
|
Brake Type |
wet/double disc per side |
wet/double disc per side |
|
|
Main Clutch Type |
Dry with Springs |
Dry with Springs |
|
|
Main Clutch Diameter |
mm |
254 / 11 Inch |
254mm / 11 Inch |
|
Mechanical Differential Lock |
yes |
yes |
|
|
Front Wheel Drive System |
4WD |
4WD |
|
|
Traveling Speeds |
|||
|
Forward |
km/h |
2.37-38.46 |
2.37-38.46 |
|
Reverse |
km/h |
2.07-33.71 |
2.07-33.71 |
|
Other features |
|||
|
Tilt Steering |
yes |
yes |
|
|
Flat Deck Type |
flat floor |
flat floor |
|
|
Panel Type |
suspension |
suspension |
|
|
Dimensions |
|||
|
Overall Length (With 3 Point & front Weight) |
mm |
4136 |
4136 |
|
Overall Width(Minimum Tread) |
mm |
1870 |
1870 |
|
Tread Width Front 4wd |
mm |
1250 |
1250 |
|
Tread Width Rear |
mm |
1300 |
1300 |
|
Overall Height(With ROPS) |
mm |
- |
2657 |
|
Overall Height (Top of Cabin) |
mm |
2822 |
- |
|
Wheel Base |
mm |
1990 |
1990 |
|
Ground(Crop) Clearance |
mm |
310 |
310 |
|
Turning Radius(w/brake) |
mm |
4300/3800 |
4300/3800 |
|
Weight with ROPS Without Loader |
kg |
- |
2320 |
|
Weight with CABIN Without Loader |
kg |
2525 |
- |
|
TireIRE Size |
|||
|
AG. Tire |
|||
|
Front |
8.3-20 AG Or 280\70R20 Radial |
8.3-20 AG Or 280\70R20 Radial |
|
|
Rear |
14.9-24 AG or 380\85R24 Radial |
14.9-24 AG or 380\85R24 Radial |
|
|
Turf Tire |
|||
|
Front |
31X9.5-16 |
31X9.5-16 |
|
|
Rear |
43.5X13-20 |
43.5X13-20 |
|
Specs are correct at time of posting but subject to change.
