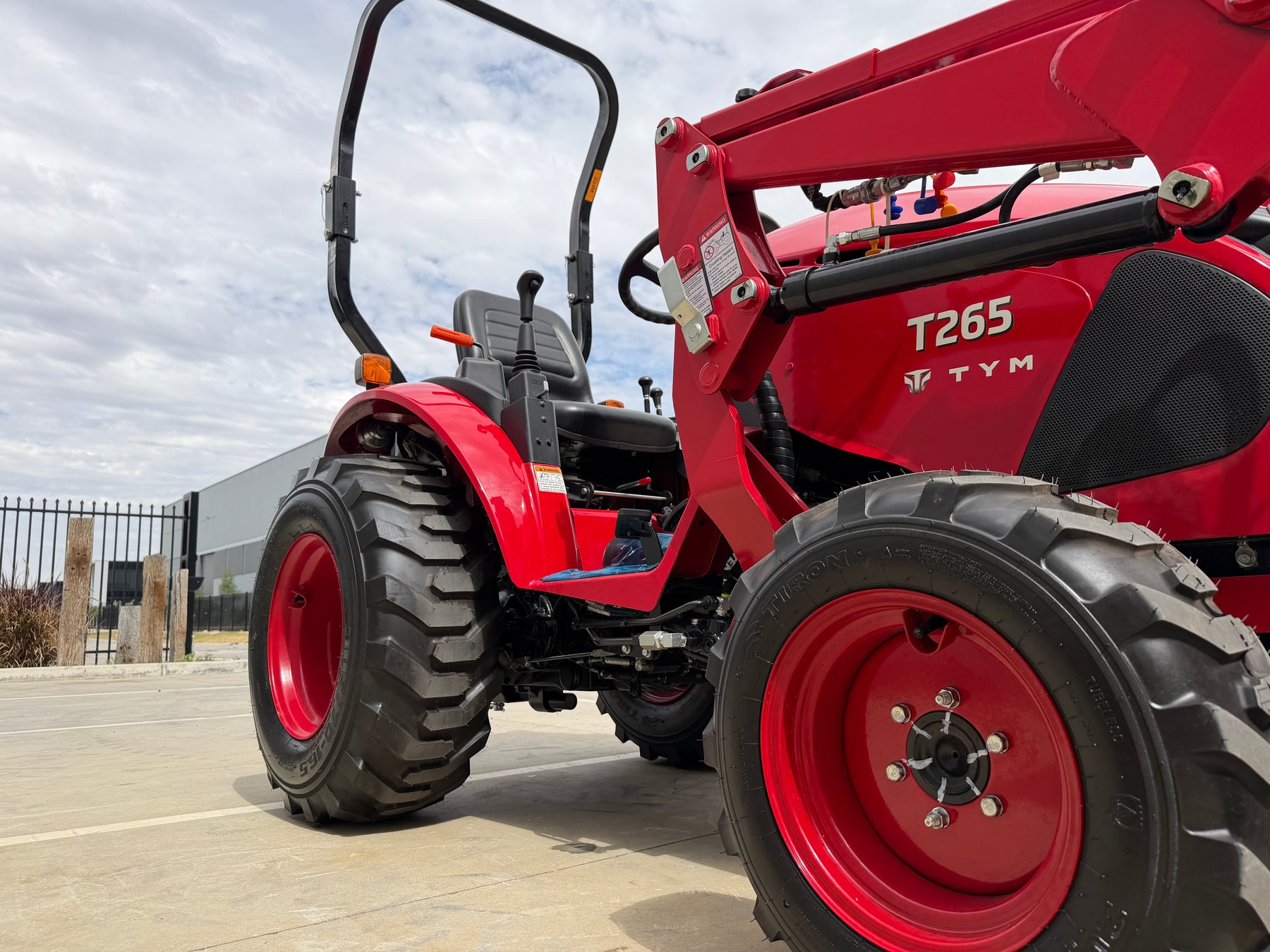

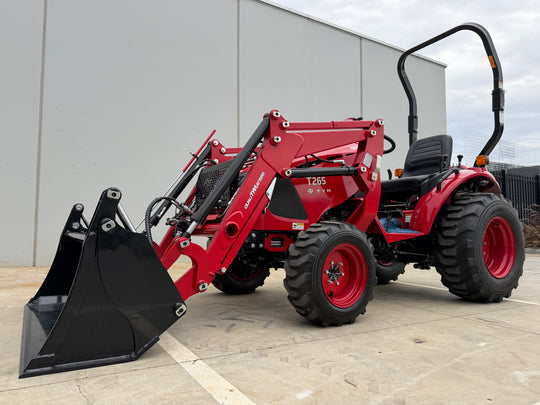

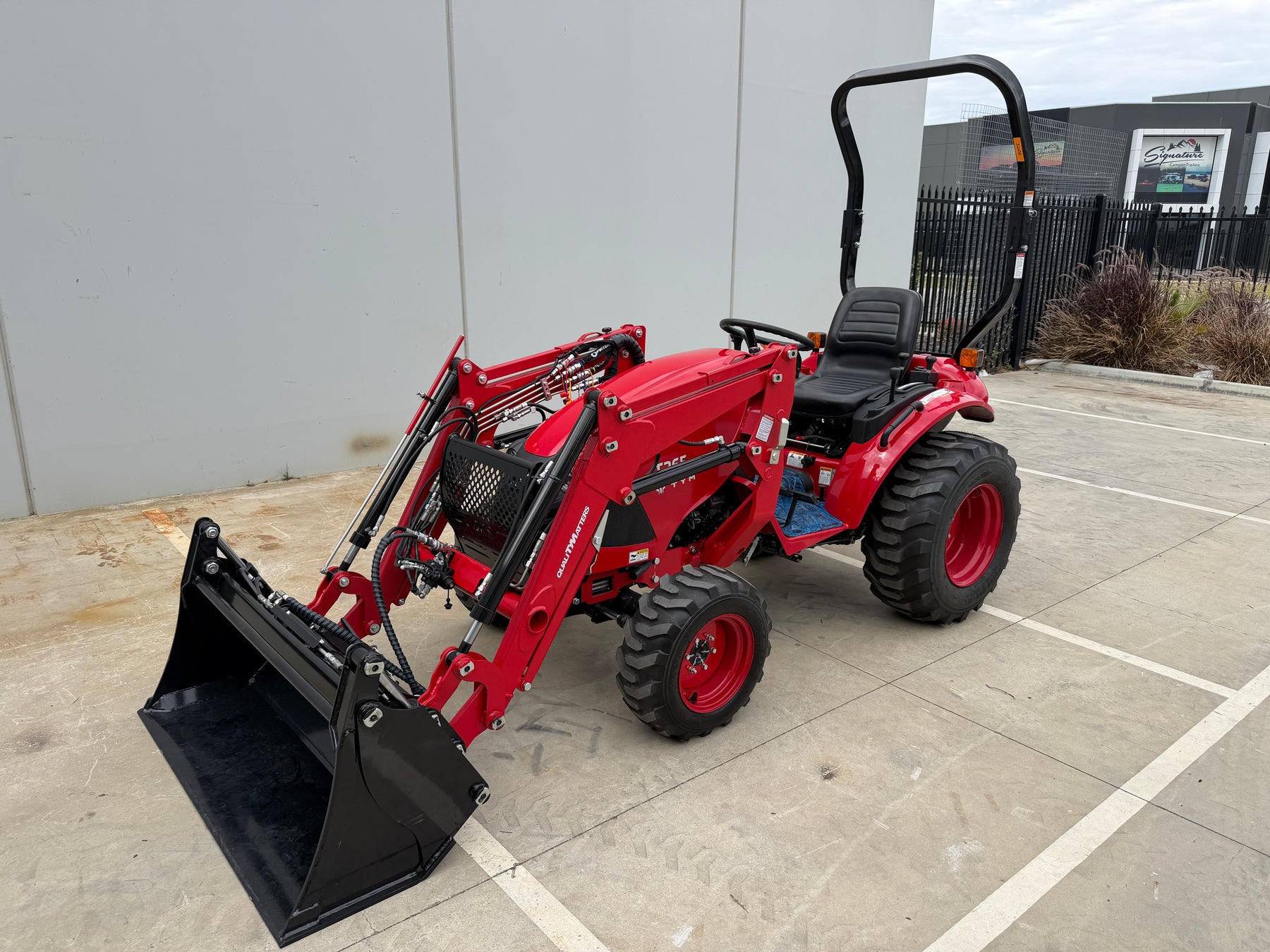

TYM T265, 25hp Tractor with Front end Loader
TYM T265, 25hp Tractor with Front end Loader
TYM T265, 25hp Tractor with Front end Loader
TYM T265, 25hp Tractor with Front end Loader
TYM T265, 25hp Tractor with Front end Loader
TYM T265, 25hp Tractor with Front end Loader
TYM T265, 25hp Tractor with Front end Loader
TYM T265, 25hp Tractor with Front end Loader
TYM T265, 25hp Tractor with Front end Loader
TYM T265, 25hp Tractor with Front end Loader
TYM T265, 25hp Tractor with Front end Loader

TYM T265, 25hp Tractor with Front end Loader

Regular price incl. GST$23,600.00 incl. GST
incl. GST/incl. GST
incl. GST

  • In stock, ready to ship
  • Inventory on the way

Product Description

FEATURES OF THE TYM 'T265' TRACTOR

ENGINE

Mitsubishi Engine
  • Powered by 24.5hp TYM naturally aspirated 3 cylinder water-cooled Diesel engine.
  • TYM Diesel engine, a Tier 4 engine producing plenty of torque at low enging RPM providing outstanding in field performance.
  • Engine certified to meet the stringent Tier 4 engine and noise emission standards.
  • Dual dry element air cleaner for Australia's dusty conditions.
  • A generous 25 litre fuel tank for many working hours between refueling.

DRIVELINE

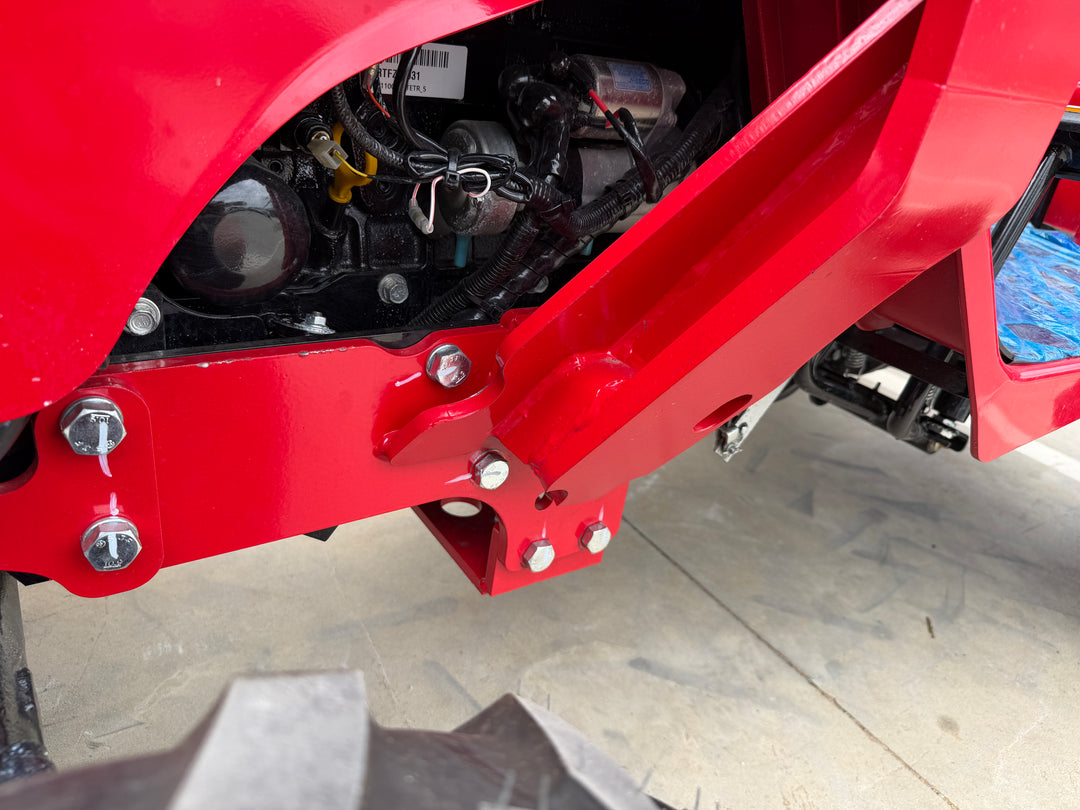

T265 Chassis
  • The tractor weight of 865kg is a reflection of the heavy duty transmission, driveline and axles. The tractor weight is in part, a result of the heavy front axle, which is important for a tractor fitted with a front end loader as substantial loads are applied during loader operation
  • The high efficiency two range (2) hydrostatic transmission gives infinitely variable drive speed from stationary to 16km/h in the forward and reverse direction

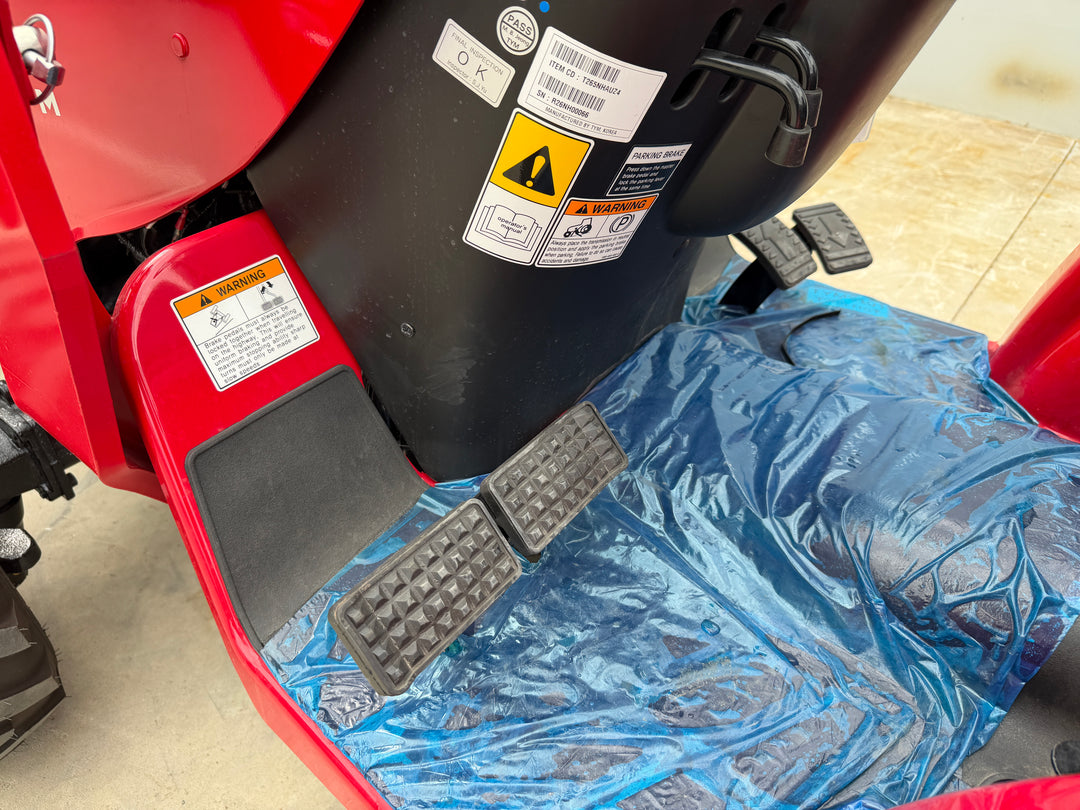

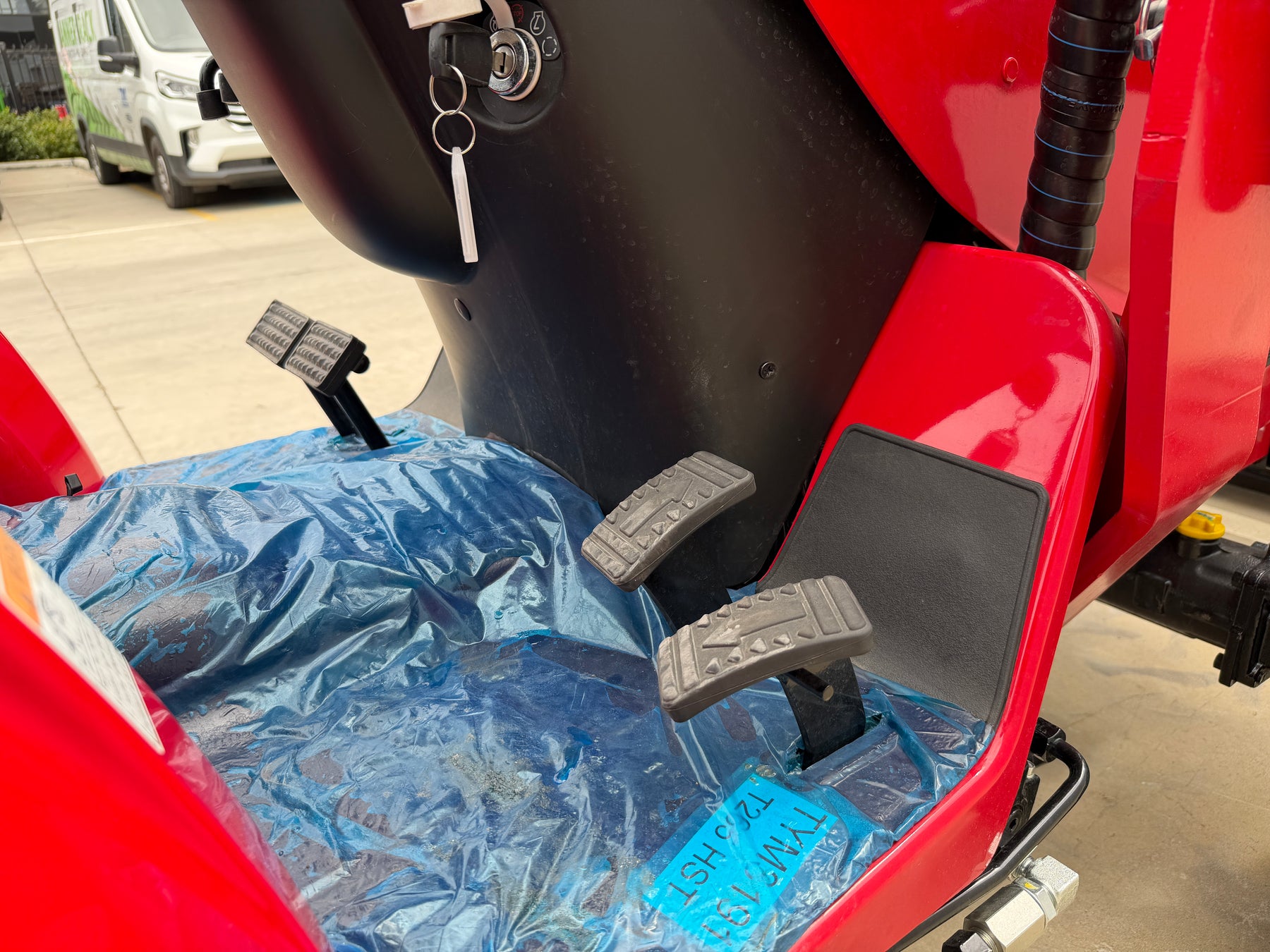

TYM T265 Foot Controls
  • The Hydrostatic drive controlled by side-by-side forward and reverse pedals for ease of operation.
  • Hydrostatic power steering lightens steering especially important with front end loaders
  • Cruise control for tireless driving when mowing large areas.

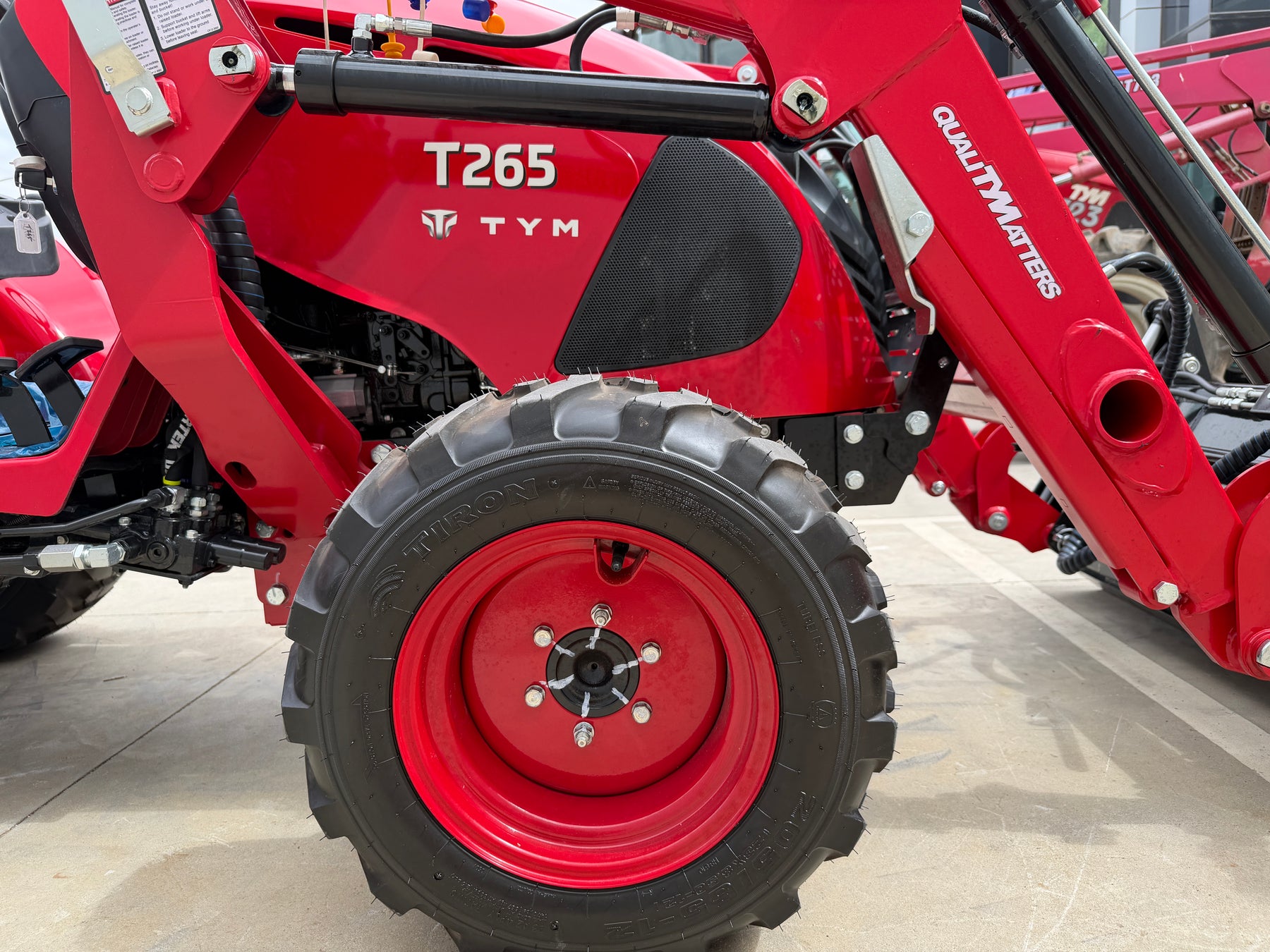

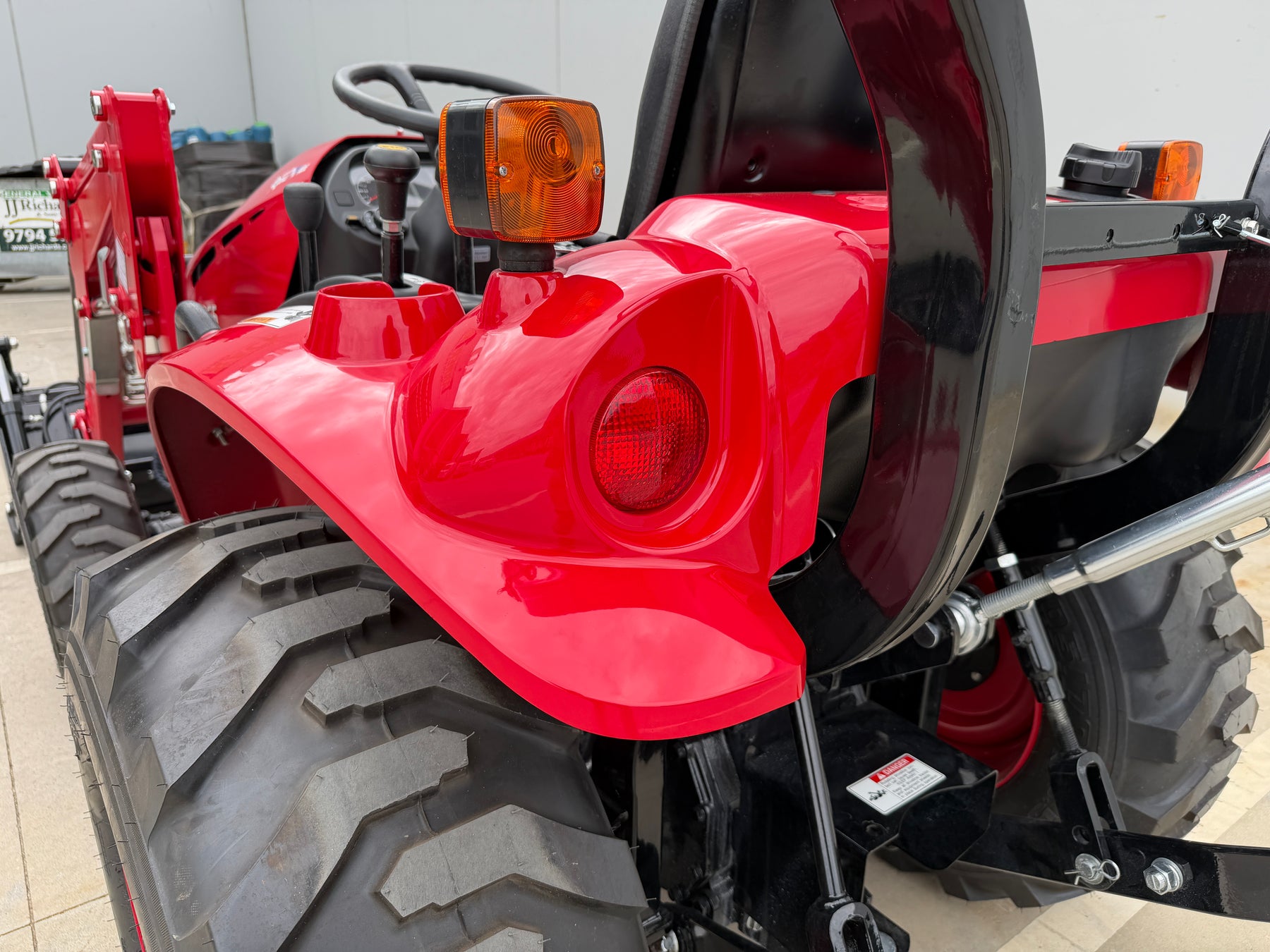

TYM T265 Rear Tyre
  • Industrial front and rear tyres are ideal for front-end loader applications
  • Large 23x8.5-12 Front tyres
  • Large 12-16.5 Rear tyres

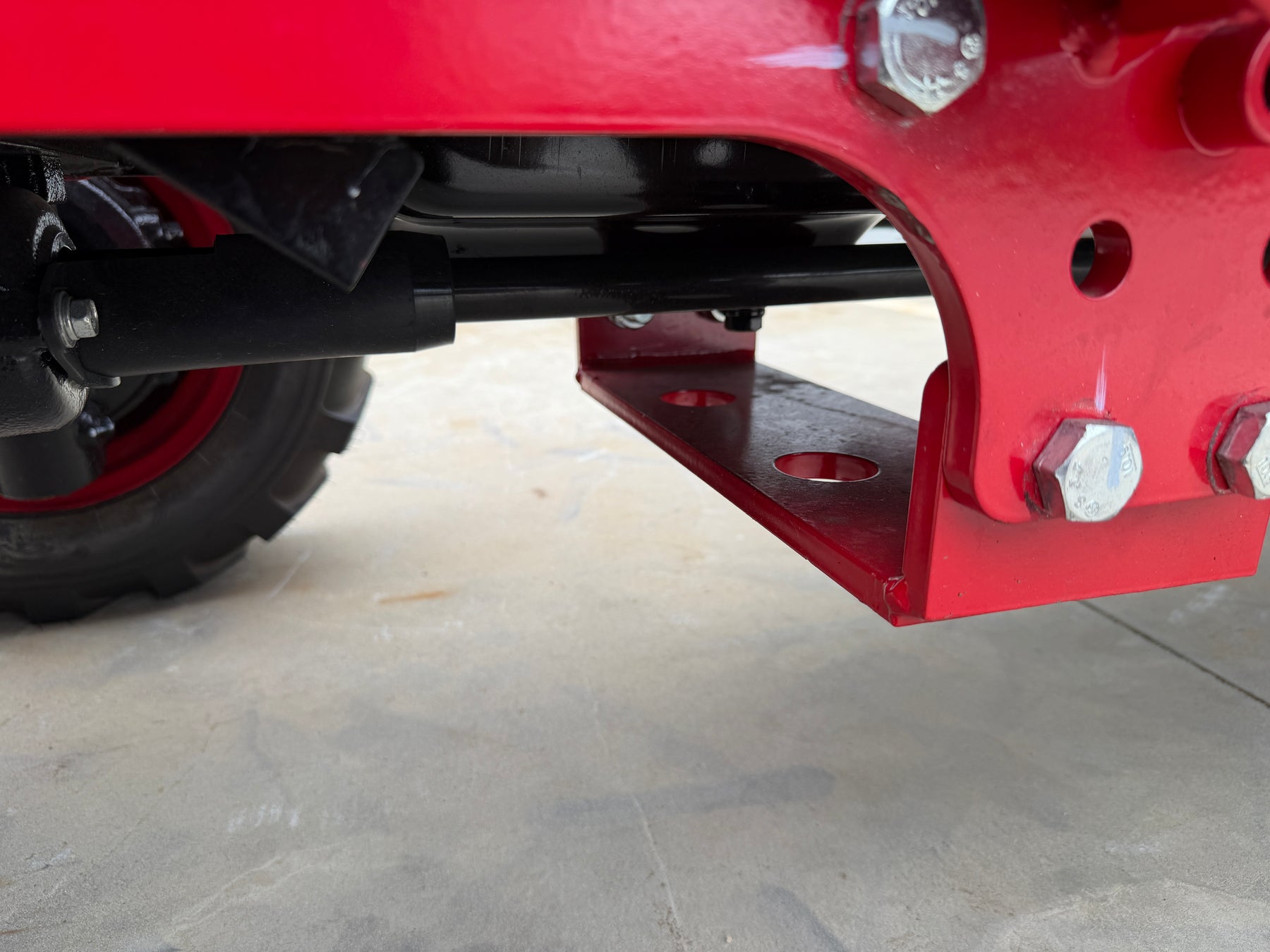

TYM T265 Axle
  • The heavy duty front axle performs in tough working conditions and handles loads with ease
  • A long wheel base and wide stance increases stability in all conditions

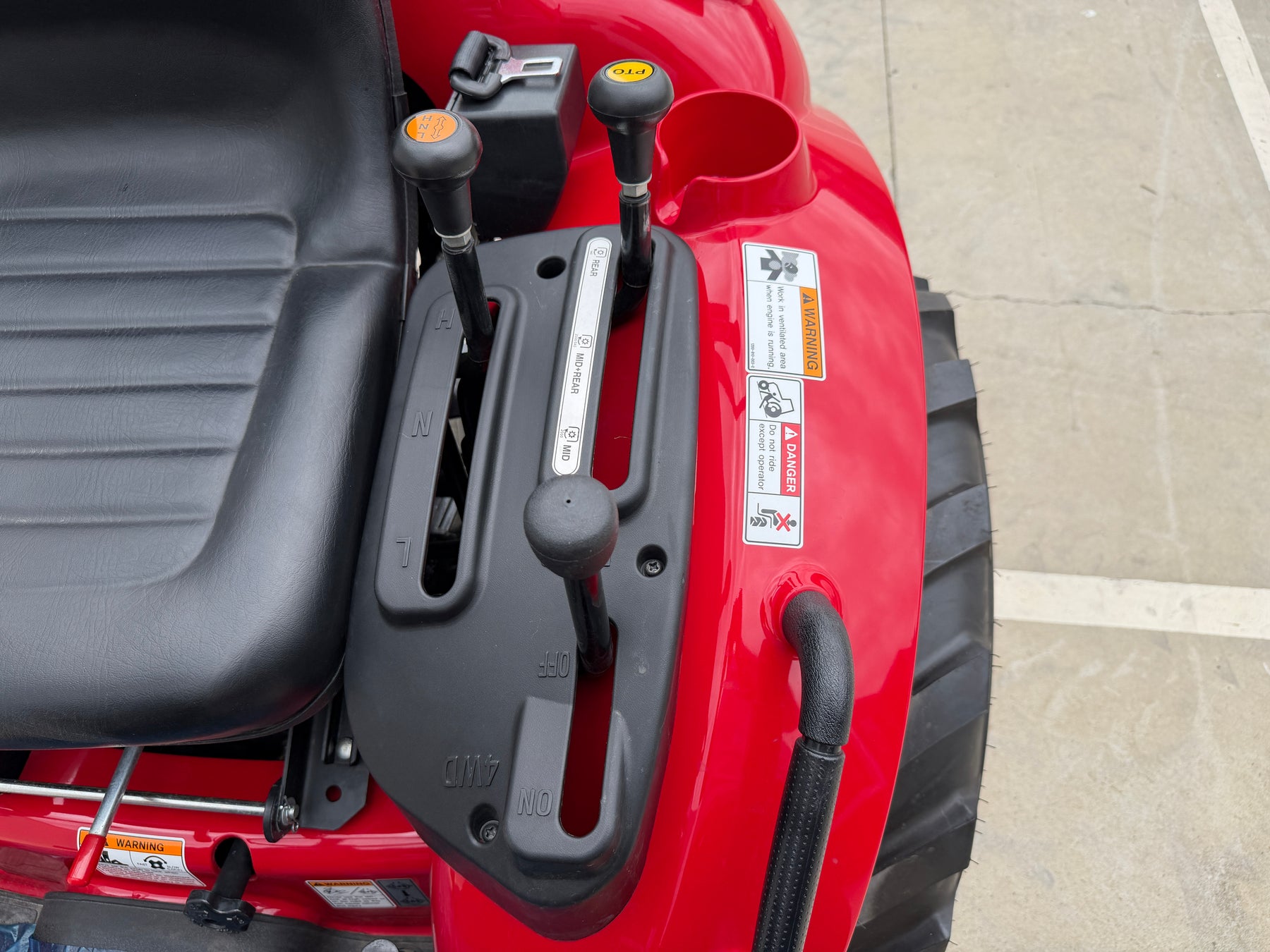

TYM T265 4WD Lever
  • 4WD and the Diff Lock provides better traction, control and performance
  • 4WD mode is controlled by a lever on the left hand side of the operator
  • Rear axle with diff-lock for difficult traction situations
  • Inboard wet disc brakes with LHS-RHS brake splitting for brake assisted turning in tight situations

PTO, HYDRAULICS & LINKAGE

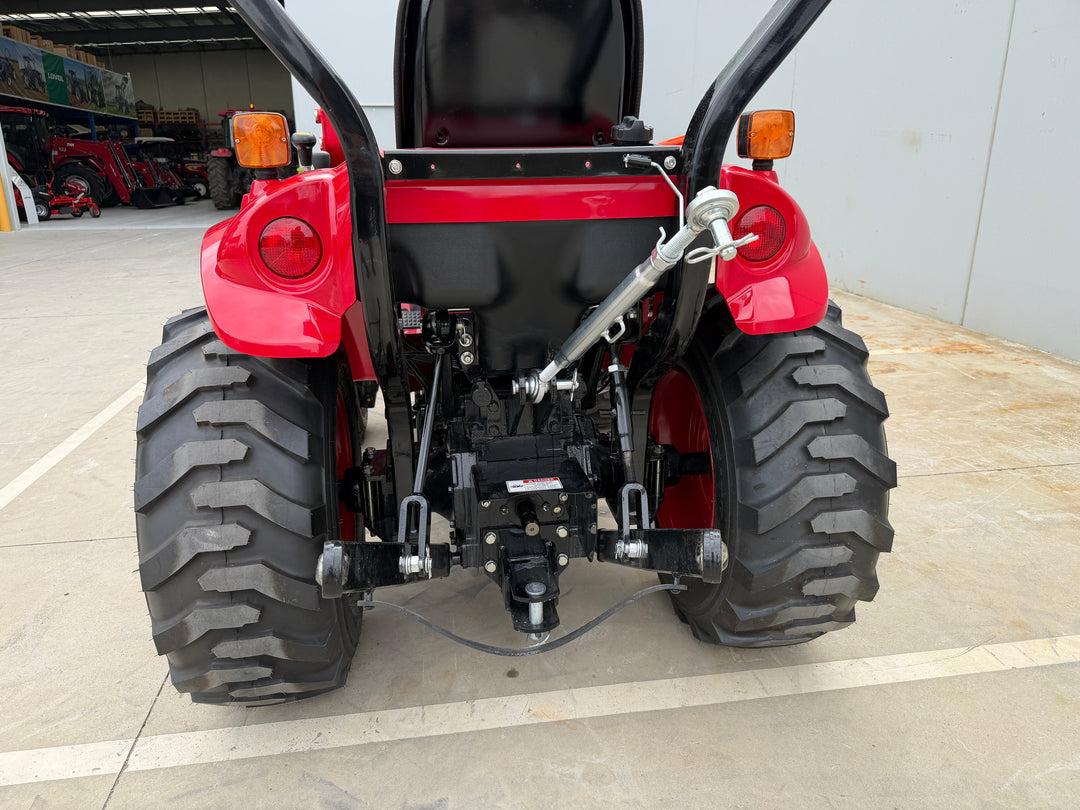

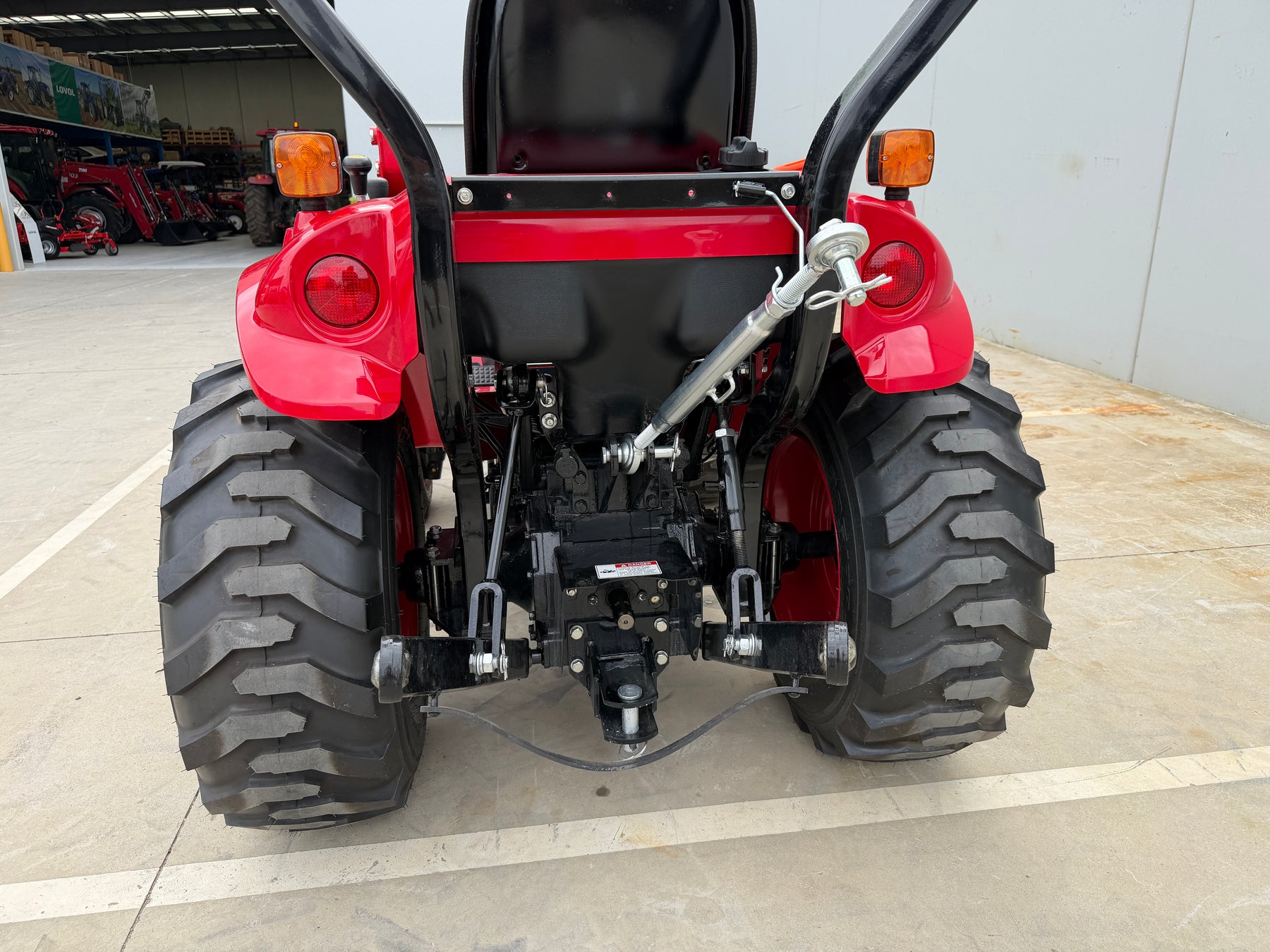

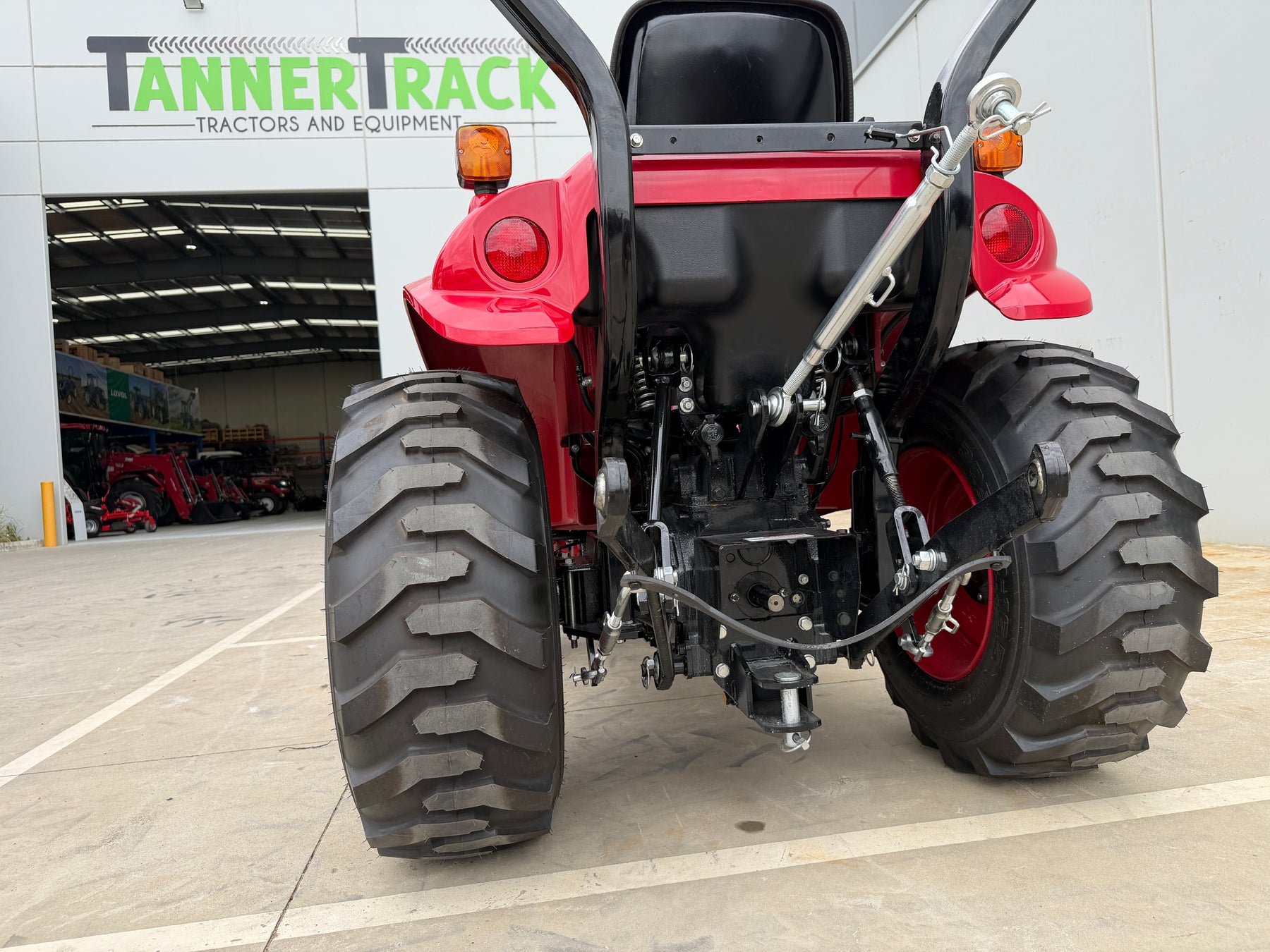

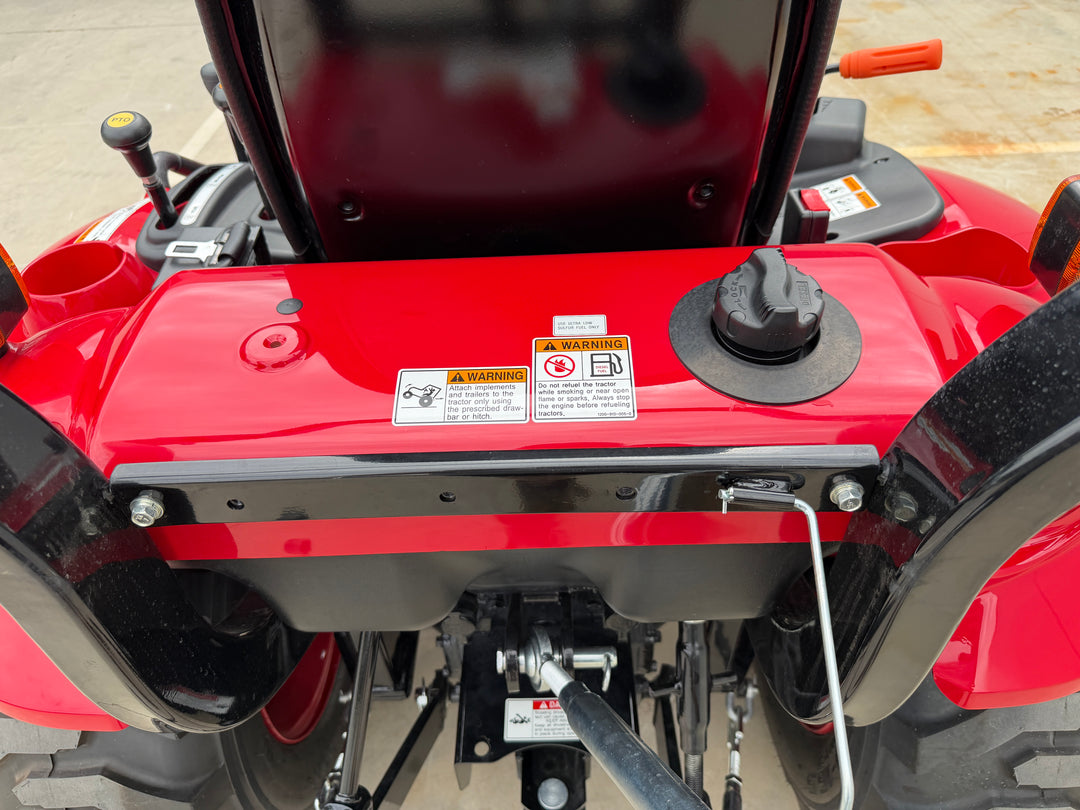

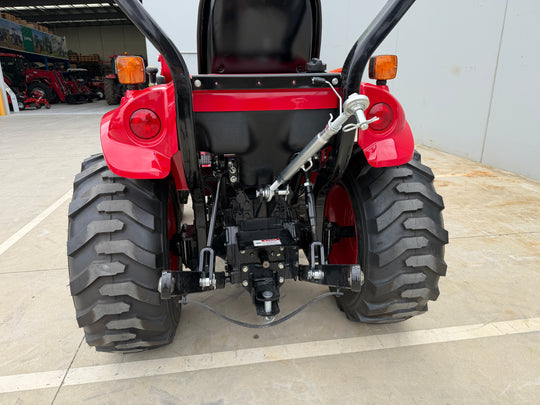

TYM T265 Rear Linkage
  • 1 set of double-acting hydraulic remotes
  • Category 1, 3-point linkage with manual position controls
  • 700kg lifting capacity gives the tractor great versatility and will handle many attachments
TYM T265 PTO
  • The PTO drive is a smiple and direct design for high efficiency and power
  • The PTO clutch is and independant oil immersed clutch pack for long life and simple operation

CONTROLS

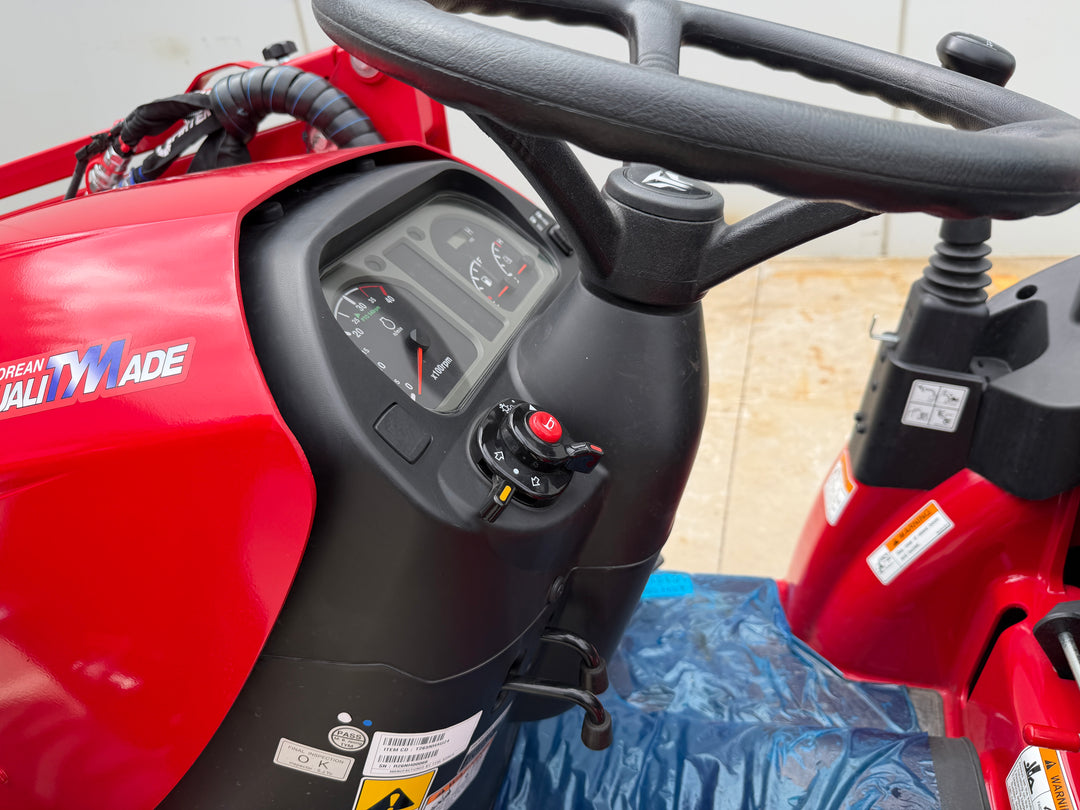

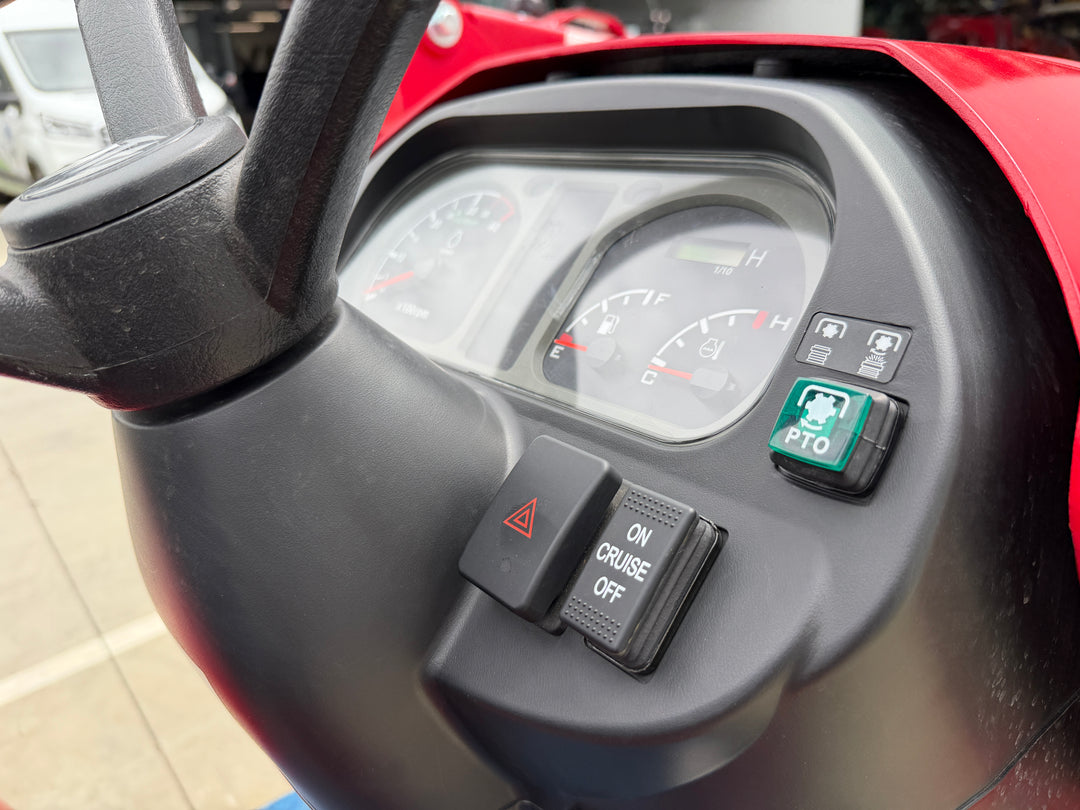

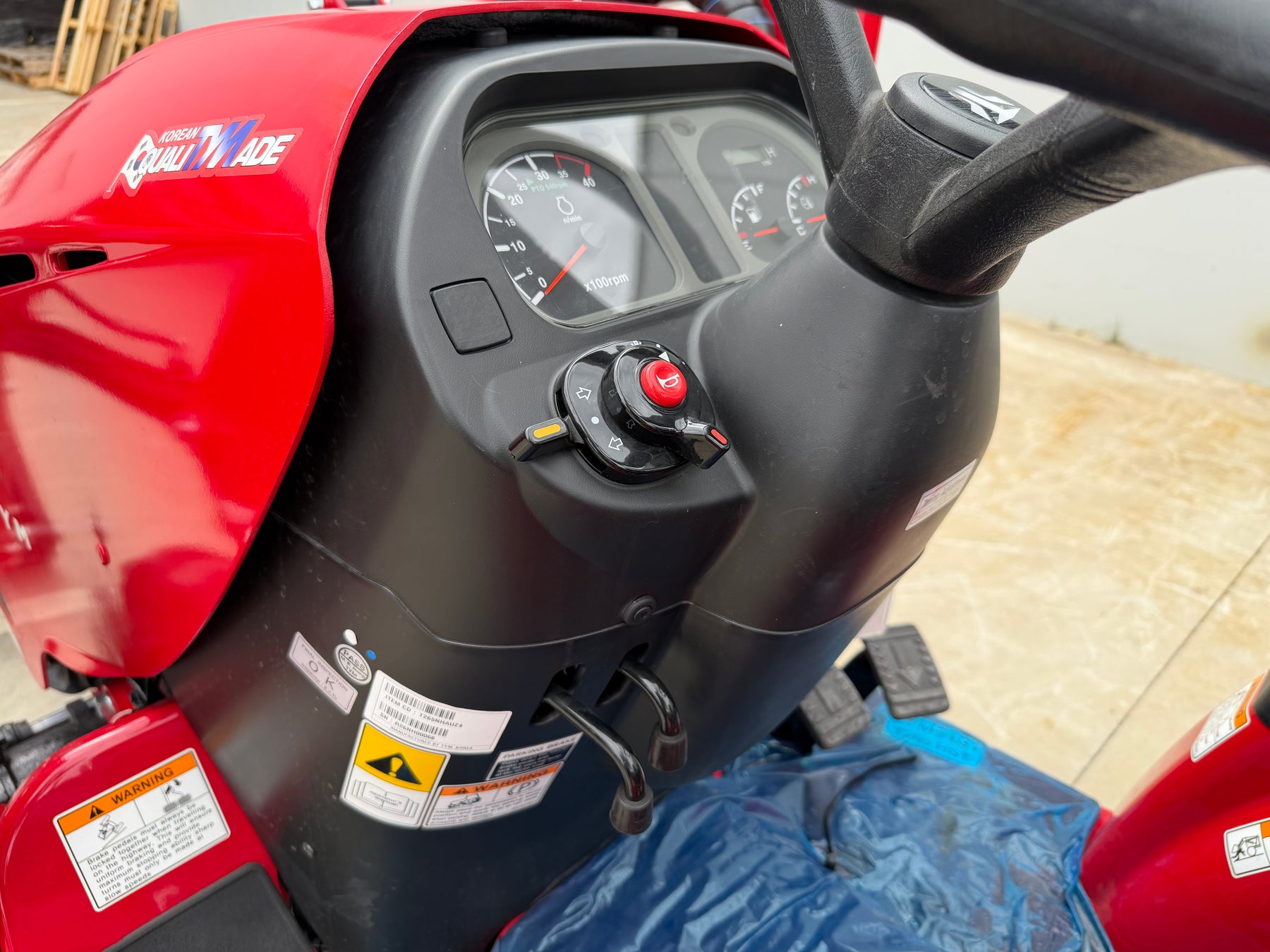

TYM T265 Dash
  • Ergonomic design - easy to reach controls
  • Easy to read instrument panel
  • Combination S/W
  • Cruise Control
  • Push button PTO On/Off Switch

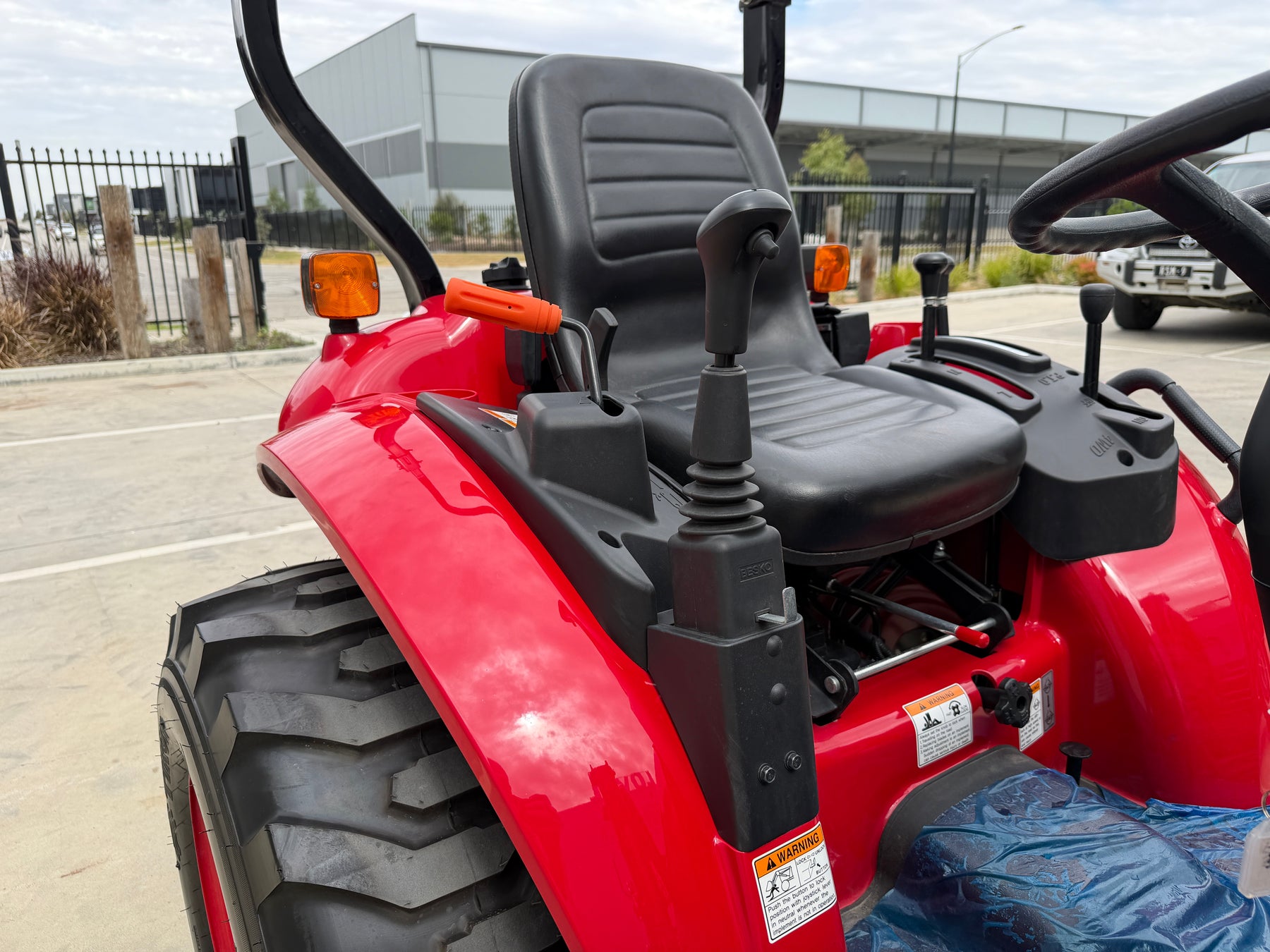

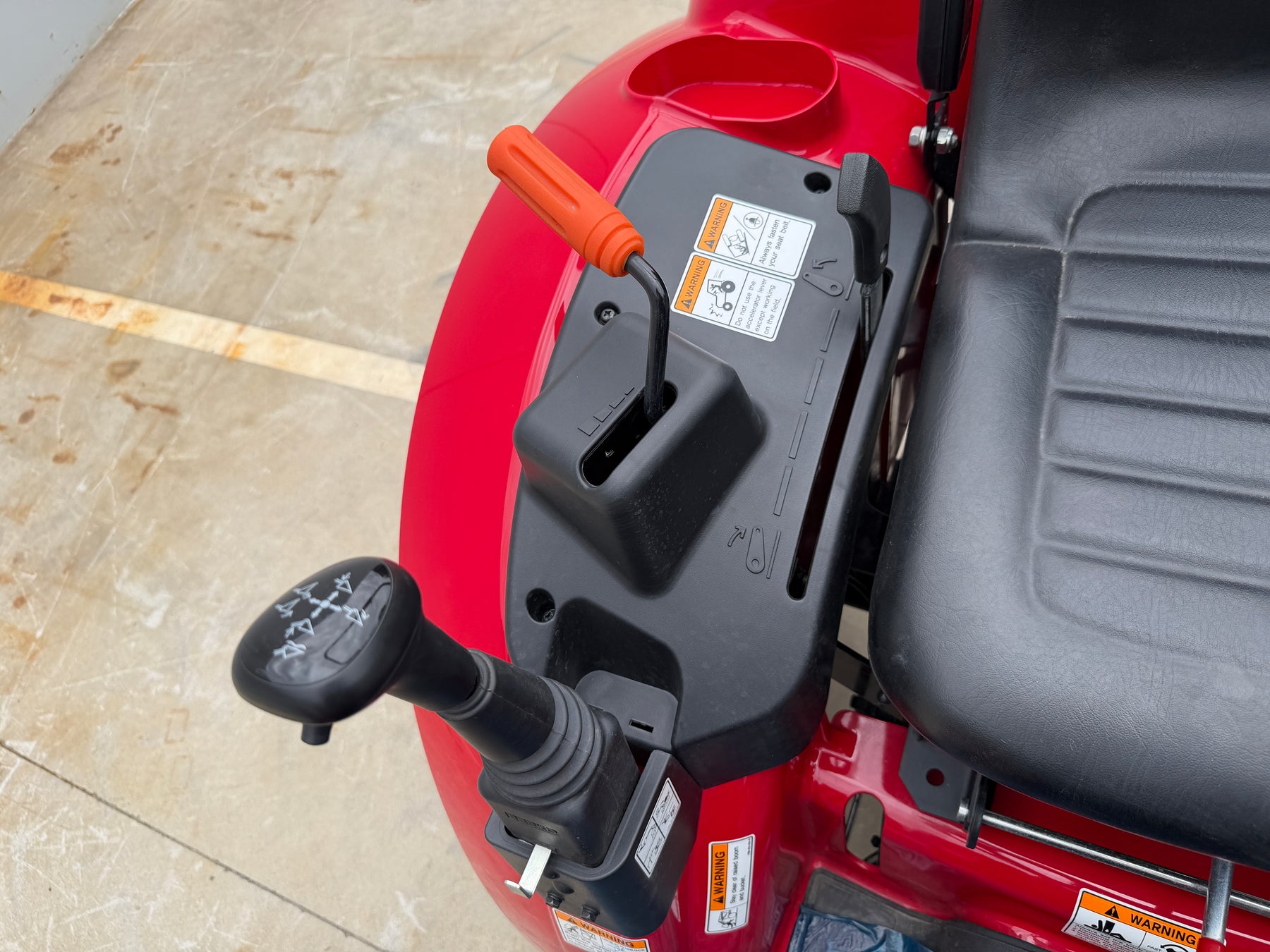

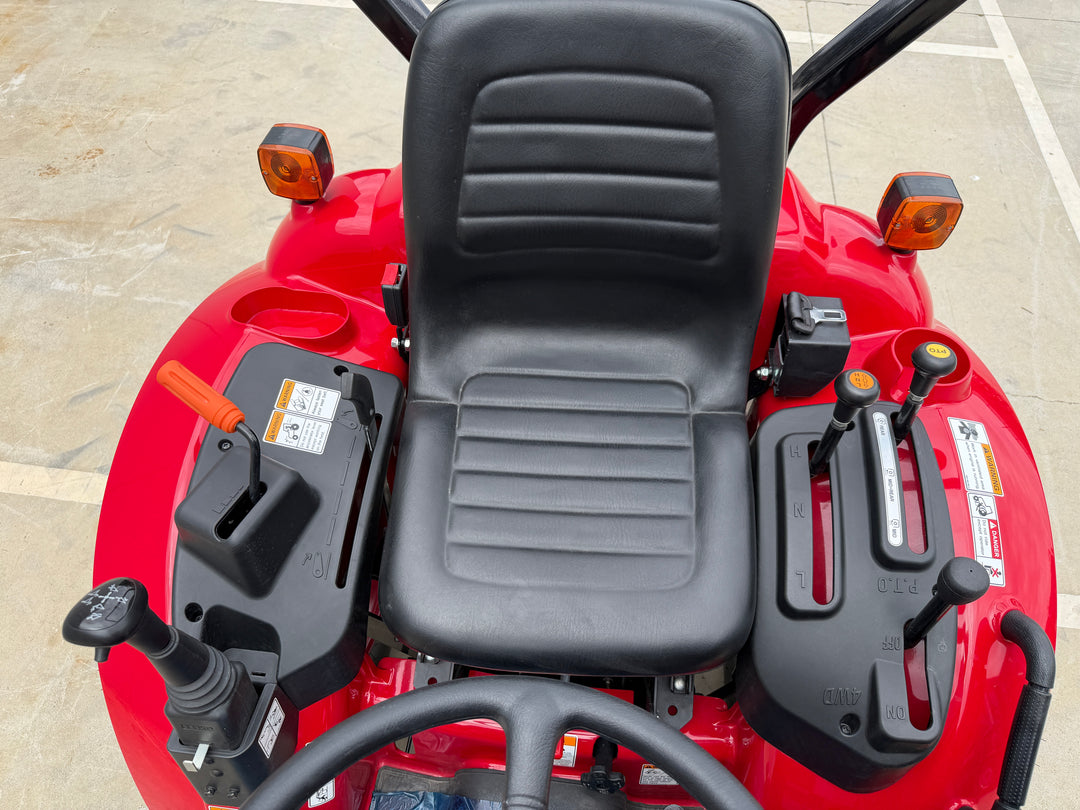

TYM T265 Joystick
  • Throttle lever (orange lever) is conveniently located adjacent to the steering wheel
  • 3 point linkage position lever
  • Fully integrated single joystick for control delivers ergonomic operation of front end loader

LAYOUT

TYM T265 Tractor Access
  • Clean uncluttered access

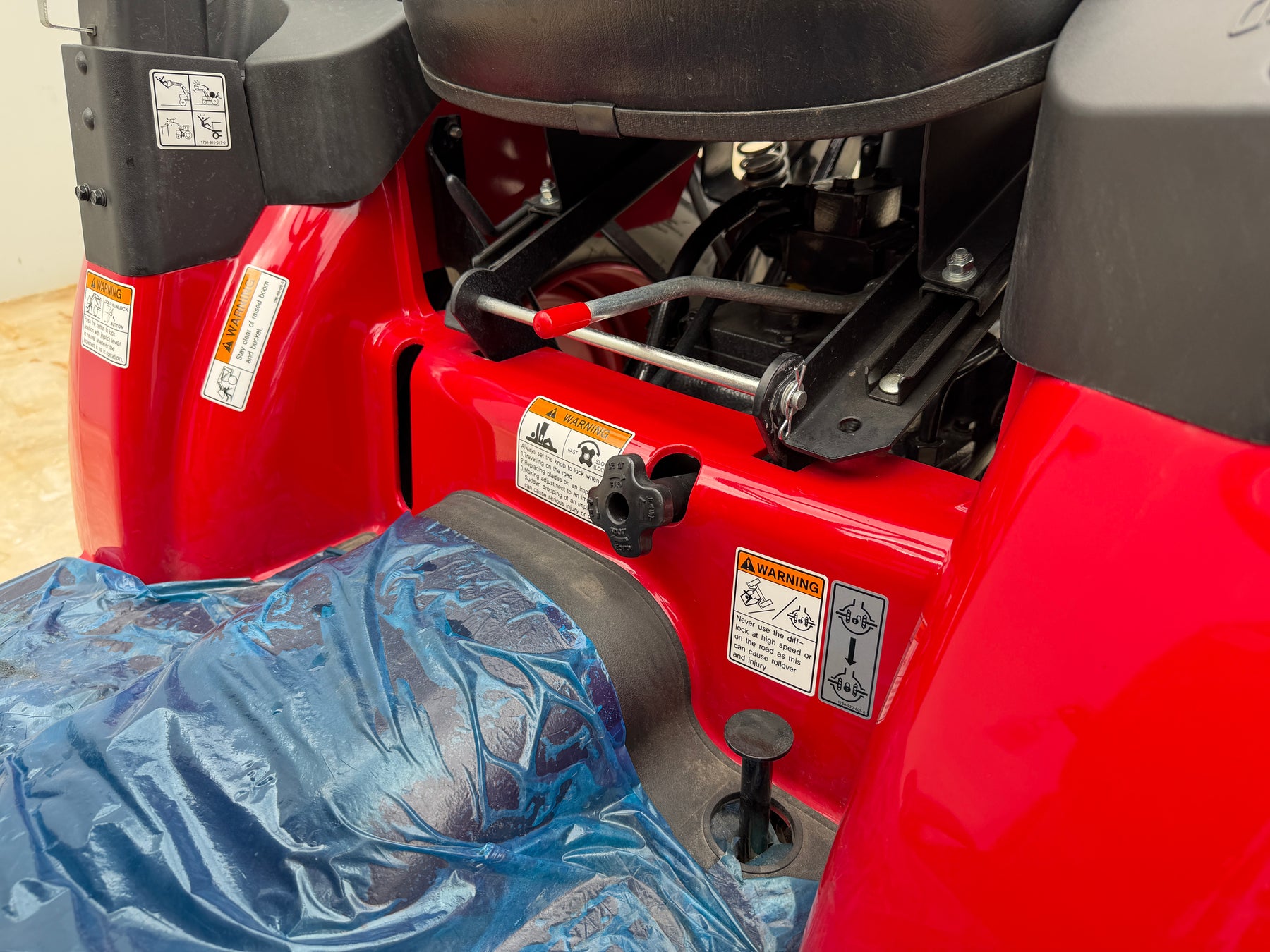

TYM T265 Brake Steer
  • Turning brakes located on operator's left to improve turning in confined areas.

AUXILIARY HYDRAULIC VALVE

TYM T265 Tractor Auxiliary hydraulic valve
  • For the operation of log splitters

OPTIONS

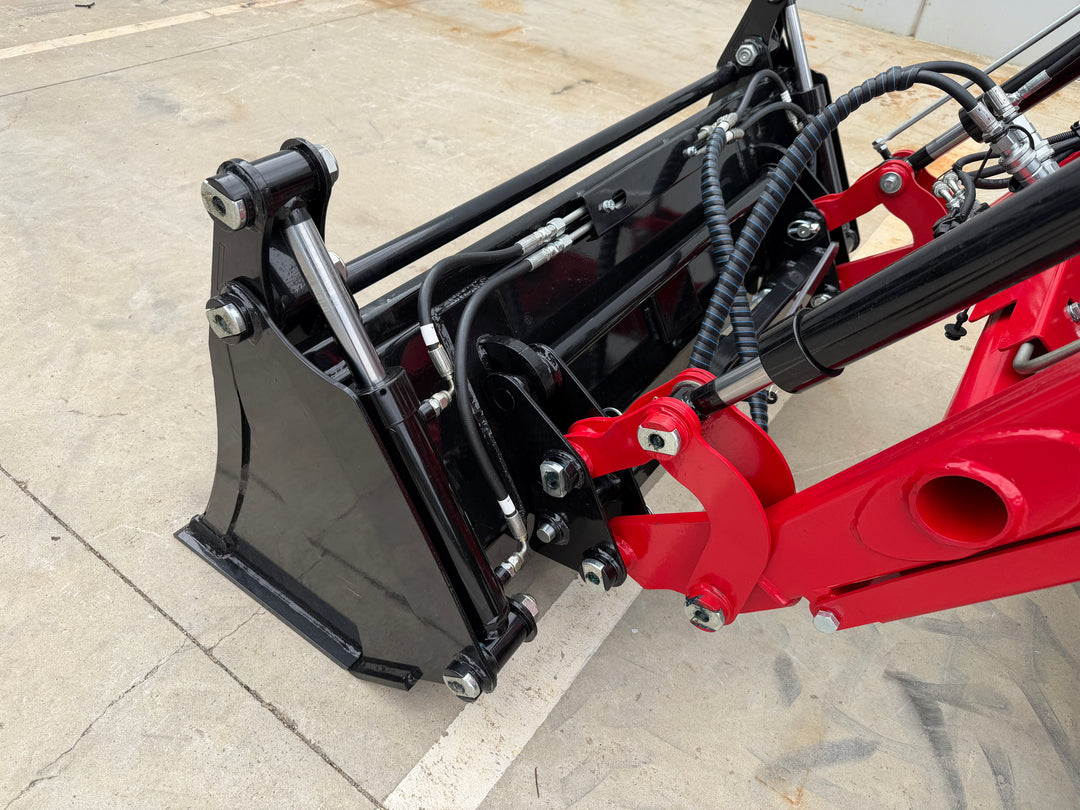

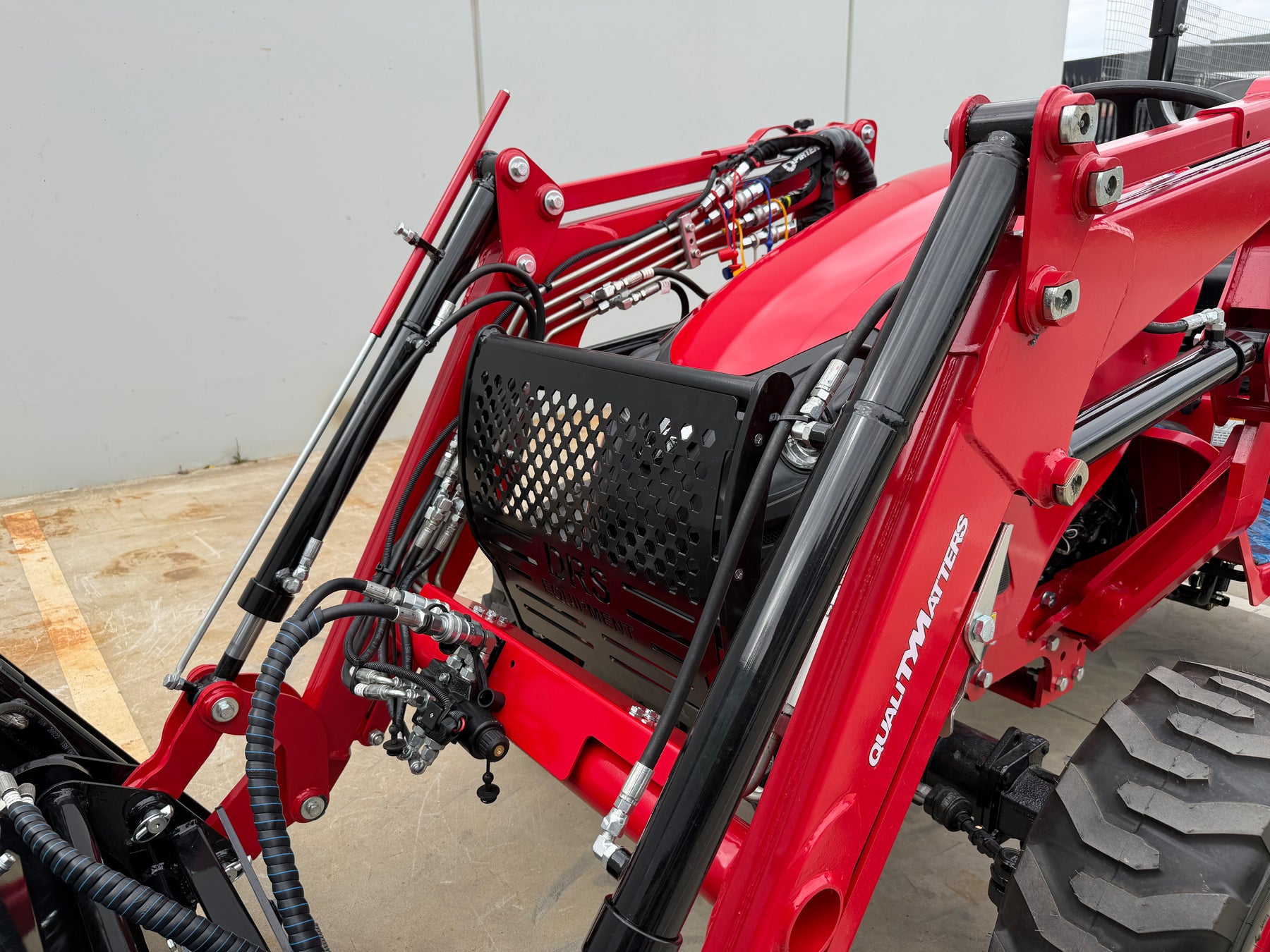

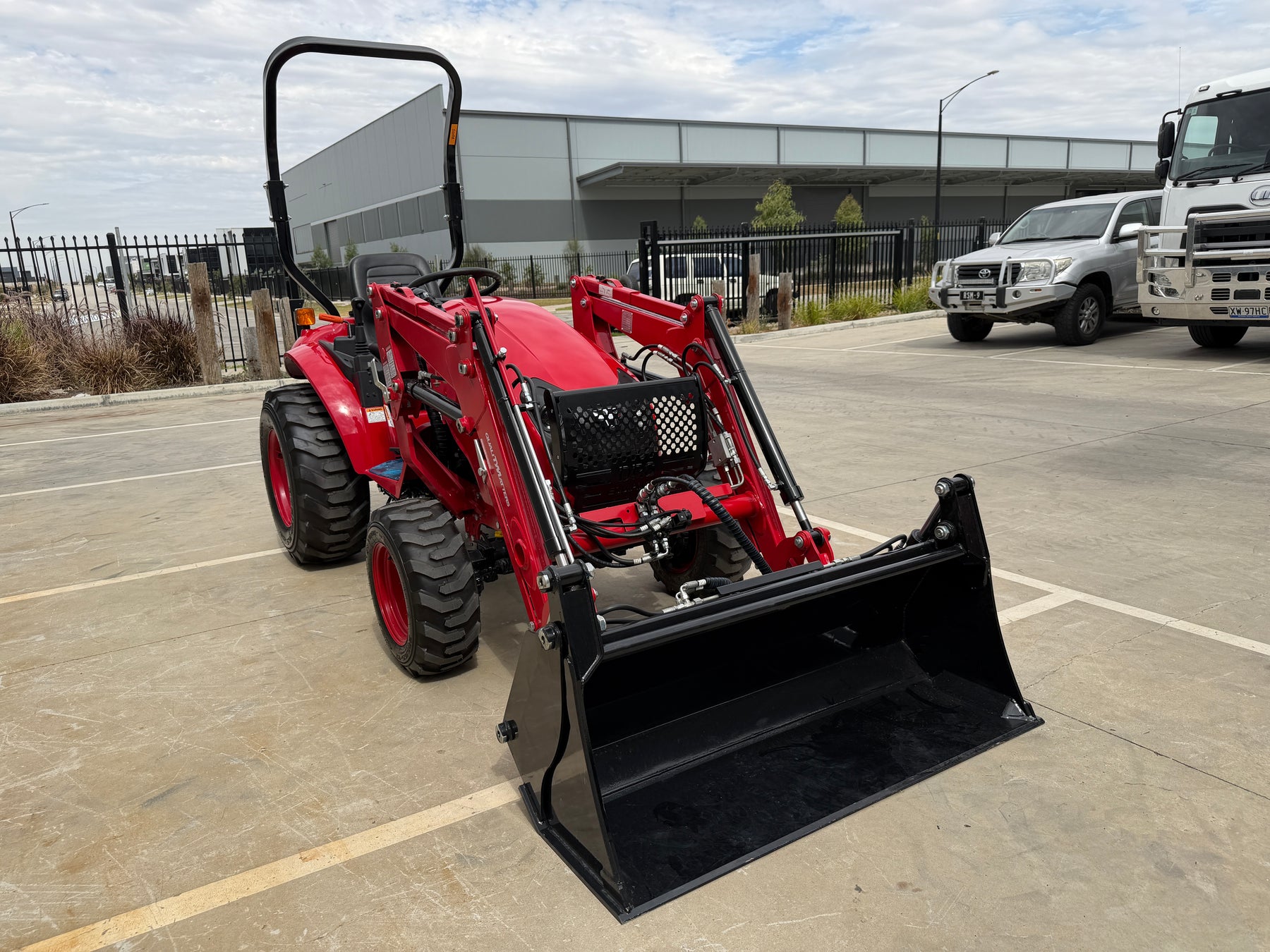

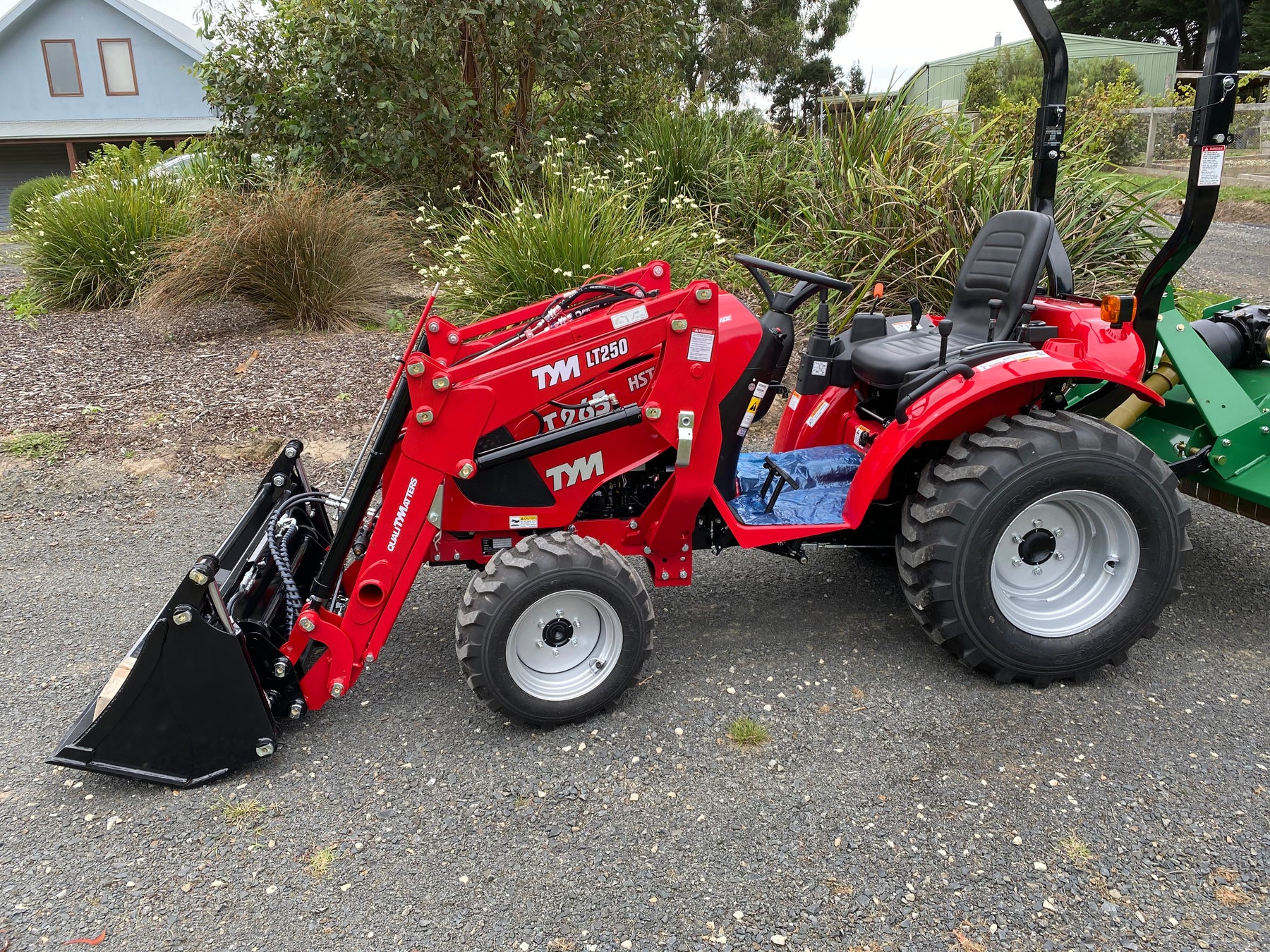

FRONT END LOADER

Options

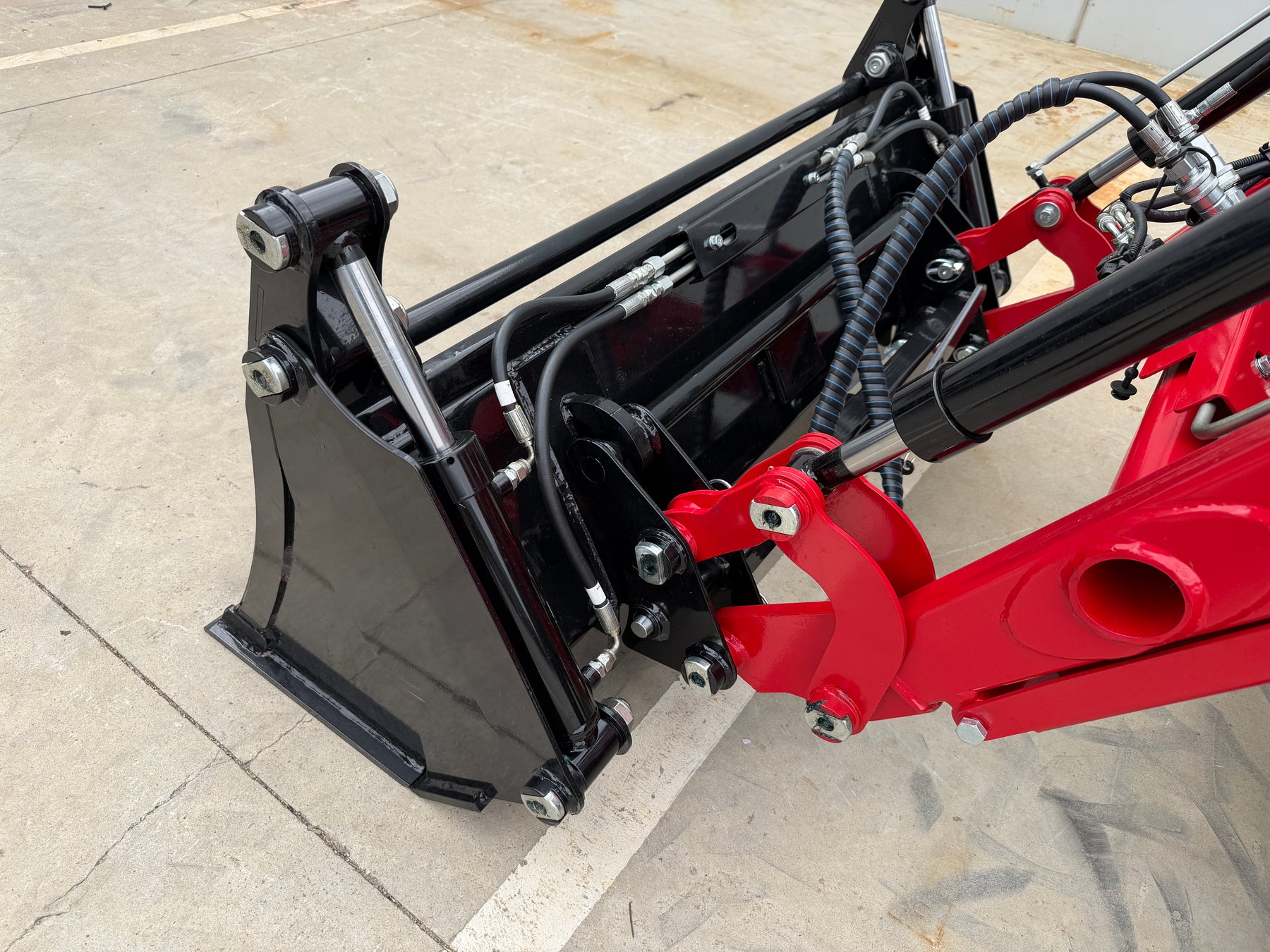

  • Level lift Front-end Loader ideal for materials handling and utility work around the small farm.

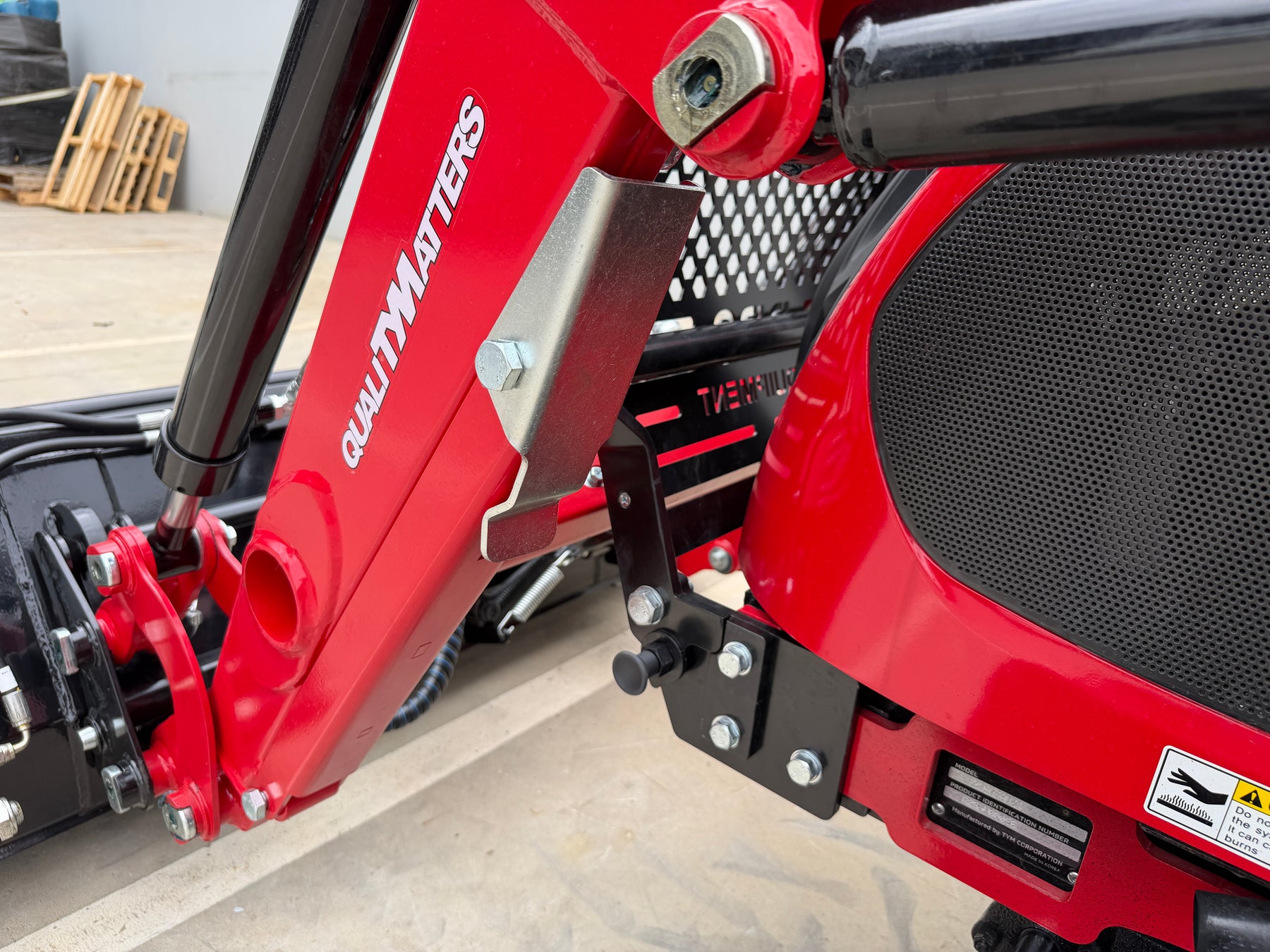

  • Easy quick detach bucket and loader with inbuilt quick release loader parking stands
  • Inegrated loader joystick with "trigger" button control for 4-in-1 bucket
  • Superb visability to loader bucket
  • Level lift indicator
  • Full details & specifications on the optional front end loader

SPECIFICATIONS

T265
Engine Type TYM
Engine Power (hp/kW) 24.5 / 18
Rated power @engine RPM 2600
Number of Cylinders/cc 3/1175
Transmission Type Hydrostatic
Forward / Reverse Shuttle Type HST
Number Speed Ranges 2
Maximum Speed (km/h) 16
PTO Speeds (rpm) 540
Mid PTO Tick
Independent Push Button PTO engagement Tick
Steering brakes Tick
3-point Linkage Lift Capacity (kg) 700
Number of Hydraulic Remotes 1 set
Integrated Joystick Control for Front-end Loader Tick
Weight - Tractor Only (kg) 865
