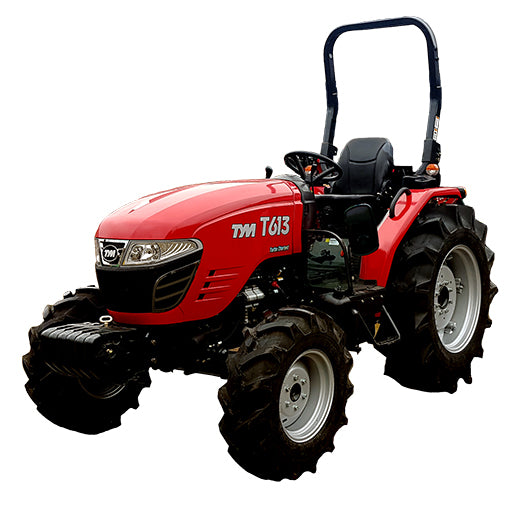

FEATURES OF THE TYM 'T613' 4WD TRACTOR
|
ENGINE
|
 |
- Powered by 60hp TYM 4 cylinder Diesel engine
- Quiet running engine certified to meet the stringent Tier III engine and noise emission standards
- 2286cc engine, resulting in high torque for serious work
- Dual dry element air cleaner for Australia's dusty conditions
- 50 litre fuel tank capacity will provide for many working hours
|
DRIVELINE
|
 |
- The tractor weight of 1960kg (ROPS version) is a reflection of the heavy duty transmission, driveline and axles. The tractor weight is in part, a result of the heavy front axle, which is important for a tractor fitted with a front end loader as substantial loads are applied during loader operation
- See optional front end loader for details
|
 |
- 12 speed transmission with synchromesh for easy forward and reverse directional changes
- Shuttle shift with lever positioned under steering column
- 3 Ranges with range lever located to operator's right
- 0-33km/h maximum speed
|
 |
- The heavy duty front axle performs in tough working conditions and handles loads with ease
- A long wheel base and wide stance increases stability in all conditions
|
 |
- Rear axle with diff-lock for difficult traction situations
- 4WD and the diff-lock provides better traction, control and performance
- 4WD mode is controlled by a lever on the left hand side of the operator
- Inboard wet disc brakes can be split for indpendent left and right side braking to assist turning in tight situations
|
PTO, HYDRAULICS & LINKAGE
|
 |

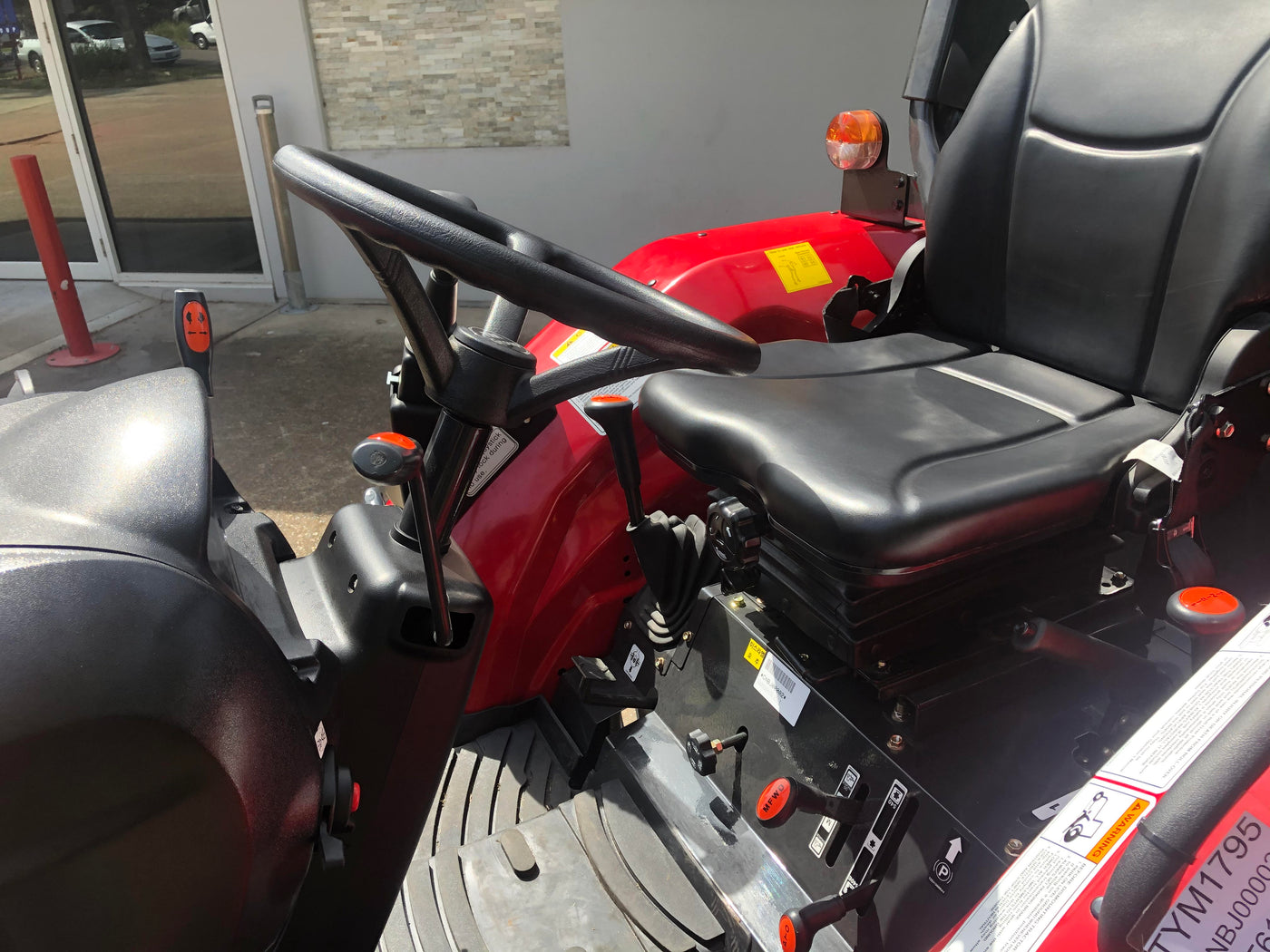

- Control for the linkage and hydraulic remotes are on the right-hand side

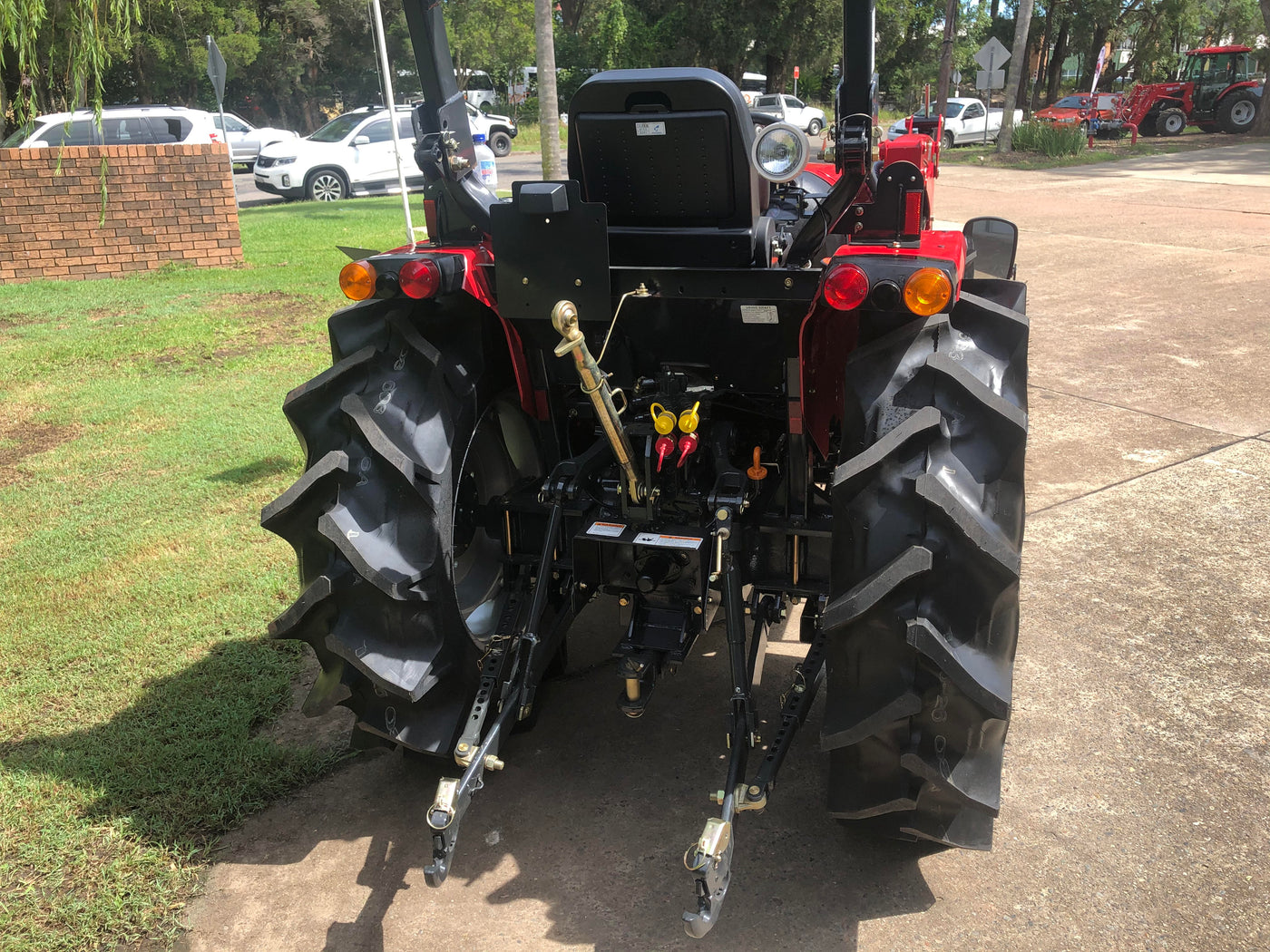

- 3-point linkage with quick attach lower link arms
|
 |
- 2 sets of double-acting hydraulic remotes
- 3-point linkage with 1500kg lifting capacity gives the tractor great versatility and range of applications
- Adjustable lower link stabiliser arms
|
 |
- The PTO driveline is a simple and direct design for high efficiency and power
- The PTO clutch is an independant oil immersed clutch pack for long life with simple push-button operation
- Auto-PTO function automatically disengages the PTO when the linkage is raised, and automatically re-engages when lowered; a great function that simplifies repeated row work and prevents implement damage
|

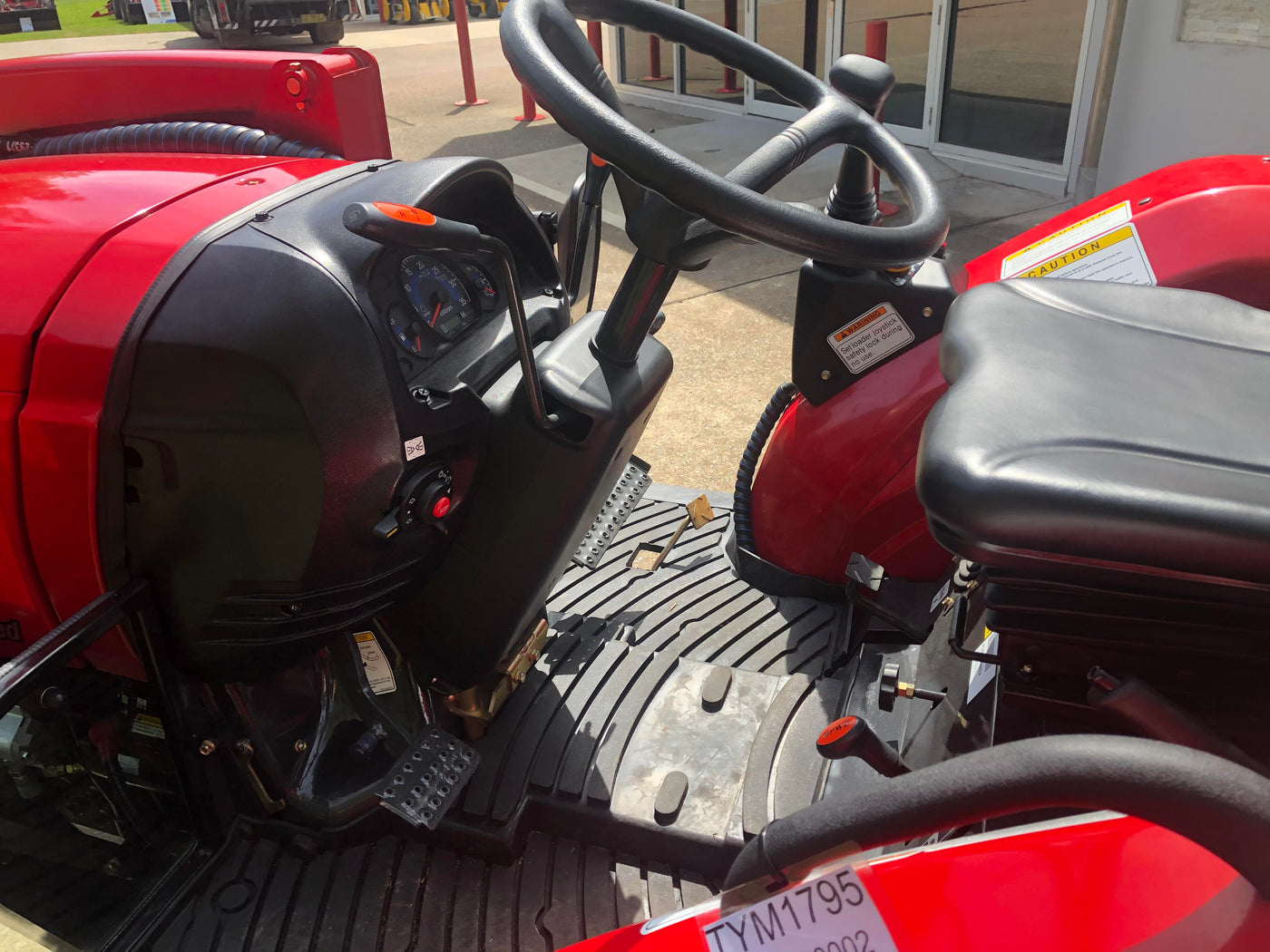

COCKPIT
|
 |
- Ergonomic design with easy to reach controls
- Easy to read instrument panel
- Combination switch controls lights and indicators
- Digital hour metre display
|
 |
|
 |

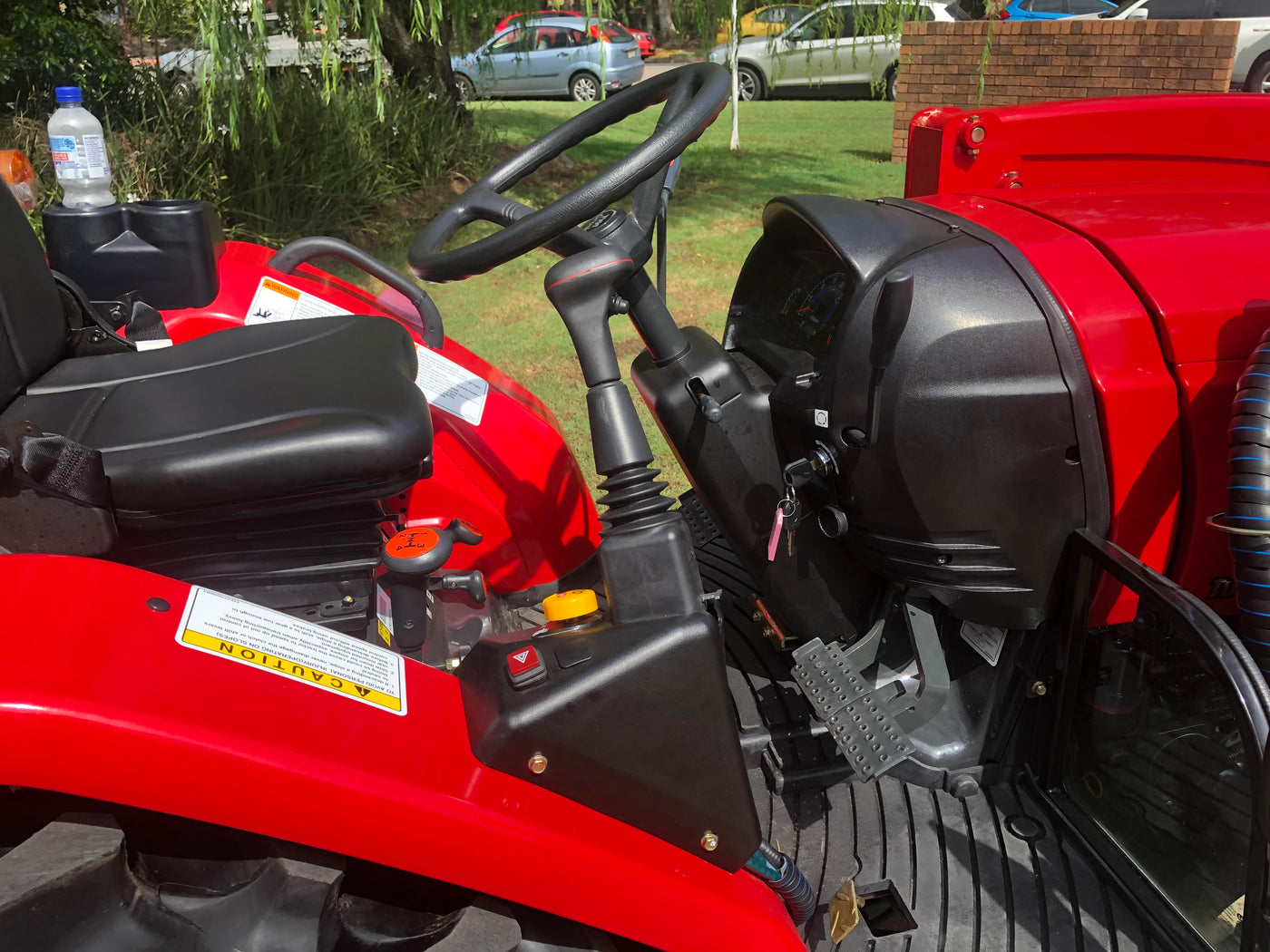

- Fully integrated joystick for control of front end loader with electric button for third function operation (when fitted)
- See optional front end loader for details
|
 |

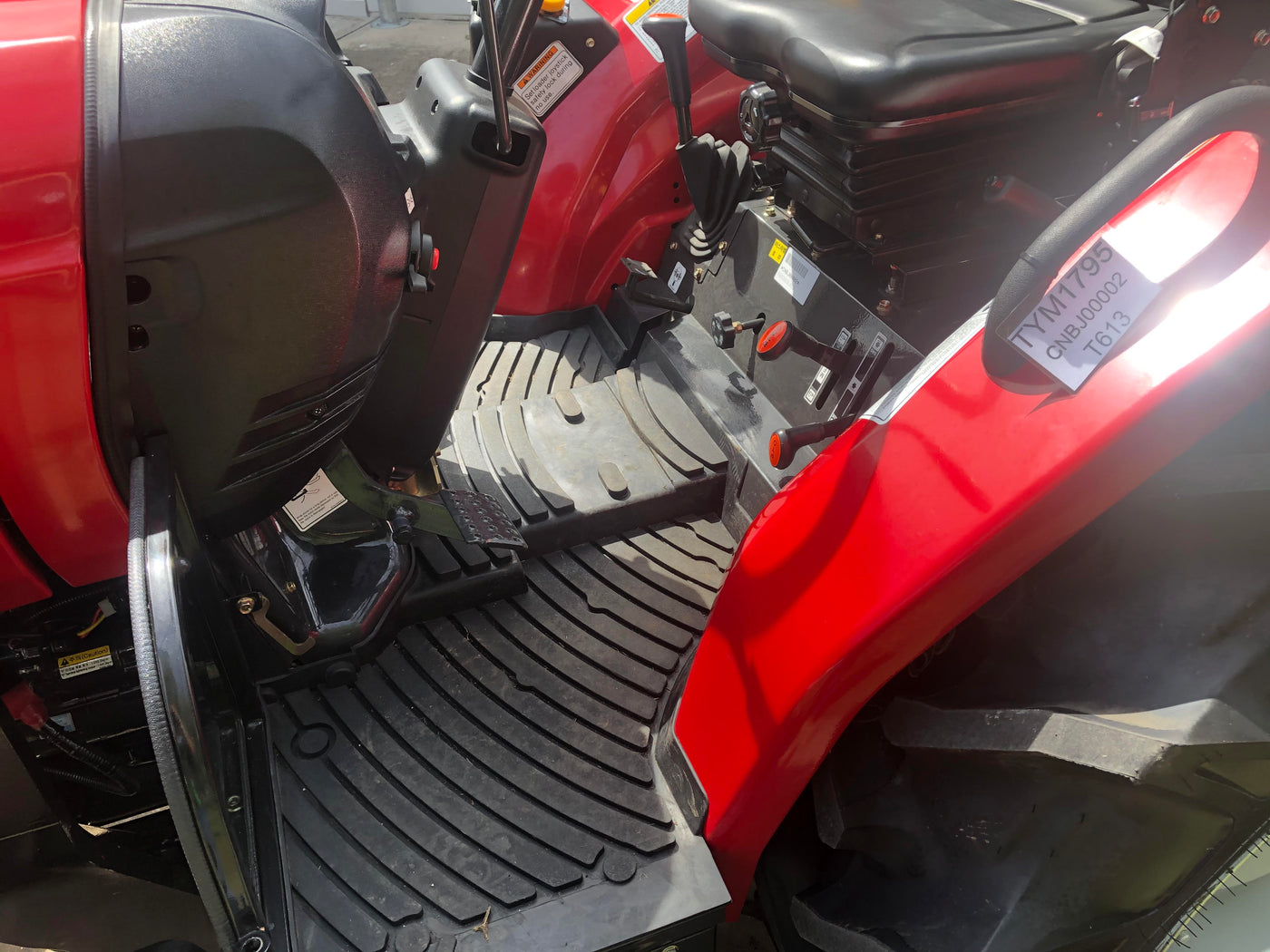

- Uncluttered flat floor without trip hazards
- Rubber floor mat reduces noise and provides an easy to maintain surface
|
 |
- Adjustable suspension seat for comfort
|
 |
- 2 post folding ROPS protection
|
 |
- Easy access to all maintenance areas including battery
- Pop-up 1 piece bonnet
- Radiator with screen to prevent clogging
|
OPTIONS
|
FRONT END LOADER
|
 |

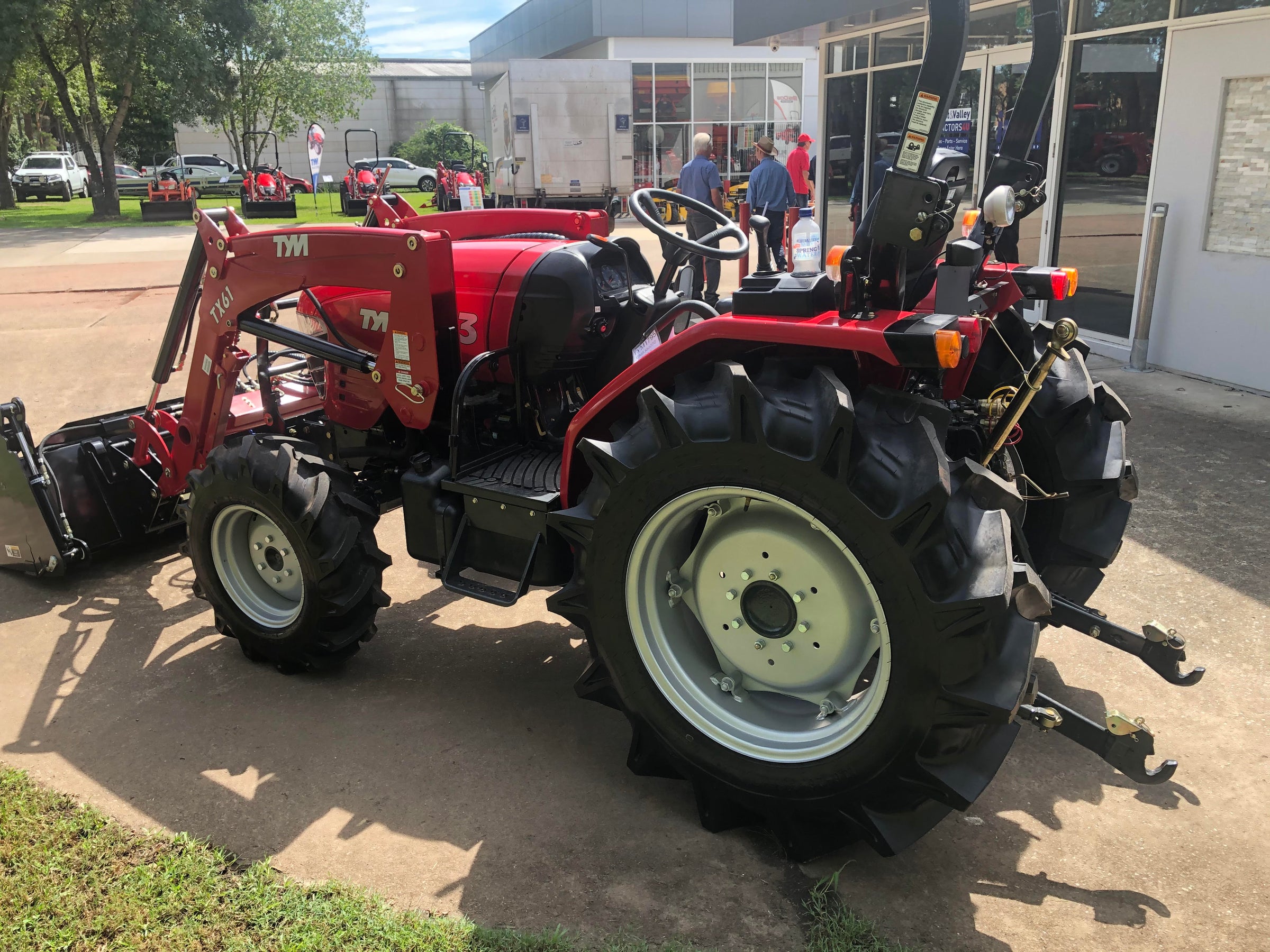

- Level lift front-end loader ideal for materials handling and utility work around the farm
Euro hitch
- See this link for details and specifications on the optional front end loader
|
TYRES
|
 |
- Choice of agricultural, industrial or turf tyres
|
