Product Description

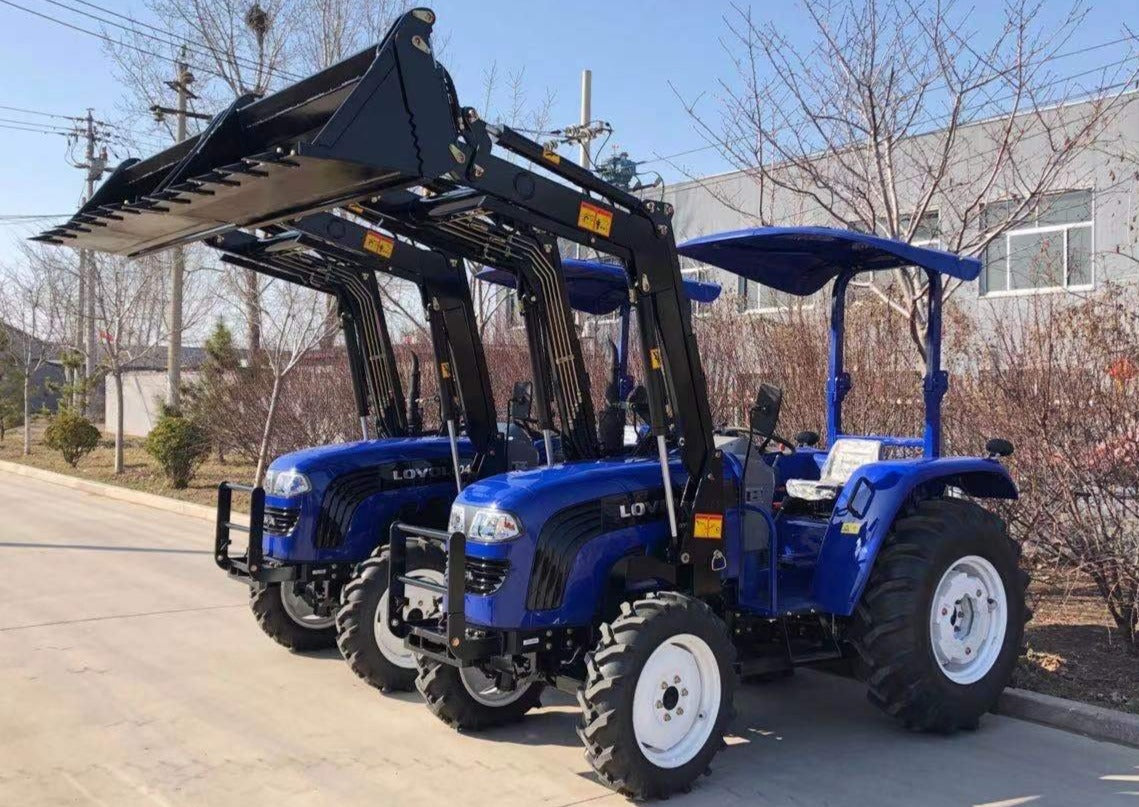

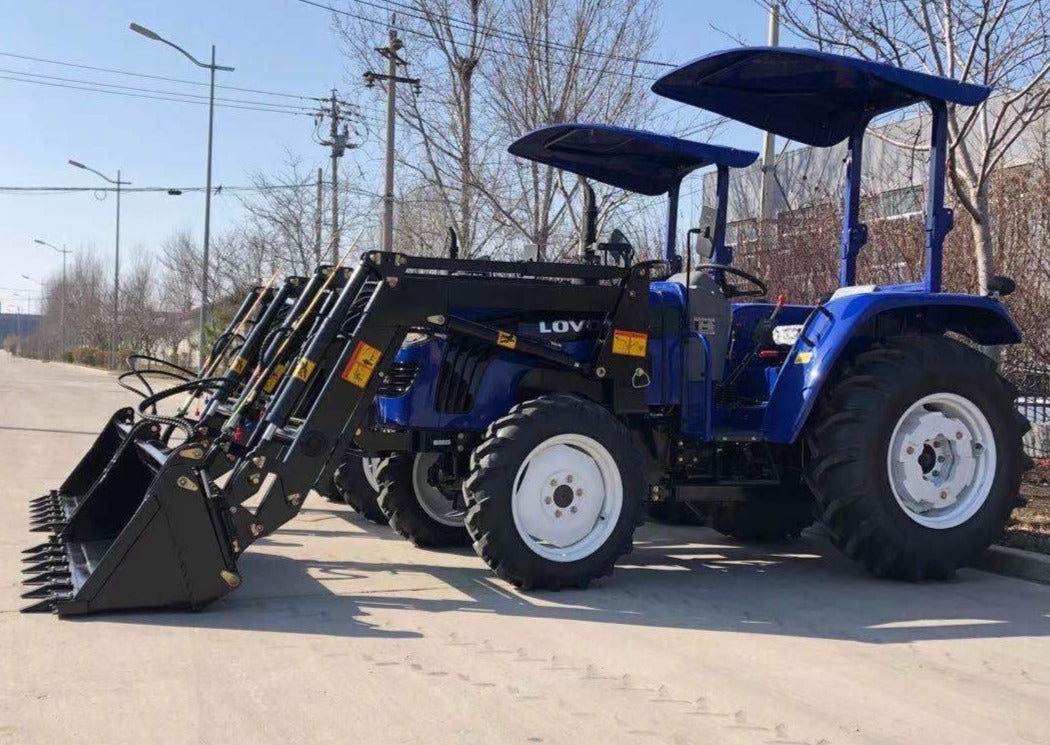

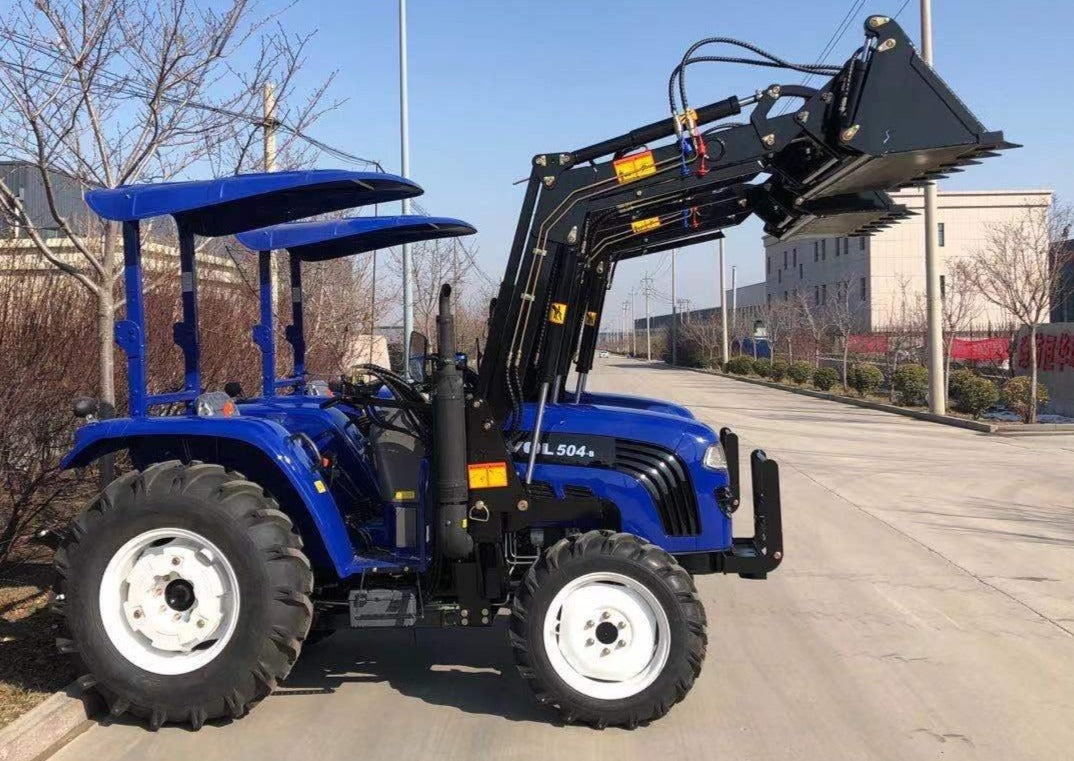

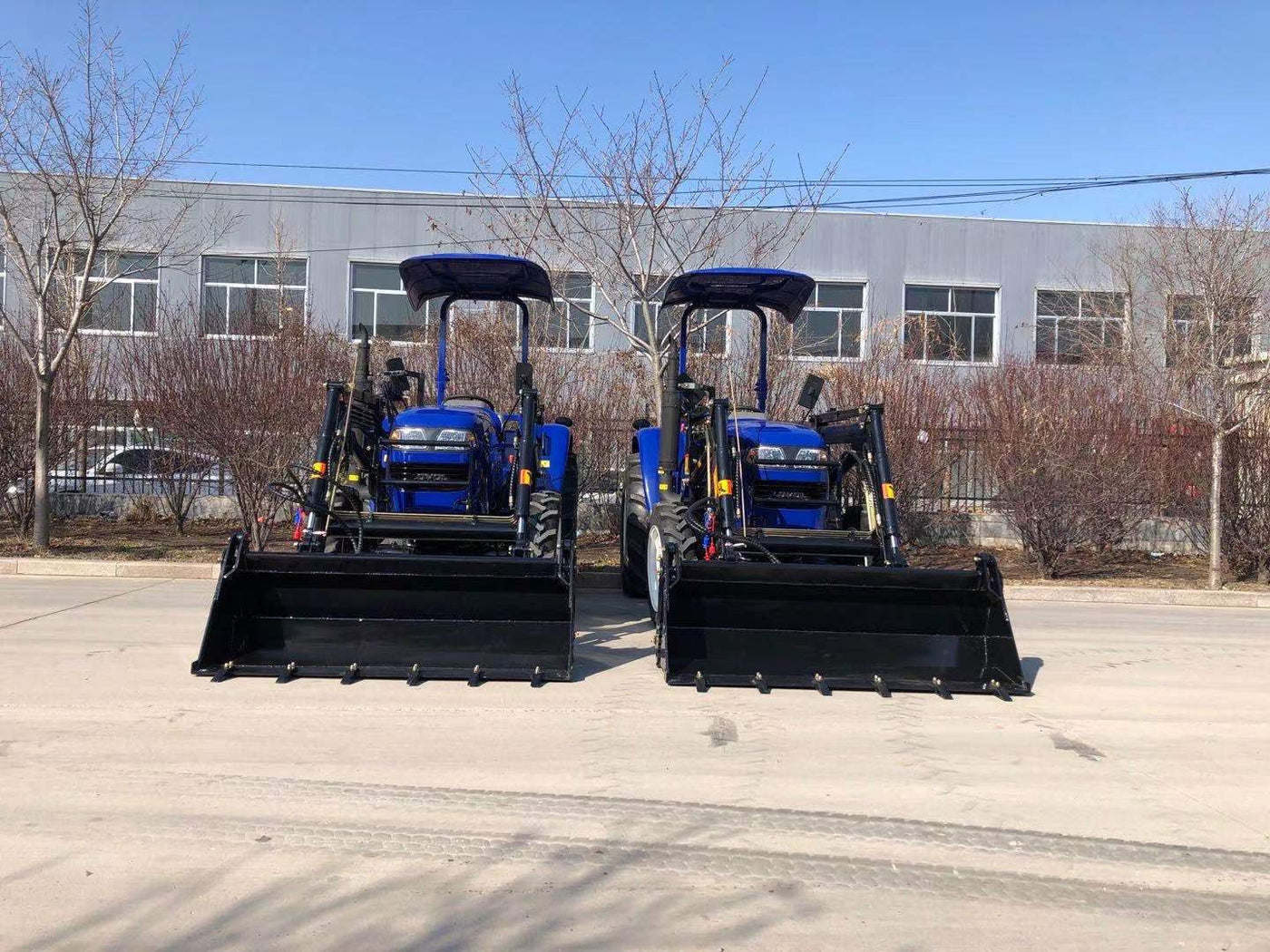

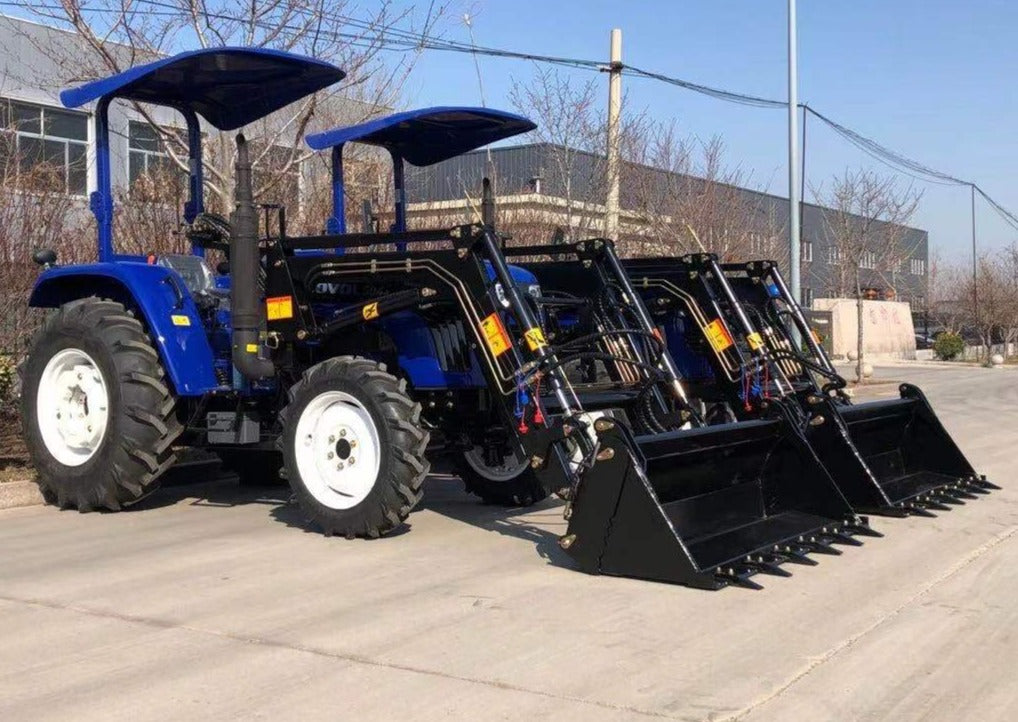

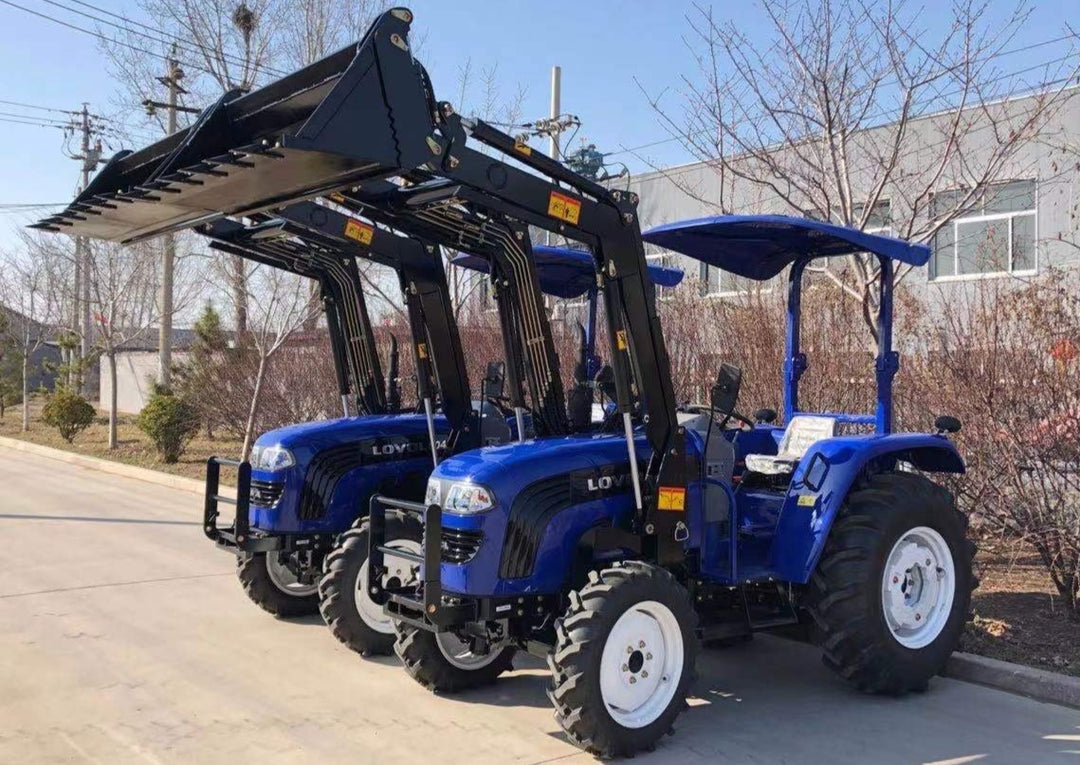

Lovol M504, 50hp Gen II Tractor with 4in1 Front end Loader
Built Simple - Built Tough this budget tractor doesn't have all the features of its bigger brother but its still boasting the strong drive line and large front axle that Lovol engineers use in their TB Series tractors.
Key Features

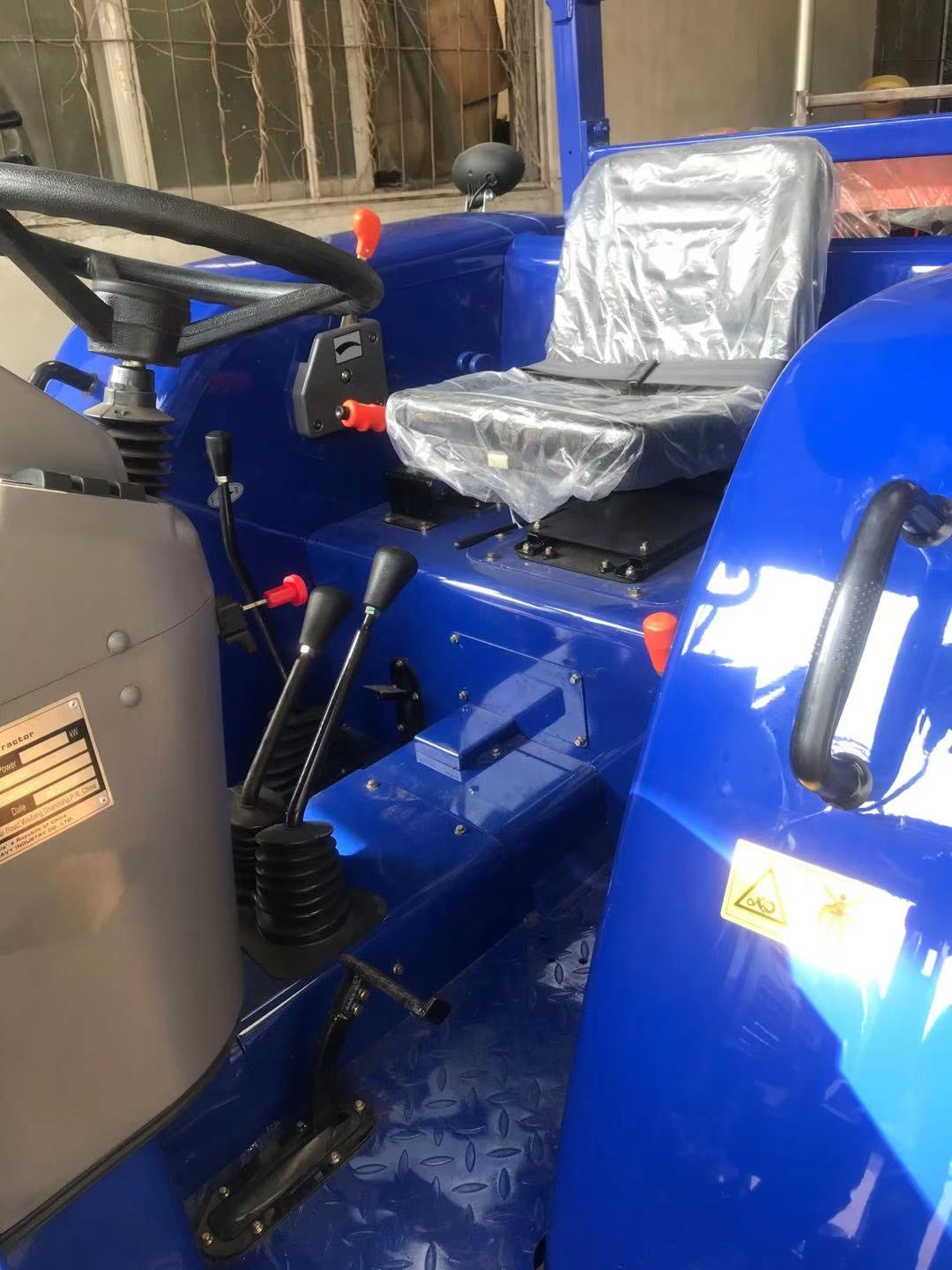

- 10 inch Ceramic plate clutch

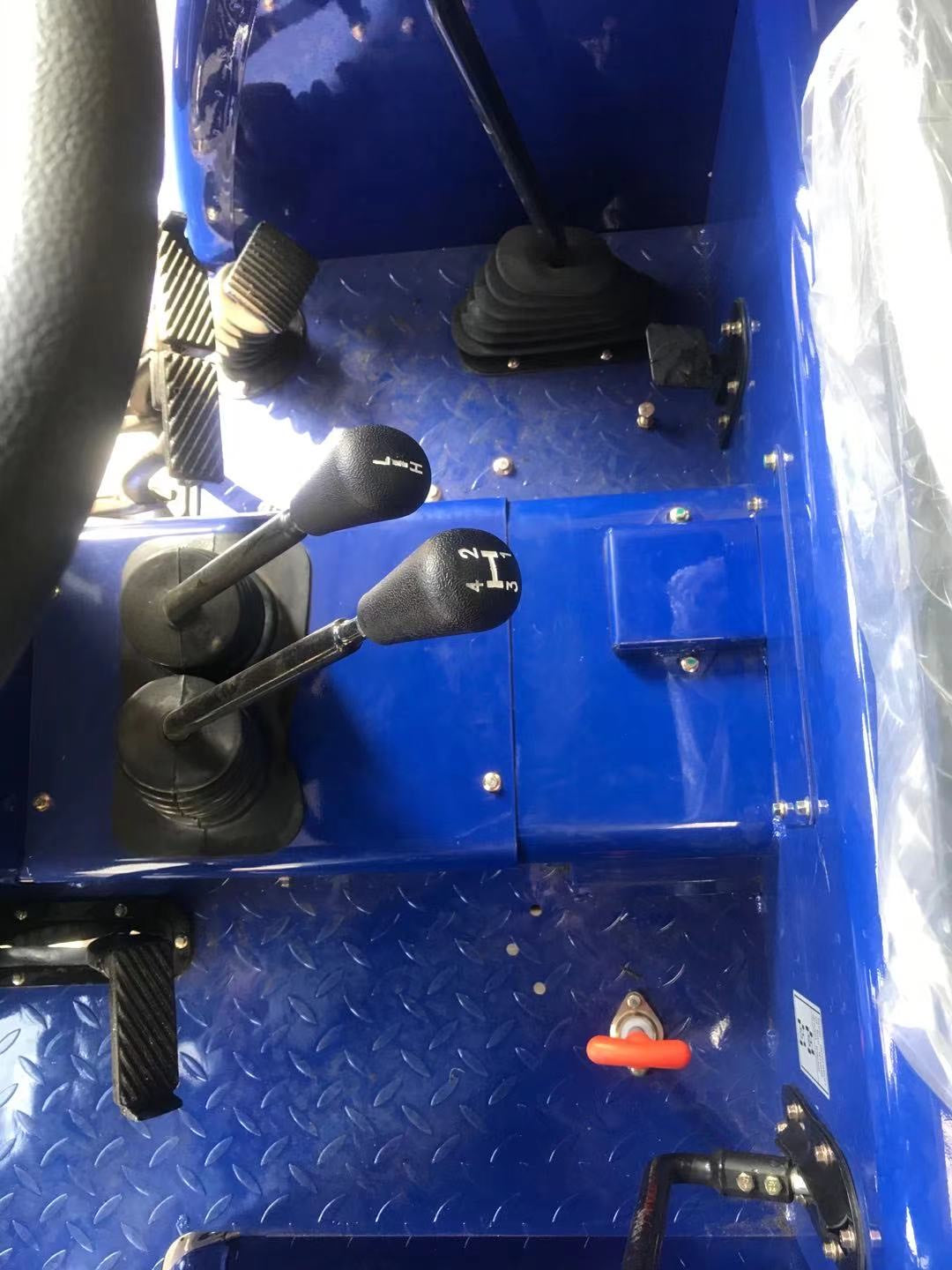

- 8x8 Gearbox
- Shuttle Shift
- 4wd & Diff Lock
- Quiet Exhaust
- 14.9 AG Tyres
- 3 Year Warranty

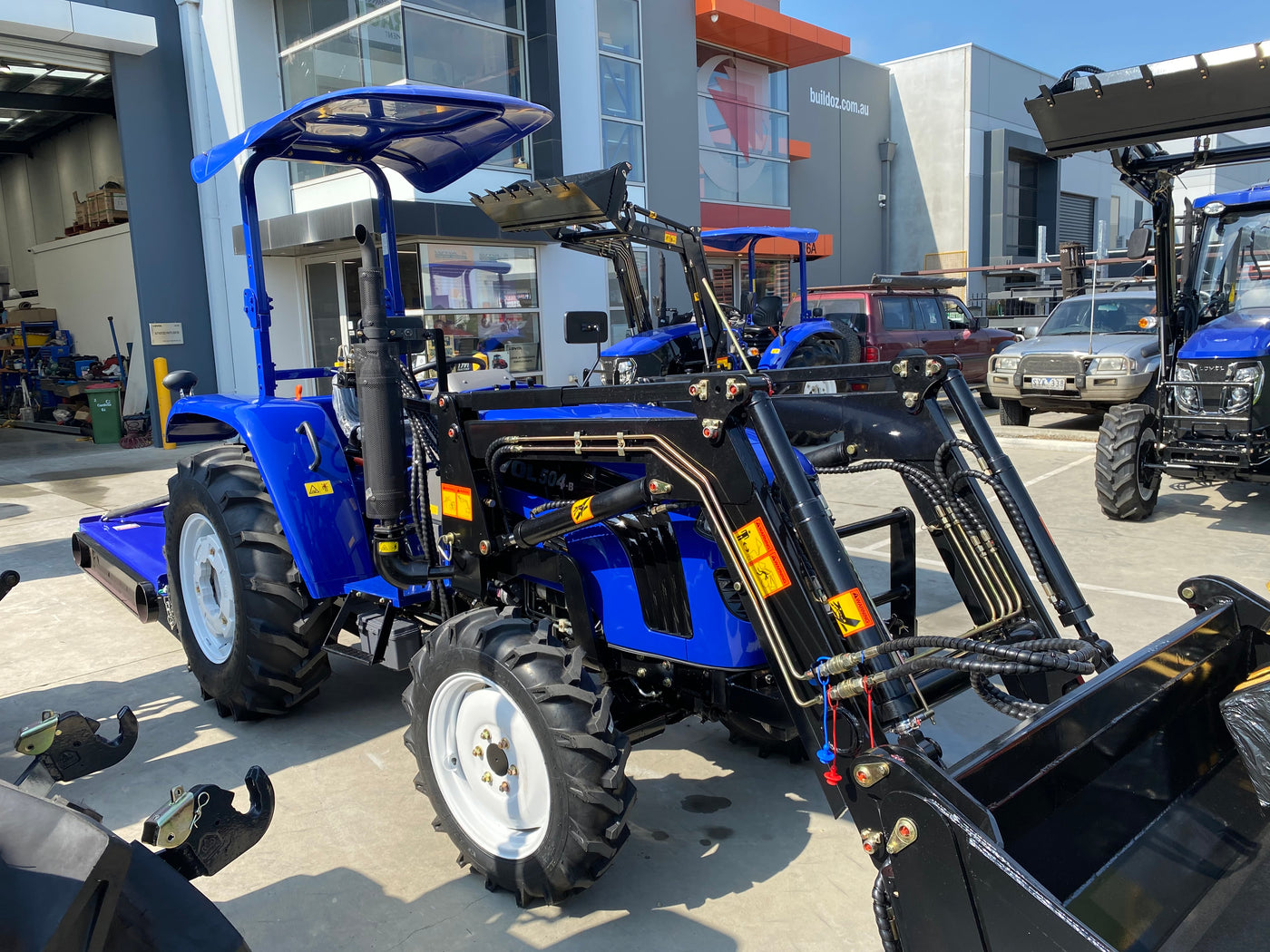

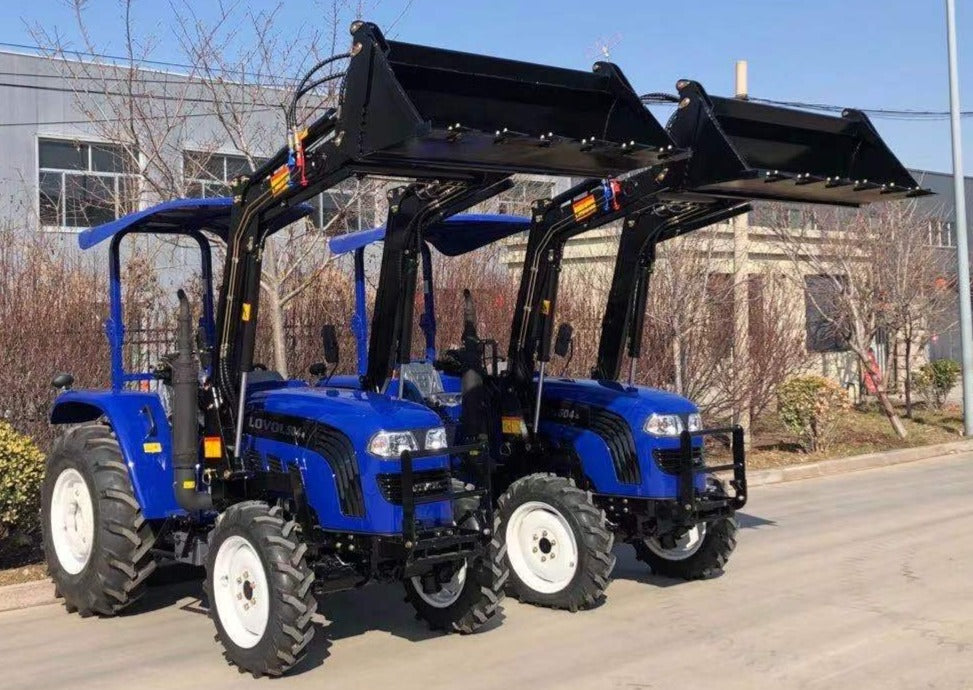

- 600kg SWL Front end Loader

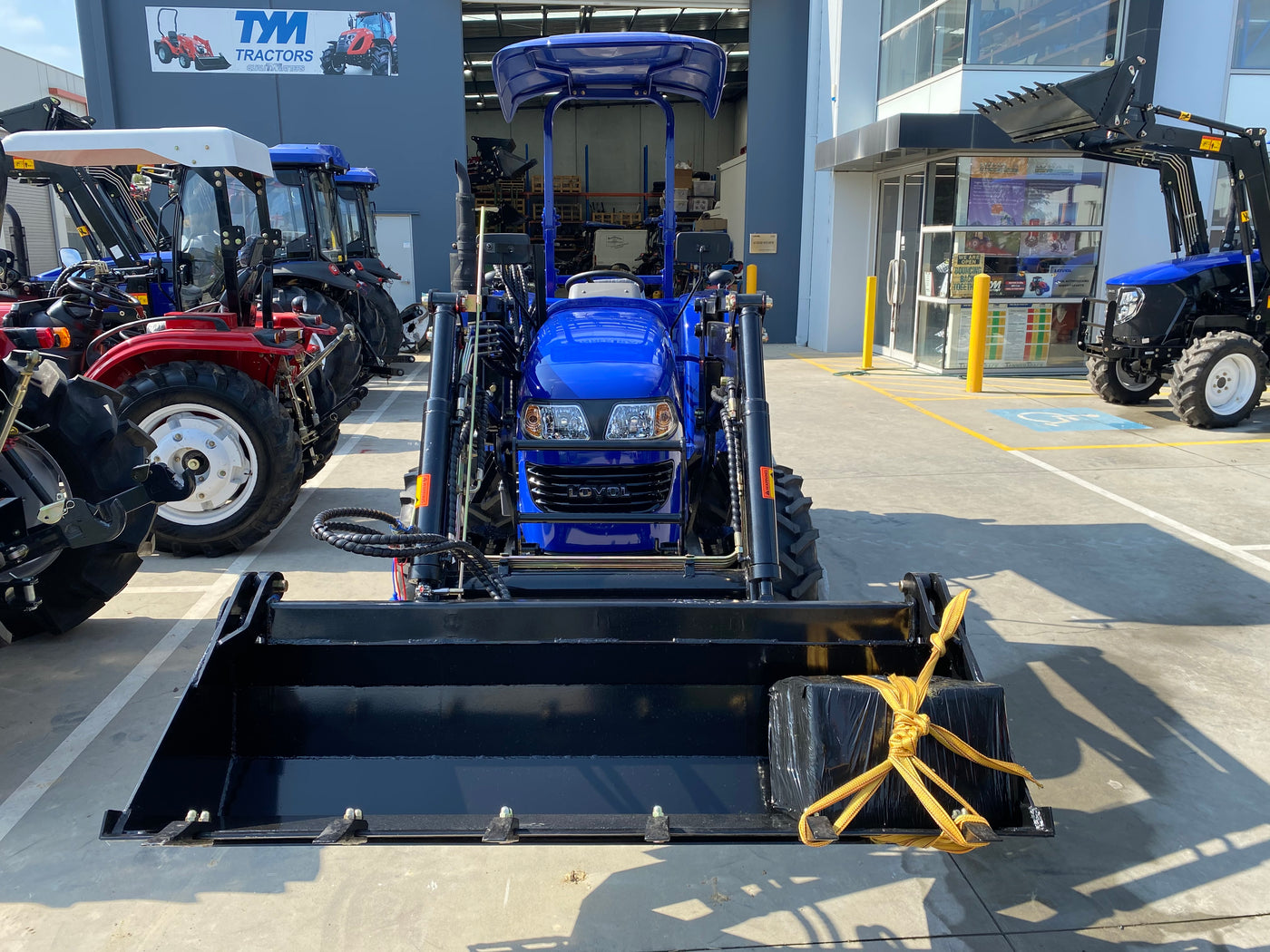

- 4in1 Euro Mount Quick Hitch Bucket
- Gen II Design with Quality Finishes
- Genuine LOVOL Tractor
TRACTOR DETAILS
|
Model |
M604 Rops |
|
|
Engine Gross Power |
HP(kw) |
50(36.8) |
|
Rated Revolution |
rpm |
2400 |
|
PTO HorsePower |
HP(kw) |
42 (31) |
|
Type |
natural |
|
|
No.of Cylinders |
4 |
|
|
Total Displace |
cc |
4087 |
|
Bore&stroke |
mm |
|
|
Combustion System |
DI |
|
|
Battery |
Ah/h |
100 |
|
Cooling System |
Coolant/Water |
|
|
Capacity |
||
|
Fuel Tank |
L |
60 |
|
Engine Crankcase(Included Filter) |
L |
9 |
|
Engine Coolant |
L |
8.75 |
|
Transmission Case |
L |
27 |
|
Support of Front Axle |
L |
7 |
|
PTO |
||
|
Maximum PTO Power |
HP |
50 |
|
Rear PTO |
6 Spline |
|
|
Type |
dual speed |
|
|
Revolution |
rpm |
540/540E (760) |
|
Hydraulic |
||
|
Steering |
hydraulic |
|
|
3 Point Lift Control Type |
draft/position |
|
|
Implement Pump |
L/min |
30 |
|
Power Steering Pump |
L/min |
13 |
|
Total Hydraulic Flow |
L/min |
43 |
|
3-point Hitch Type |
cat I |
|
|
Lower Link Type |
hinge |
|
|
Check Link Type |
lever |
|
|
Top Link Type |
hinge |
|
|
Lift rod type |
thread |
|
|
Lift capacity at lift point |
KN |
2,294 kgf |
|
Lift capacity at 24 in.behind lift point |
KN |
1,428 kgf |
|
Drawbar type |
swing |
|
|
Max. Trailer Loading Weight |
kg |
6000 |
|
No.of Standard Remote Valve's Ports (Rear) |
2 Sets |
|
|
Towing Capacity (based on 7.5km/h) |
||
|
Maximum Towing Power |
KN |
>13.2 |
|
Drive Train |
||
|
Transmission |
||
|
Main Gear Shift x Range Gear Shift |
4x2 range |
|
|
No. of Speeds |
F8+R8 |
|
|
Shuttle Type |
mechanical shuttle |
|
|
Brake Type |
wet/double disc per side |
|
|
Main Clutch Type |
Dry with Springs |
|
|
Main Clutch Diameter |
mm |
254mm / 11 Inch or 10inch |
|
Mechanical Differential Lock |
yes |
|
|
Front Wheel Drive System |
4WD |
|
|
Traveling Speeds |
||
|
Forward |
km/h |
2.37-38.46 |
|
Reverse |
km/h |
2.07-33.71 |
|
Dimensions |
||
|
Overall Length (With 3 Point & front Weight) |
mm |
4136 |
|
Overall Width(Minimum Tread) |
mm |
1870 |
|
Tread Width Front 4wd |
mm |
1250 |
|
Tread Width Rear |
mm |
1300 |
|
Overall Height(With ROPS) |
mm |
2657 |
|
Wheel Base |
mm |
1990 |
|
Ground(Crop) Clearance |
mm |
310 |
|
Turning Radius(w/brake) |
mm |
4300/3800 |
|
Weight with ROPS Without Loader |
kg |
2320 |
|
Tyre Size |
||
|
Front |
8.3-20 AG |
|
|
Rear |
14.9-24 AG |
|
Specs are correct at time of posting but subject to change..

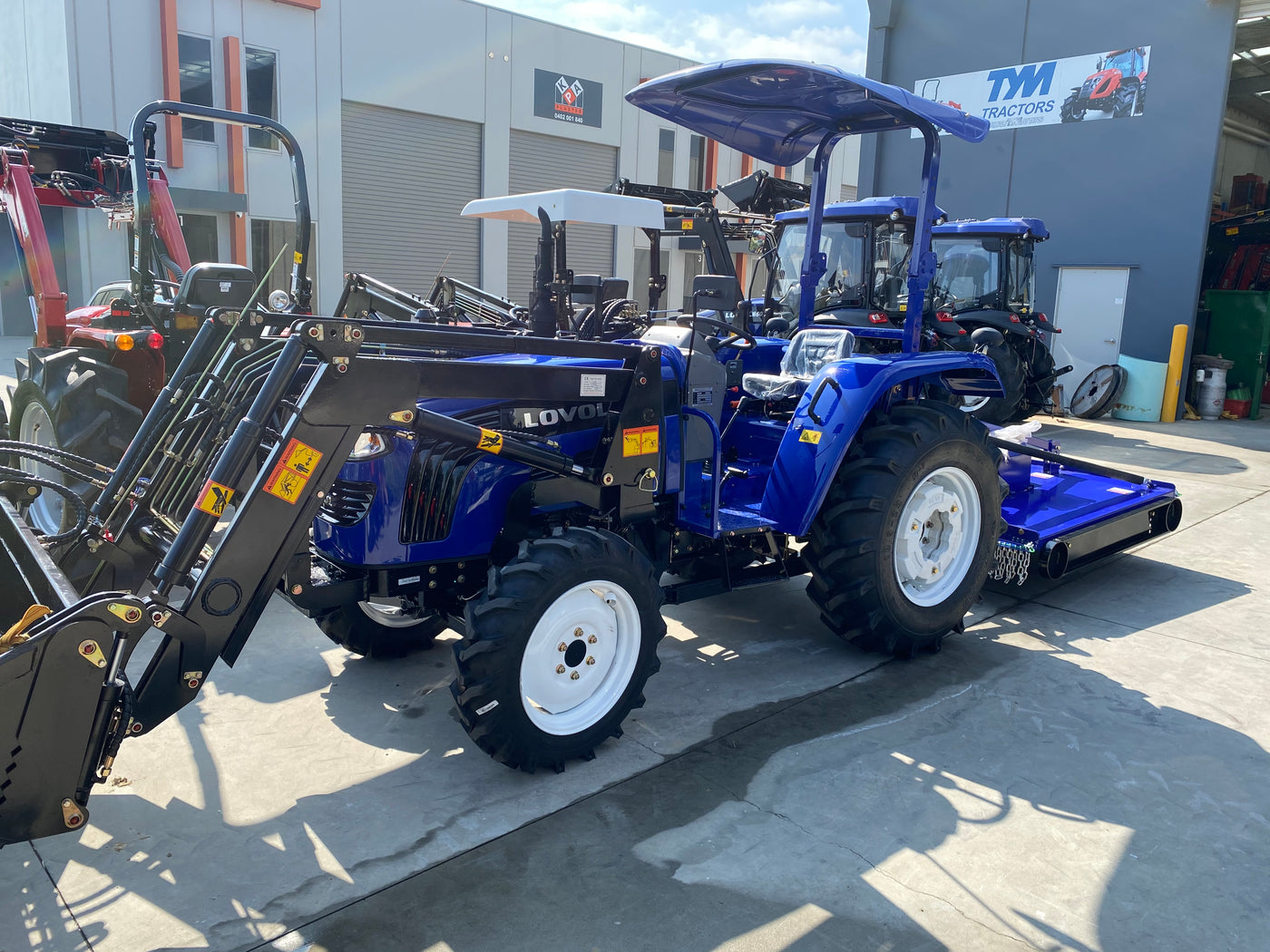

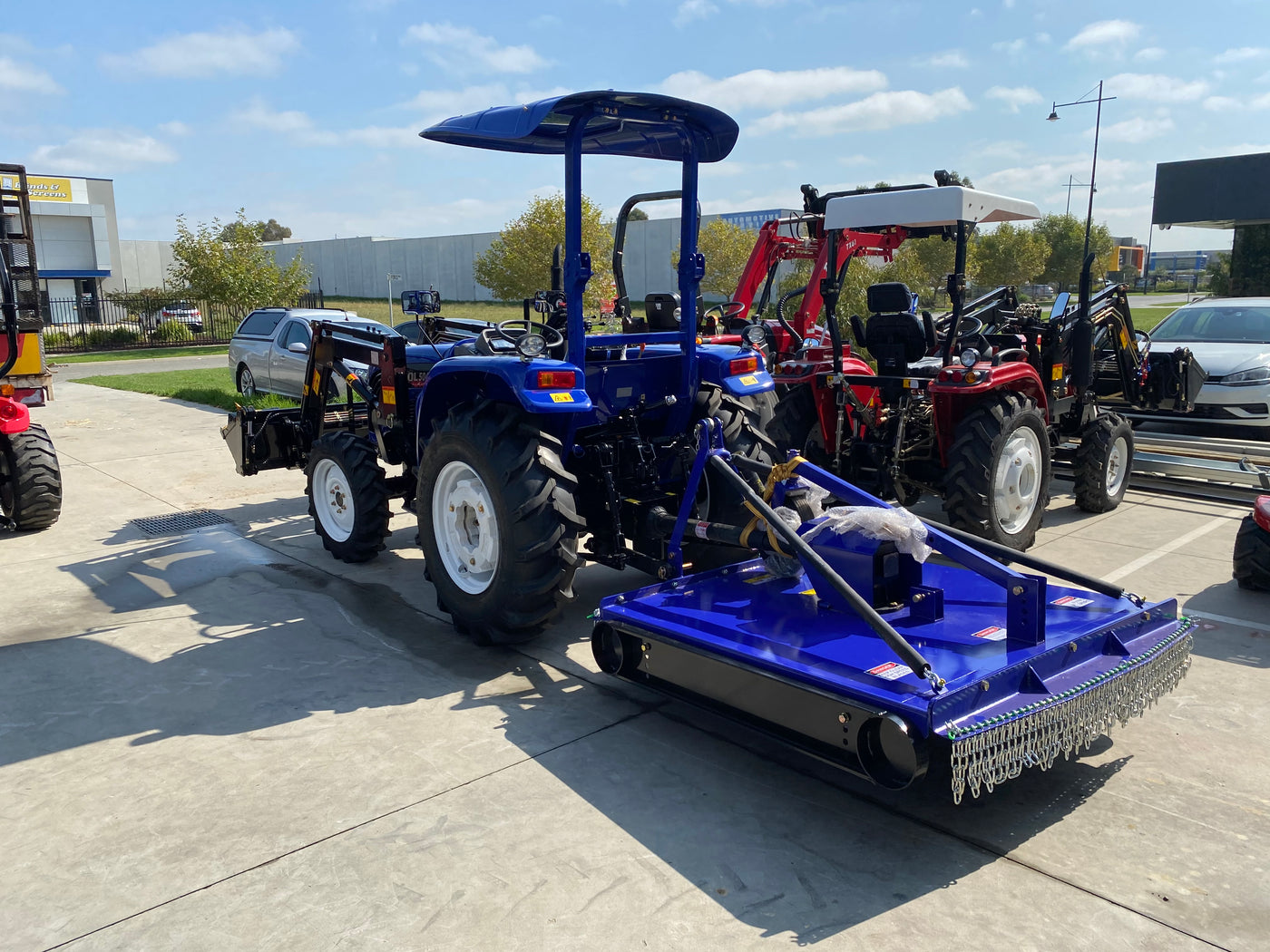

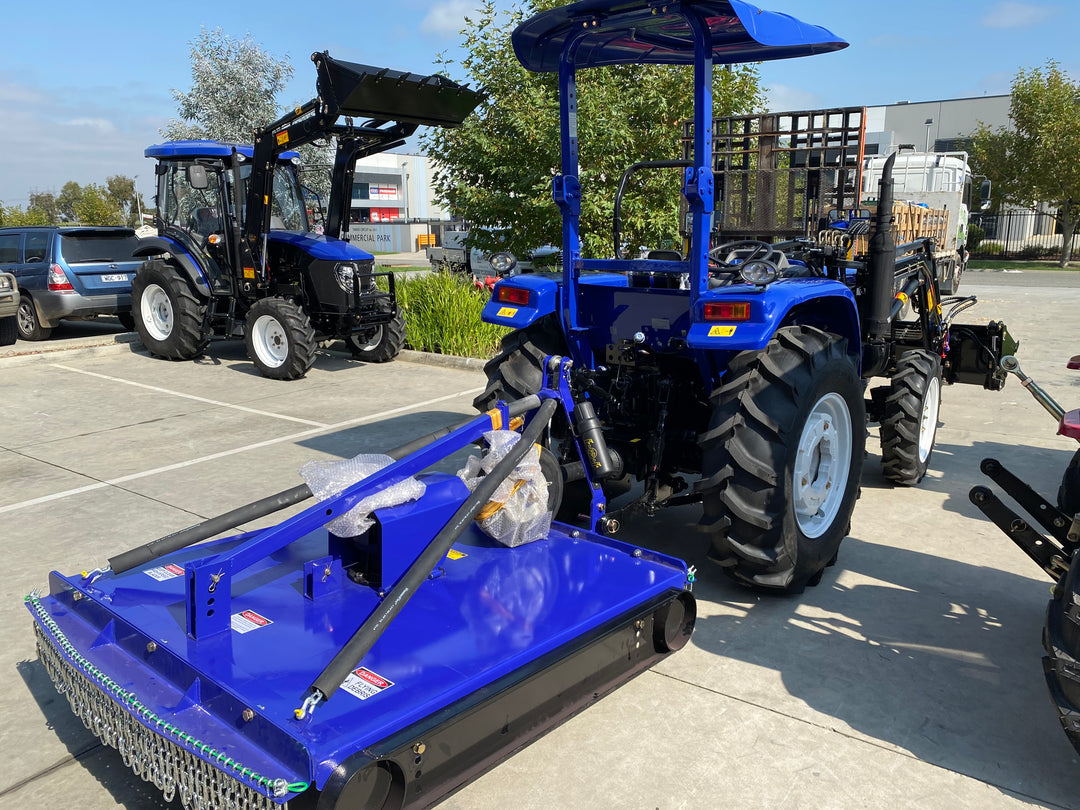

Optional 5ft slasher shown in some photos
