Lovol M1004 TD, 100hp Cabin Tractor

$54,990.00
/
Tax included.

Do you have questions about this product? Our experts are here to help! Frequently Asked Questions

3 Year Warranty
Combo Deals Available
Global Brand with Service & Support
Download Brochure

 LOVOL 100HP TD Chassis Tractor


The LOVOL 100HP TD chassis tractor boasts these impressive specifications:

  • Engine: 100 horsepower for conquering challenging jobs and powering through tough terrain.
  • Chassis: Heavy-duty TD chassis designed for exceptional durability and a long service life.
  • Operator Station: Ergonomically designed cabin prioritizing operator comfort with intuitive controls and ample space.
  • Attachment Compatibility: Works with a wide range of attachments and with its down force linkage its a great tracto for working the land.

The LOVOL 100HP TD chassis tractor is ideal for:

  • Land Clearing: Effortlessly clear heavy brush and manage overgrown areas.
  • Construction Projects: Haul heavy equipment, move large materials, and tackle demanding groundwork.
  • Deep Tilling: Break up tough soil with ease, preparing fields for optimal planting conditions.

Choosing the LOVOL 100HP TD chassis tractor provides:

  • Unmatched Power: Dominate your workload with the industry-leading 100 horsepower engine.
  • Unwavering Durability: The robust TD chassis ensures the machine can withstand even the most demanding jobs.
  • Operator Comfort: Work productively for extended periods with the ergonomic cabin design.
  • Maximum Versatility: Transform the tractor into a multi-functional workhorse with various attachments.

Ready to experience the LOVOL difference? Visit your nearest LOVOL dealer in Pakenham Victoria to explore the 100HP TD chassis tractor firsthand. See the specifications for yourself and witness the power and durability that will take your land management to the next level. Don't compromise on performance – choose LOVOL.
Contact Us

FEATURES

ENGINE

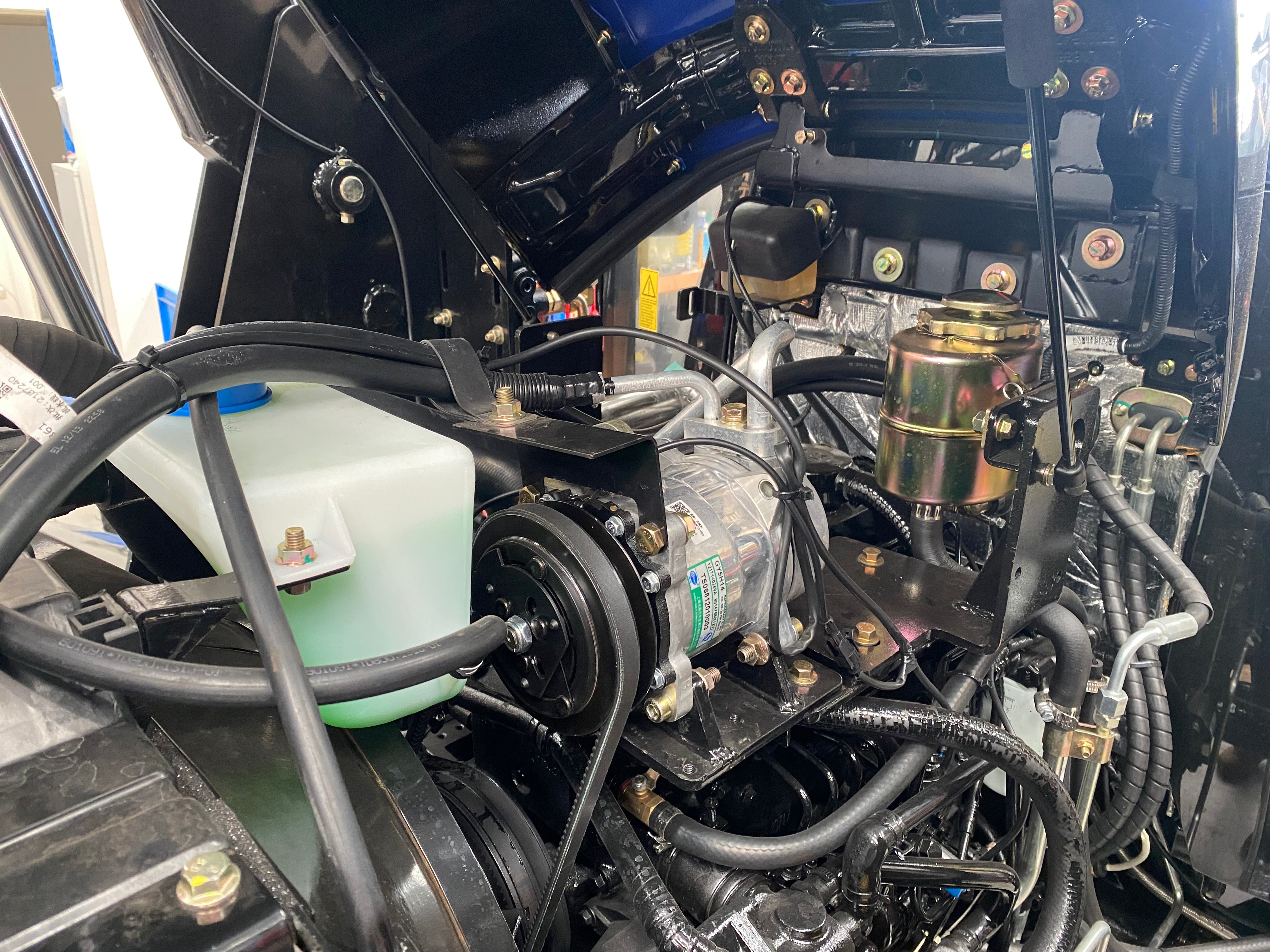

100hp Turbo diesel engine, NO Computers just good a old simple design

GEARS

Gear set designed for ground work with 16 speeds forward

FRONT HUBS

Planetry gearset floating front hubs designed mor heavier loads

REAR LINKAGE

Down force linkage in the 3PL

FRONT END LOADER

Large front end loader with 4in1 bucket standard

SPECIFICATIONS

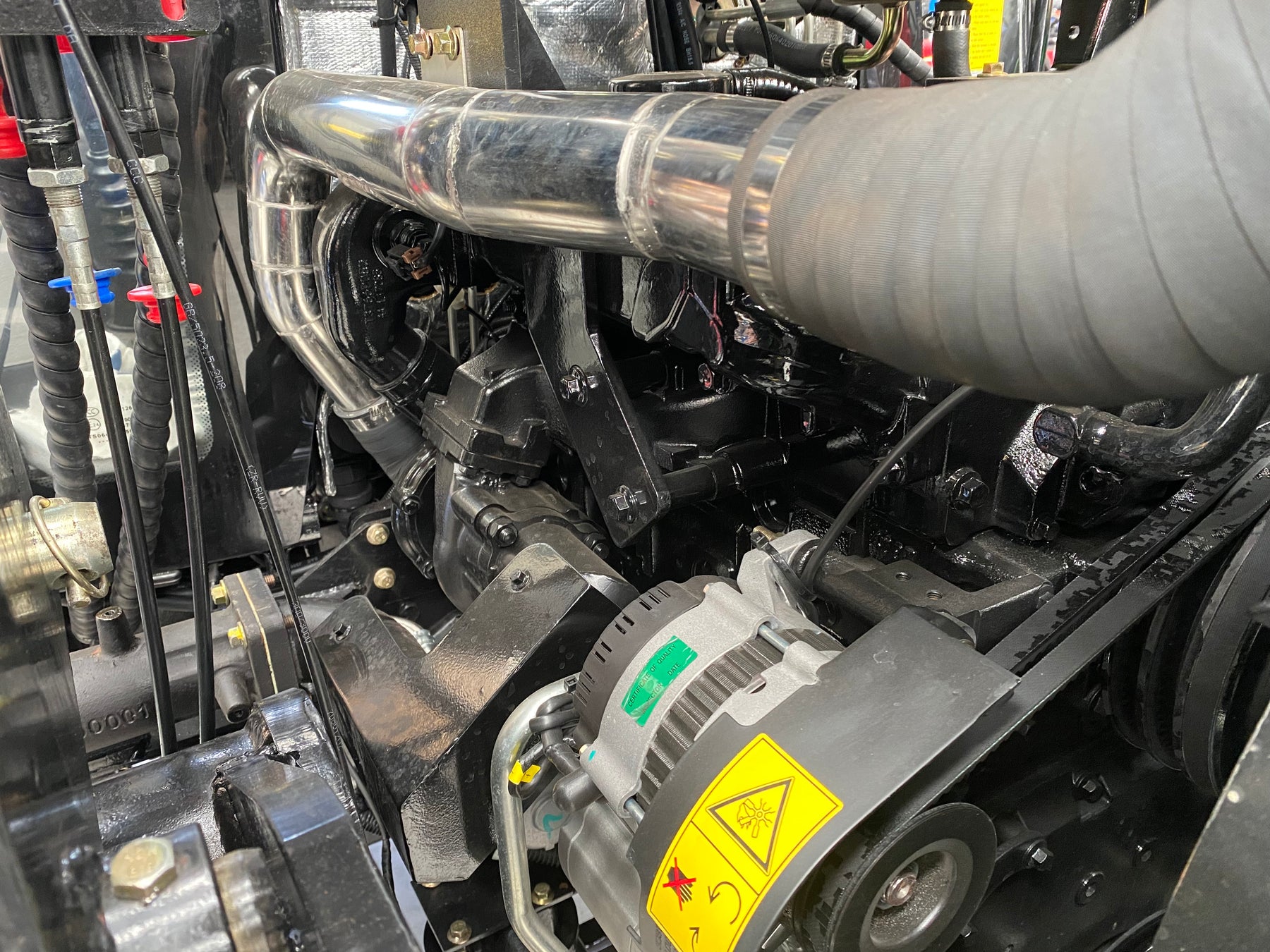

  • Engine Model SHDEC
  • Engine type Diesel
  • Engine gross power 100hp 73.5kW
  • PTO Power 66.1kw
  • No. of cylinders 4
  • Total displacement
  • Rated speed 2200 rpm
  • Inline Mechanical pump - NO Computers
  • Fuel tank capacity 230L

TRANSMISSION:

  • 16x8 Transmission
  • High - Low - Reverse
  • 1 - 2 - 3 - 4 Gears
  • Turtle - Rabbit

CLUTCH:

  • Dry, Dual Stage clutch for responsive engagement and smooth power delivery.
  • 12 Inch Ceramic Plate Drive Plate with torsional springs
  • 12 Inch Fiber Plate PTO Plate

DIFFERENTIAL:

  • Mechanical gear differential providing basic traction control and power distribution between rear wheels.
  • Rear Diff Lock

AXLES:

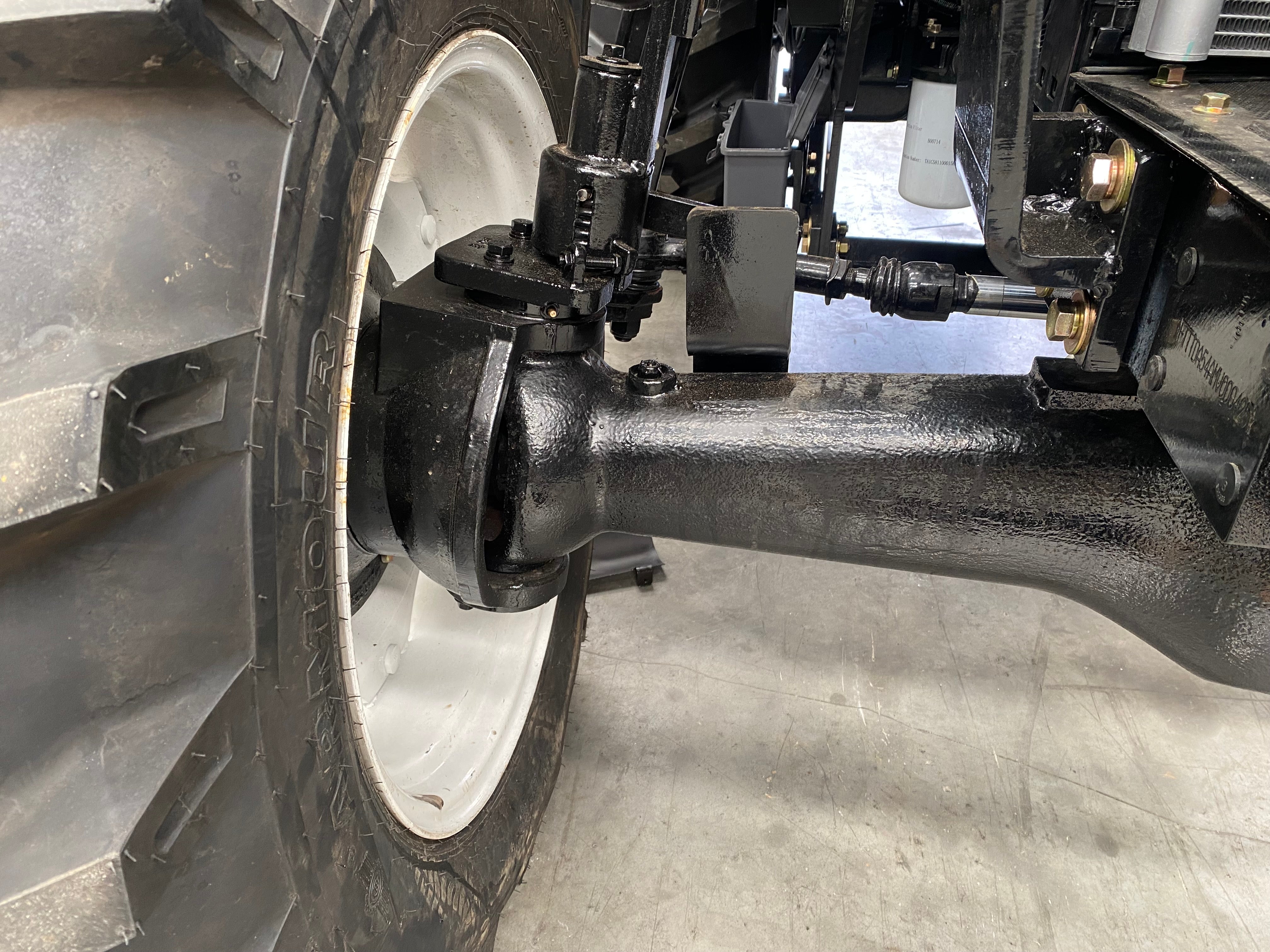

  • Front Axle: Planetry gear set floating hubs
  • Lovol axles made in house by LOVOL
  • Rear Axle: Heavy-duty Design
  • Larger planetary gear sets on TD
  • Hydraulic brakes

4WD:

  • 4wd - Front Wheel Assist
  • Single lever engagement

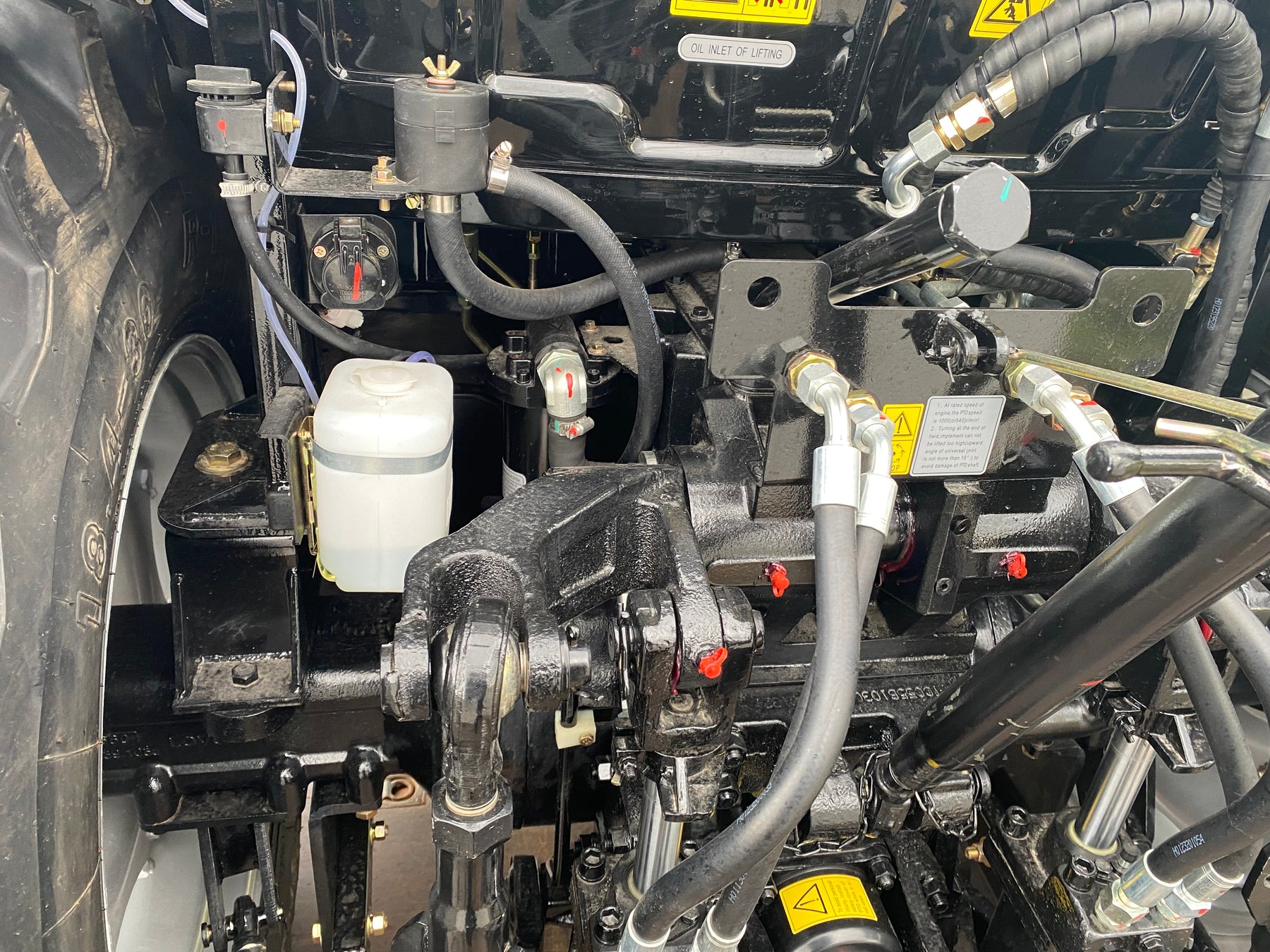

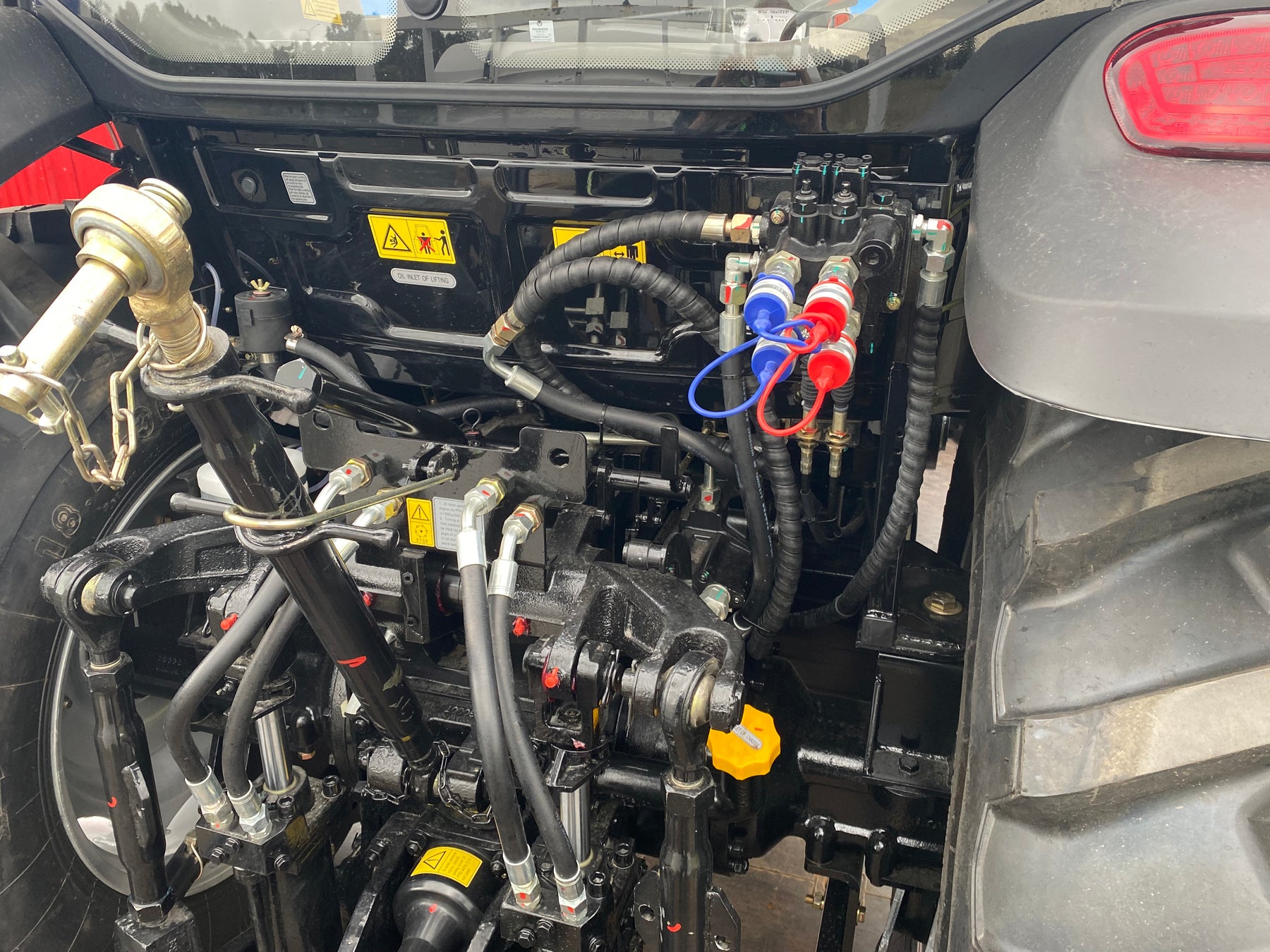

HYDRAULIC SYSTEM:

  • Implement Flow rate 41 L/min , sufficient for operating standard implements.
  • Steering Flow Rate 12 L/min
  • 2or3 Pairs of rear remotes
  • Dual filtration, Suction and Return

PTO

  • 540/1000 PTO Speeds
  • 88.64 hp Rated PTO power

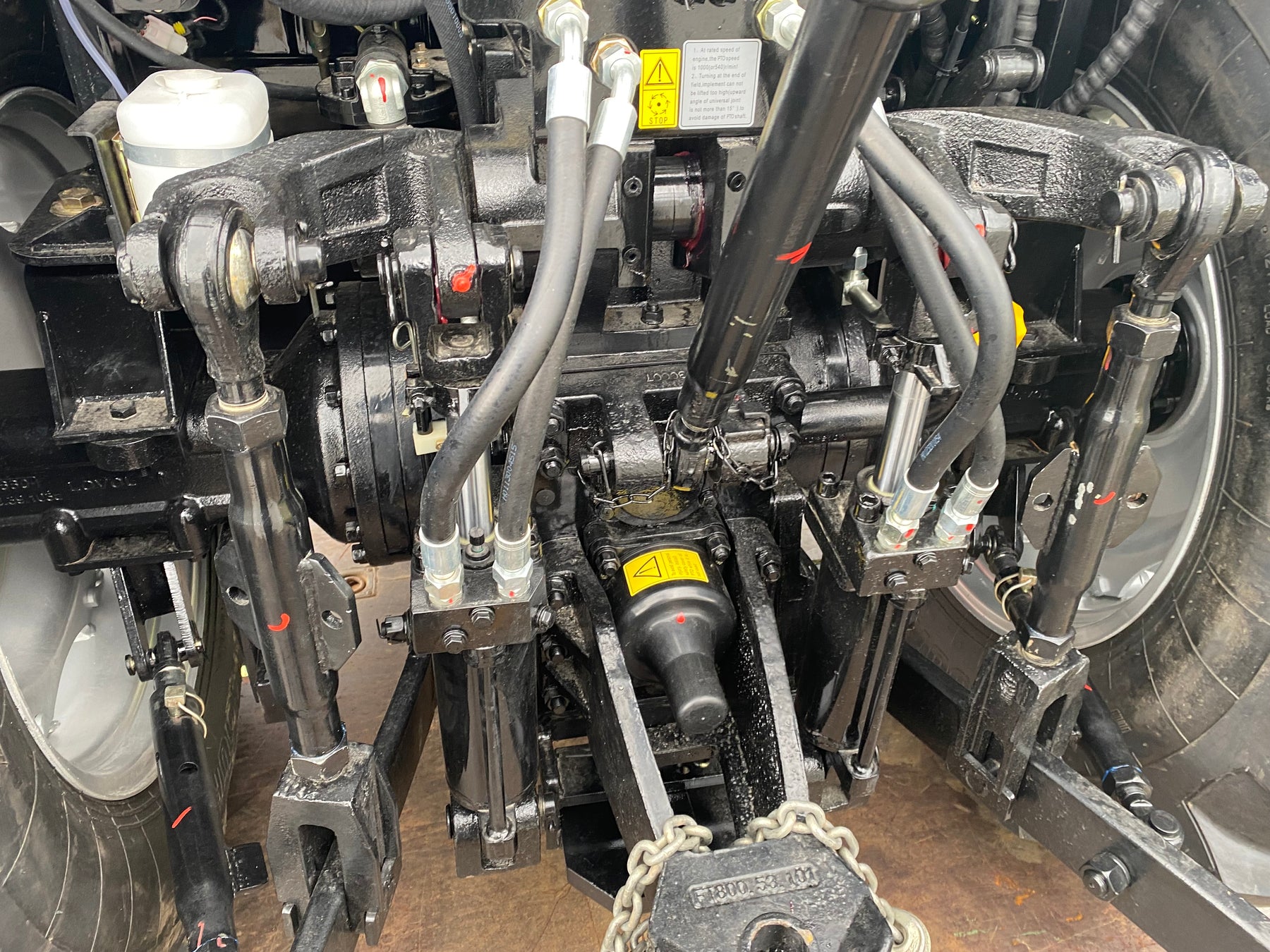

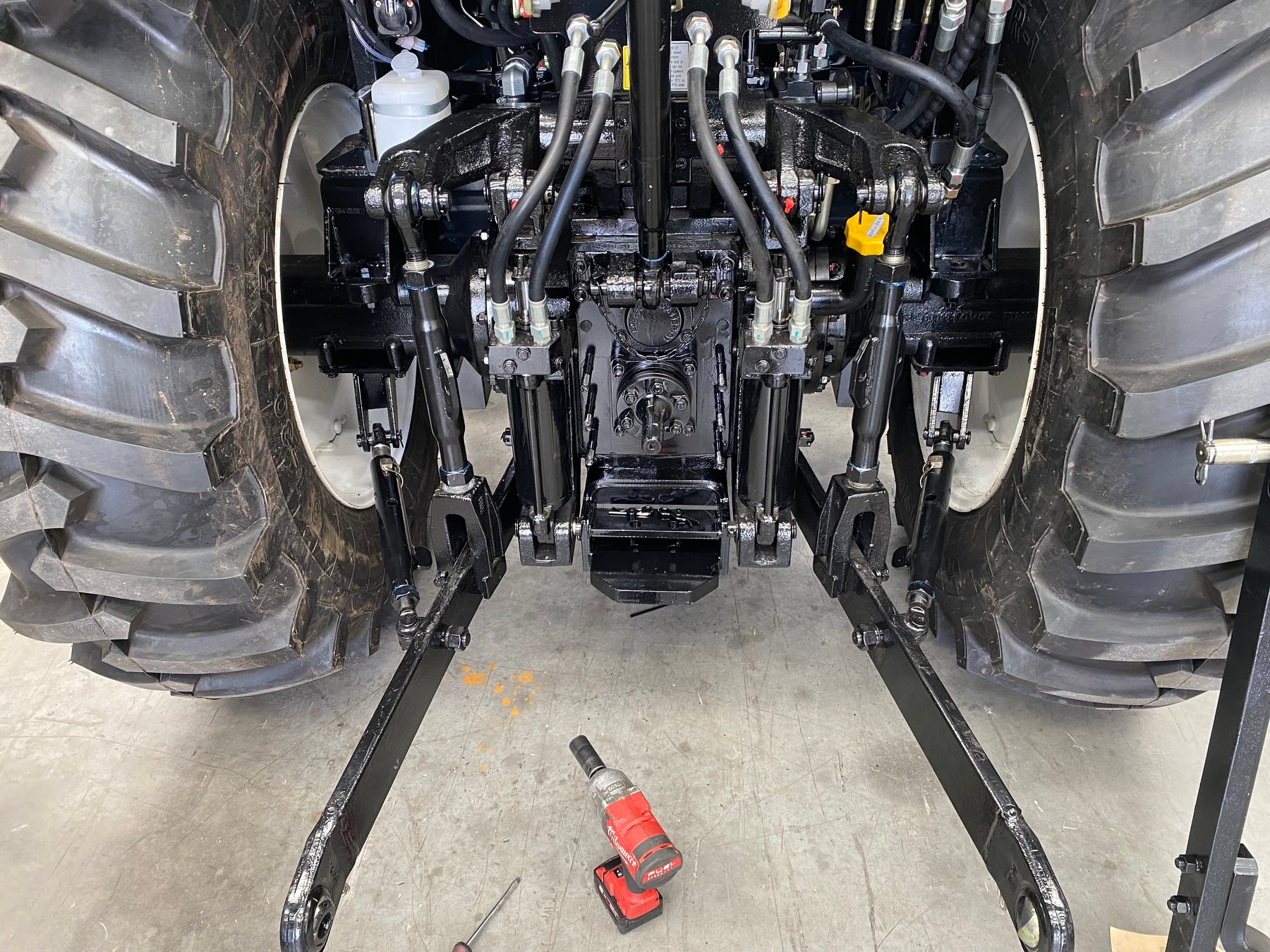

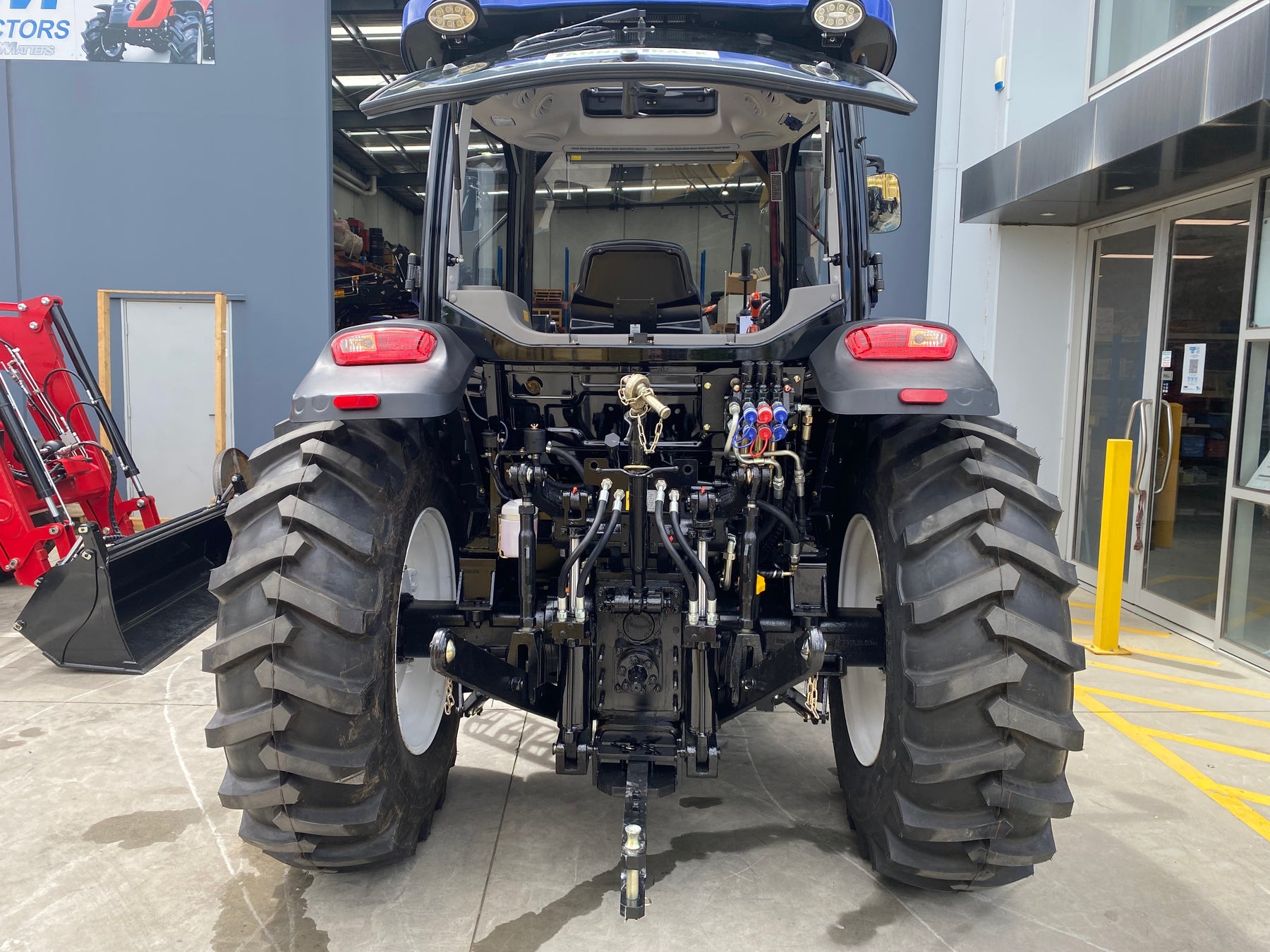

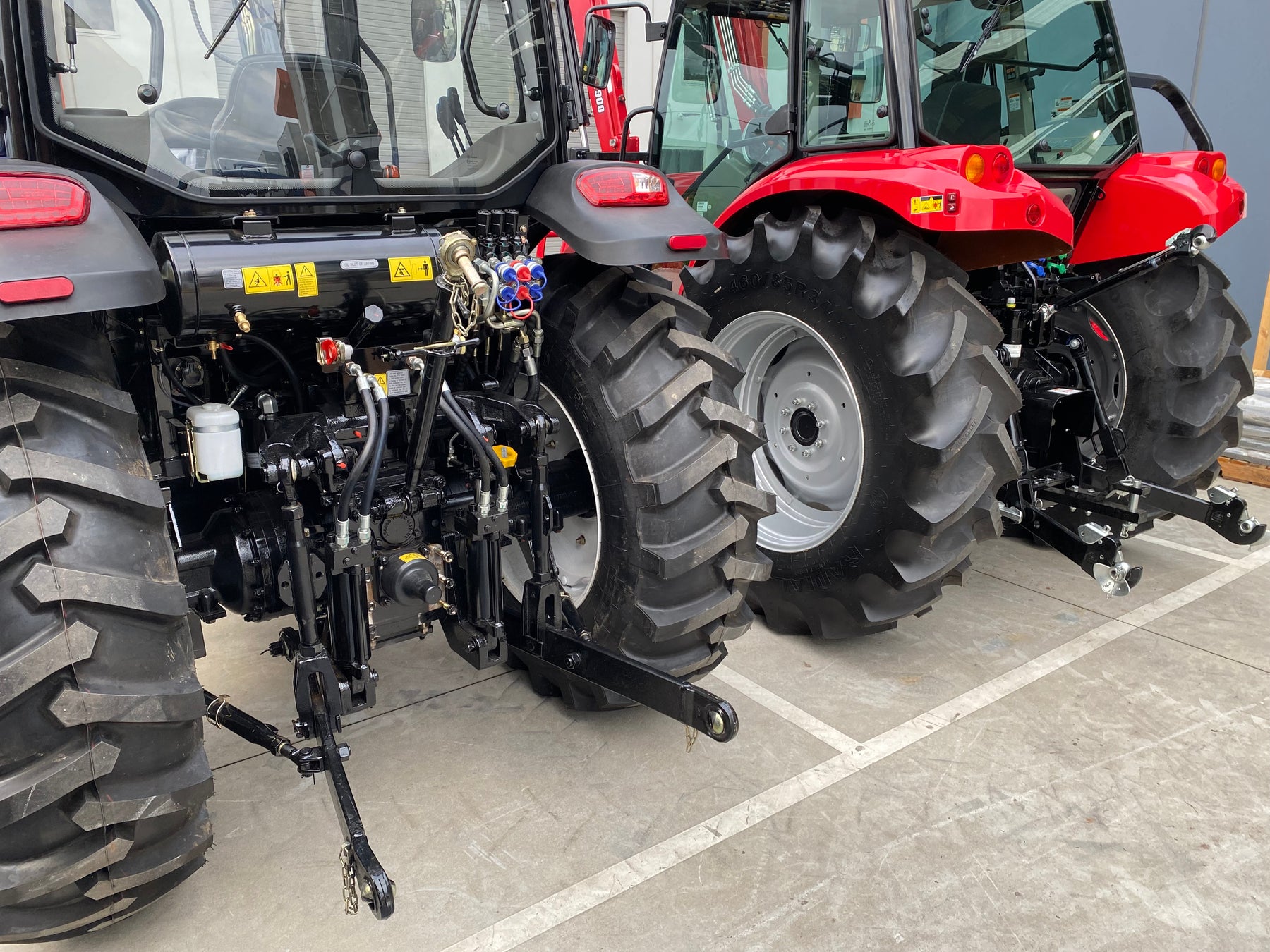

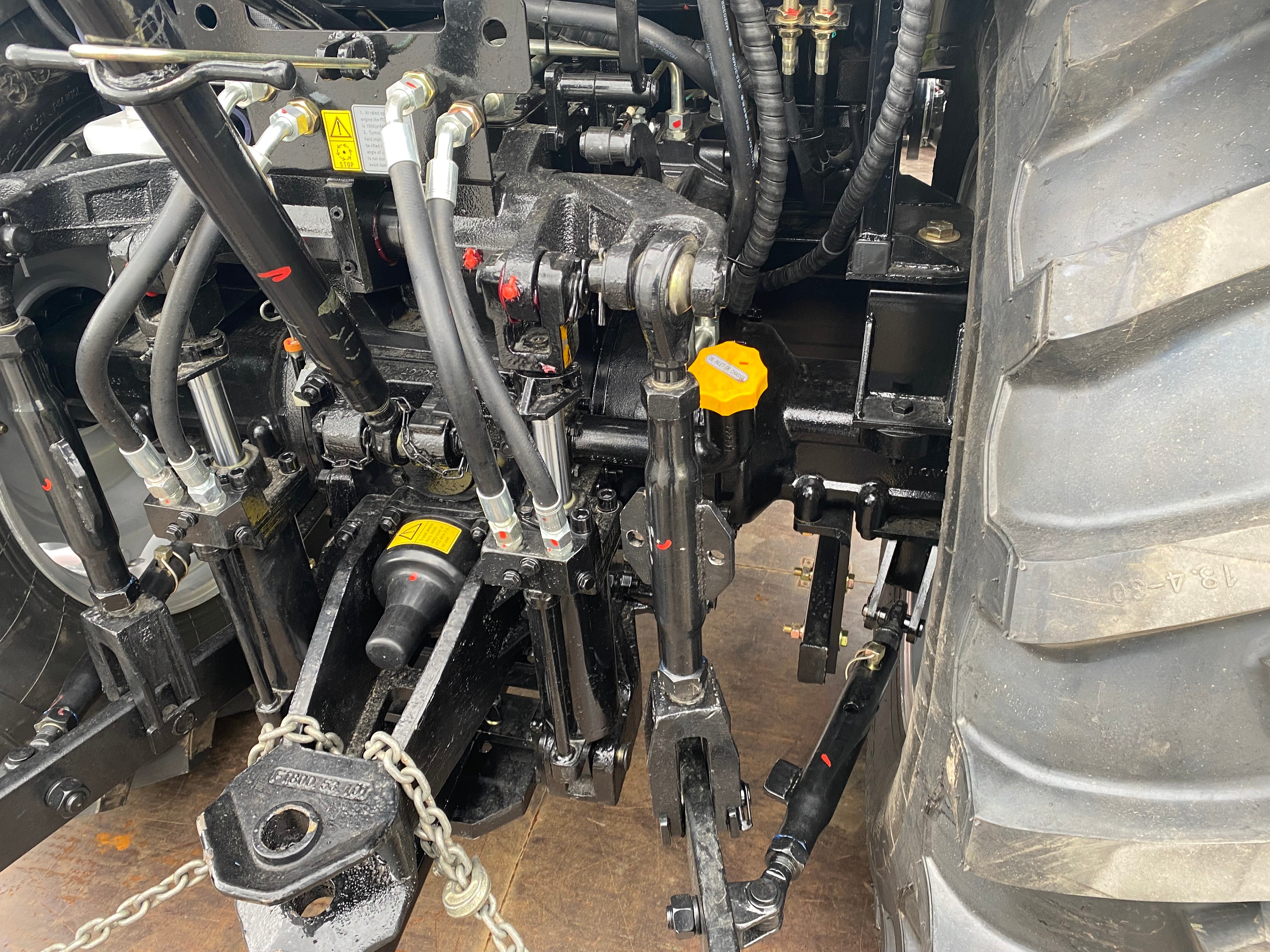

Linkage

  • Standard Cat-2 Rear 3pl
  • Adjustable side links
  • Down force on rear linkage
  • 2000kg Lift @610mm Behind hitch point
  • AG Tyres
  • Front - 11.2R24
  • Rear - 16.9R34
  • Dual rear wheel weights, Total 344 kg

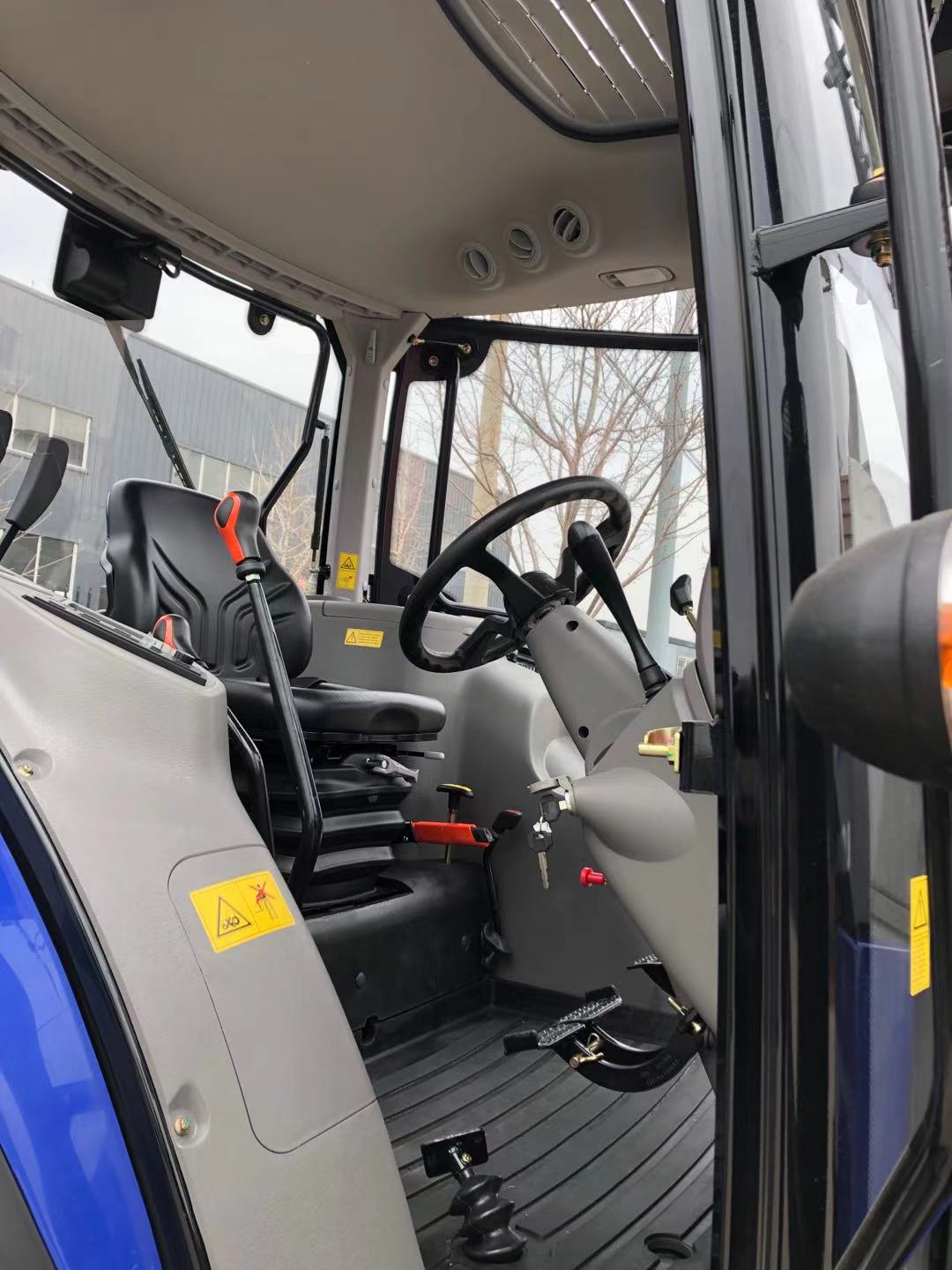

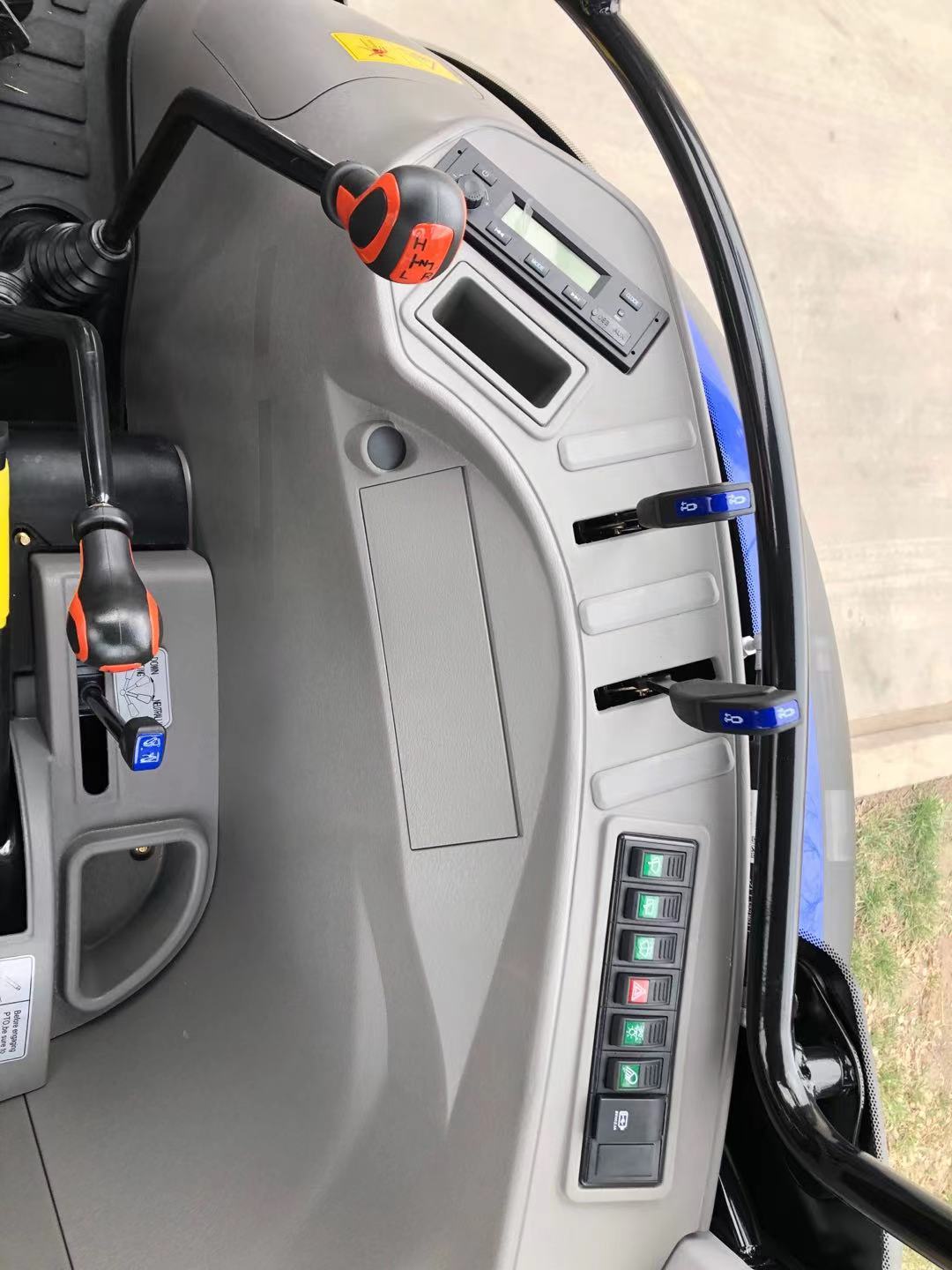

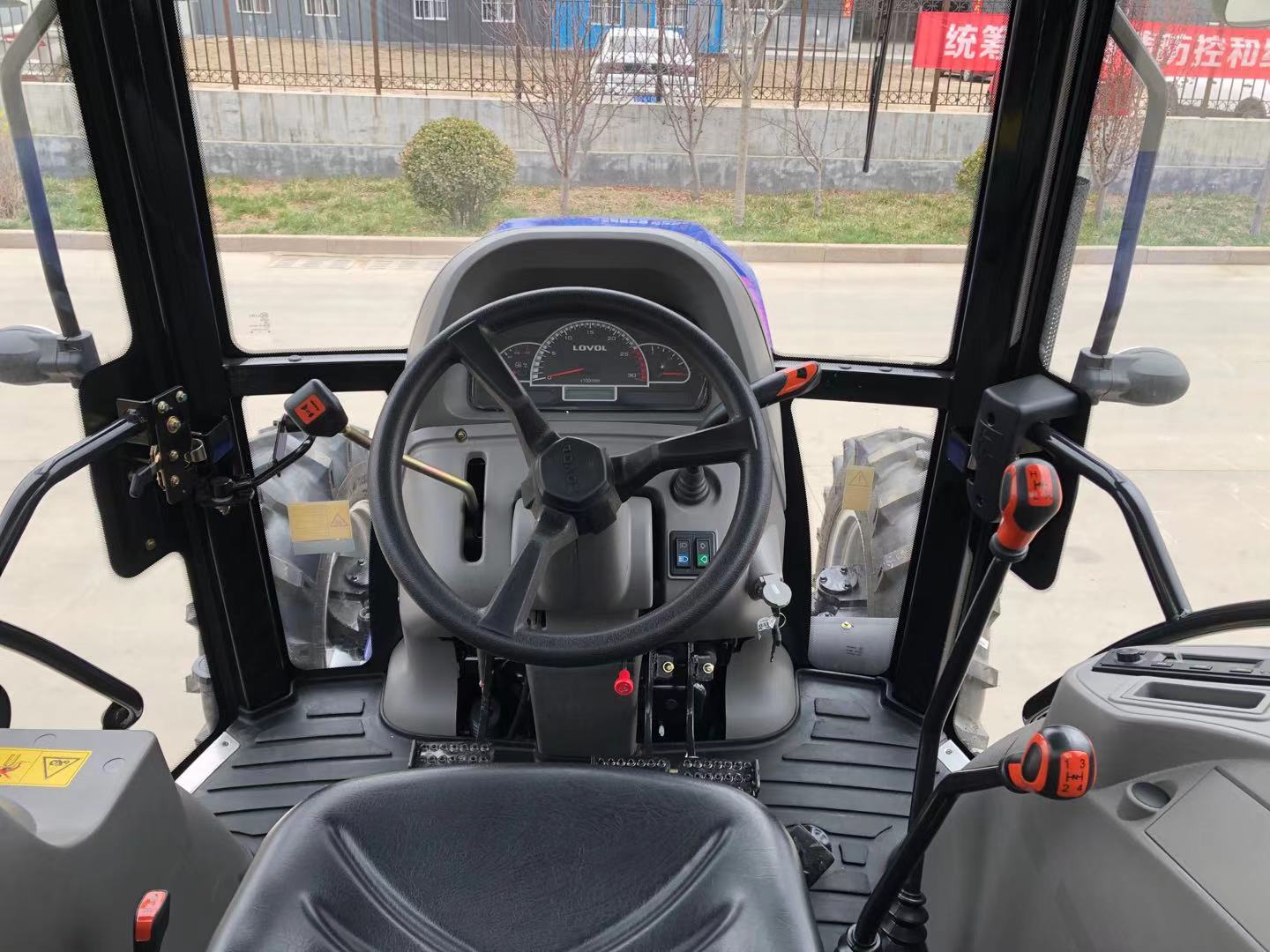

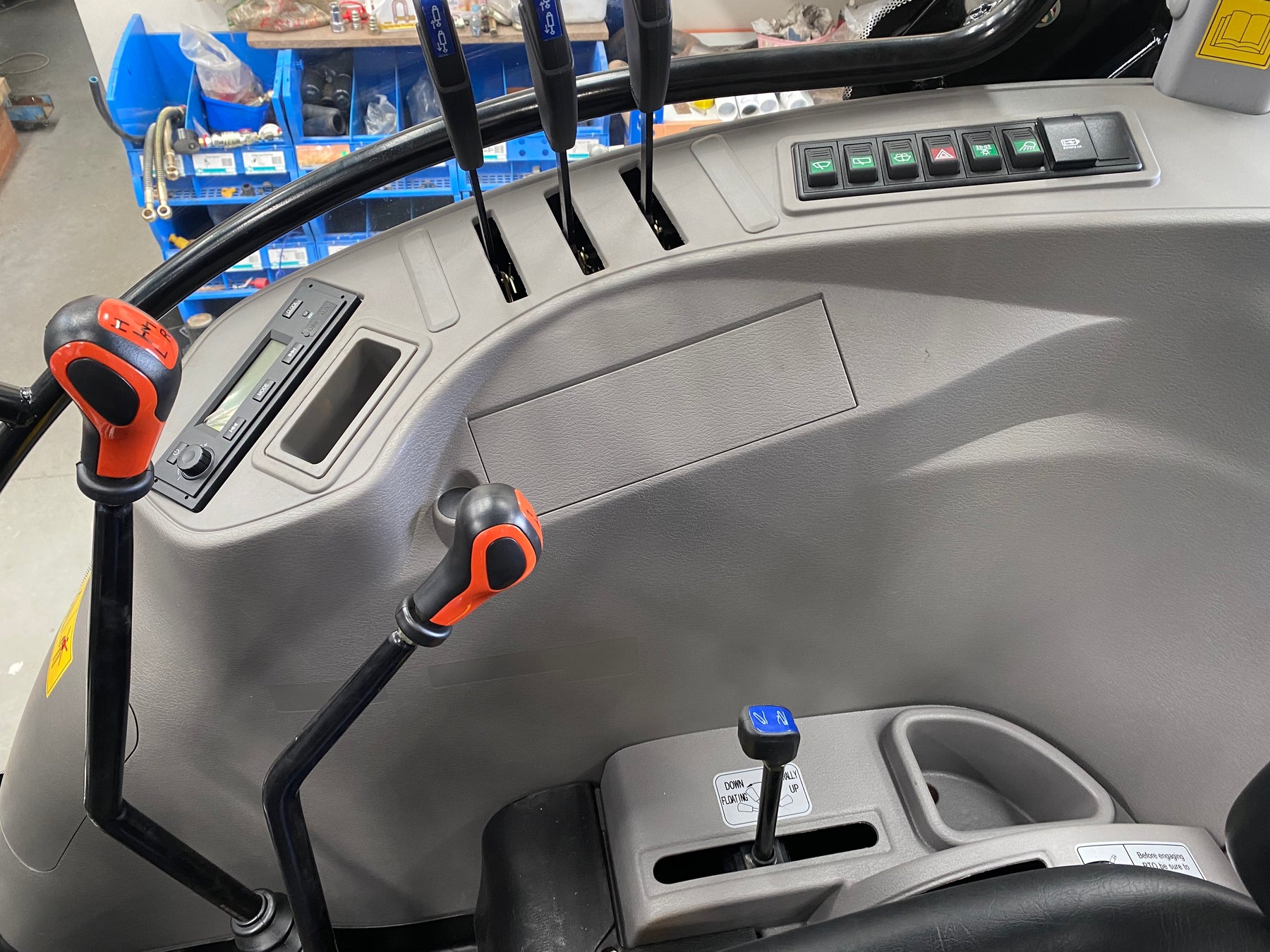

  • Standard control layout with gear sticks on the right side.
  • 16x8 speed gearbox
  • FEL Joystick positioned for right hand operation
  • Single joystick with push button 3rd function

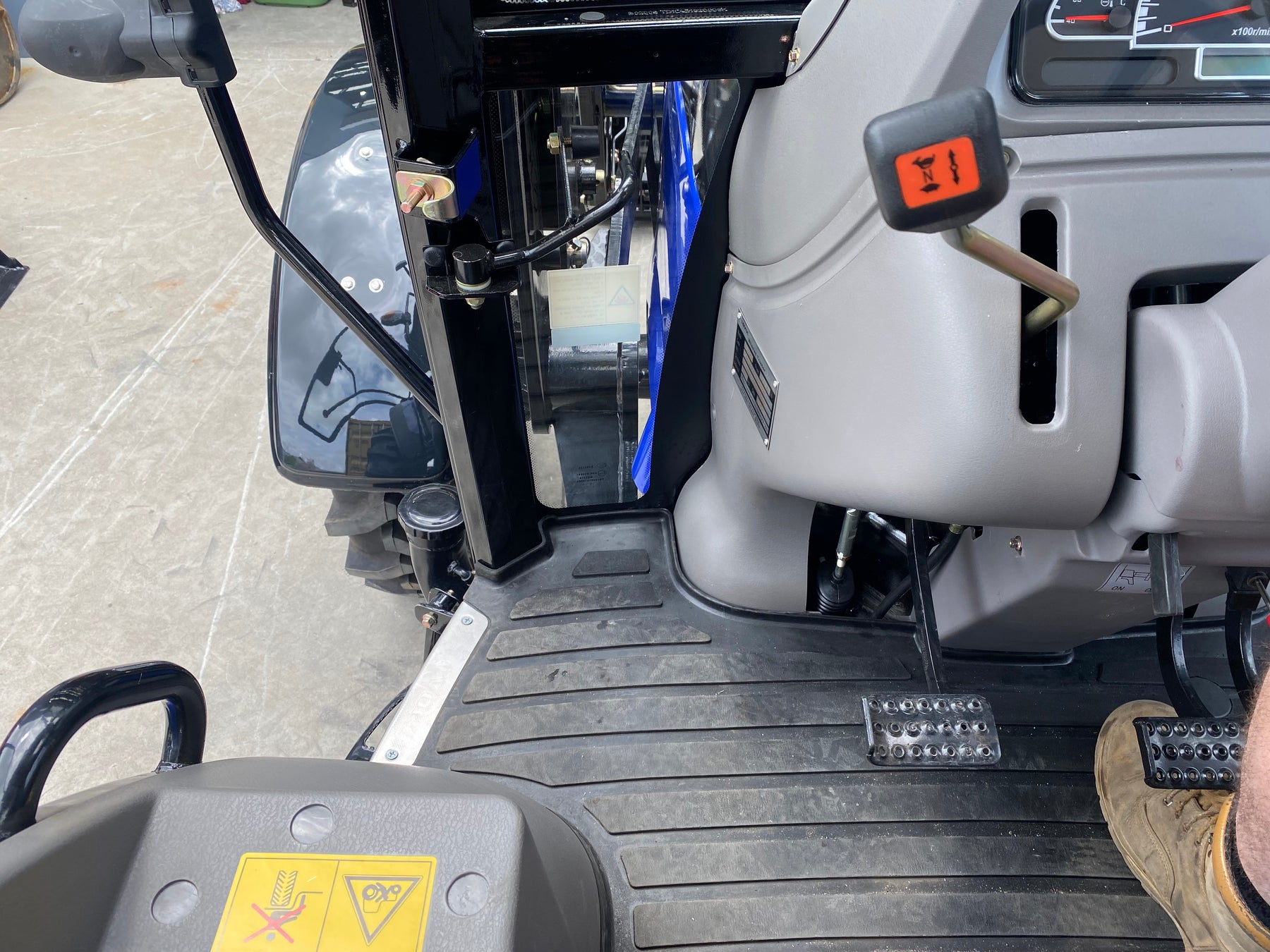

  • 4wd & Diff lock are positioned at floor pan

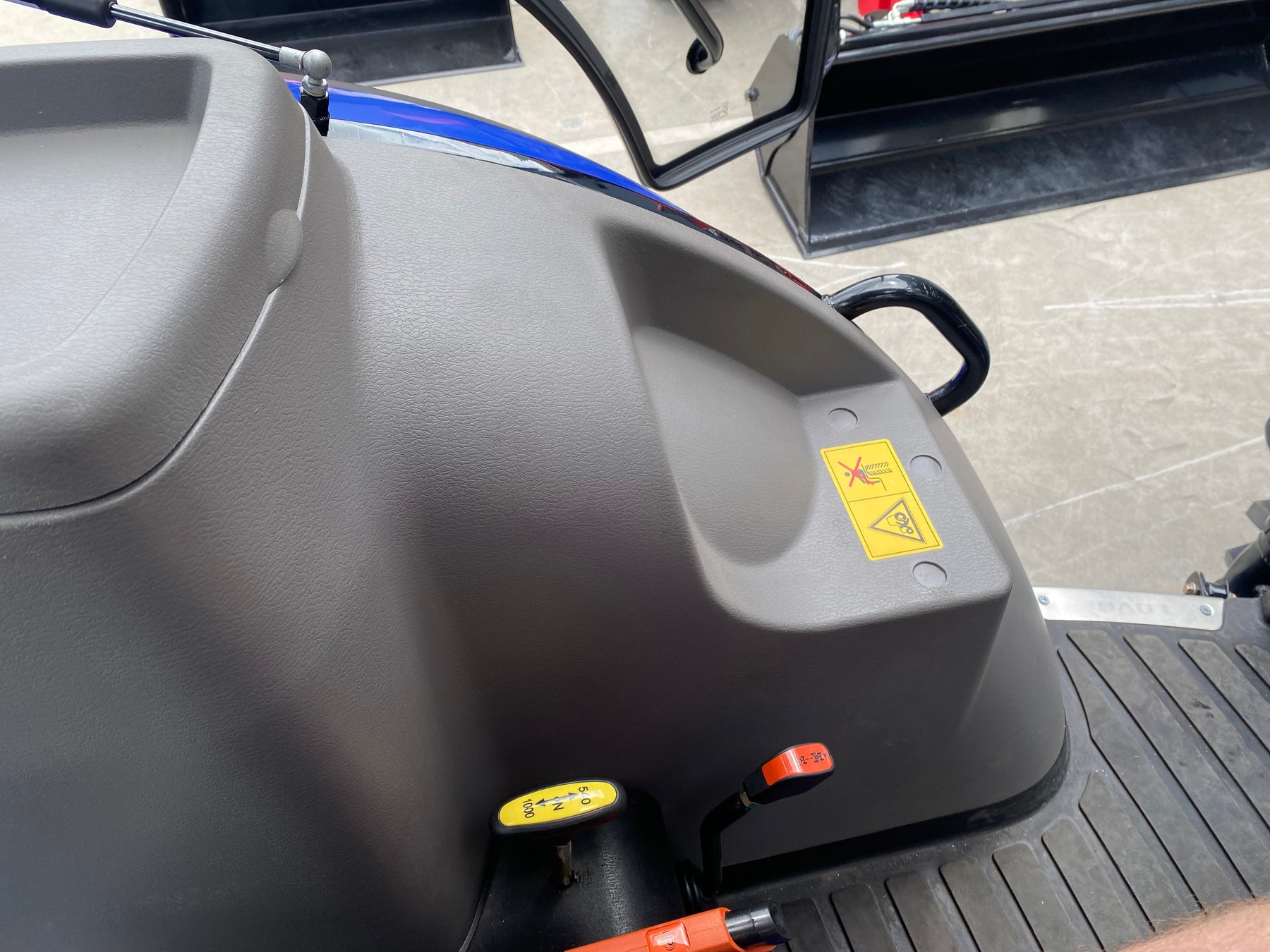

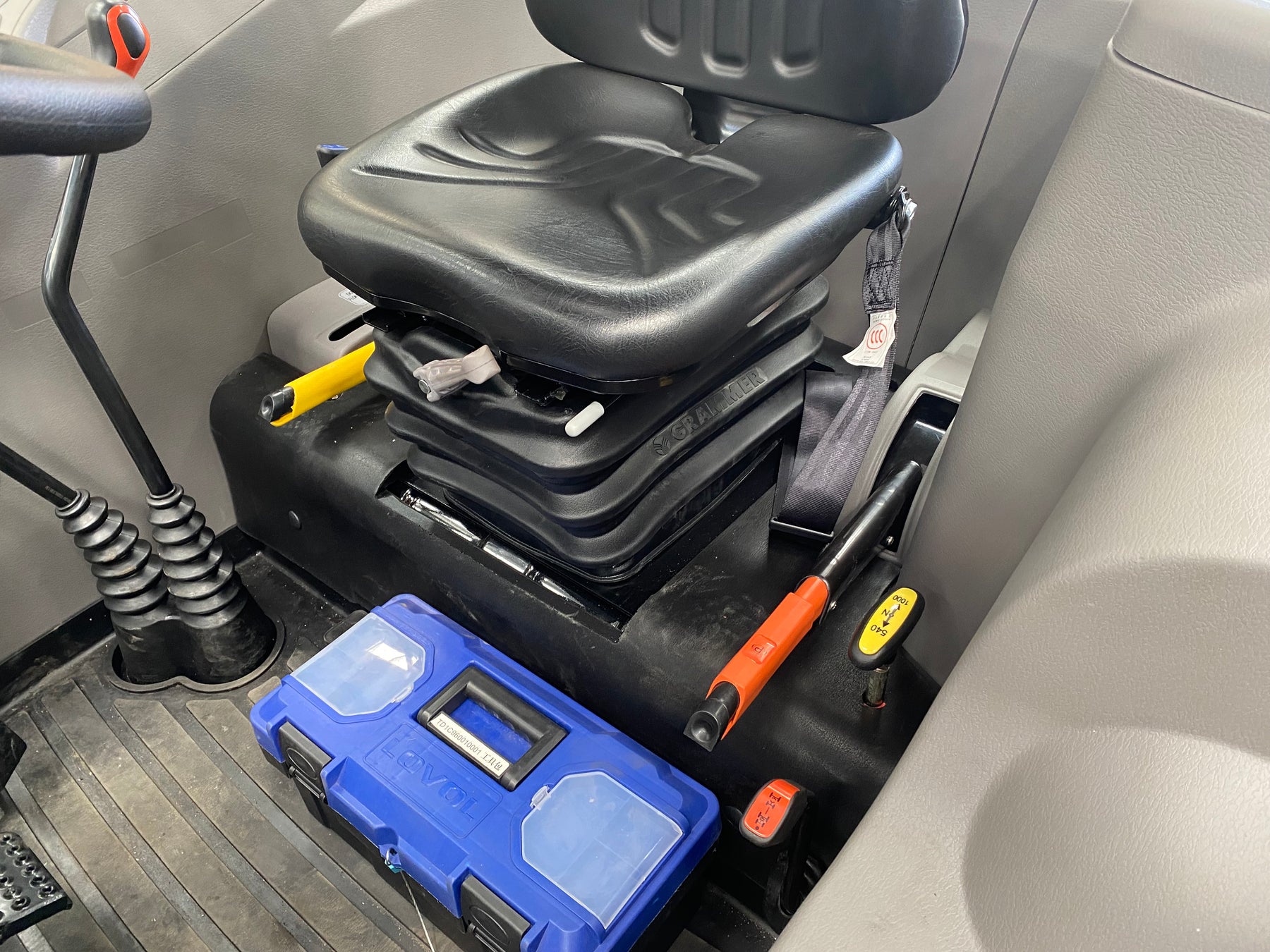

  • Rear remote and 3pl controls are beside the seat
  • Fully adjustable seat to get the perfect position

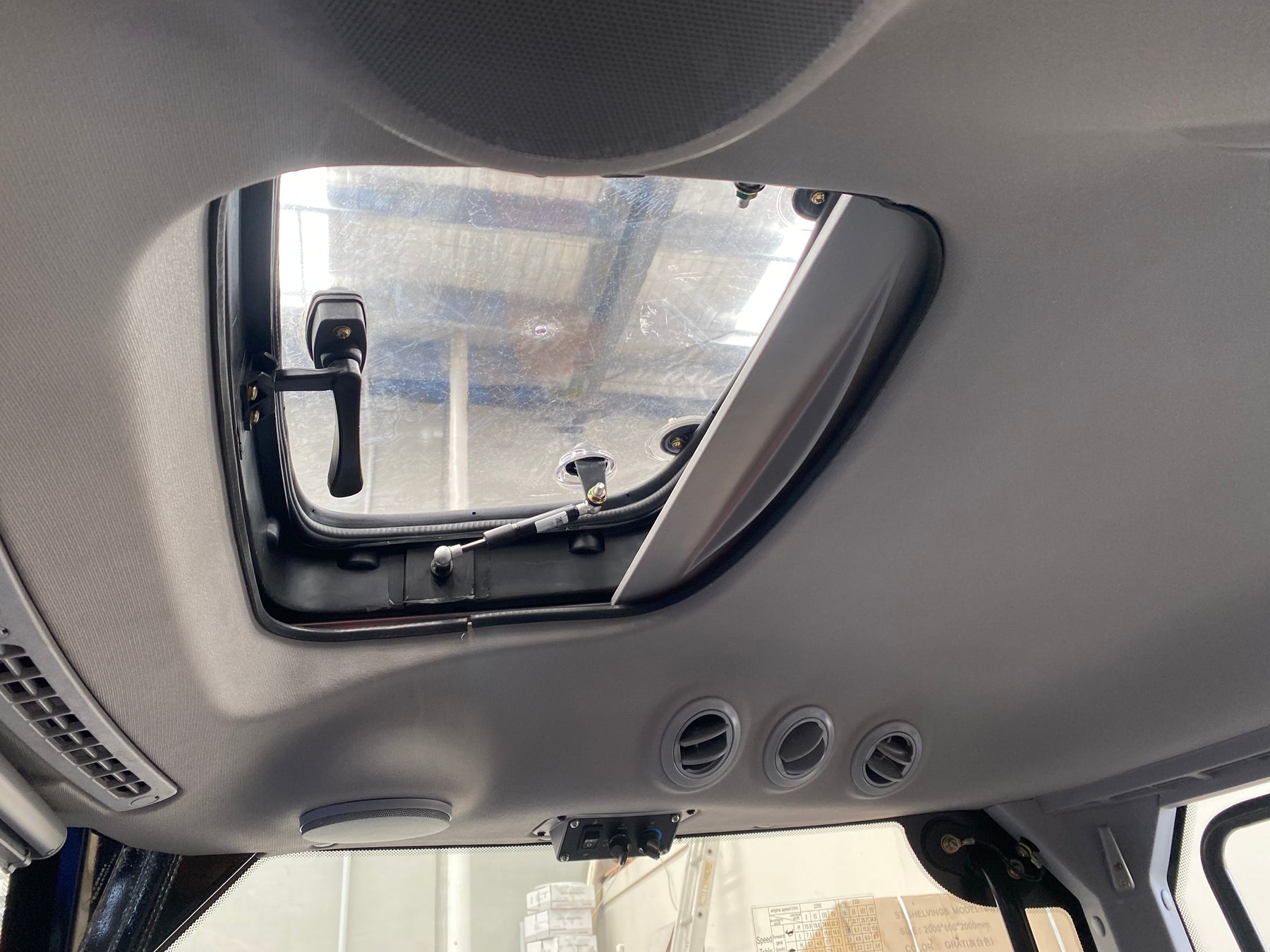

  • Roof mounted air con controls
  • Radio with USB charger
  • 4in1 Bucket standard with front teeth
  • Self Level Lift Design
  • Euro Mount hitch
  • Quick release couplers for bucket hoses
  • 900 kg Safe Working Load - SWL
  • 1200 kg Max Lift Recommended
  • Level rod indicator
  • Parking stands
  • Safety locks for working under loader
  • Greasable pins
