Product Description

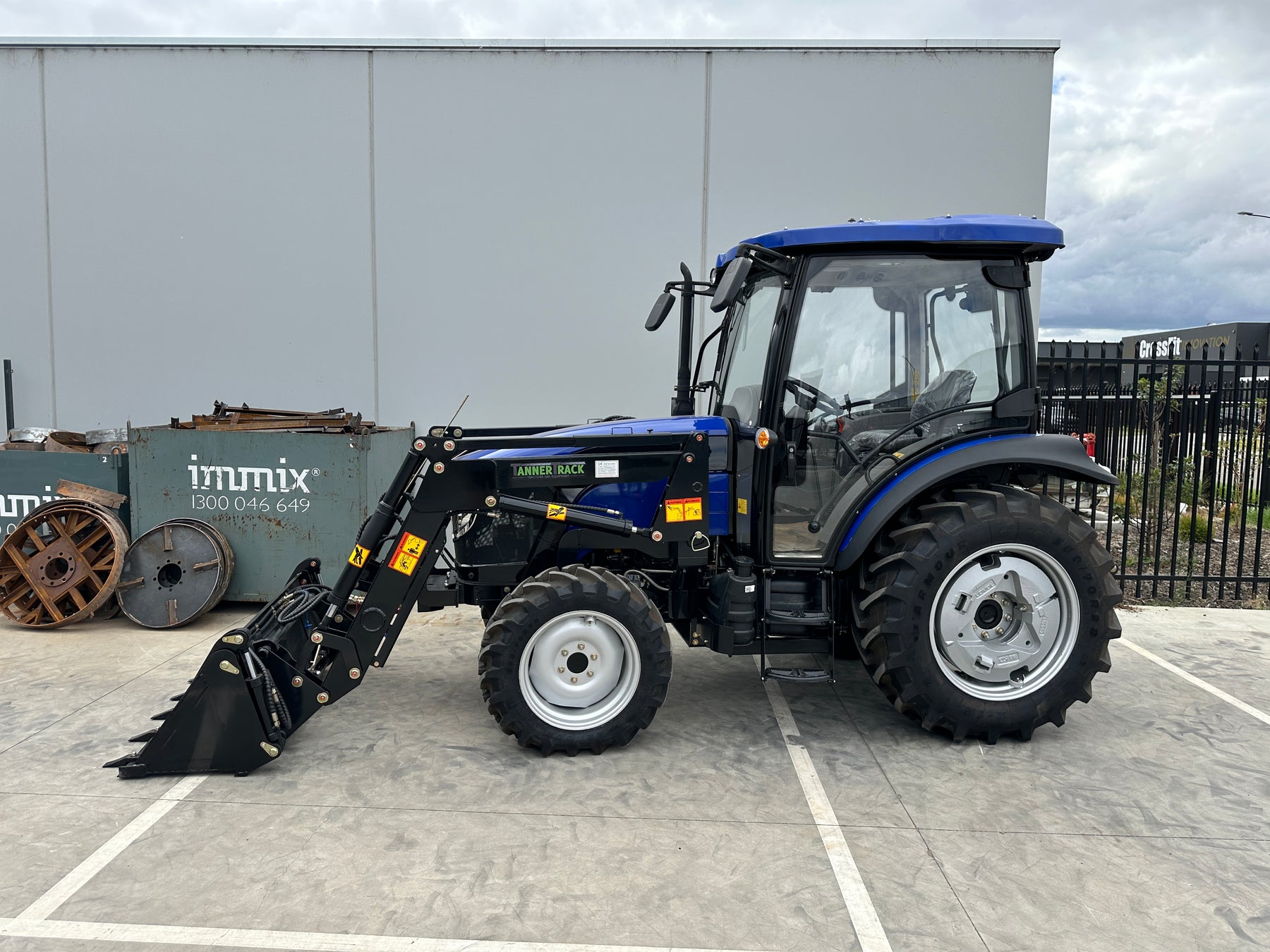

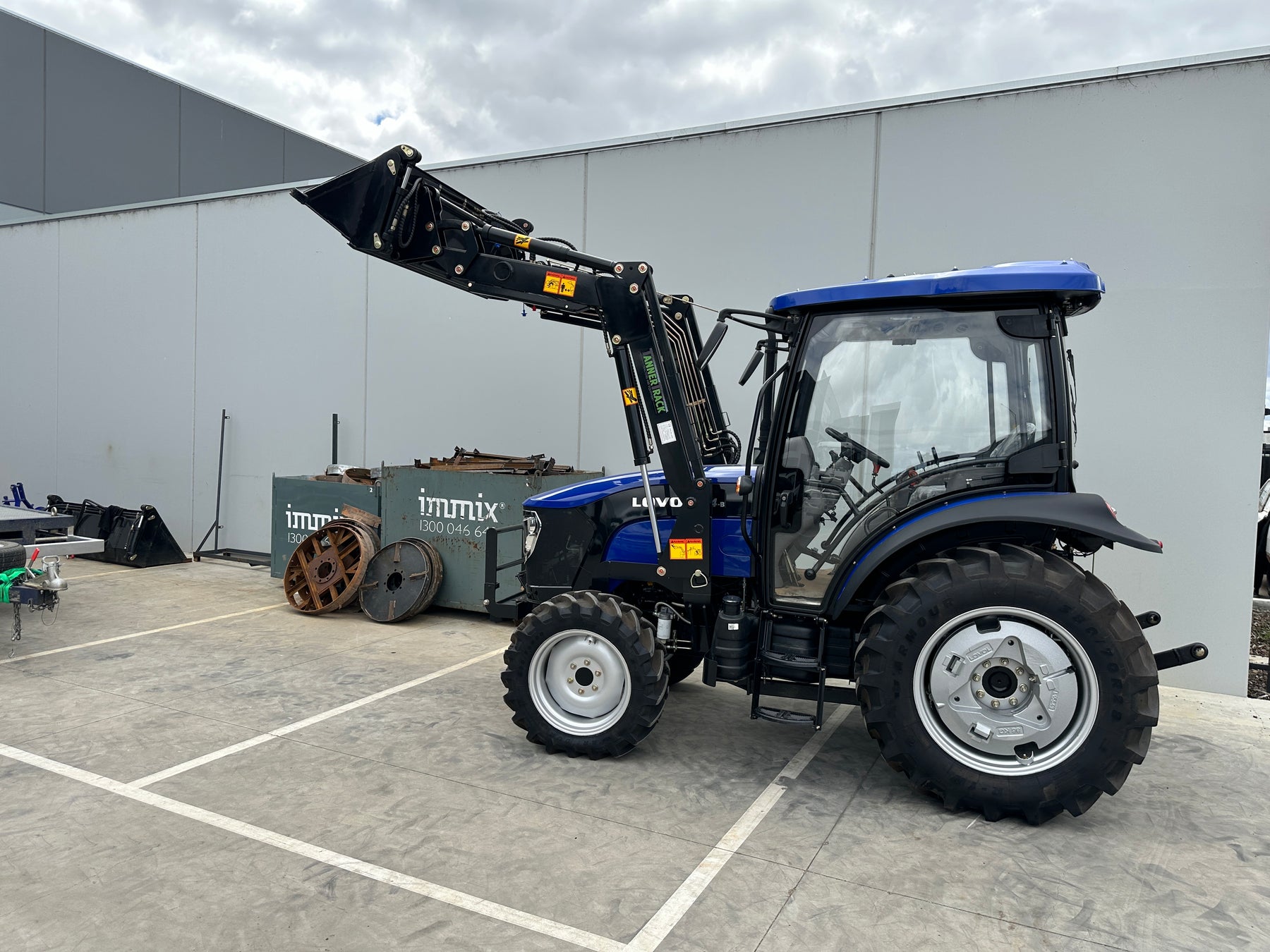

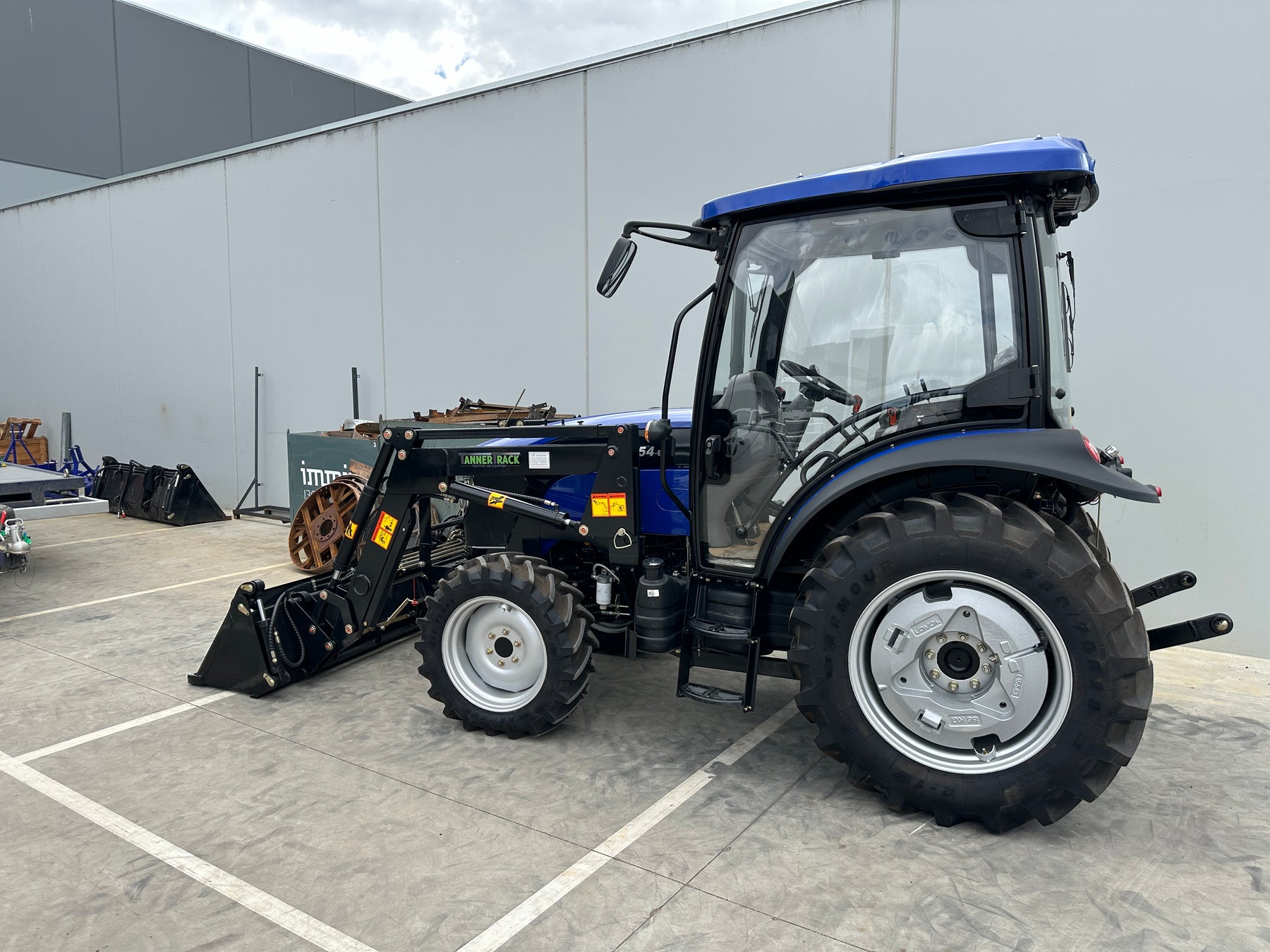

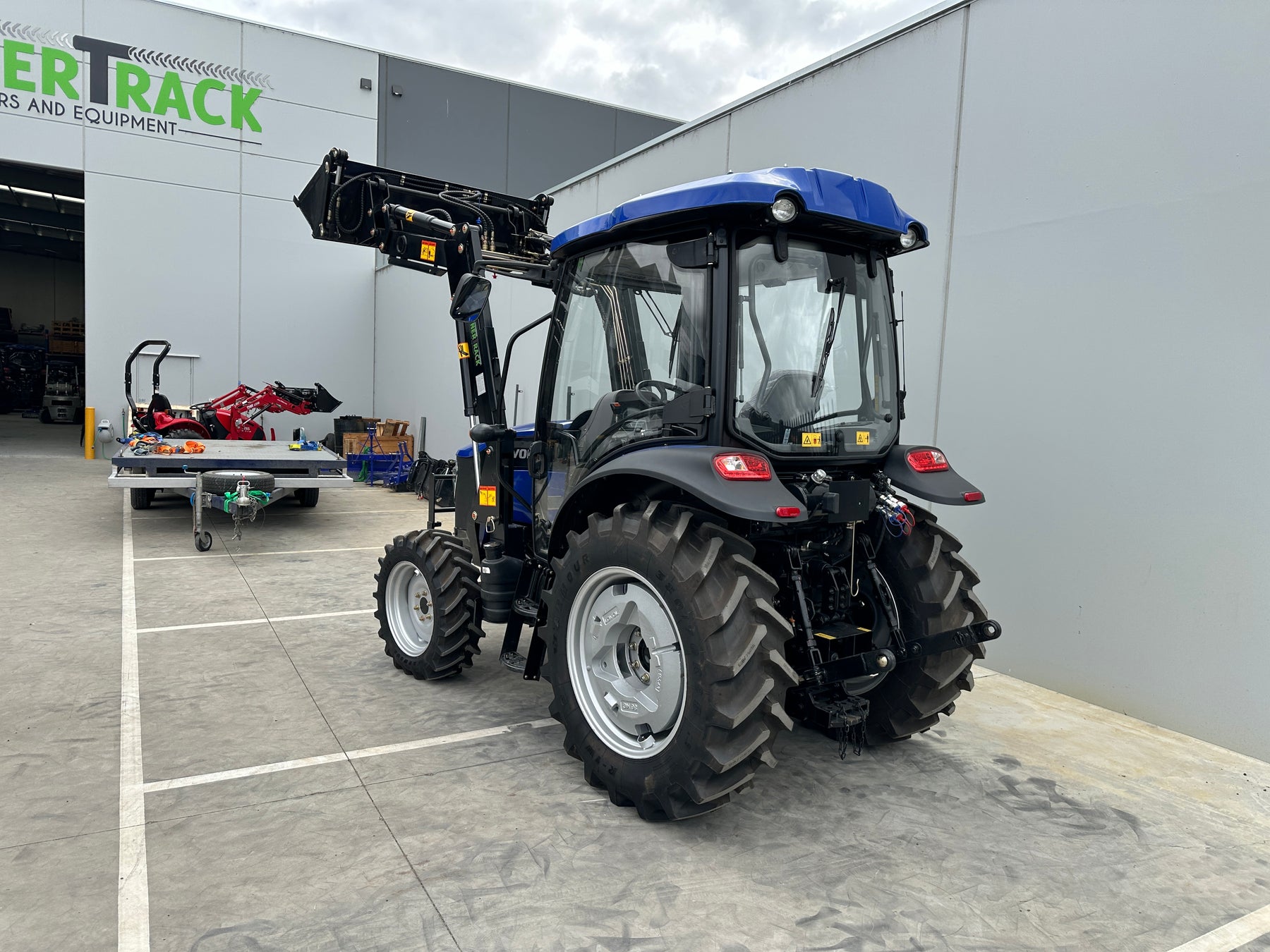

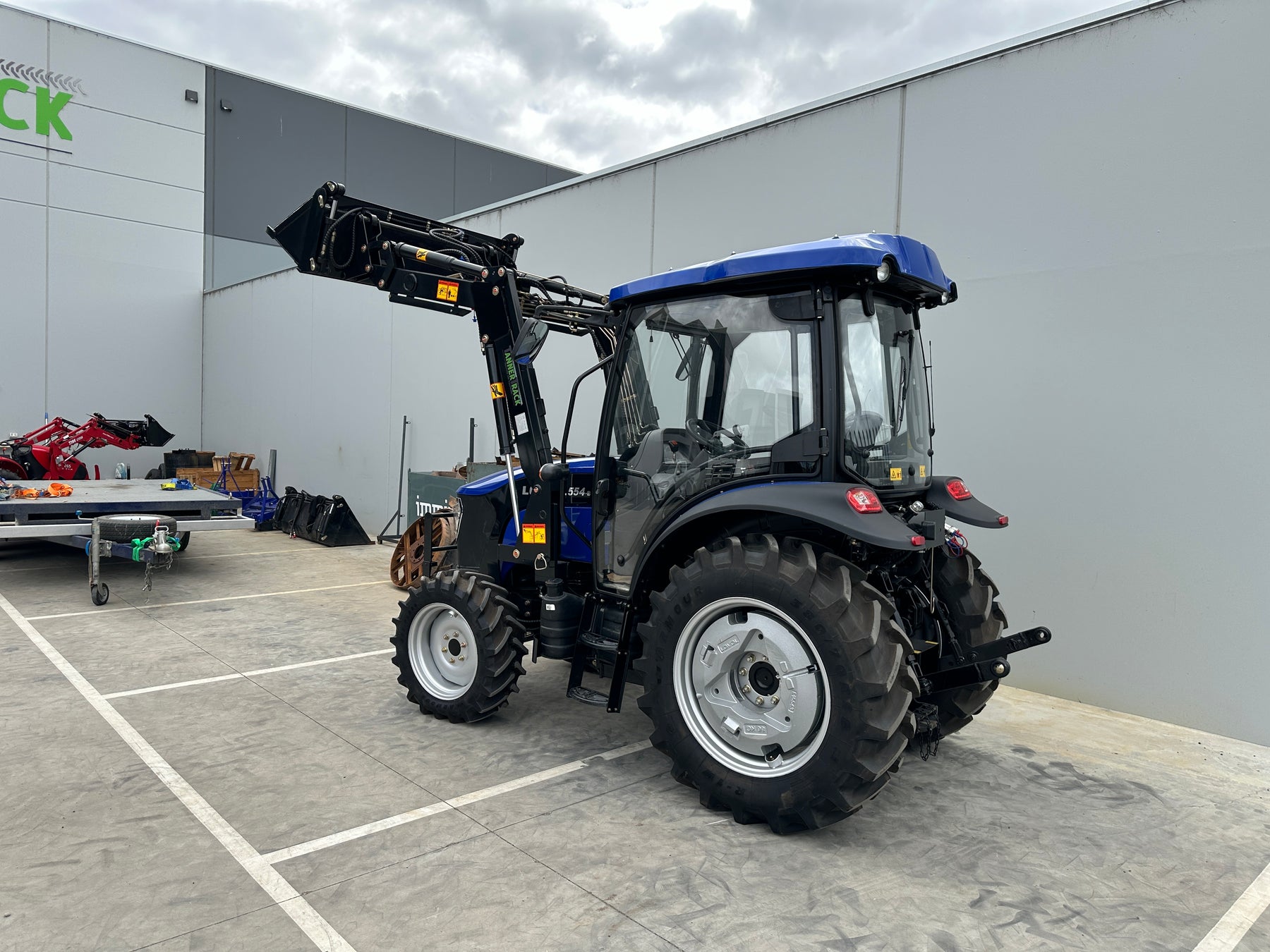

LOVOL M604 55hp Tractor with 4in1 Front end Loader
Fitted with a 4in1 Front End Loader, 12 Speed Syncro mesh Gearbox, Fwd, Diff Lock, 3 Year Warranty
No need to re brand our tractors as the are made by LOVOL Heavy Industries in China who are one of the best manufactures of tractors and heavy machinery today so be sure when you looking for a tractor its a Genuine Tractor and has factory backup and support.

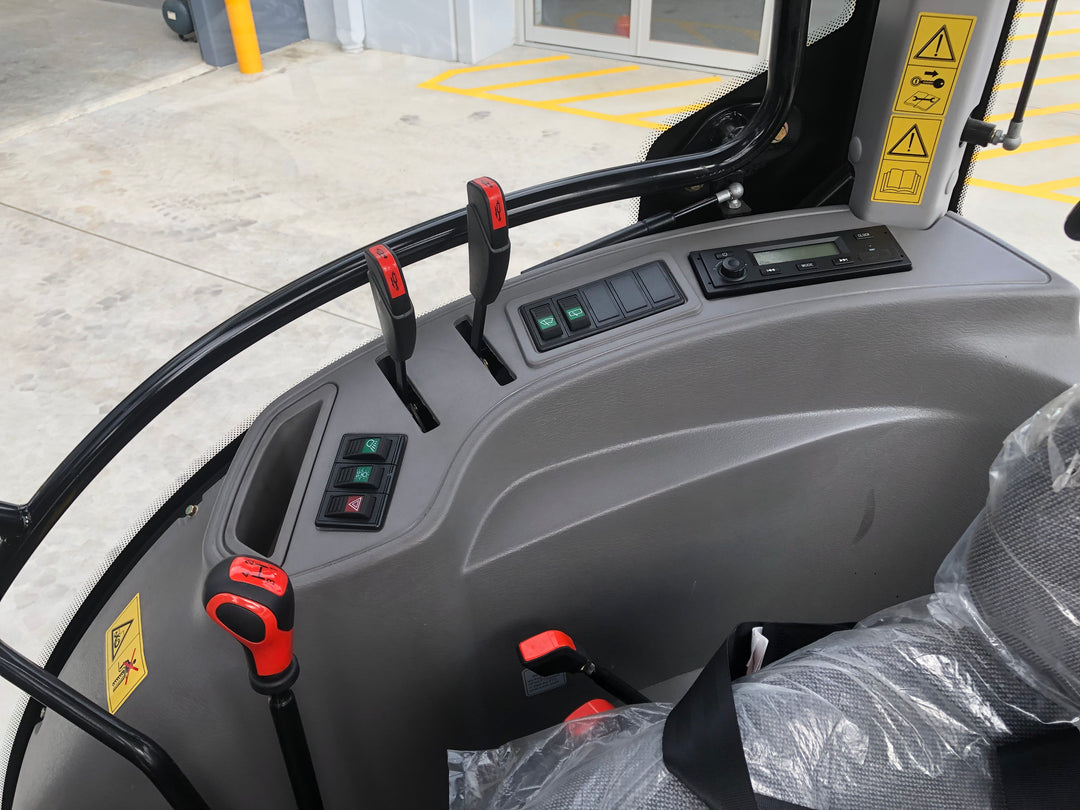

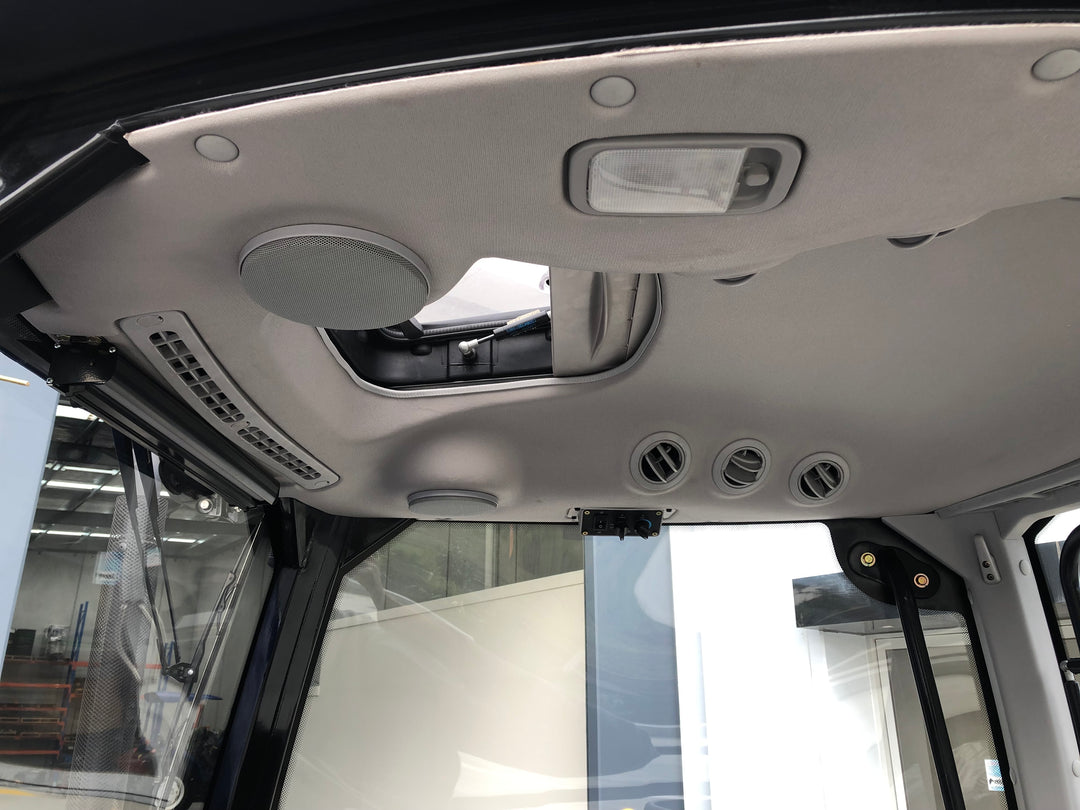

You should come down and inspect these top quality Tier 1 tractors. With their attention to detail from molded floor mats to very friendly joystick controlled front end loader and a top quality Gammer seat you can be sure you will be very happy in the new Gen-3 designed cabin with its heater/Aircon and very well insulated cabin.

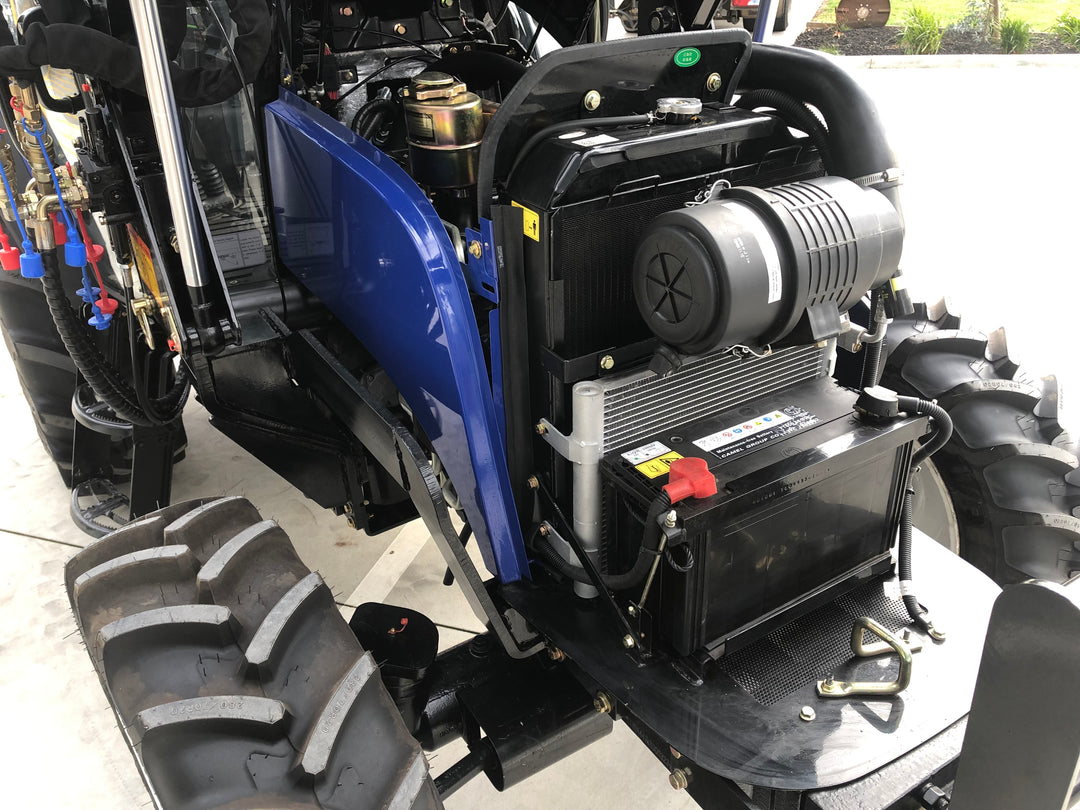

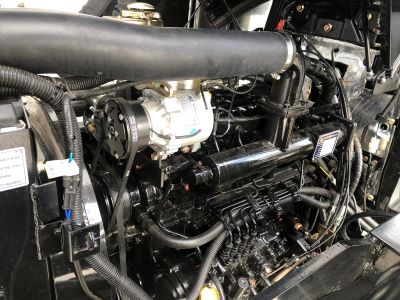

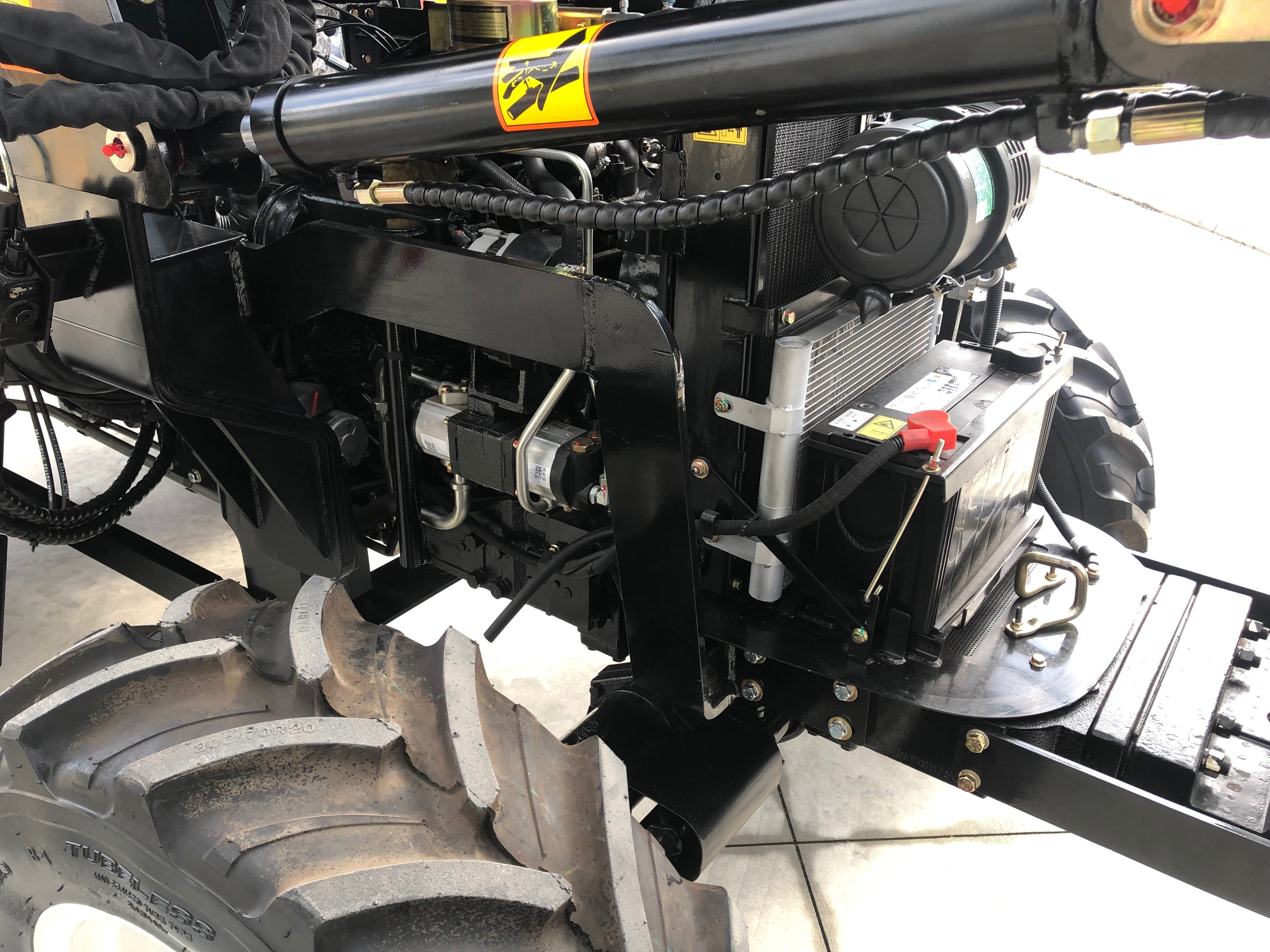

But it doesn’t stop there they have paired this long lasting and proven engine with a 12 speed synchromesh gearbox, rear remotes, dual Hydraulic filters, dual element air cleaner and many more great features.
These quality in these tractors is outstanding and an inspection is a must!!
Call us now to find out more!!
Attachments available and in stock – Backhoes – Post Hole Diggers – Augers – Rippers – Slashers – Tow Bars – Bale Spears – Pallet Forks – Wood Chippers & More!!
Package Deals Available
TRACTOR DETAILS
Key Features
- 11inch Ceramic plate clutch with cushion springs
- Syncromesh Gearbox

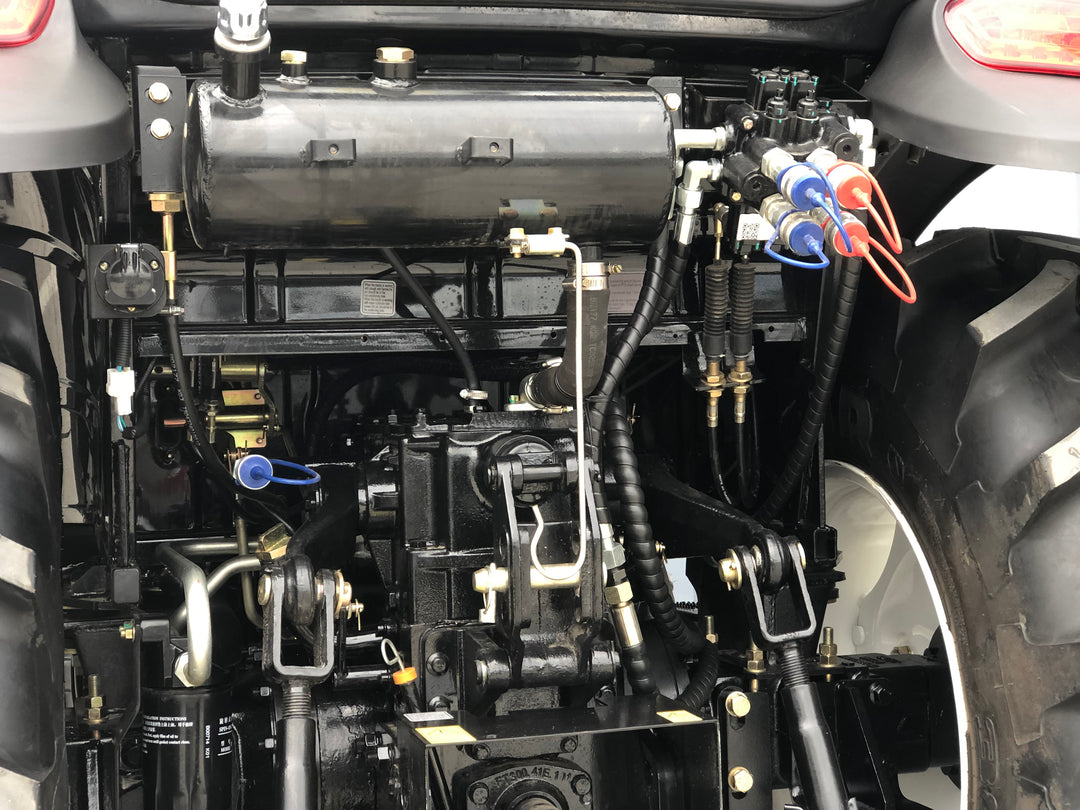

- Dual rear remotes
- Dual wheel weights
- Quiet Exhaust

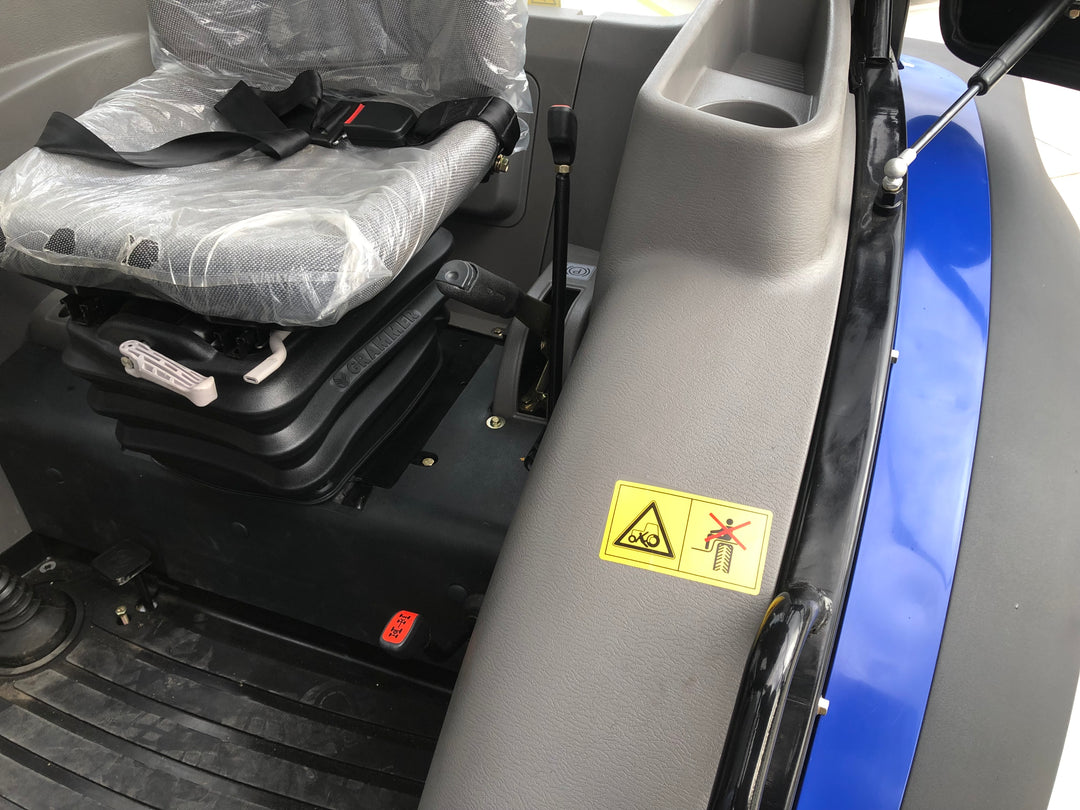

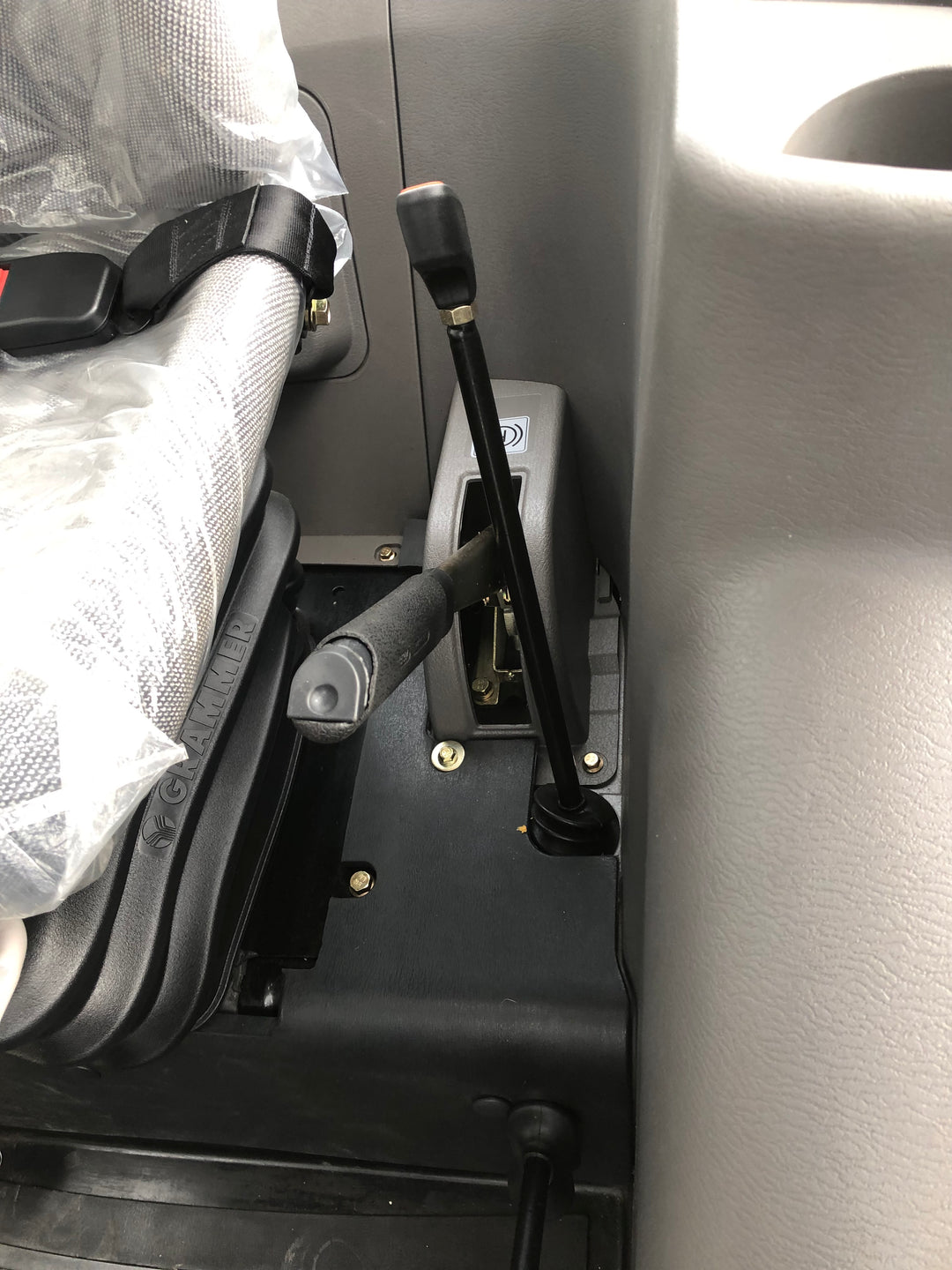

- Gammer Seat
- Sealed Wiring Looms
- Radial Tyres
- 3 Year Warranty
- 600kg SWL Front end Loader
- 4in1 Euro Mount Quick Hitch Bucket
- Gen III Design with Quality Finishes
- Genuine LOVOL Tractor
Compare the Lovol M604 Specs with other tractors and see for yourself how well they stand up against the competition.
|
Model |
M604 Cabin |
M604 Rops |
|
|
Engine Gross Power |
HP(kw) |
55(44) |
55(44) |
|
Rated Revolution |
rpm |
2400 |
2400 |
|
PTO HorsePower |
HP(kw) |
50 (37.5) |
50 (37.5) |
|
Type |
Natural |
natural |
|
|
No.of Cylinders |
4 |
4 |
|
|
Total Displace |
cc |
4087 |
4087 |
|
Bore&stroke |
mm |
||
|
Combustion System |
DI |
DI |
|
|
Battery |
Ah/h |
100 |
100 |
|
Cooling System |
Coolant/Water |
Coolant/Water |
|
|
Capacity |
|||
|
Fuel Tank |
L |
60 |
60 |
|
Engine Crankcase(Included Filter) |
L |
9 |
9 |
|
Engine Coolant |
L |
10.75 |
8.75 |
|
Transmission Case |
L |
27 |
27 |
|
Support of Front Axle |
L |
7 |
7 |
|
PTO |
|||
|
Maximum PTO Power |
HP |
50 |
50 |
|
Rear PTO |
6 Spline |
6 Spline |
|
|
Type |
dual speed |
dual speed |
|
|
Revolution |
rpm |
540/540E (760) |
540/540E (760) |
|
Hydraulic |
|||
|
Steering |
hydraulic |
hydraulic |
|
|
3 Point Lift Control Type |
draft/position |
draft/position |
|
|
Implement Pump |
L/min |
40 |
40 |
|
Power Steering Pump |
L/min |
13 |
13 |
|
Total Hydraulic Flow |
L/min |
53 |
53 |
|

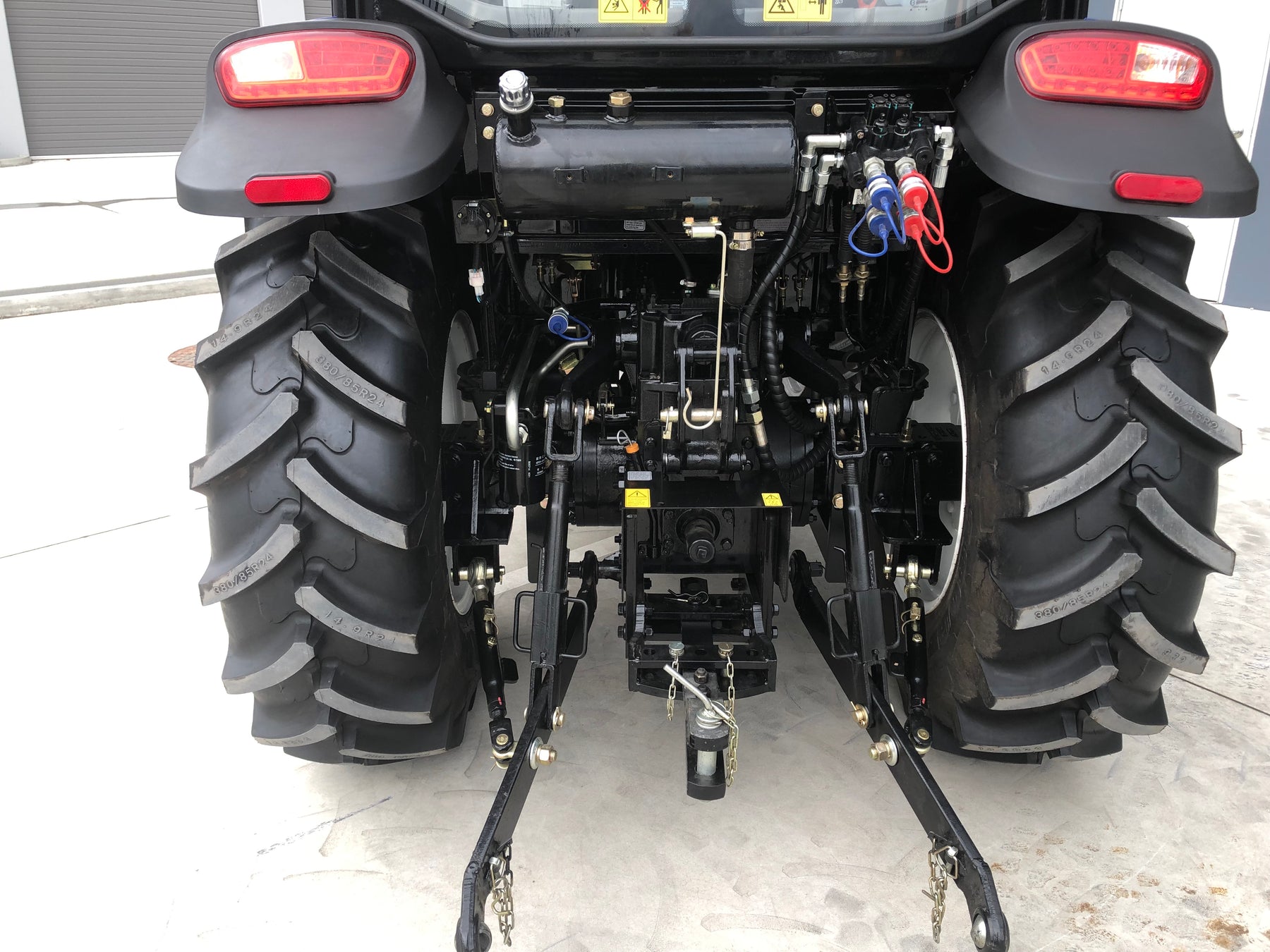

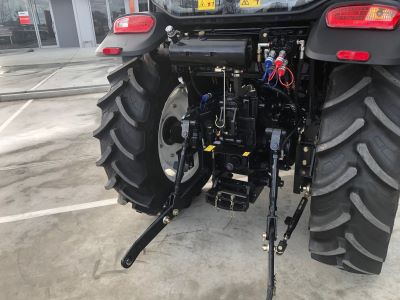

3-point Hitch Type |
cat II |
cat II |
|
|
Lower Link Type |
hinge |
hinge |
|
|
Check Link Type |
lever |
lever |
|
|
Top Link Type |
hinge |
hinge |
|
|
Lift rod type |
thread |
thread |
|
|
Lift capacity at lift point |
KN |
2,294 kgf |
2,294 kgf |
|
Lift capacity at 24 in.behind lift point |
KN |
1,428 kgf |
1,428 kgf |
|
Drawbar type |
swing |
swing |
|
|
Max. Trailer Loading Weight |
kg |
6000 |
6000 |
|
No.of Standard Remote Valve's Ports (Rear) |
2 Sets |
2 Sets |
|
|
Towing Capacity (based on 7.5km/h) |
|||
|
Maximum Towing Power |
KN |
>13.2 |
>13.2 |
|
Drive Train |
|||
|
Transmission |
|||
|
Main Gear Shift x Range Gear Shift |
4x3 range |
4x3 range |
|
|
No. of Speeds |
F12+R12 |
F12+R12 |
|
|
Shuttle Type |
mechanical shuttle |
mechanical shuttle |
|
|
Brake Type |
wet/double disc per side |
wet/double disc per side |
|
|
Main Clutch Type |
Dry with Springs |
Dry with Springs |
|
|
Main Clutch Diameter |
mm |
254 / 11 Inch |
254mm / 11 Inch |
|
Mechanical Differential Lock |
yes |
yes |
|
|

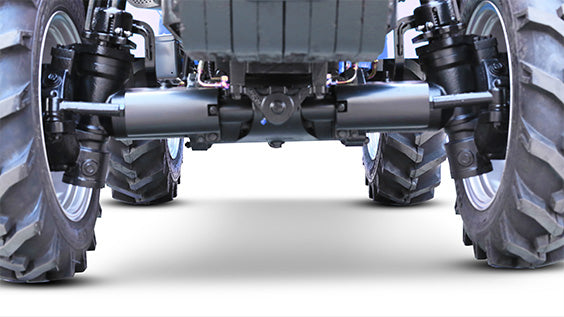

Front Wheel Drive System |
4WD |
4WD |
|
|
Traveling Speeds |
|||
|
Forward |
km/h |
2.37-38.46 |
2.37-38.46 |
|
Reverse |
km/h |
2.07-33.71 |
2.07-33.71 |
|
Other features |
|||
|
Tilt Steering |
yes |
yes |
|
|
Flat Deck Type |
flat floor |
flat floor |
|
|
Panel Type |
suspension |
suspension |
|
|
Dimensions |
|||
|
Overall Length (With 3 Point & front Weight) |
mm |
4136 |
4136 |
|
Overall Width(Minimum Tread) |
mm |
1870 |
1870 |
|
Tread Width Front 4wd |
mm |
1250 |
1250 |
|
Tread Width Rear |
mm |
1300 |
1300 |
|
Overall Height(With ROPS) |
mm |
- |
2657 |
|
Overall Height (Top of Cabin) |
mm |
2822 |
- |
|
Wheel Base |
mm |
1990 |
1990 |
|
Ground(Crop) Clearance |
mm |
310 |
310 |
|
Turning Radius(w/brake) |
mm |
4300/3800 |
4300/3800 |
|
Weight with ROPS Without Loader |
kg |
- |
2320 |
|
Weight with CABIN Without Loader |
kg |
2525 |
- |
|
TireIRE Size |
|||
|
AG. Tire |
|||
|
Front |
8.3-20 AG Or 280\70R20 Radial |
8.3-20 AG Or 280\70R20 Radial |
|
|
Rear |
14.9-24 AG or 380\85R24 Radial |
14.9-24 AG or 380\85R24 Radial |
|
|
Turf Tire |
|||
|
Front |
31X9.5-16 |
31X9.5-16 |
|
|
Rear |
43.5X13-20 |
43.5X13-20 |
|
Specs are correct at time of posting but subject to change.
