$31,990.00 $29,990.00
/
Tax included.

Do you have questions about this product? Our experts are here to help! Frequently Asked Questions

5 Year Warranty
Combo Deals Available
Global Brand with Service & Support
Download Brochure

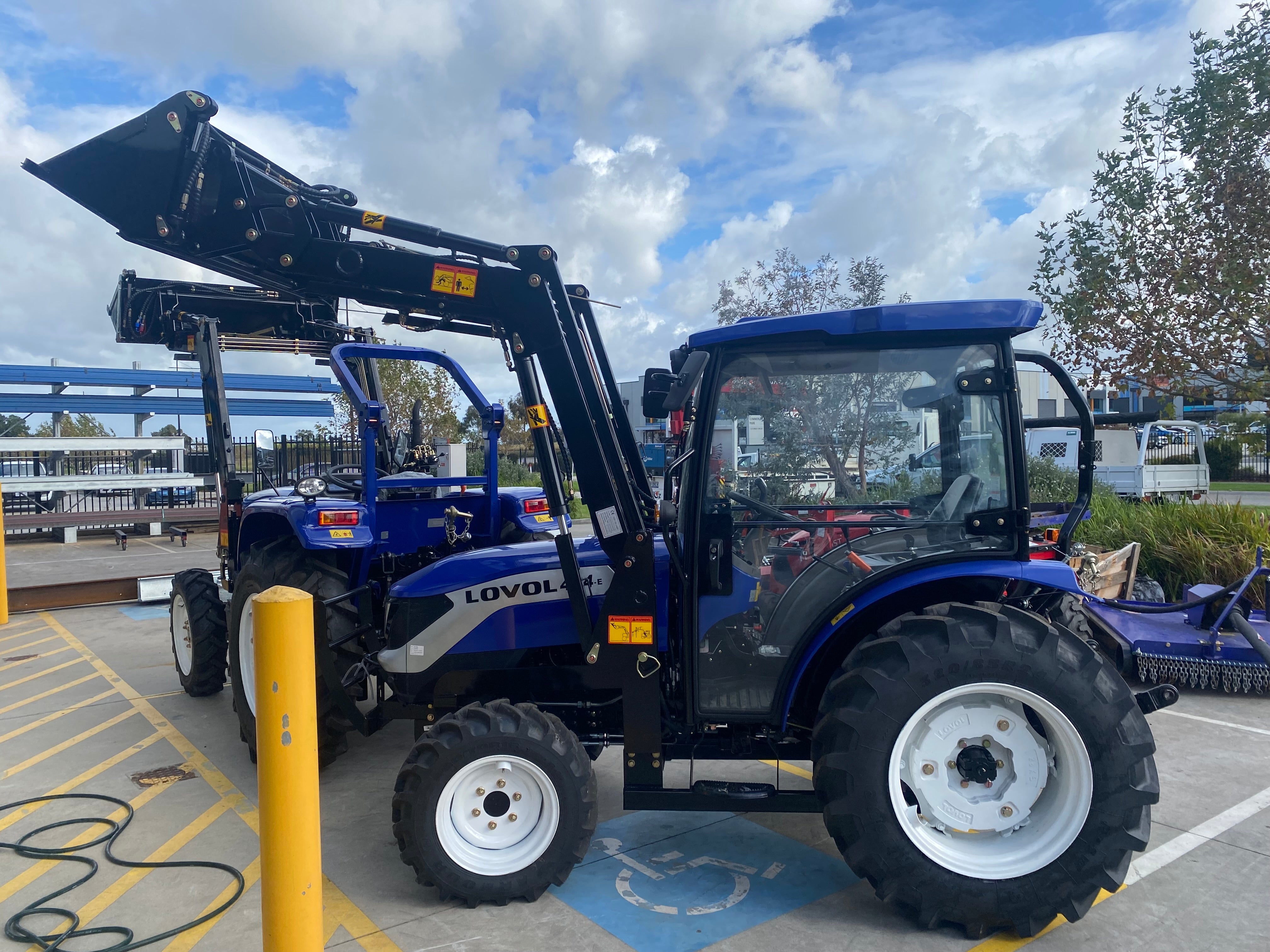

Lovol M404, 40hp Cabin Tractor with front end loader ā€“ 4in1 bucket with euro mount quick release.

Heated and Air Conditioned Cabin

Cabin has plenty of room for the size of the tractor

Quality finishes make LOVOL Tractors one of the top level tractors from China on the market today.

Come and see why these tractors stand out from others

4 Cylinder 40hp Diesel with 8 speed gearbox with SYNCRO Shuttle Shift.
Open plan deck making this small tractor very roomy compared to other tractors it size.

  • Full Syncro Shuttle Shift,
  • Dual Hydraulic pumps,
  • Rear Remotes,
  • Power Steering,
  • Radial Tyres,
  • Flat Floor Design - minimal hump
  • Low seat Height
  • Grammar Seat
  • Heated and Air Conditioned Cabin


Ā

FEATURES

CONTROLS

CONTROLS

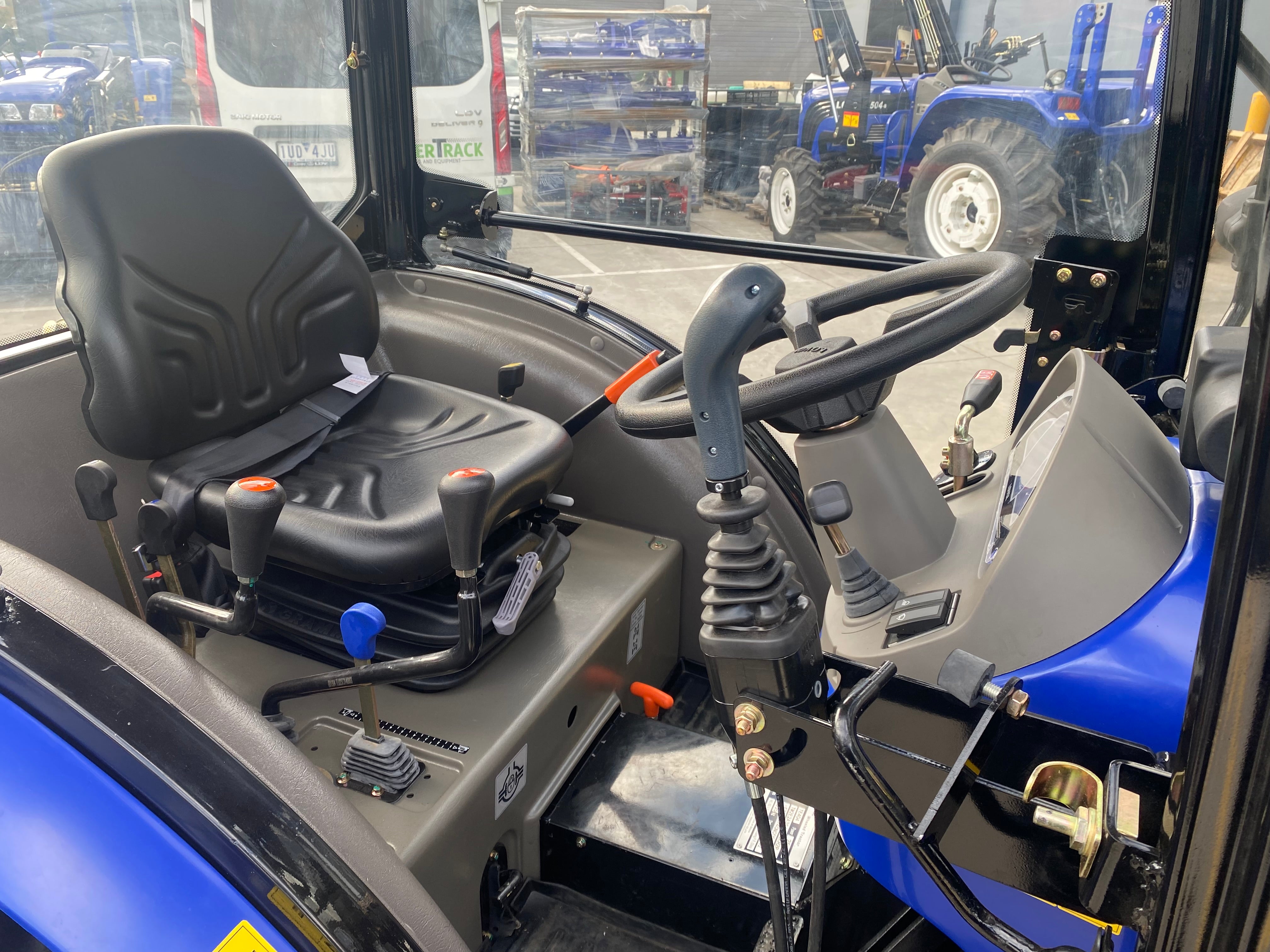

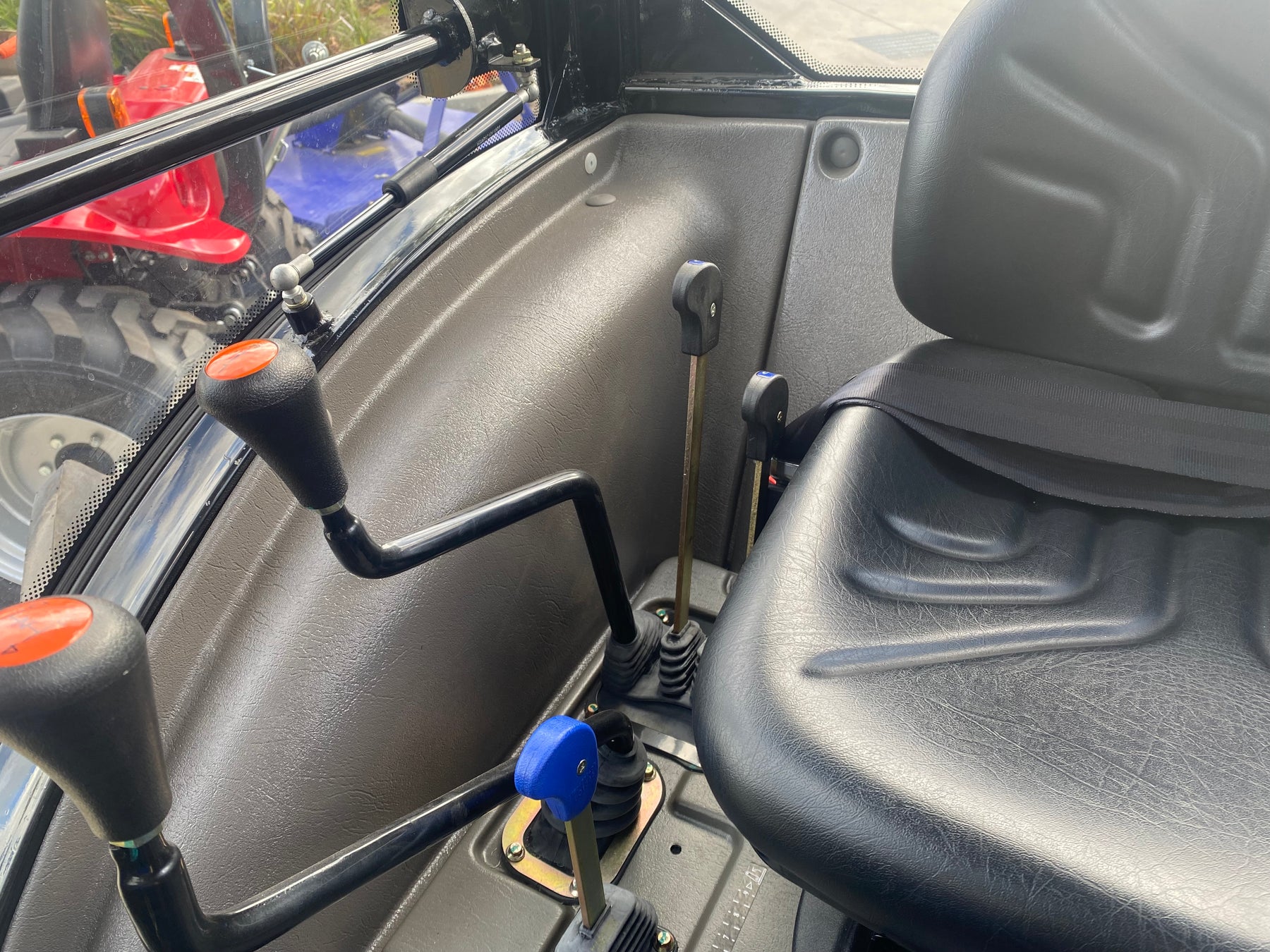

Controls to the sides to keep plenty of room for the operator.

STEERING

STEERING

Dedicated steering pump for effortless power steering

SERVICE

SERVICE

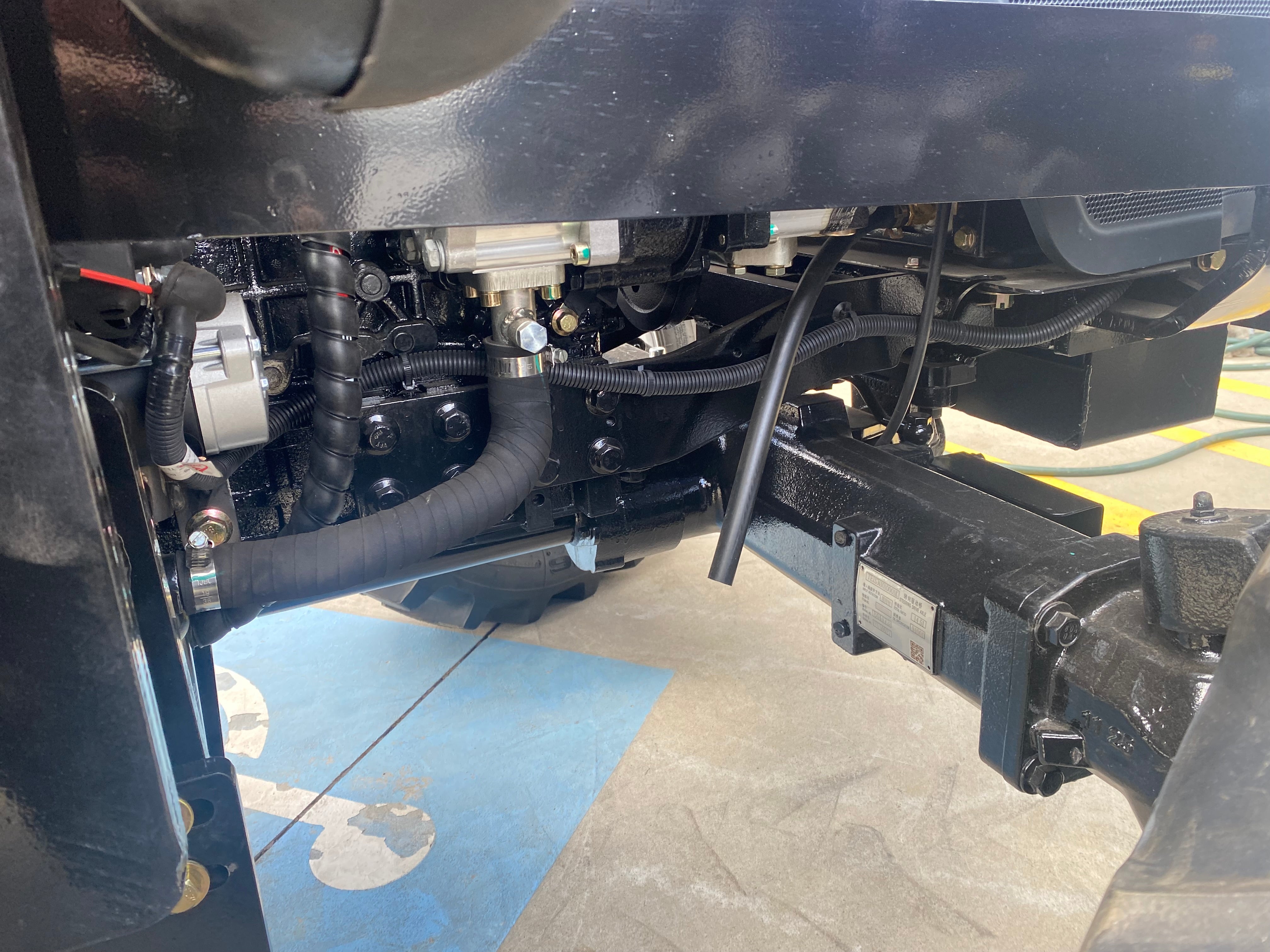

Easy to service with great access to all filters.

No special tools required

FRONT END LOADER

FRONT END LOADER

Fitted with a 4in1 front end loader with Euro mount hitch soe you can fit other attachments like Pallet Forks or Bale Spears

CABIN

CABIN

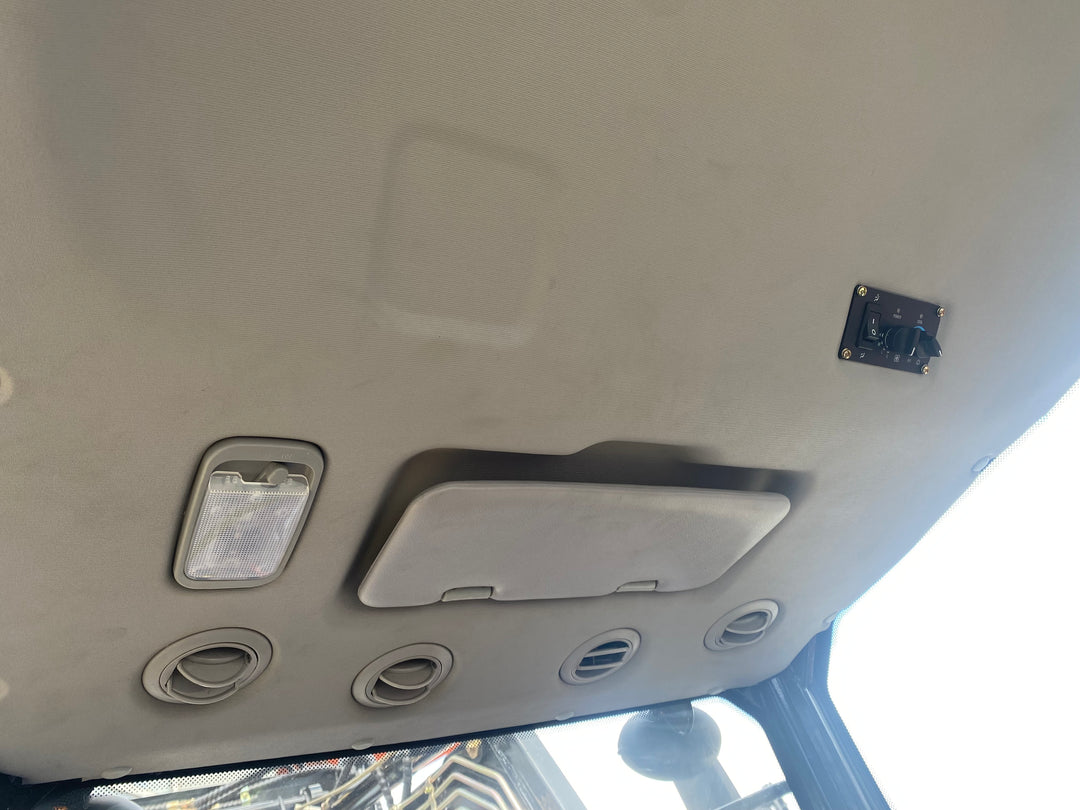

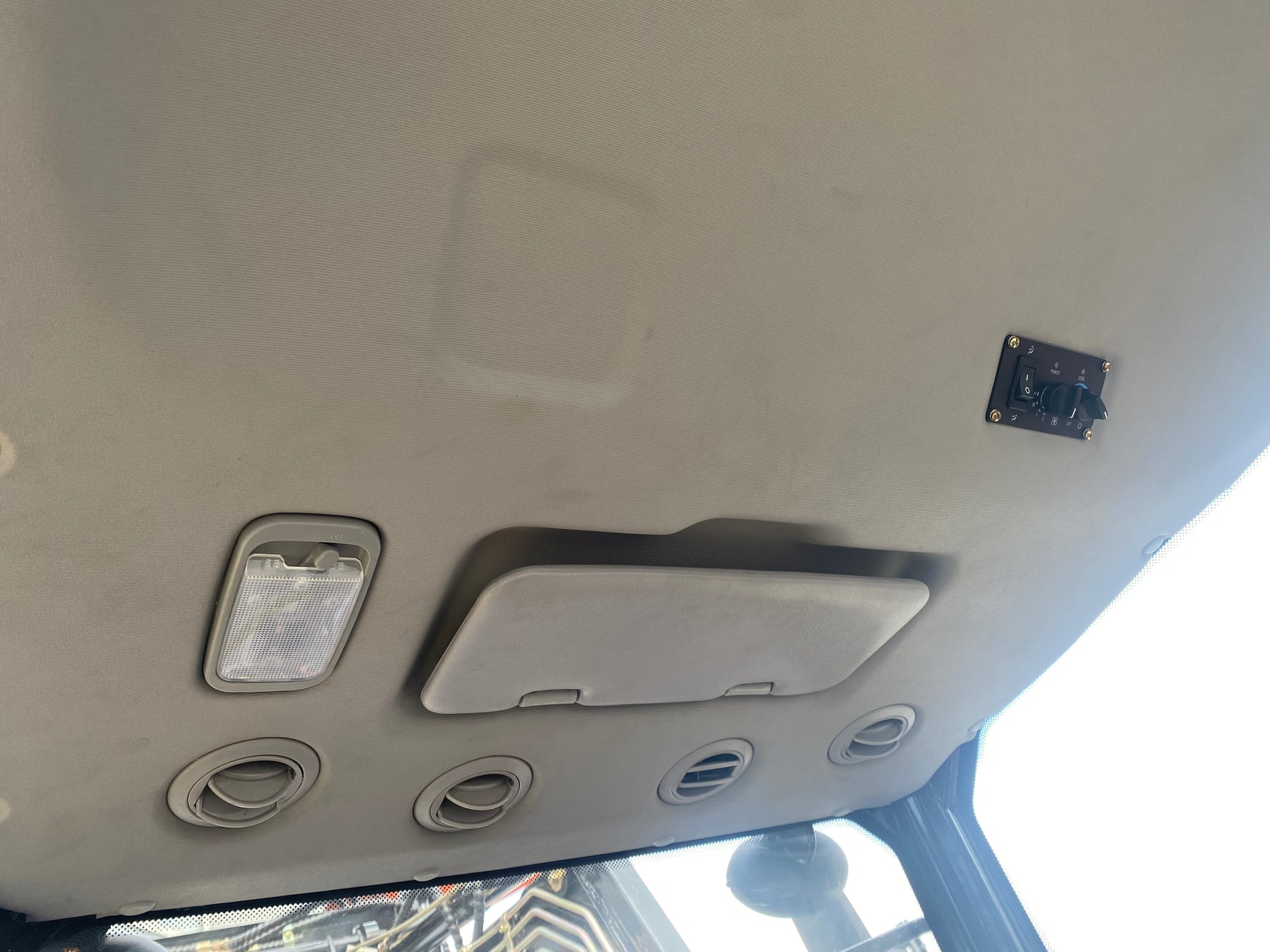

Operate in comfort with air conditioning for the summer and heater for the winter.

SPECIFICATIONS

Engine

  • Engine Model LaiDong 4L23BT
  • Engine type Diesel
  • Engine gross power 40hp
  • PTO Power 33hp
  • No. of cylinders 4
  • Total displacement 2.31cc
  • Rated speed 2400 rpm
  • Inline Mechanical pump - NO Computers
  • Fuel tank capacity 26L

Driveline

GEARBOX

  • 8x8 Shuttle Shift, Synchromesh Gearbox & Shuttle

CLUTCH

  • Dry, Dual Stage clutch for responsive engagement and smooth power delivery.
  • 9 Inch Ceramic Plate Drive Plate
  • 9 Inch Ceramic Plate PTO Plate

DIFFERENTIAL

  • Mechanical gear differential providing basic traction control and power distribution between rear wheels.
  • Rear Diff Lock

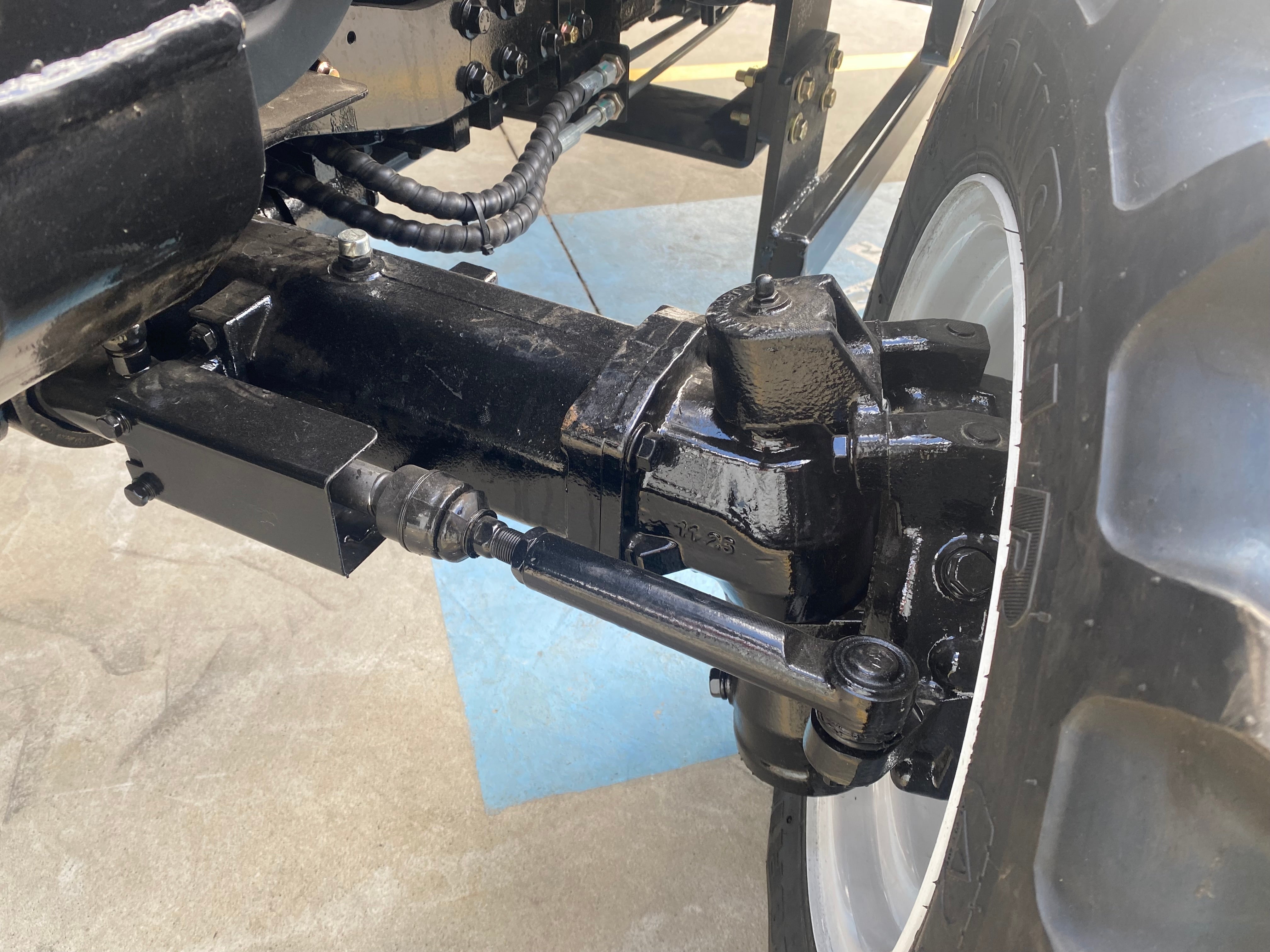

Axles

  • Front Axle: Bevel gear final drive
  • Rear Axle: Heavy-duty Design with sliding Wheel hubs to set footprint

4WD

  • 4wd - Front Wheel Assist
  • Single lever engagement

Hydraulics - PTO - Linkage

HYDRAULICS

  • Implement Flow rate 19 L/min , sufficient for operating standard implements.
  • Steering Flow Rate 12 L/min
  • 2 Pairs of rear remotes

PTO

  • 540/1000 PTO Speeds
  • 29.4hp Rated PTO power

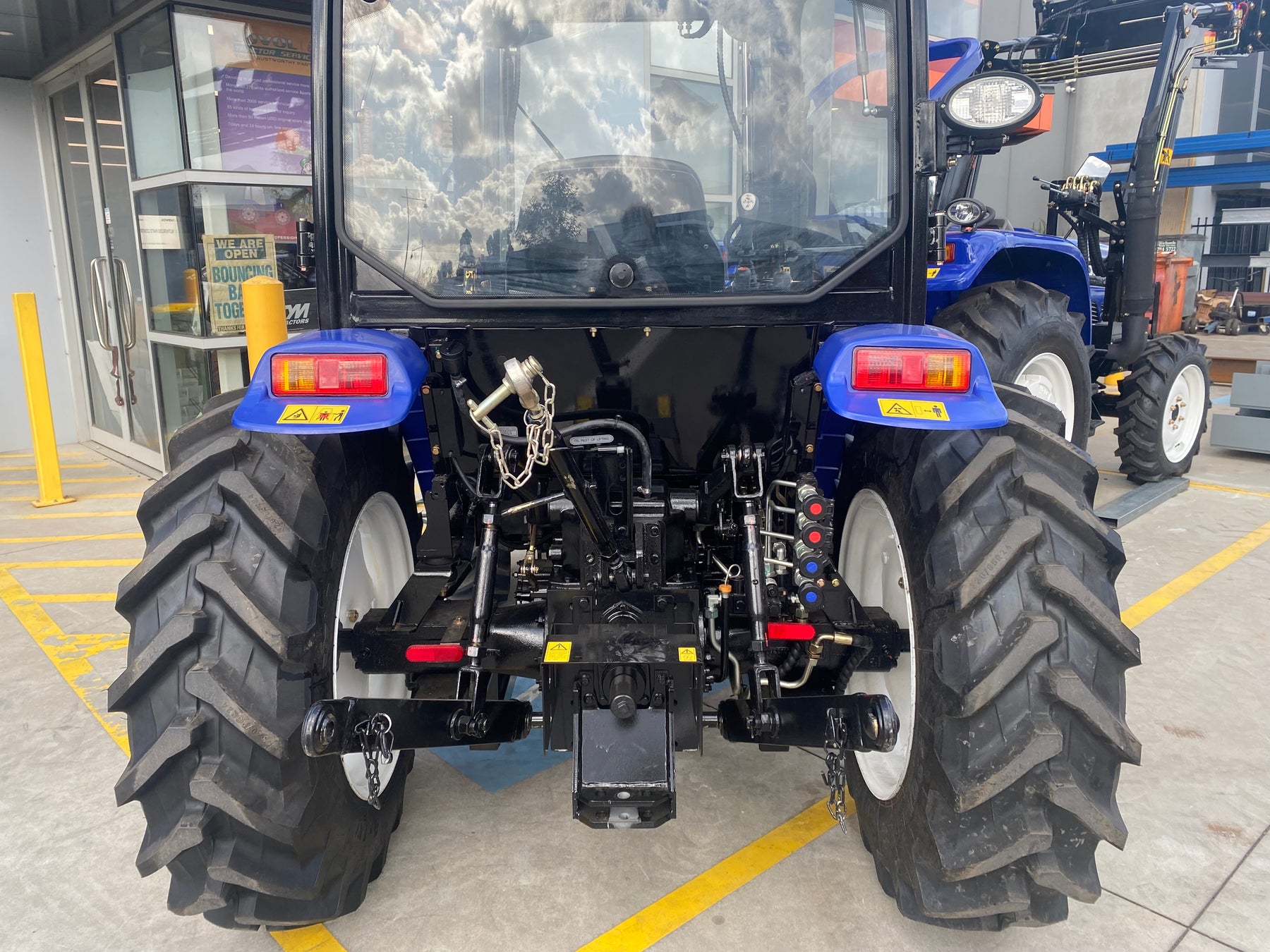

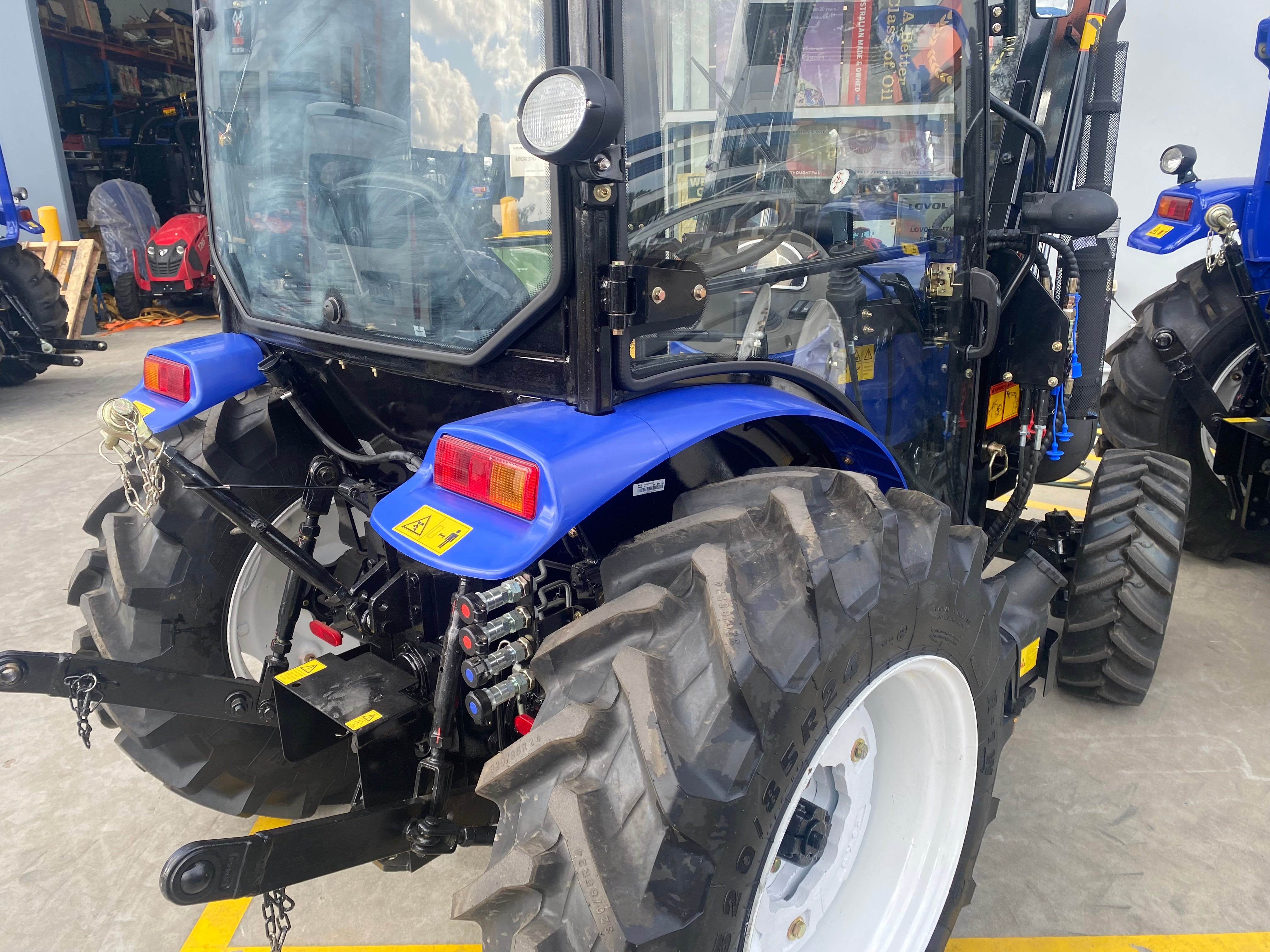

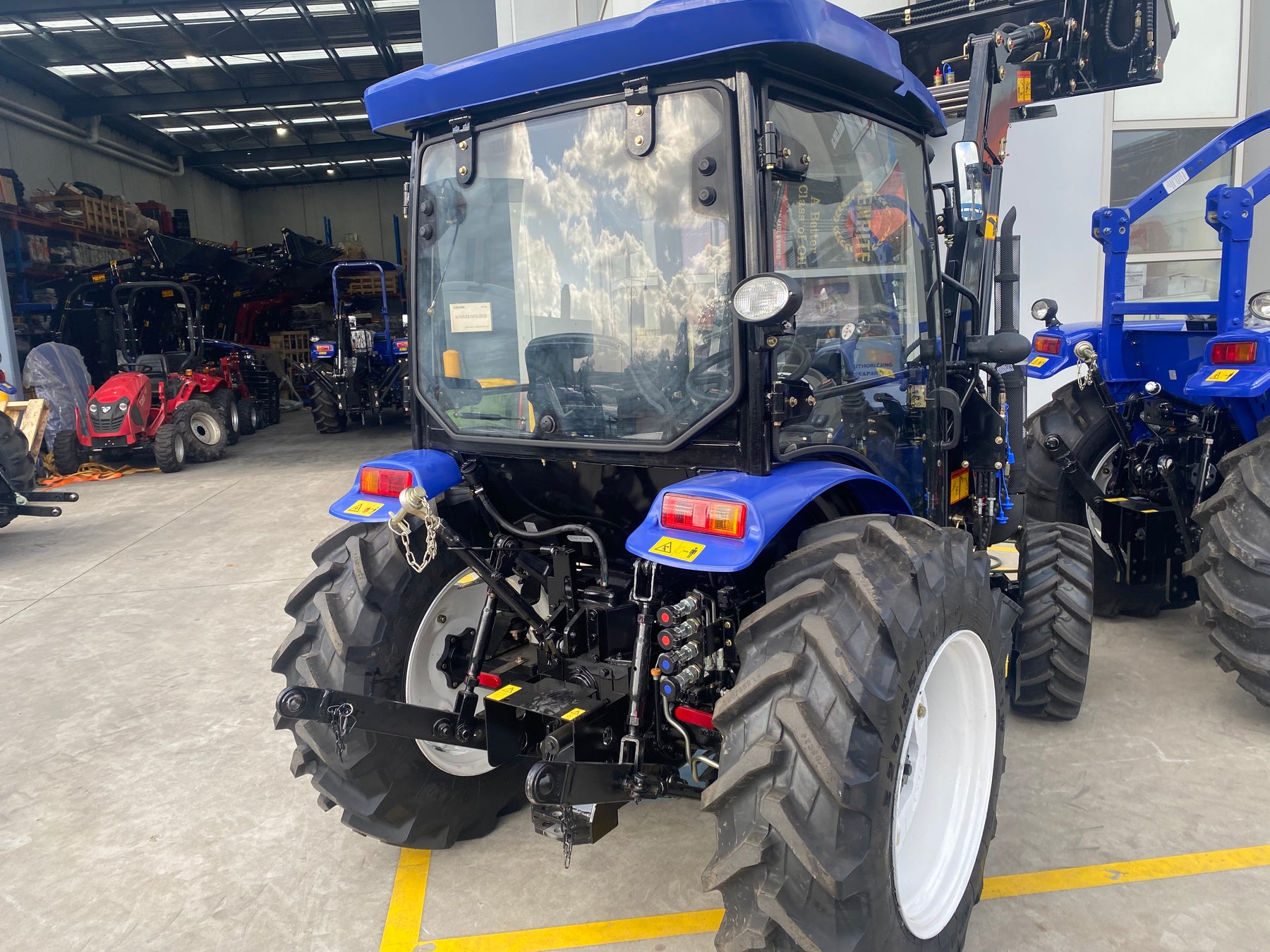

LINKAGE

  • Standard Cat-1 Rear 3pl
  • Adjustable side links
  • 720kg Lift @610mm Behind hitch point

Wheels

  • Radial Tyres
  • Front - 260/70R16
  • Rear - 280/85R24
  • Dual rear wheel weights

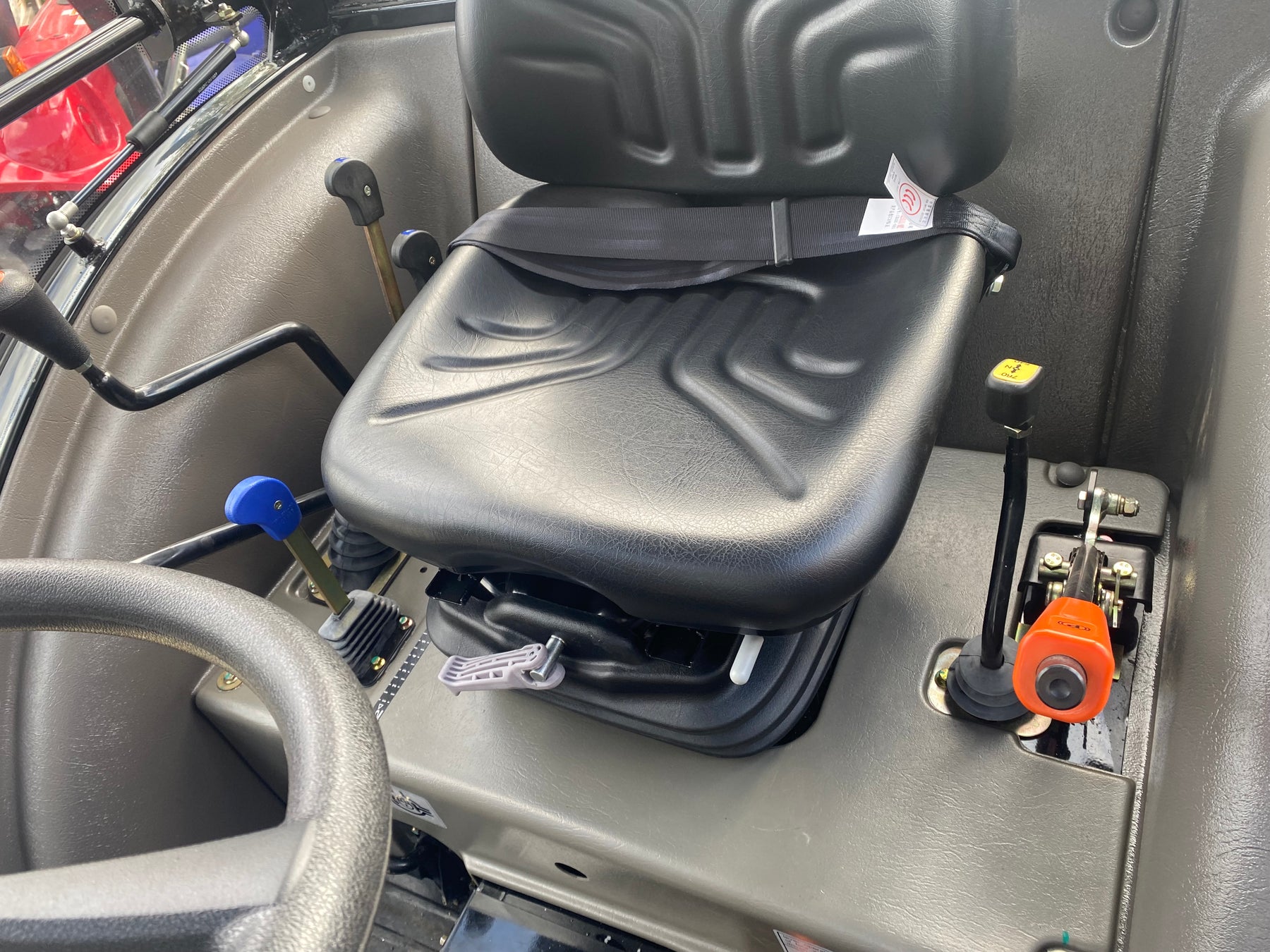

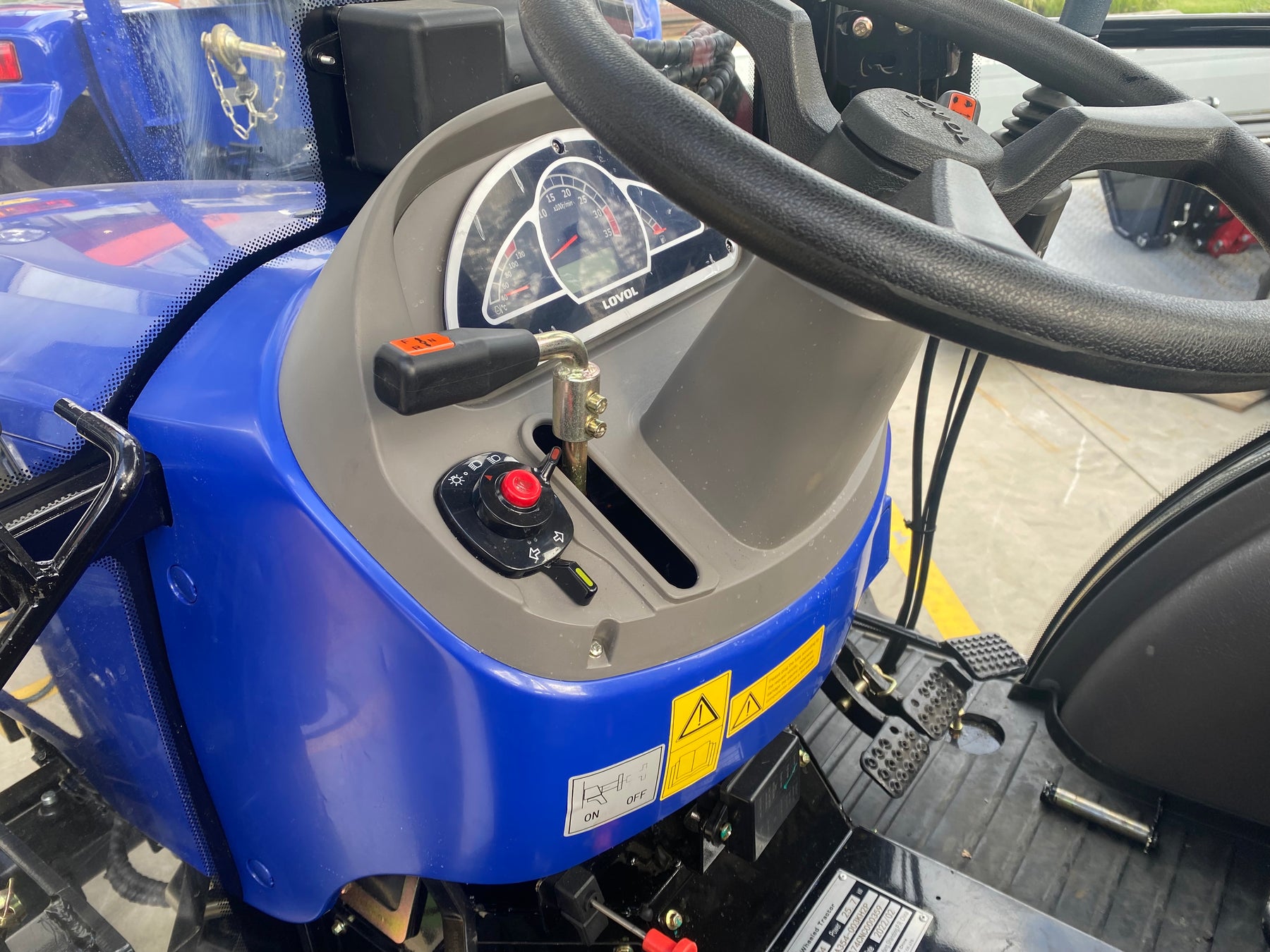

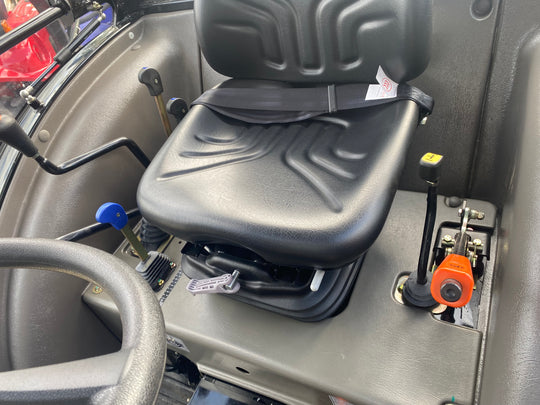

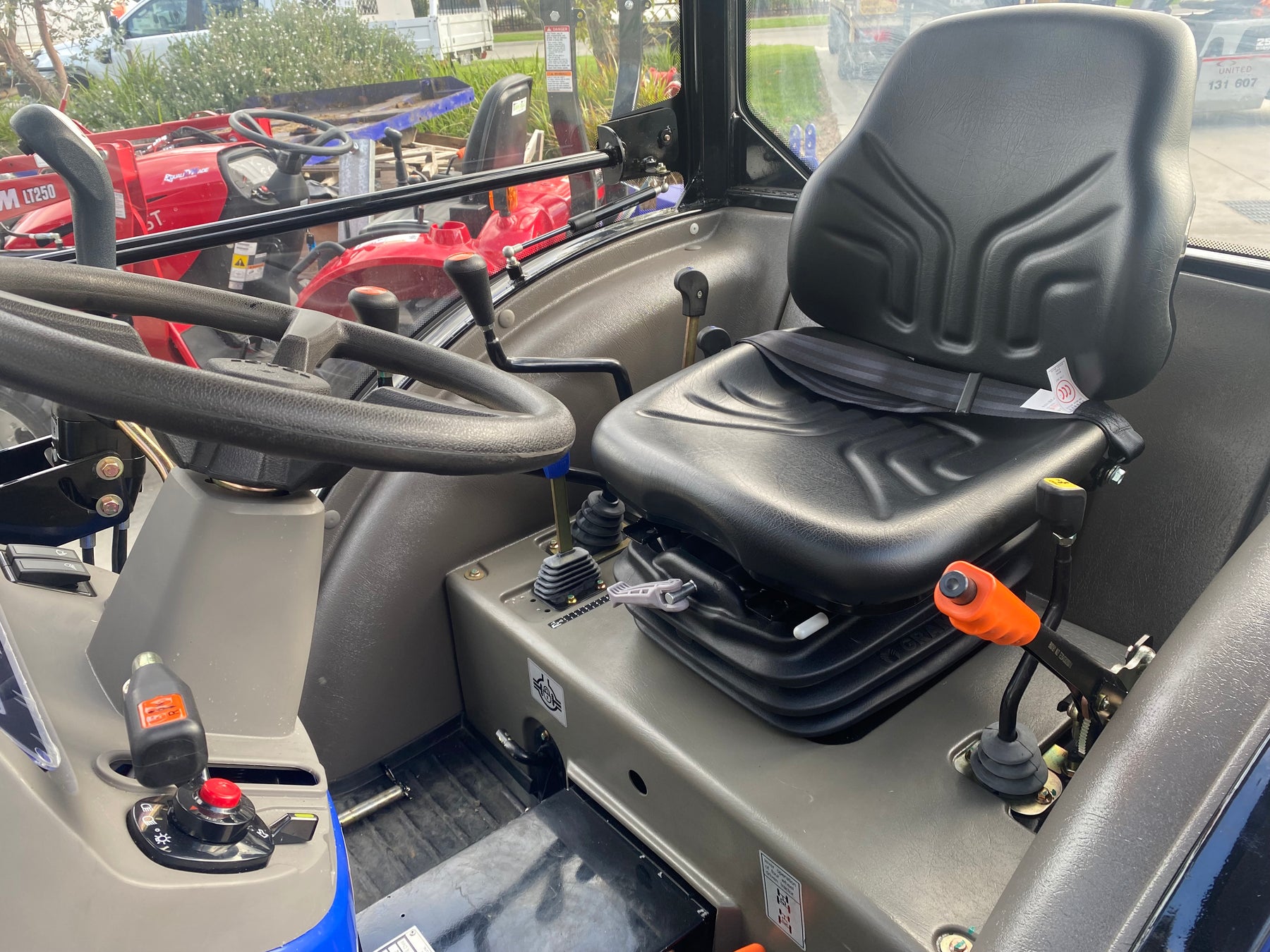

Controls

  • Standard control layout with gearsticks on the right side.
  • Shuttle shift stick on left side of dash

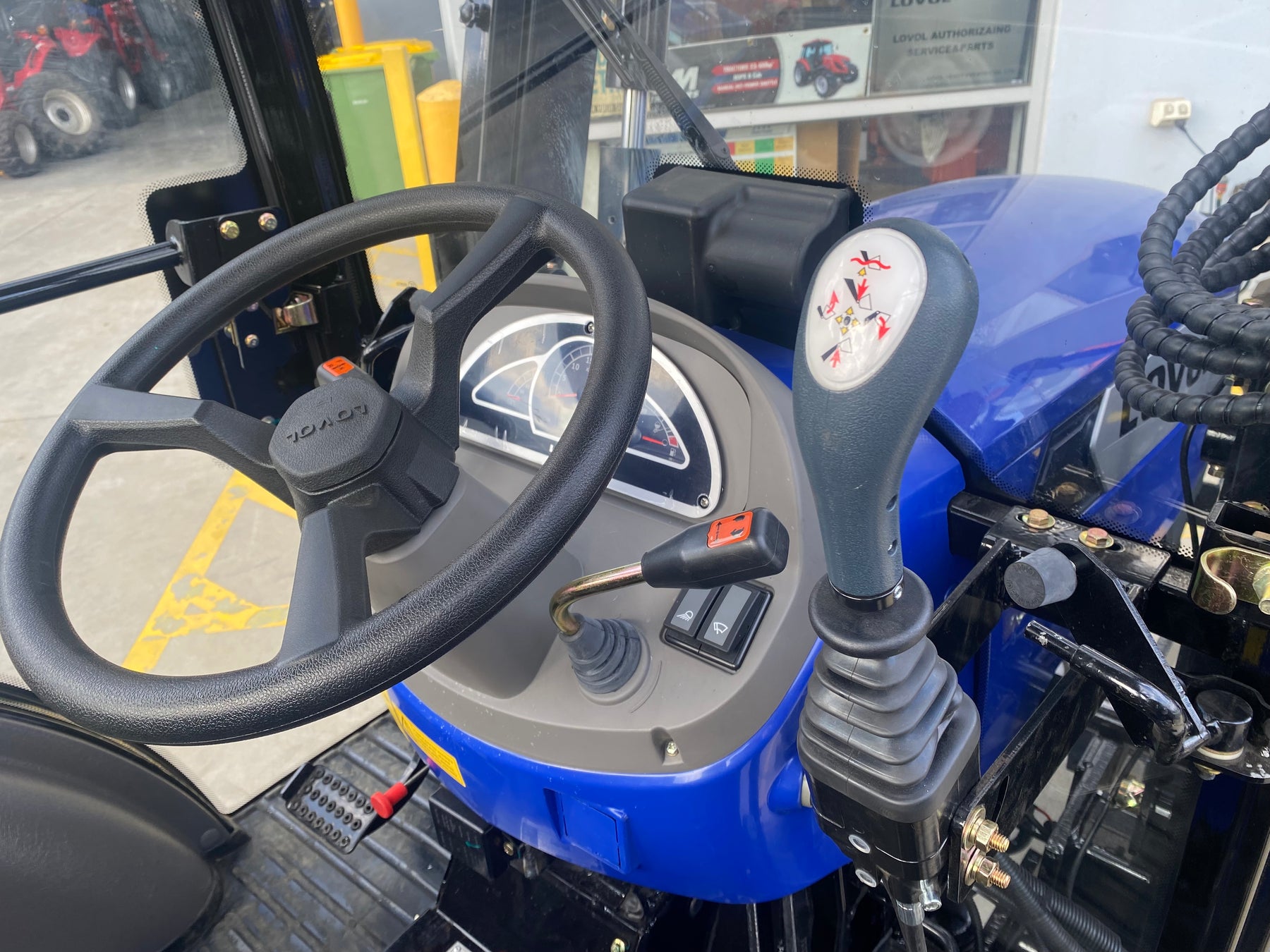

  • FEL Valve bank positioned for right hand operation
  • 4wd & Diff lock are positioned at floor pan
  • Rear remote and 3pl controls are beside the seat
  • Fully adjustable seat to get the perfect position
  • Low mount body design giving the best stability for hilly operation.

Front end Laoder

  • 4in1 Bucket standard with front teeth
  • Self Level Lift Design
  • Euro Mount hitch

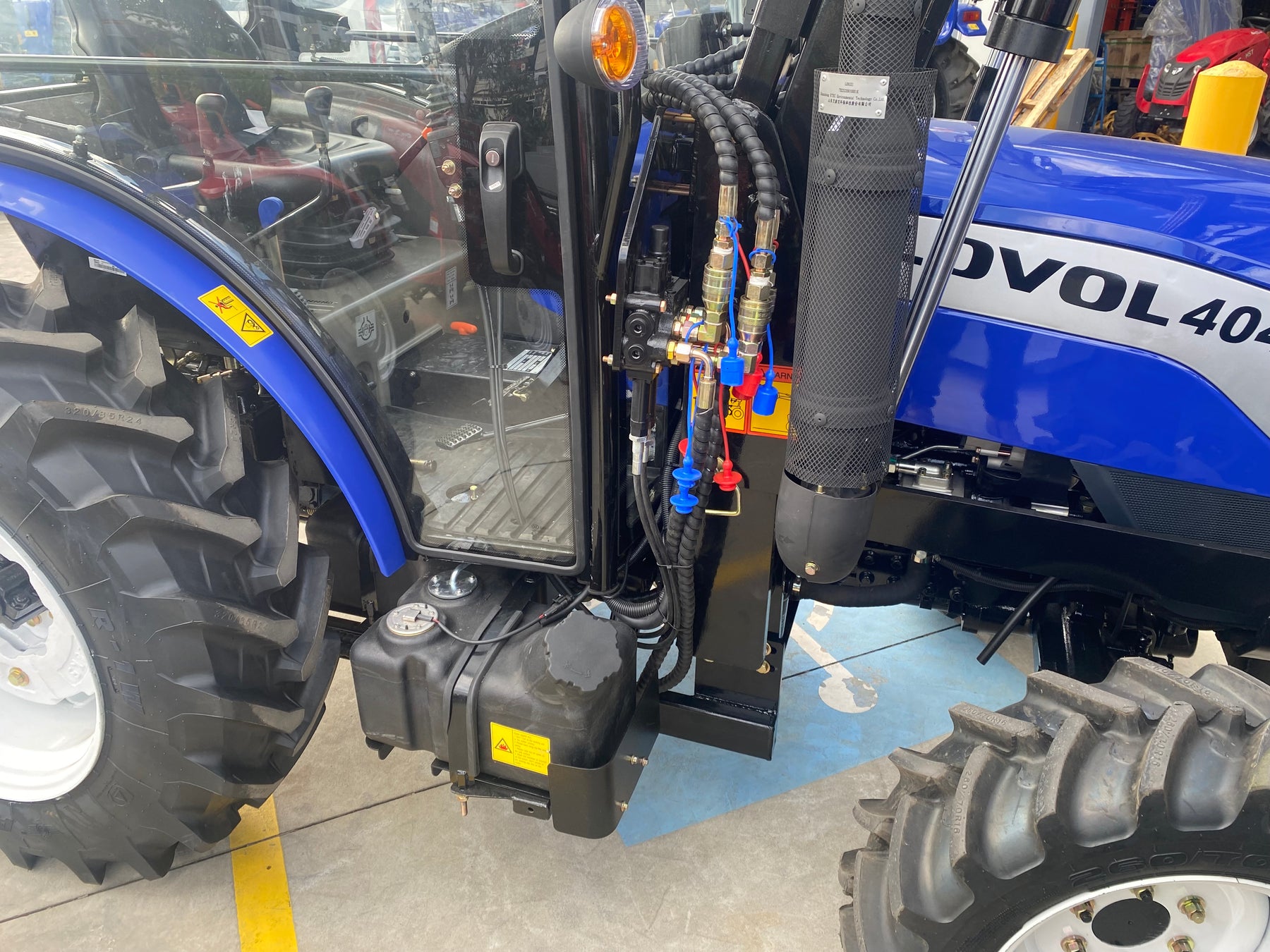

  • Quick release couplers for bucket hoses
  • 400 kg Safe Working Load - SWL
  • 600 kg Max Lift Recommended
  • Level rod indicator
  • Parking stands
  • Safety locks for working under loader
  • Greasable pins
