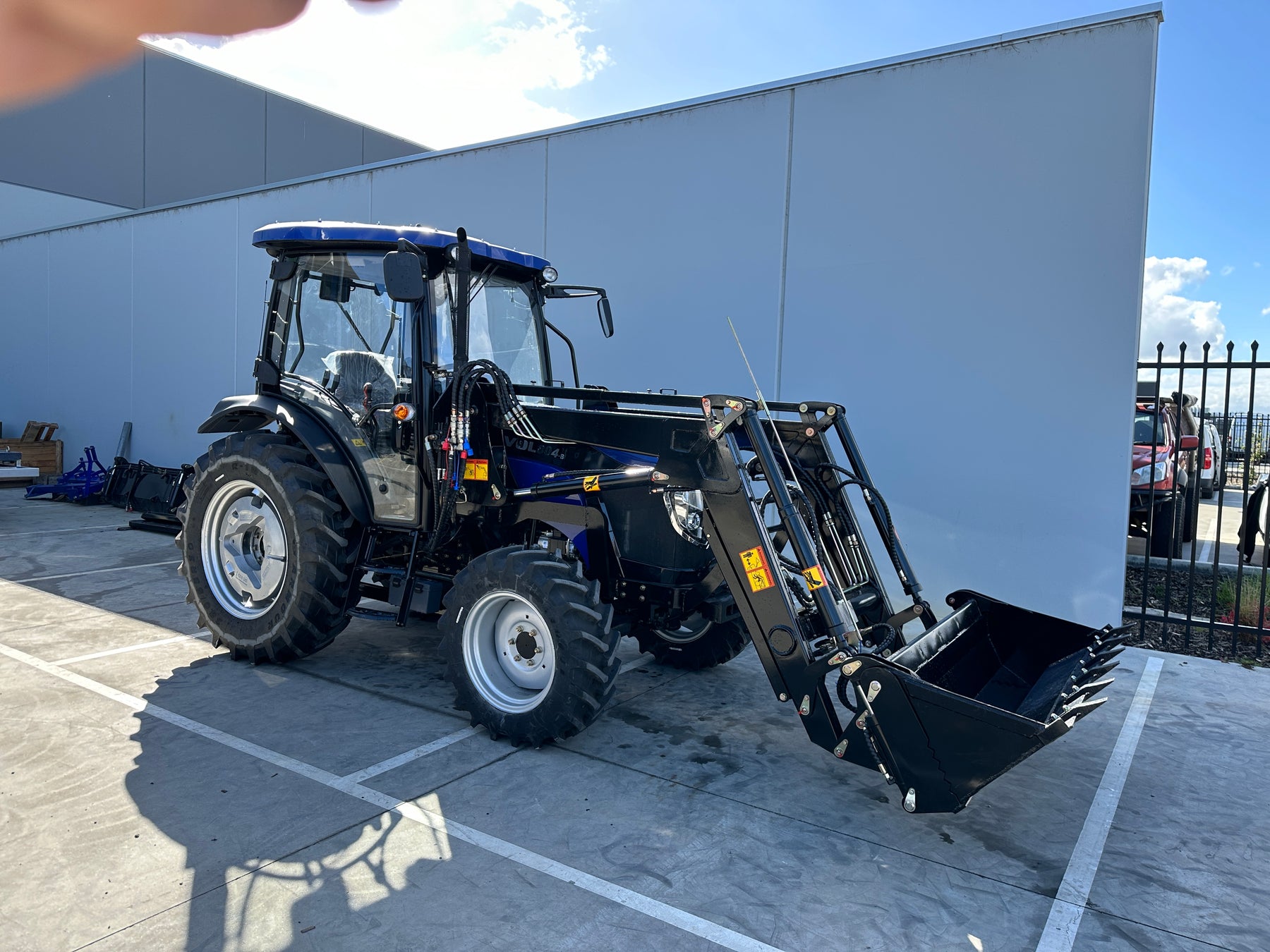

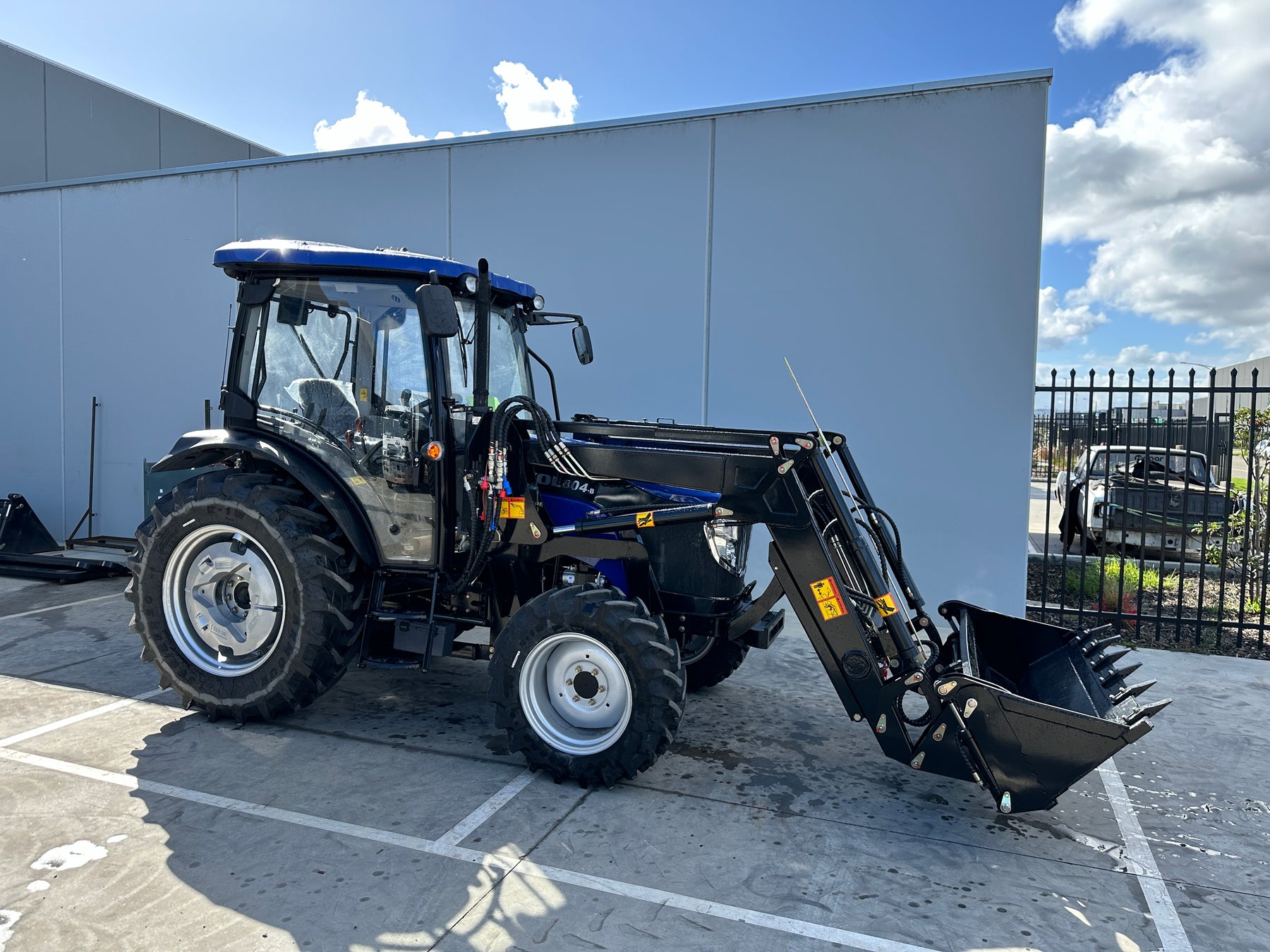

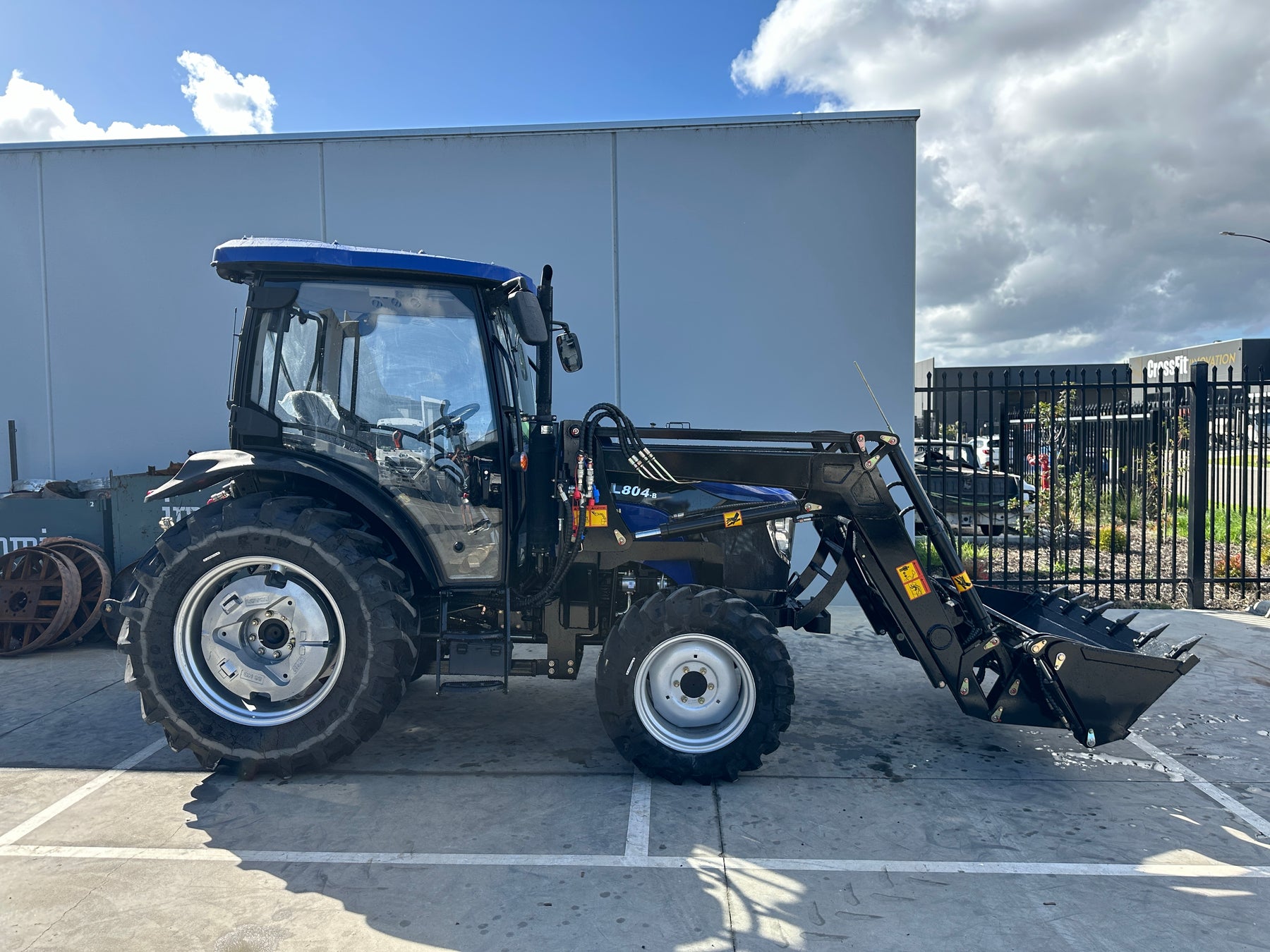

LOVOL M804 TB-3, 75hp Cabin

Regular price$40,990.00
/
Tax included.

Do you have questions about this product? Our experts are here to help! Frequently Asked Questions

Contact Us

Largest in the TB Range is the LOVOL 75HP TB-3 Tractor

The TB-3 reigns supreme in the TB series with these exclusive features:

  • Unmatched Strength: As the largest tractor in the TB series, the TB-3 boasts a robust build and wider axles, allowing it to handle heavier loads and tackle more demanding jobs on your land.
  • Precise Control at Your Fingertips: Experience the control you deserve with the TB-3's hand PTO clutch. Engage and disengage implements with ease and ultimate precision, ensuring seamless operation of your attachments.
  • Extra Lift: Higher 3pl lifting compasity with its extra rear lifting rams
  • Larger Front End Loader: Giving you mor height and more lift

The LOVOL 75HP TB-3 isn't just powerful, it's the strongest and most capable tractor in the TB series:

  • Unleash the Beast: Experience the earth-moving performance of the all-new 65 horsepower engine, engineered to conquer even the most challenging tasks with unwavering strength. Whether you're breaking ground, mowing fields, or hauling heavy equipment, the TB-3 possesses the power to make it seem effortless.
  • Versatility Redefined: Forget the days of needing multiple machines. The TB-3 is your one-stop shop for land management. Thanks to its extensive range of compatible attachments (sold separately), transform it into a loader, excavator, backhoe, mower, or more, maximizing your efficiency and eliminating the need for a cluttered farmyard.

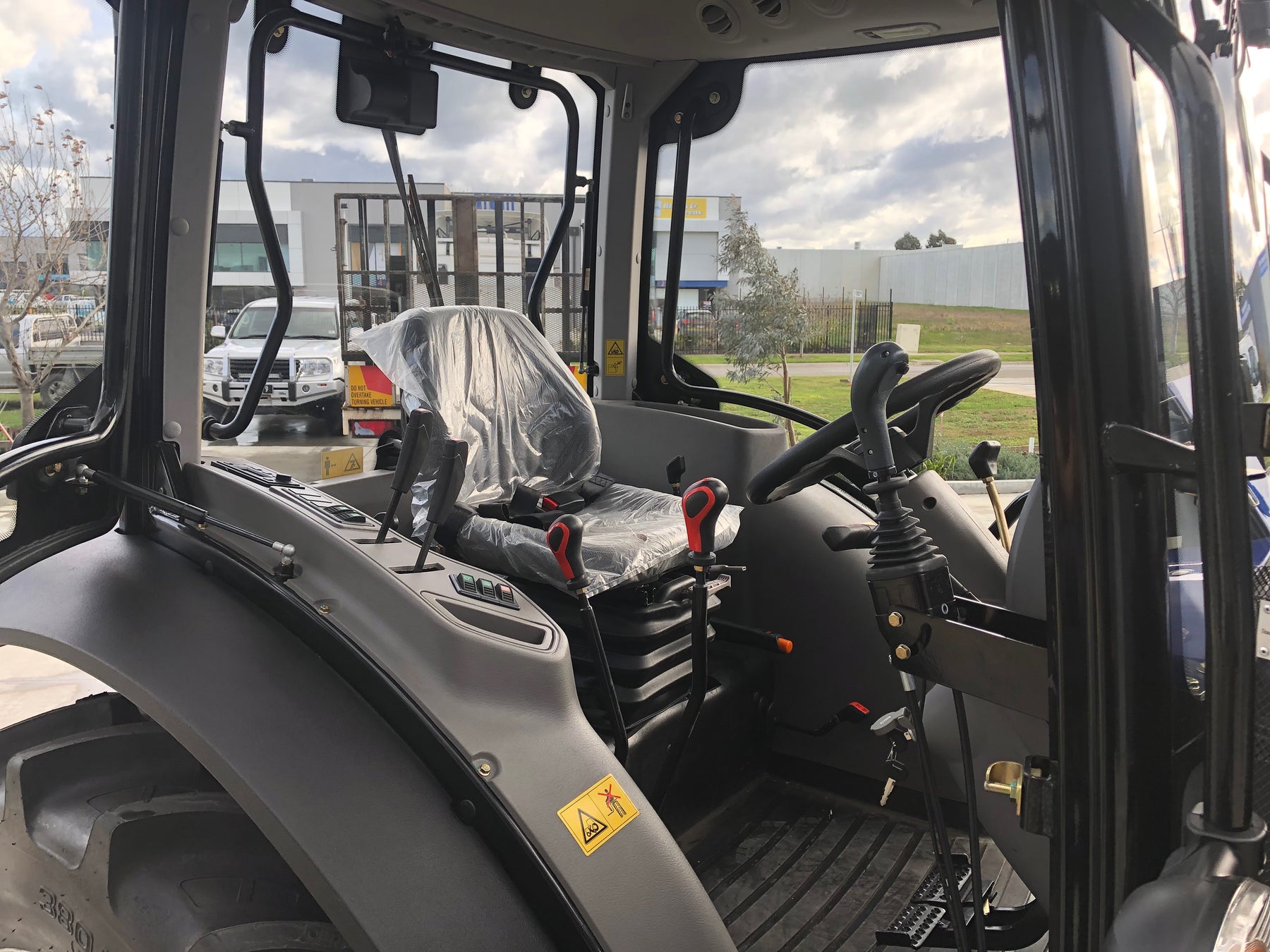

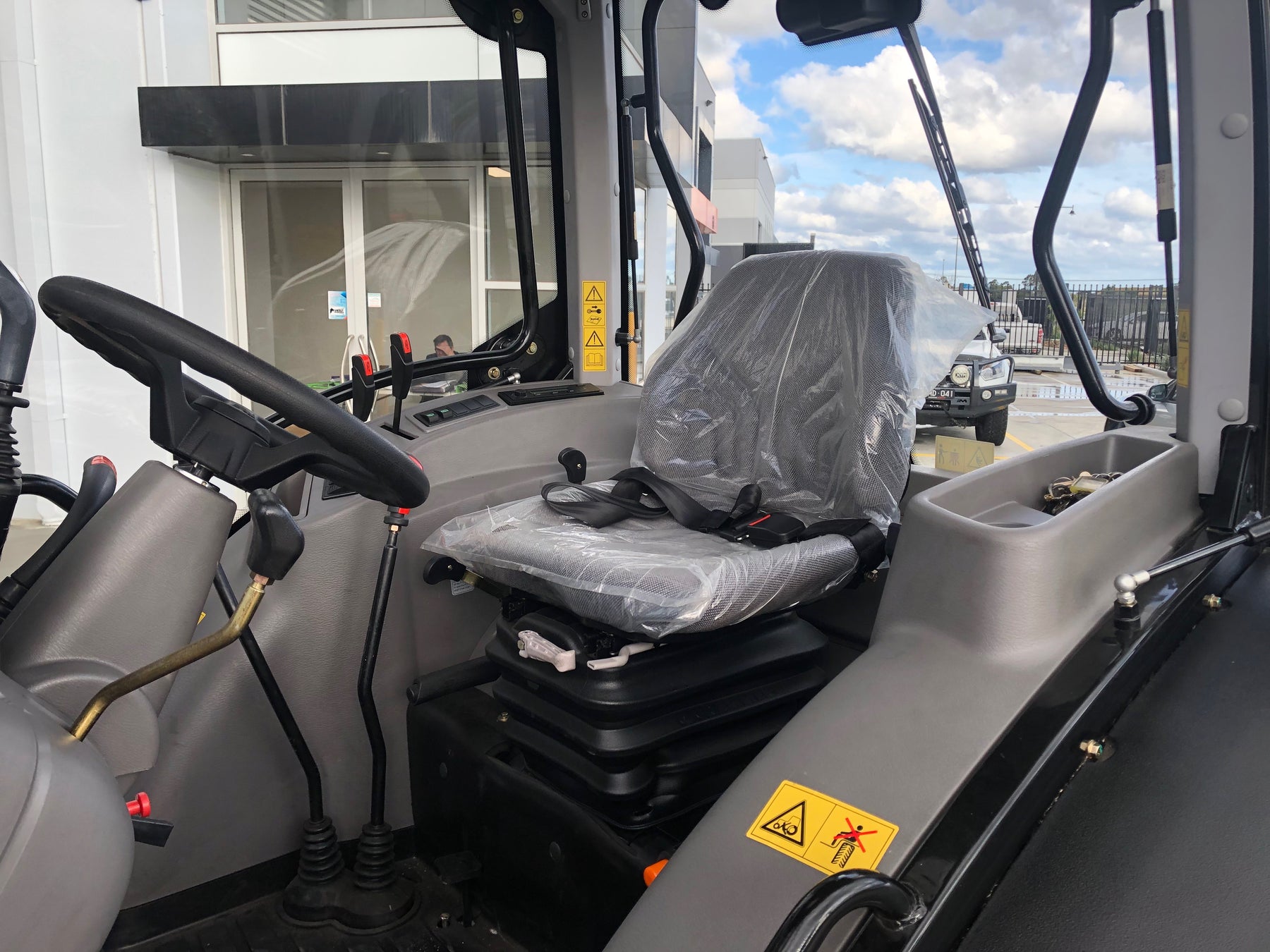

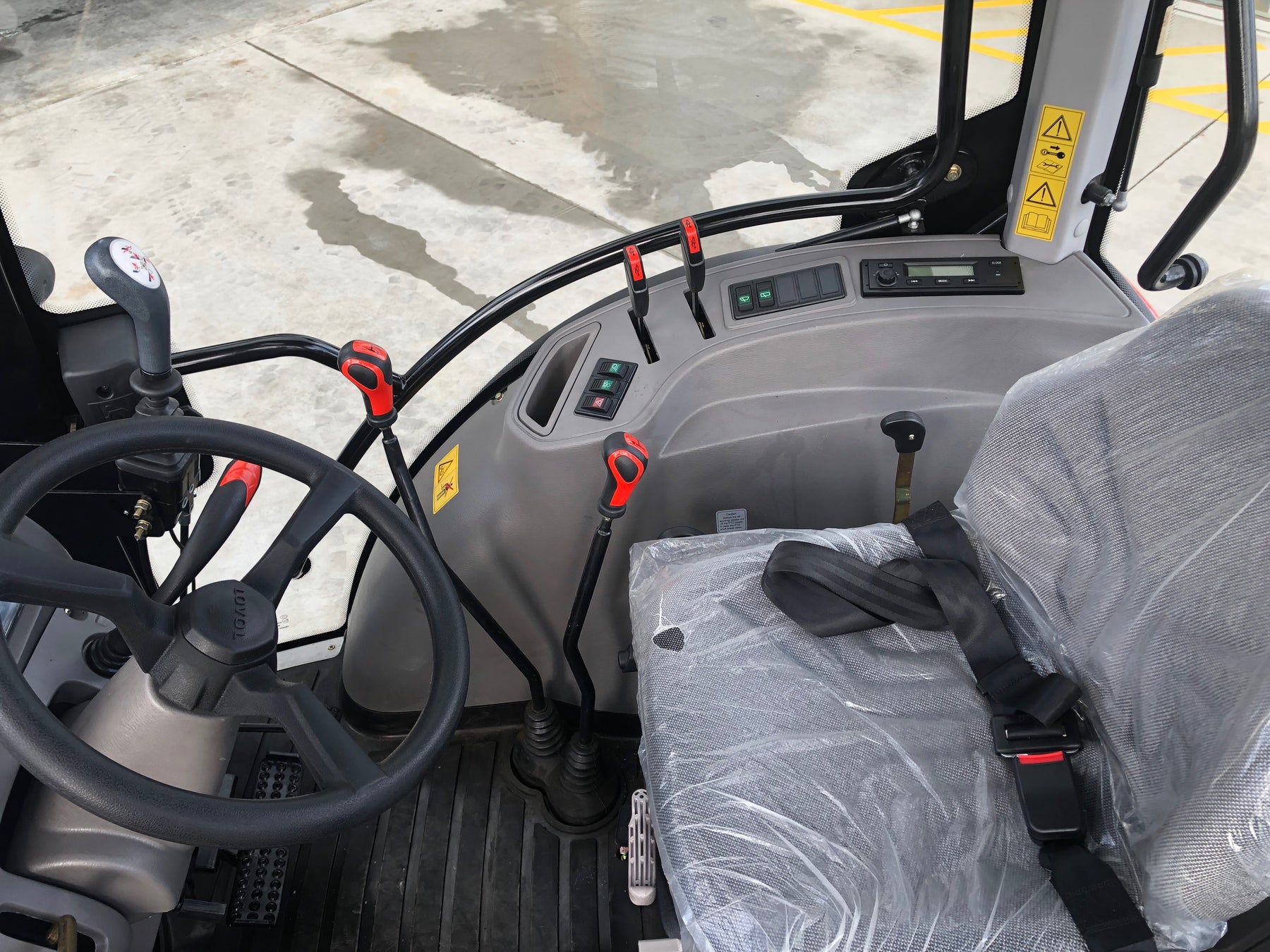

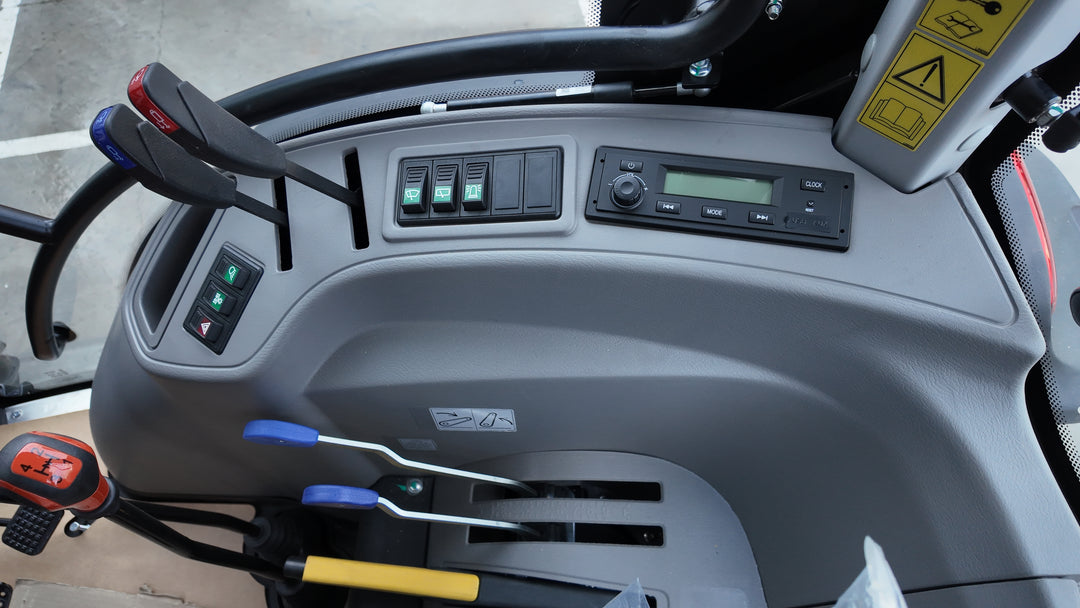

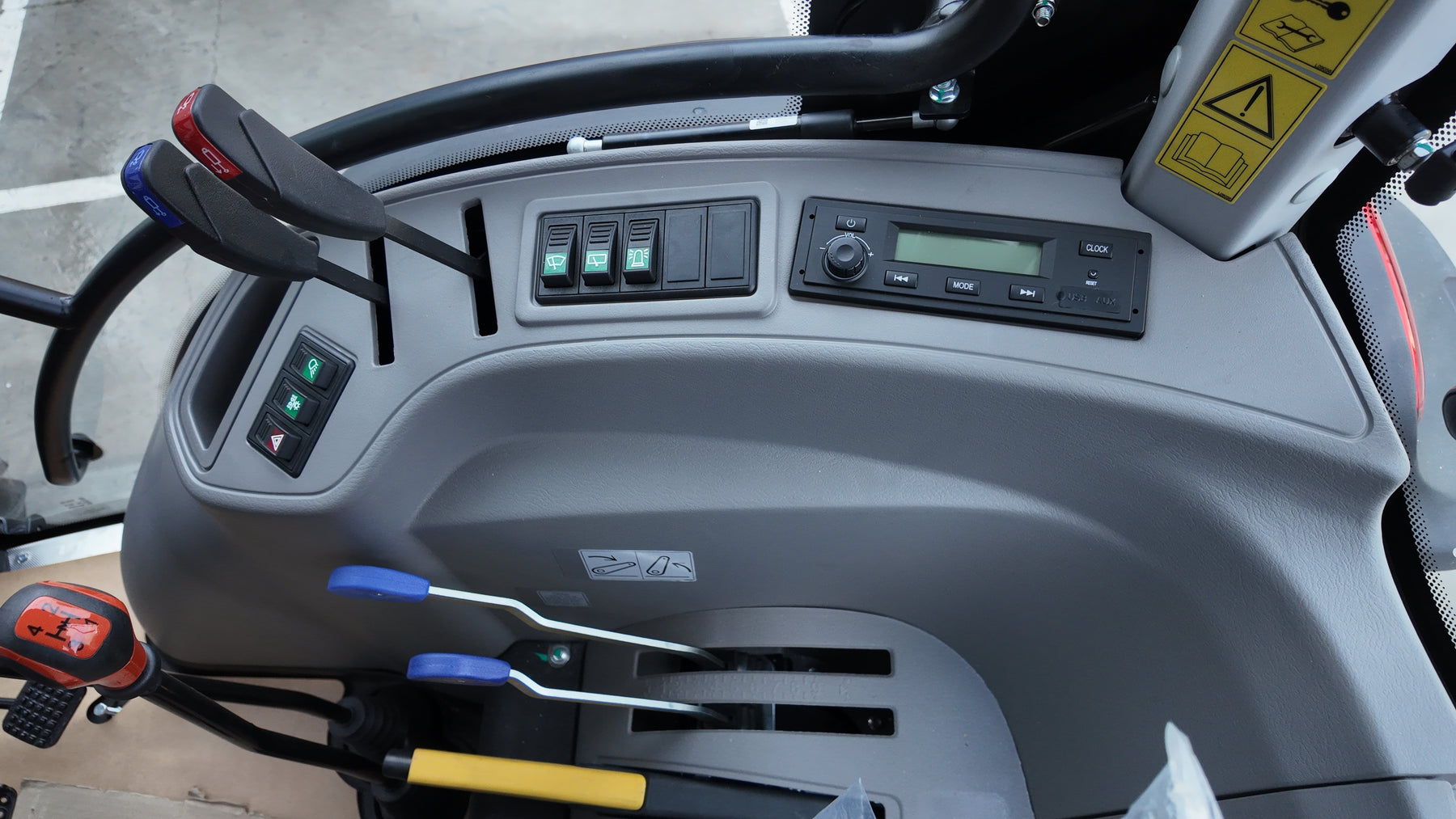

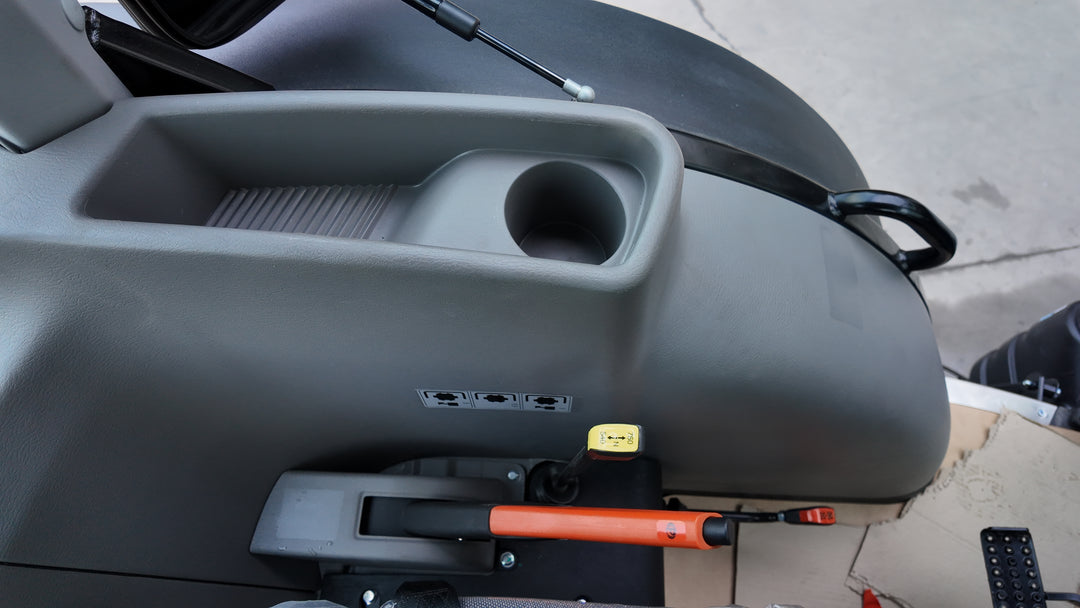

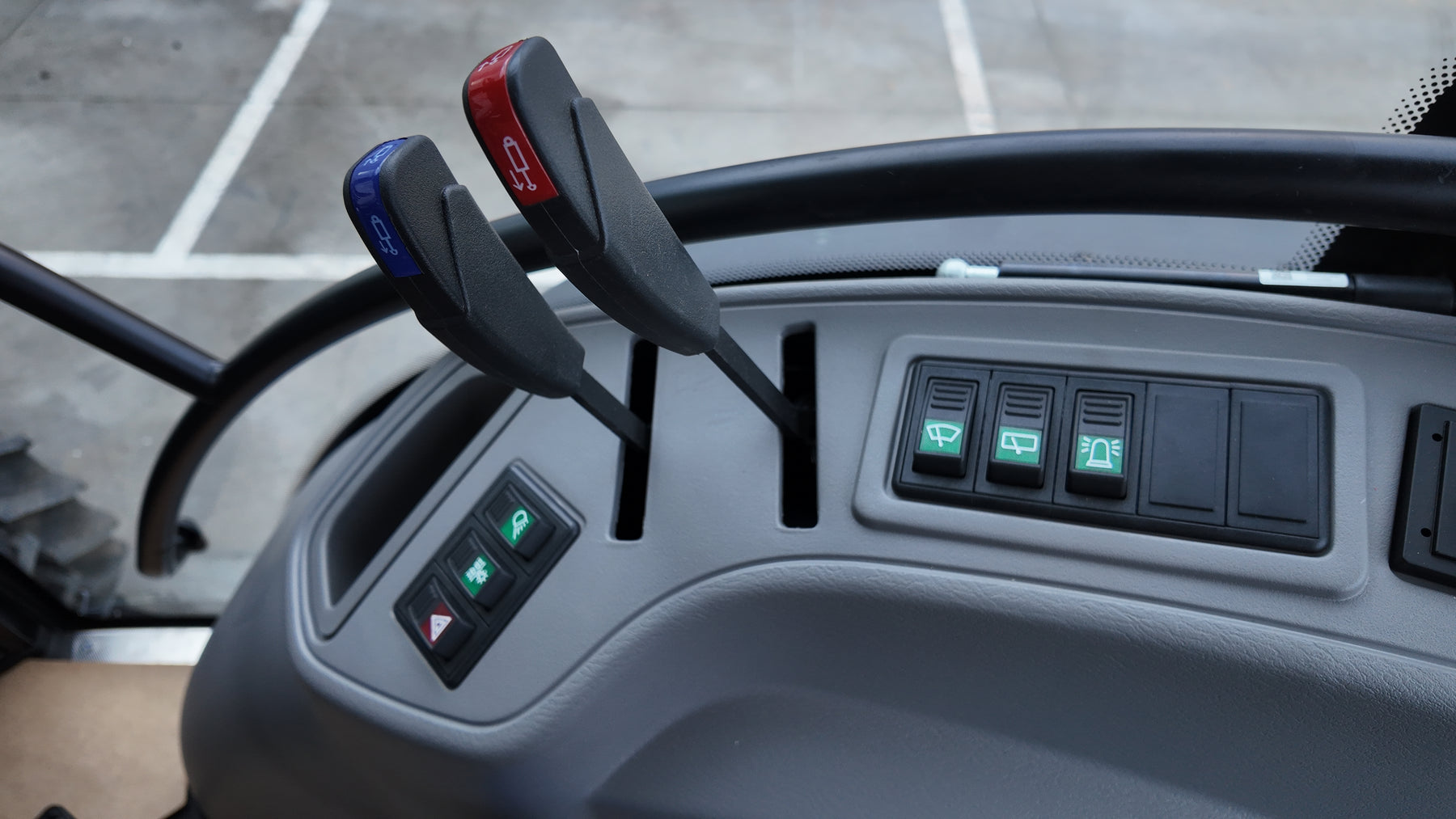

  • Operator Comfort, Reimagined: Climb into the haven of the ergonomically designed operator station. Work tirelessly with minimal fatigue, thanks to the spacious cabin, plush seating, and intuitively placed controls designed to prioritize your comfort.
  • Built to Endure: The LOVOL 75HP TB-3 is a machine that stands the test of time. Constructed with top-tier materials and boasting a proven design, this tractor offers exceptional durability and unwavering reliability, keeping you operational season after season.

Choosing the LOVOL 75HP TB-3 tractor guarantees:

  • Supercharged Productivity: Experience a surge in efficiency with the increased power and versatility this incredible machine offers.
  • Cost-Effectiveness at its Finest: The fuel-efficient engine and minimal maintenance requirements help you save money where it counts.
  • Unmatched Comfort: Say goodbye to long days filled with aches and pains. The TB-3 prioritizes your comfort, allowing you to work extended hours with minimal fatigue.
  • An Investment for Life: The LOVOL 75HP TB-3 is more than a tractor; it's an investment in the future of your land and your business.
Ready to revolutionize your land management? Visit your nearest LOVOL dealer in Pakenham Victoria for a test drive and experience the unparalleled power and potential of the 75HP TB-3 tractor firsthand. Don't settle for anything less – transform your land with the LOVOL Tractor!!

FEATURES

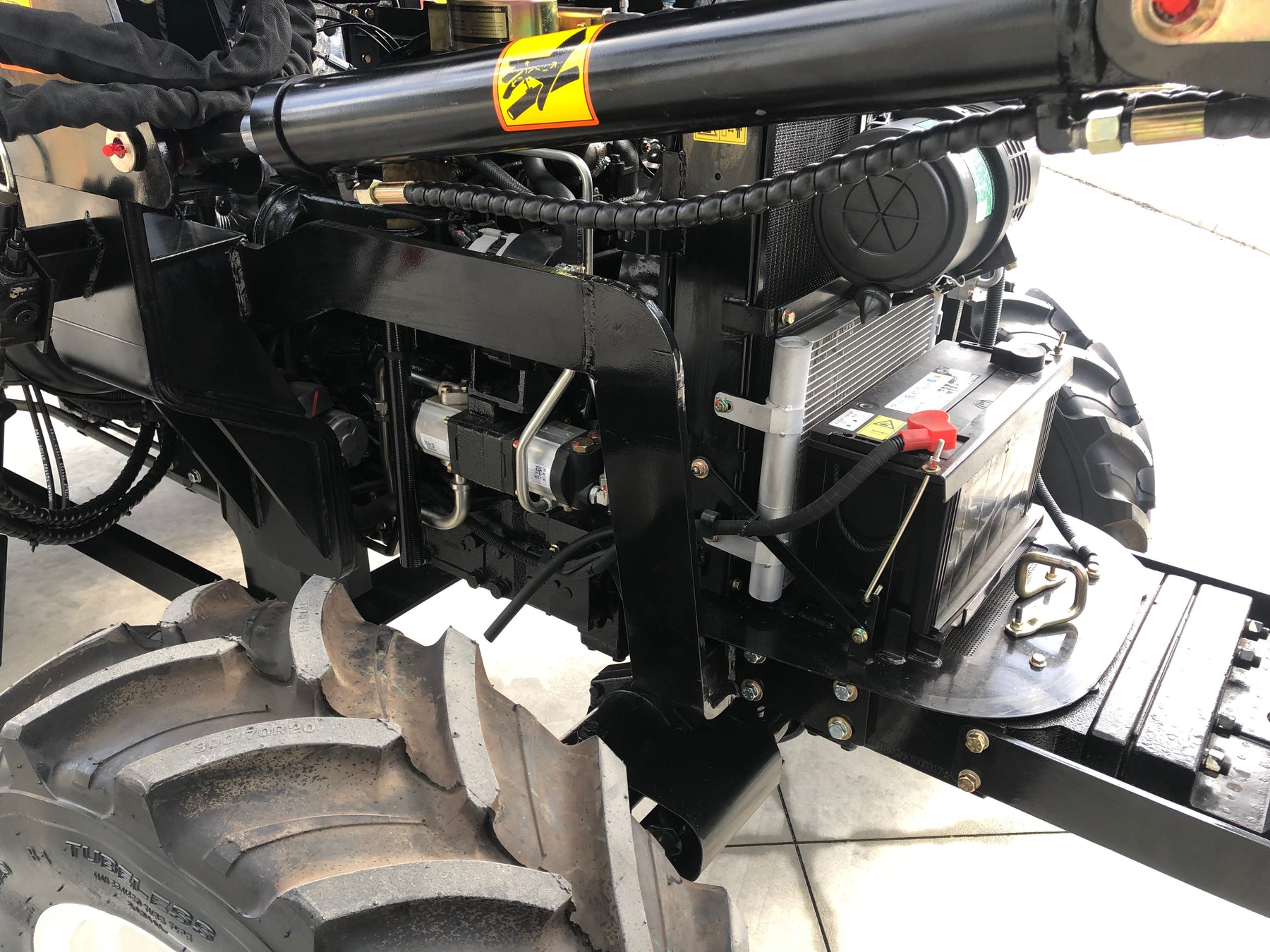

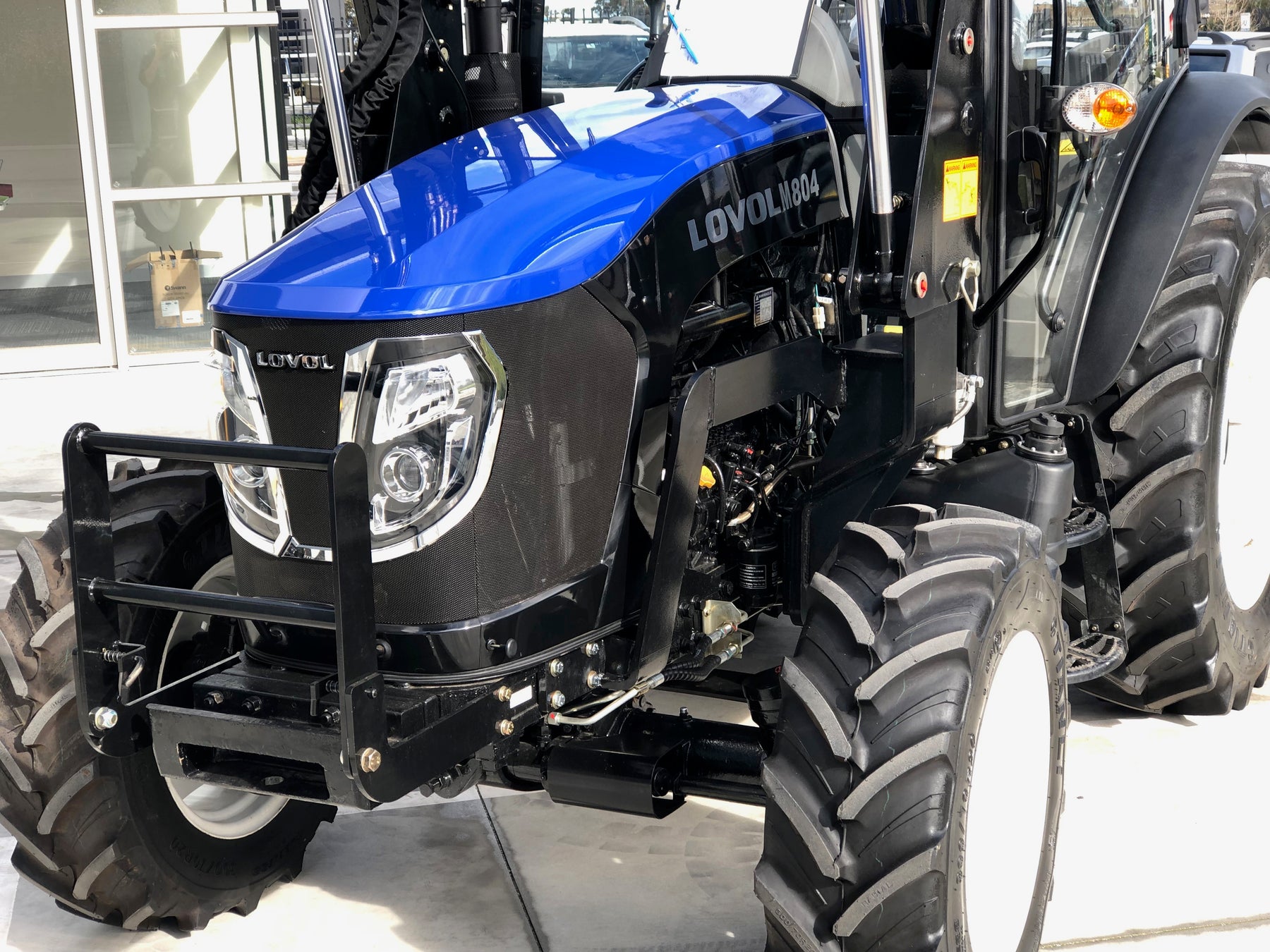

ENGINE

75hp engine is the largest in the TB range

WIDER AXLES

Wider axles on the TB-3 gives you the ultimate in stability in the TB range

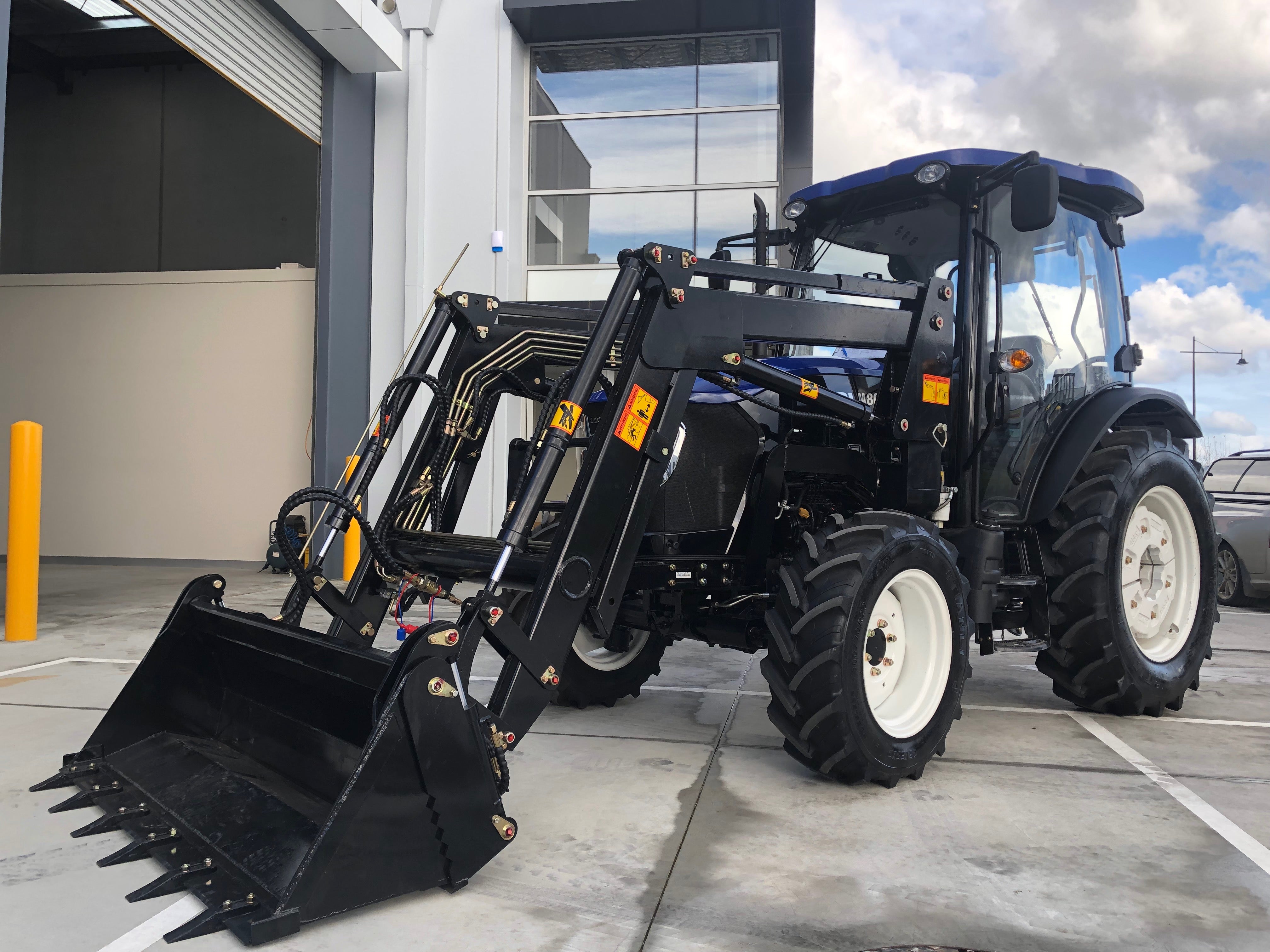

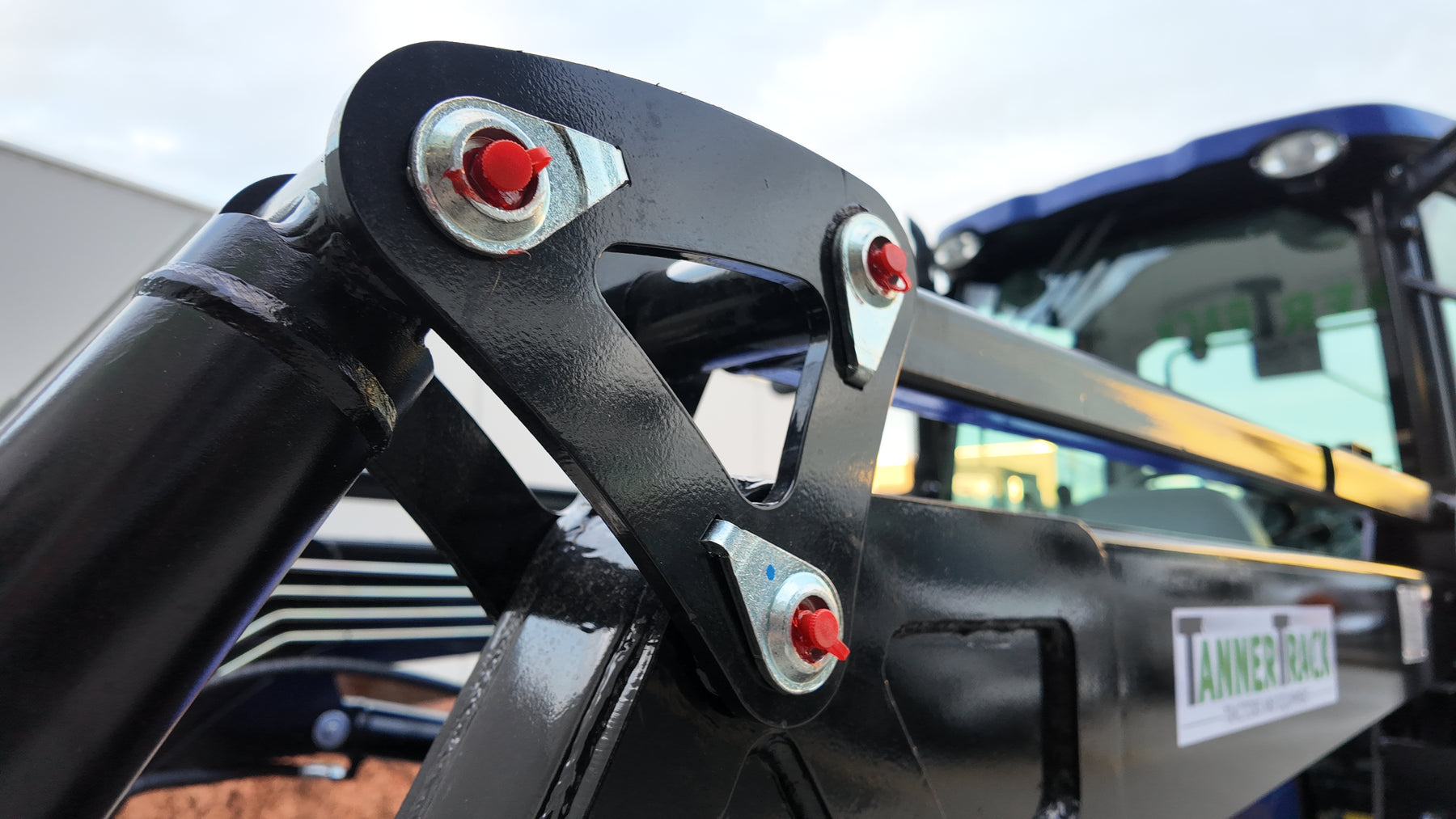

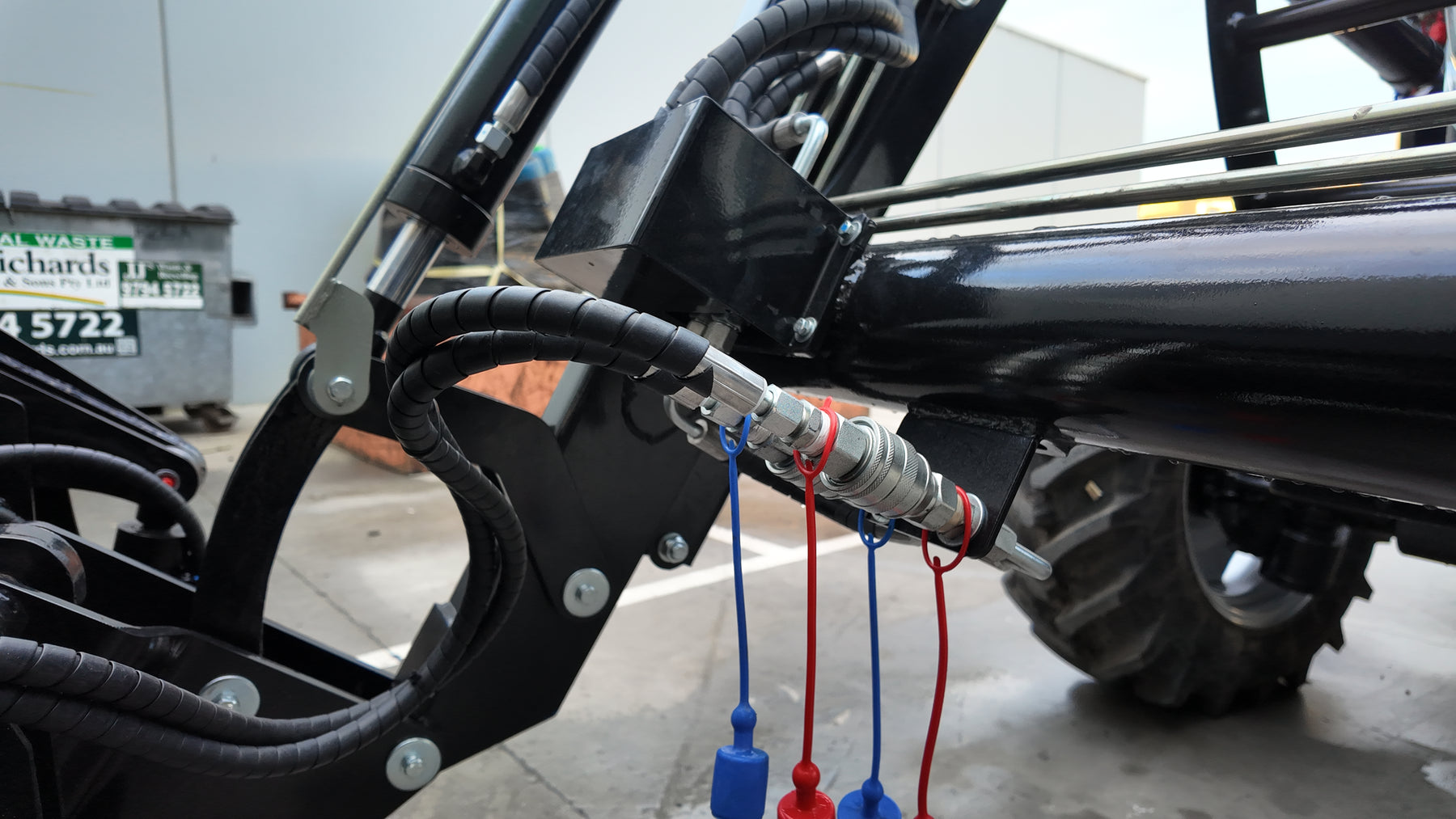

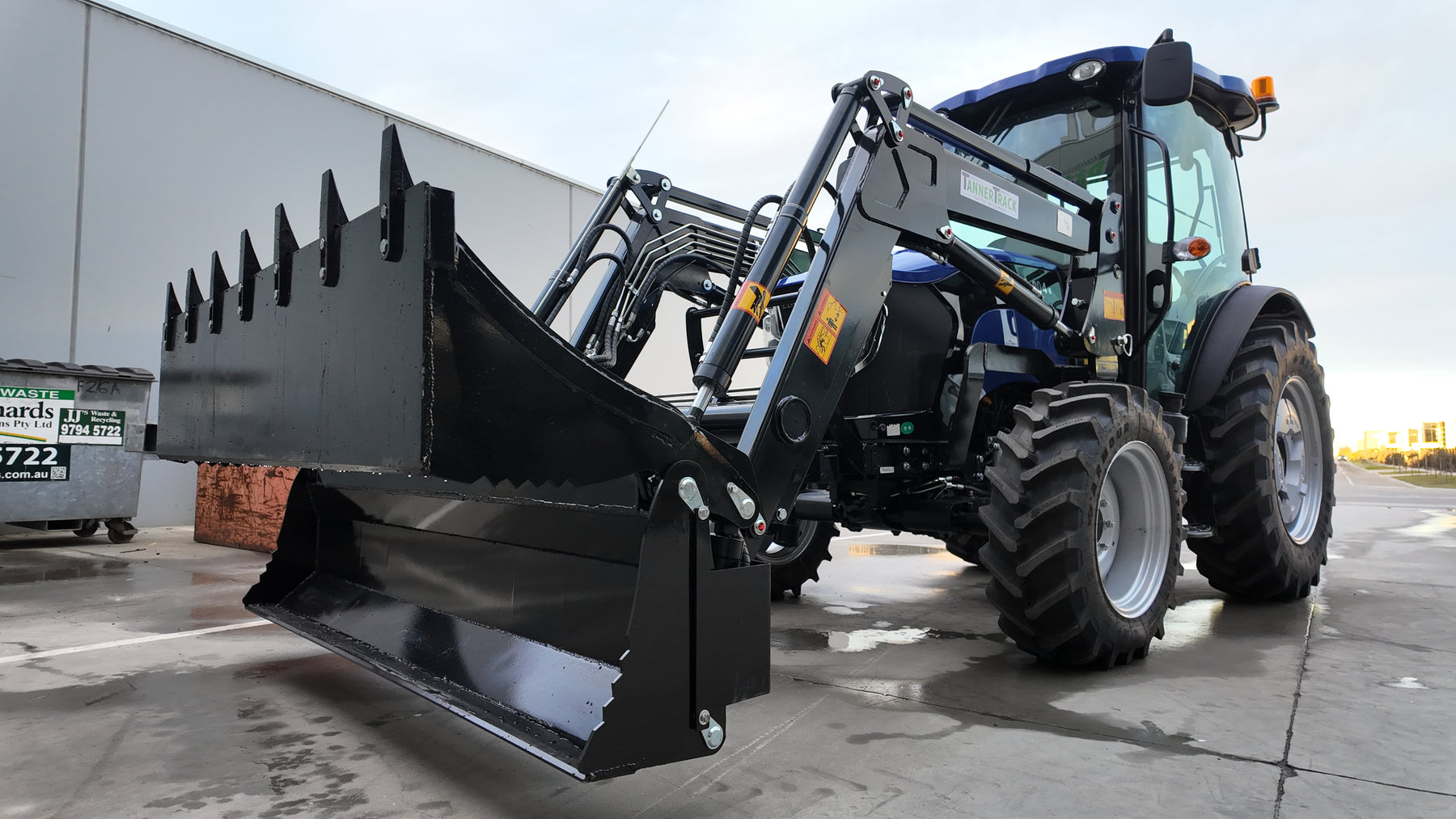

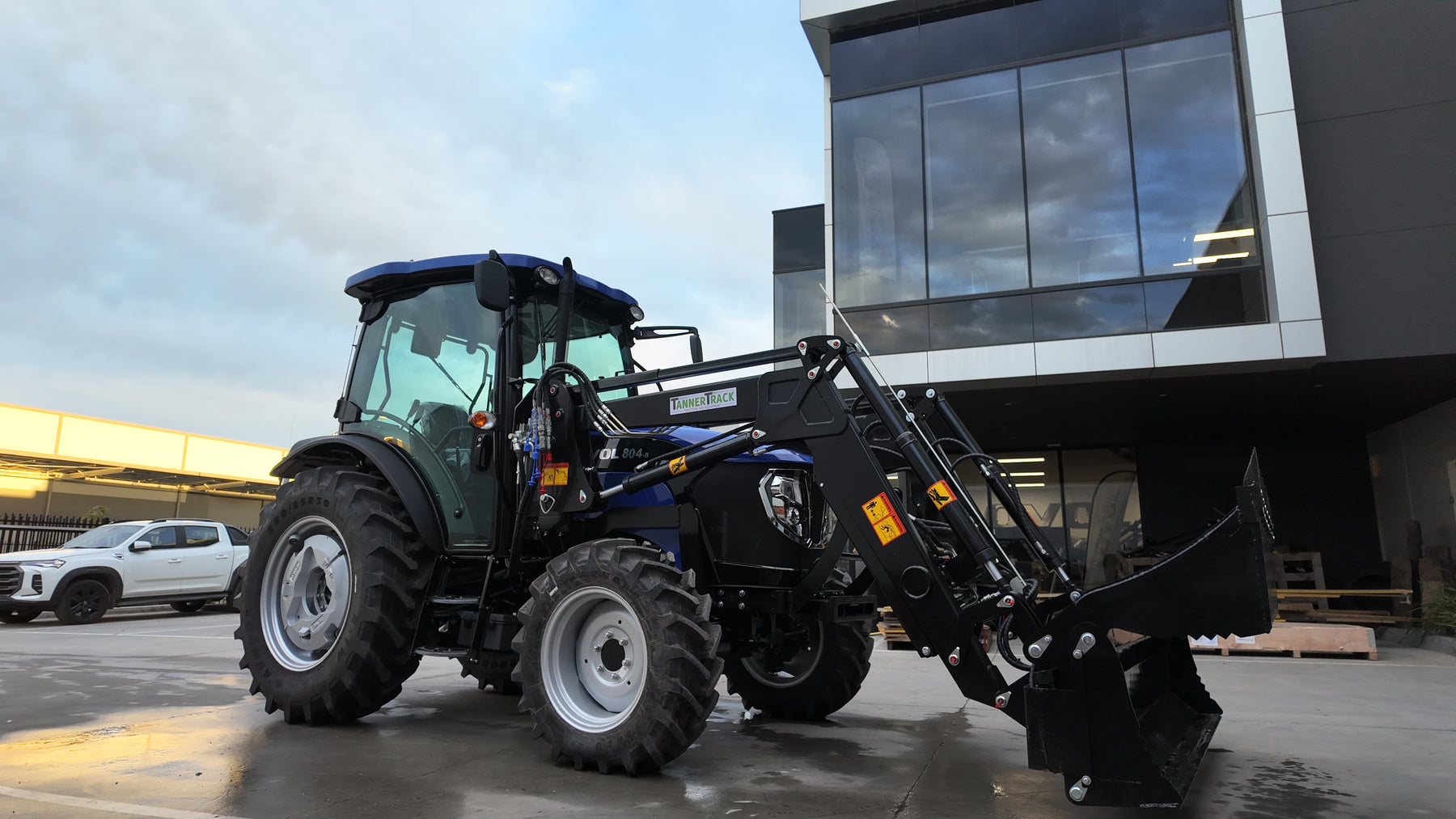

LARGER LOADER

The TB-3 75hp runs the larger loader with extra height and lift compacity

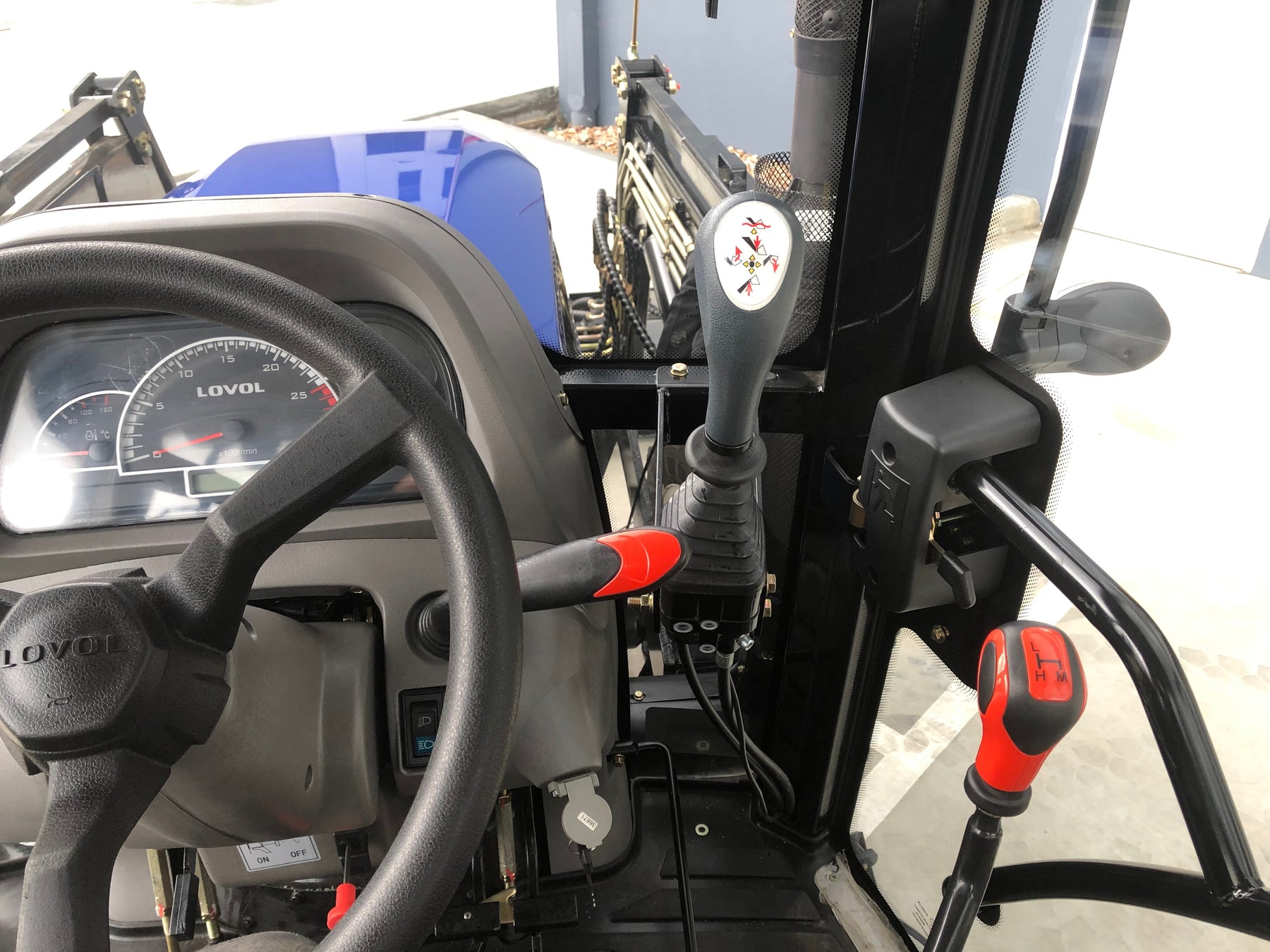

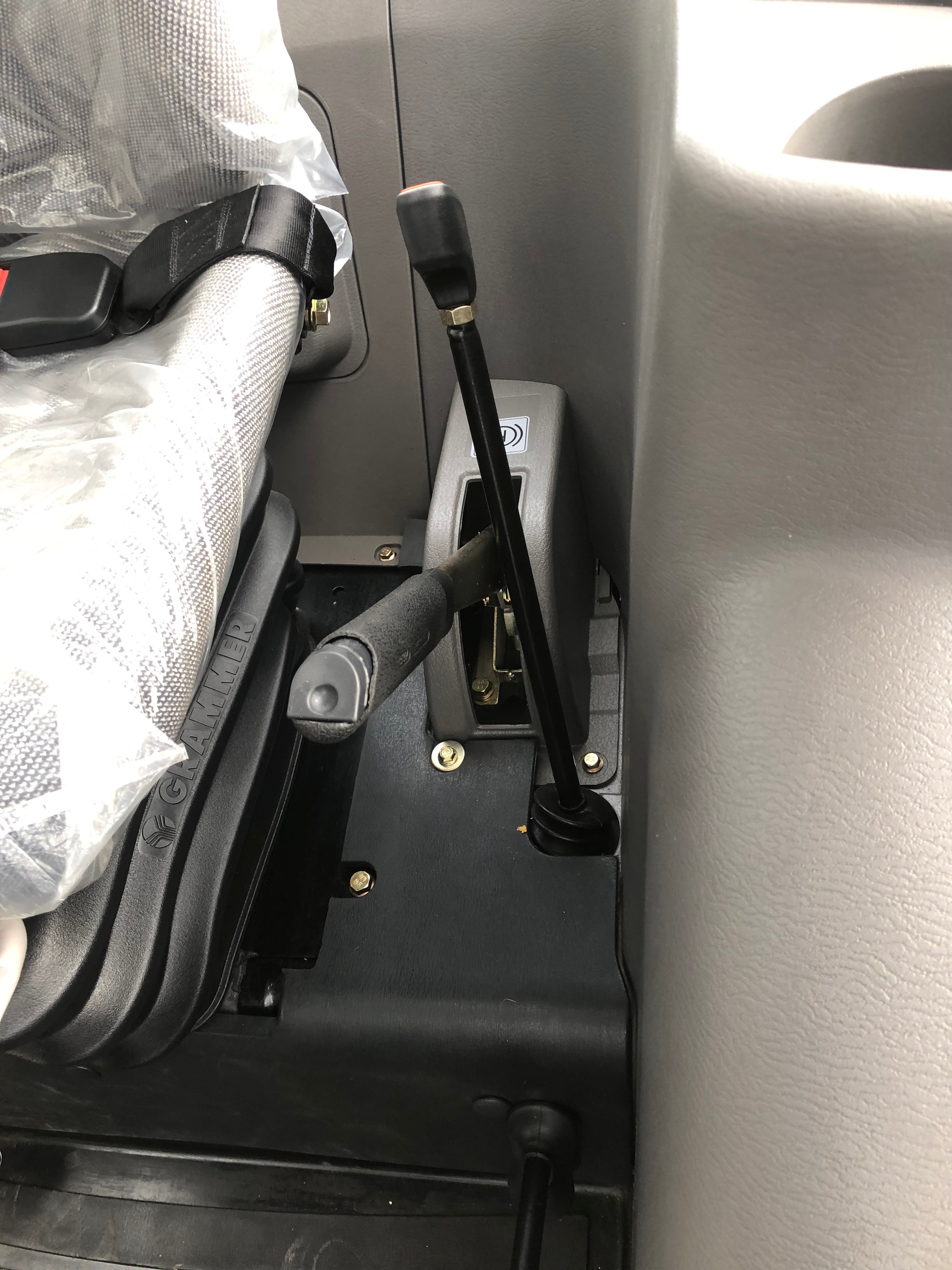

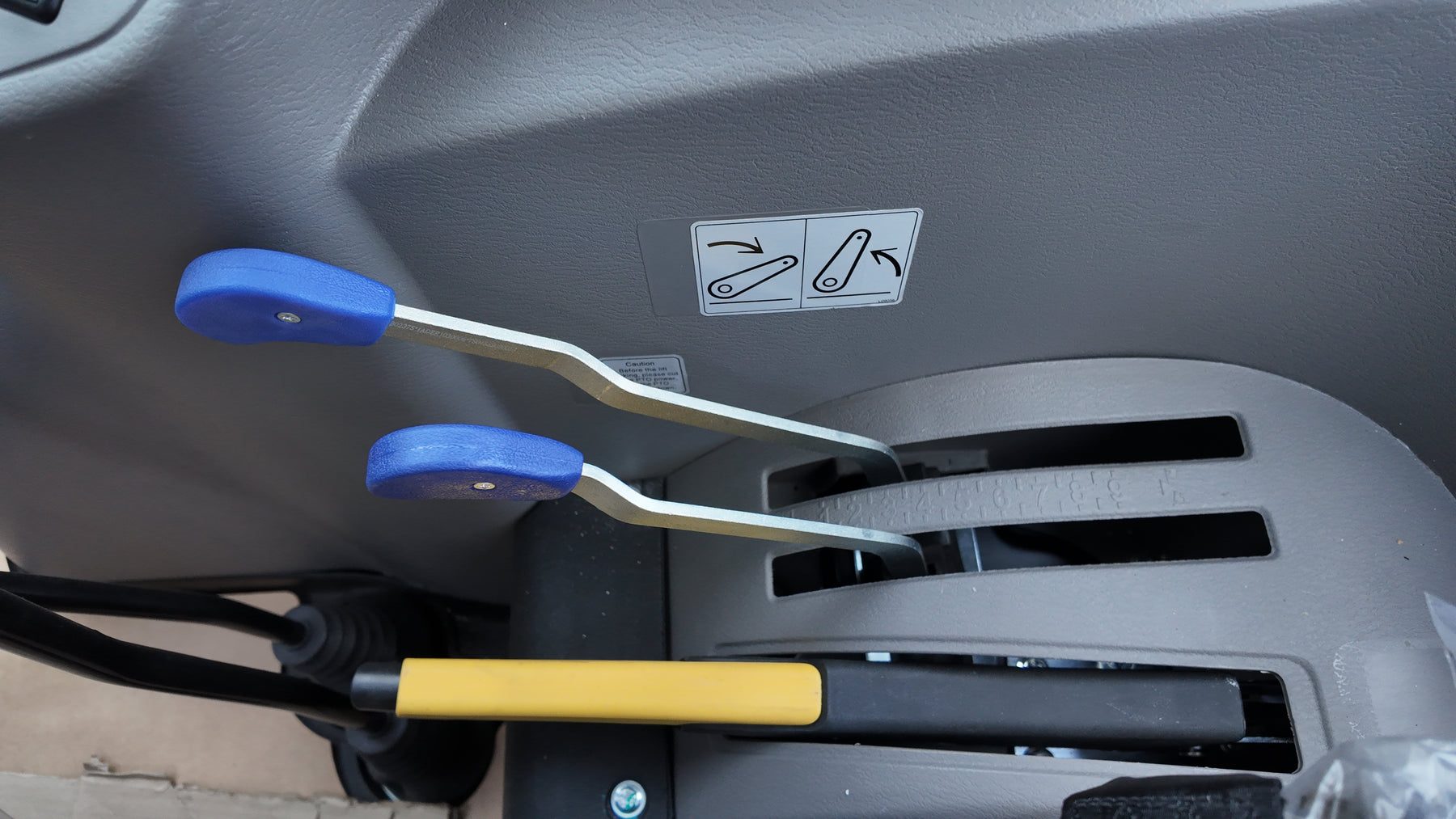

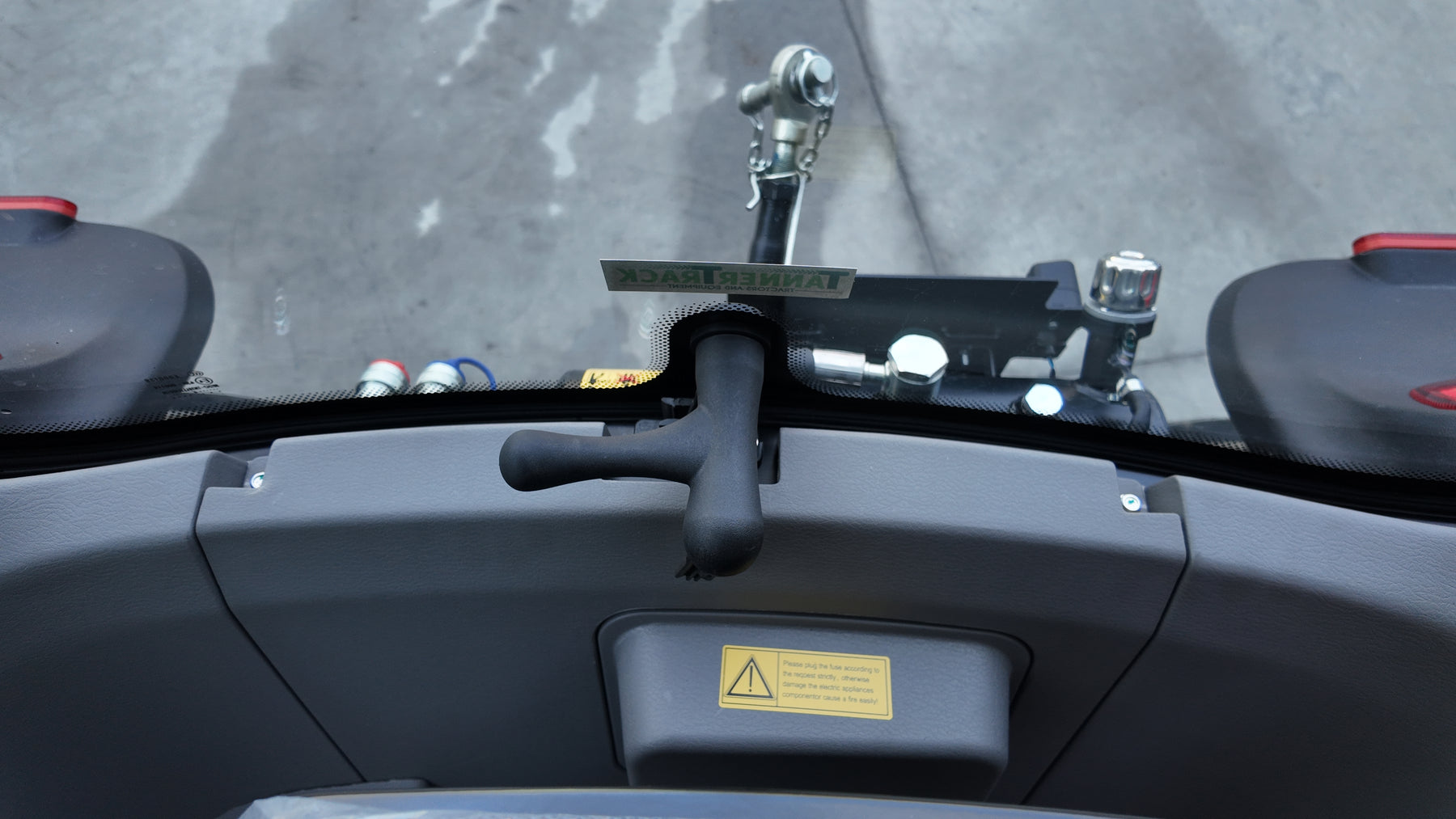

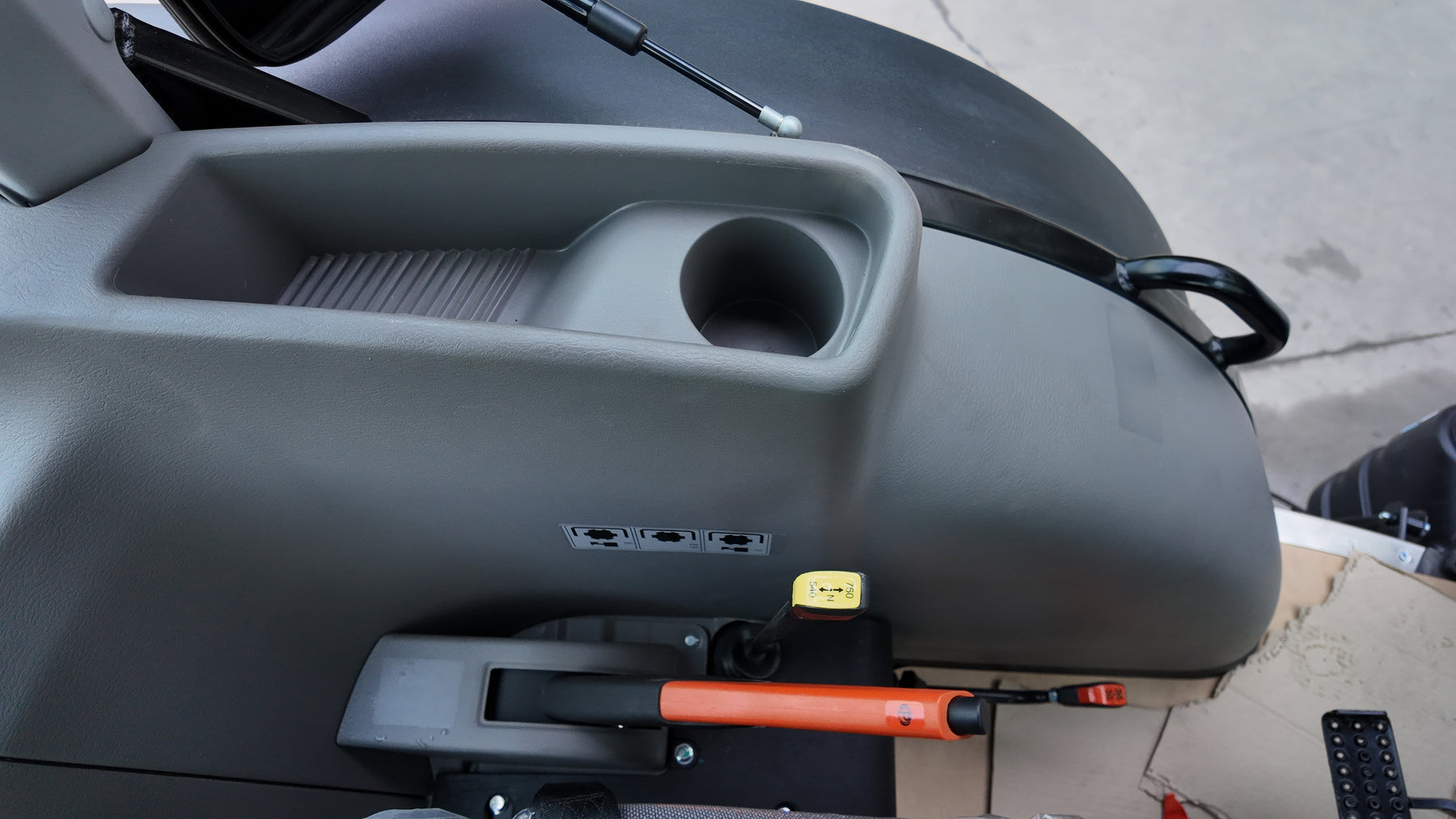

HAND PTO CLUTCH

Fitted with a PTO hand clutch you can independently operate the PTO clutch

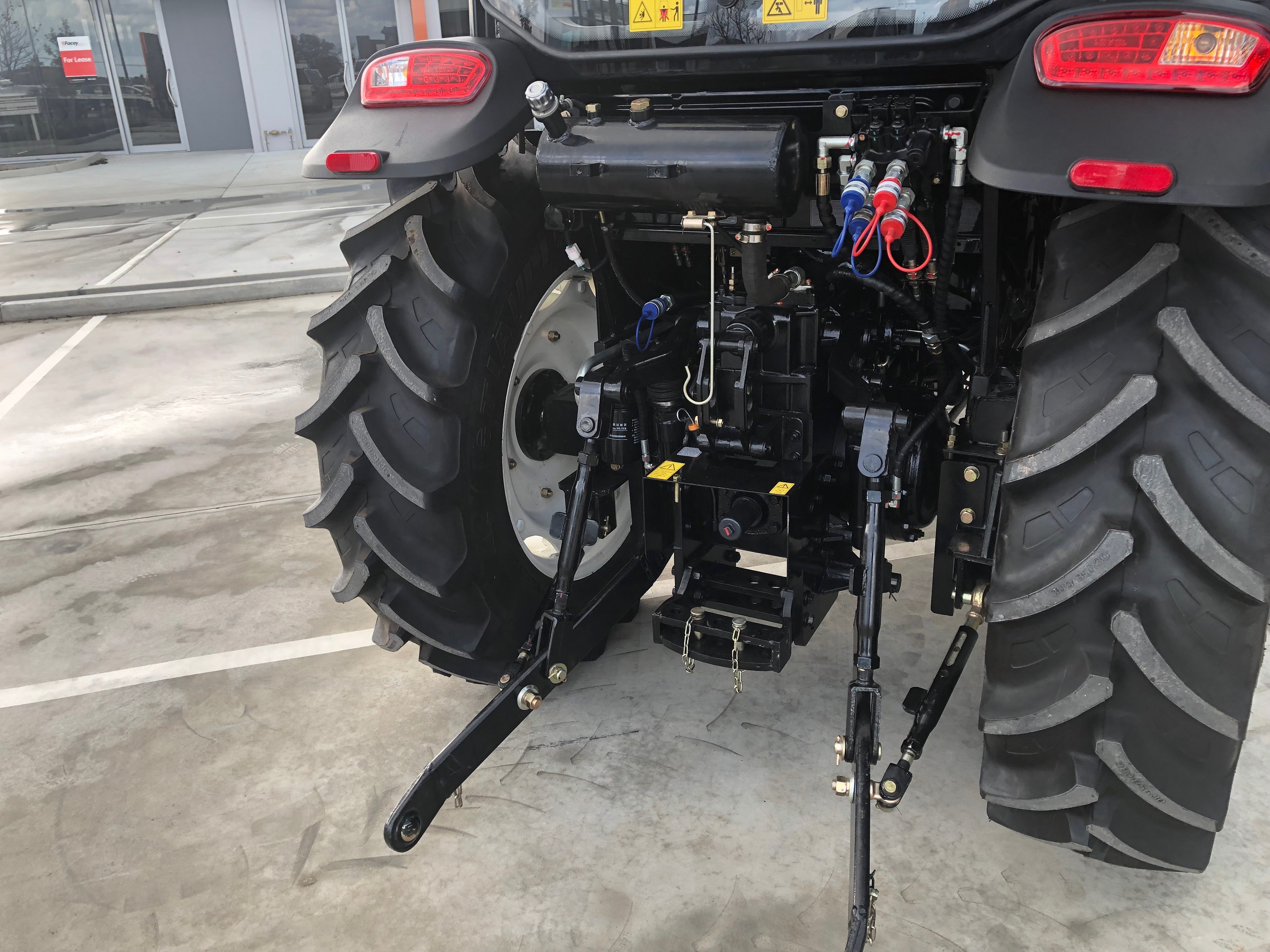

EXTRA LIFT RAMS

Extra lift rams on the 3pl so your ready for the heavier loads

SPECIFICATIONS

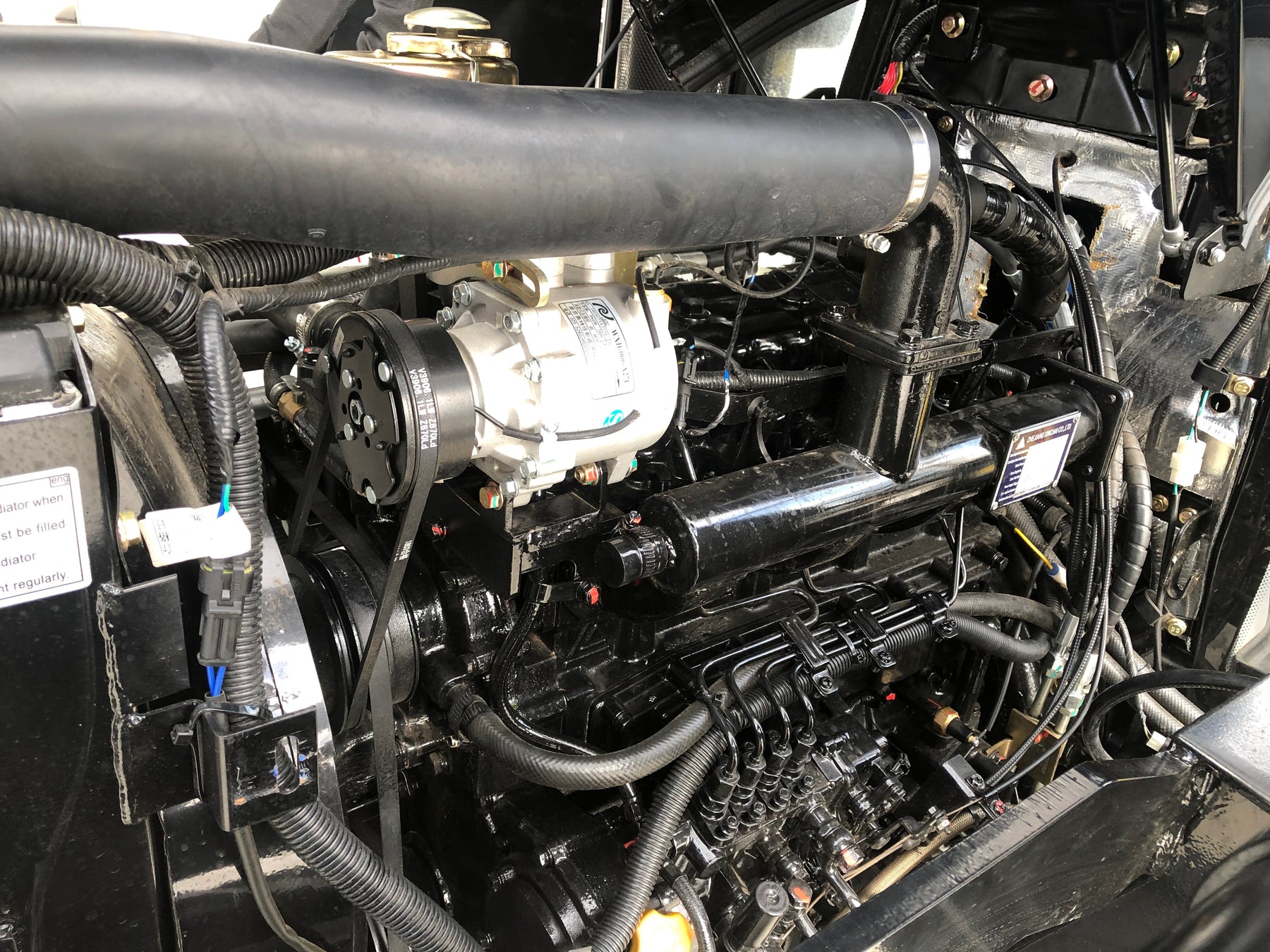

  • Engine Model XINCHAI A4K41T75
  • Engine type Diesel
  • Engine gross power 75hp 55.9kW
  • PTO Power 48kw
  • No. of cylinders 4
  • Total displacement 3.857cc
  • Rated speed 2400 rpm
  • Inline Mechanical pump - NO Computers
  • Fuel tank capacity 60L

TRANSMISSION:

  • 12x12 Shuttle Shift, Synchromesh Gearbox
  • Low Medium High - Transfer Case
  • 1 - 2 - 3 - 4 Synchromesh Gears

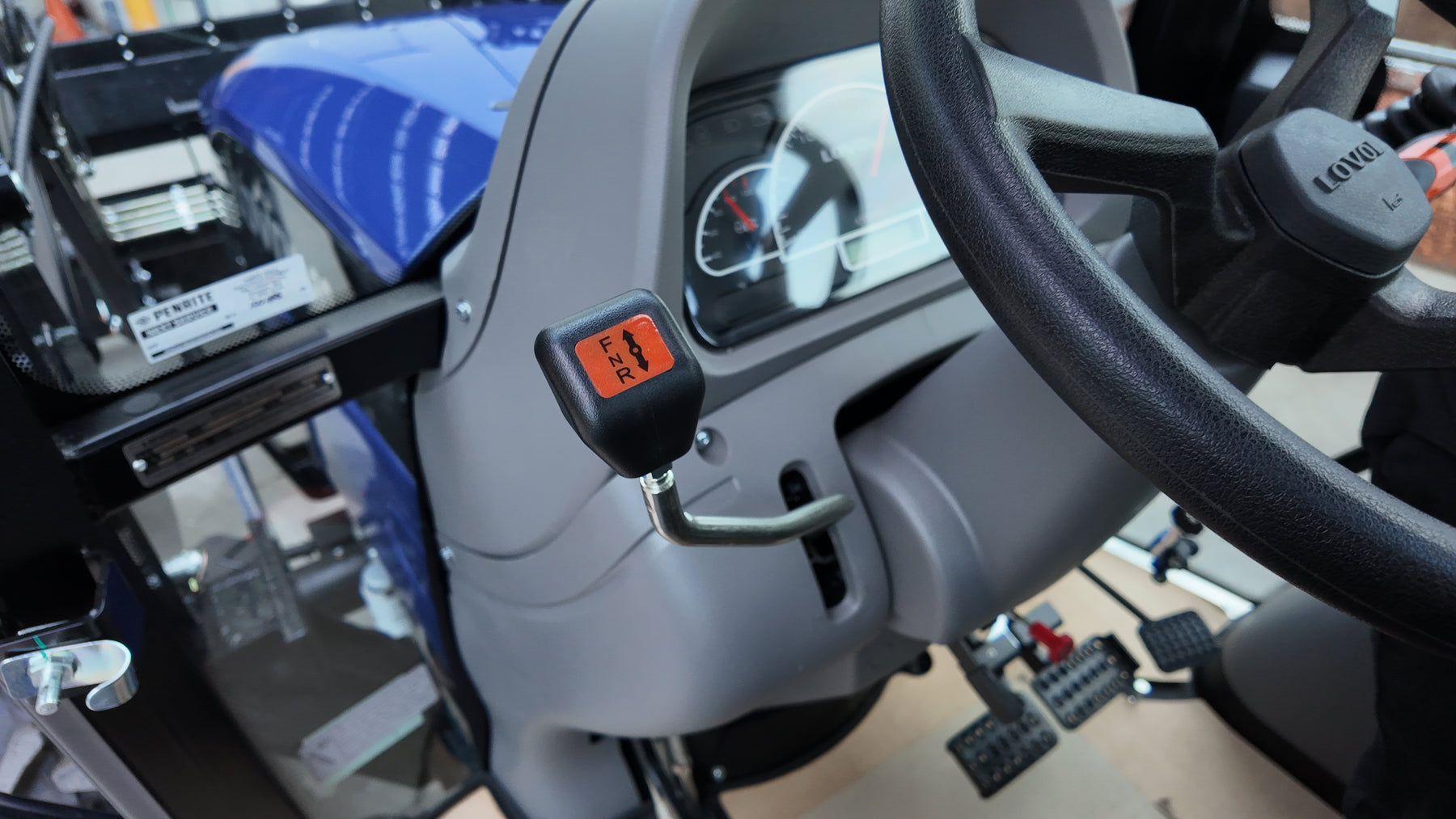

  • Forward - Reverse Shuttle

CLUTCH:

  • Dry, Dual Stage clutch for responsive engagement and smooth power delivery.
  • 11 Inch Ceramic Plate Drive Plate with torsional springs
  • 11 Inch Ceramic Plate PTO Plate

DIFFERENTIAL:

  • Mechanical gear differential providing basic traction control and power distribution between rear wheels.
  • Rear Diff Lock

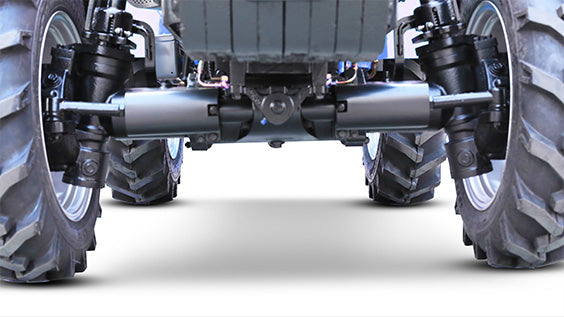

AXLES:

  • Front Axle: Bevel gear final drive
  • Lovol axles made in house by LOVOL
  • Rear Axle: Heavy-duty Design
  • Larger planetary gear sets on TB-2
  • Extra brake disc on both sides

4WD:

  • 4wd - Front Wheel Assist
  • Single lever engagement

HYDRAULIC SYSTEM:

  • Implement Flow rate 35 L/min , sufficient for operating standard implements.
  • Steering Flow Rate 12 L/min
  • 2 Pairs of rear remotes
  • Dual filtration, Suction and Return

PTO

  • 540/760 PTO Speeds
  • --- hp Rated PTO power

Linkage

  • Standard Cat-2 Rear 3pl
  • Adjustable side links
  • 1530kg Lift @610mm Behind hitch point
  • Extra lifting rams on 3pl
  • Radial Tyres
  • Front - 300/70R20
  • Rear - 380/85R30
  • Dual rear wheel weights, Total 344 kg
