TYM TS25, 25hp Tractor with Front End Loader

TYM TS25, 25hp Tractor with Front End Loader

TYM TS25, 25hp Tractor with Front End Loader

TYM TS25, 25hp Tractor with Front End Loader

Regular price$25,990.00
/
Tax included.

Do you have questions about this product? Our experts are here to help! Frequently Asked Questions

Contact Us

FEATURES OF THE TYM 'TS25' TRACTOR

ENGINE

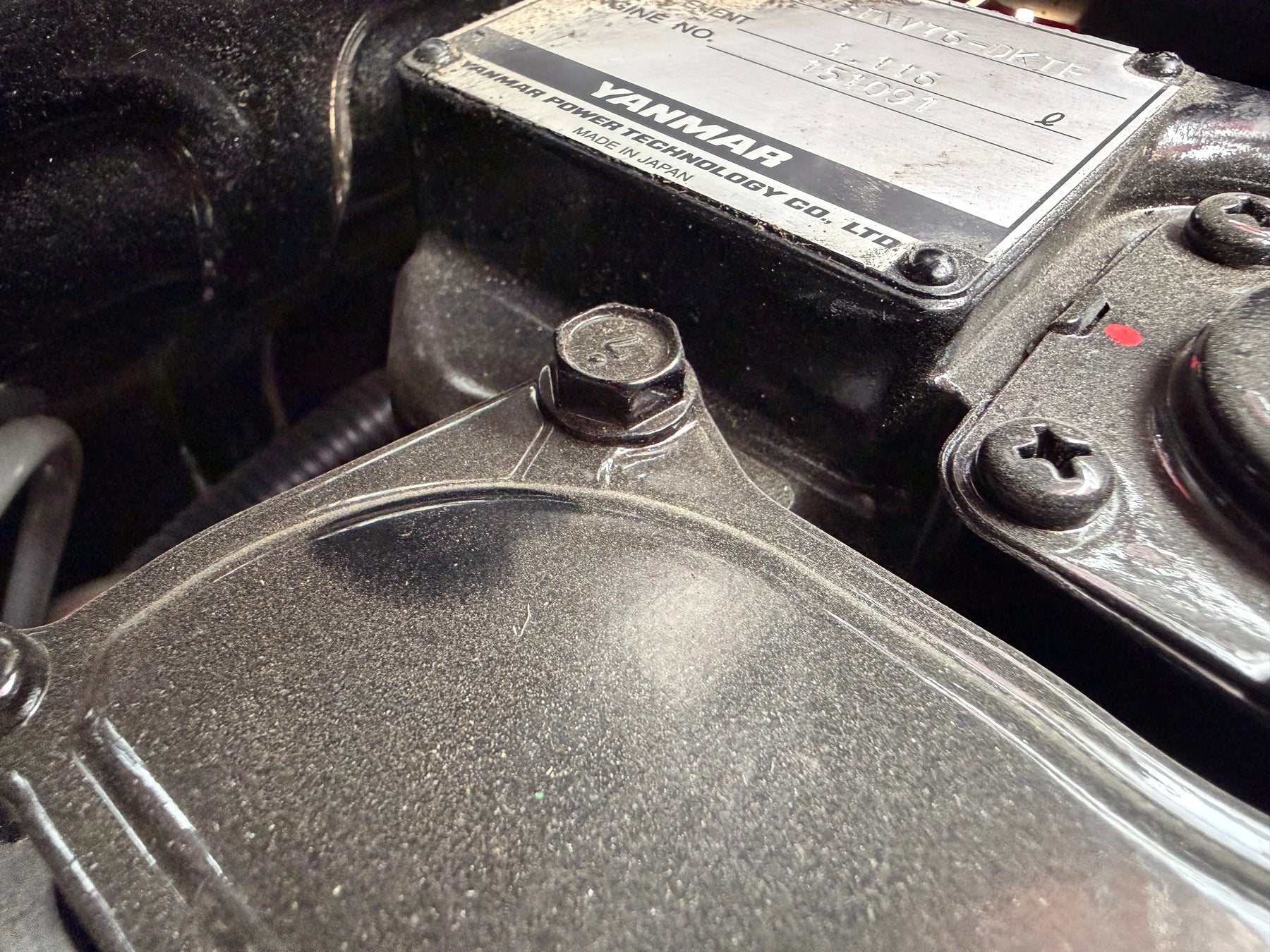

TYM Tractor Yanmar Engine
  • Powered by 25hp Tier 4 Yanmar 3 cylinder water-cooled Diesel engine for optimum performance
  • Yanmar is a global engine manufacturer of quality, giving you the confidence in relaibility and after-sales support
  • Engine certified to meet the stringent Tier 4 engine and noise emission standards
  • A generous engine capacity of 1267cc , resulting in 60Nm torque for serious work
  • For added safety when starting the engine the driver must be seated, the brake pedal depressed and the PTO switched off

DRIVELINE

TYM TS25 Tractor Cruise Control Lever
  • The tractor weight of 730kg is a reflection of the heavy duty transmission, driveline and axles. The tractor weight is in part, a result of the heavy front axle, which is important for a tractor fitted with a front end loader as substantial loads are applied during loader operation
  • The high efficiency Hydrostatic transmission gives infinitely variable drive speed in the forward and reverse direction
  • The Hydrostatic drive controlled by Independent Forward and Reverse pedals for easy simple operation.
  • Hydrostatic power steering lightens steering especially important with front end loaders
  • Easy lever setting of Cruise control for tireless driving when mowing large areas
TYM TS25 Tractor
  • Industrial front and rear tyres are forgiving on lawn areas yet still maintain traction where required and are ideal for front-end loader applications
  • 20x8-10 Front Tyers with 5 studs for greater strength
  • 27x12.50 Rear Tyres with 6 studs for greater strength

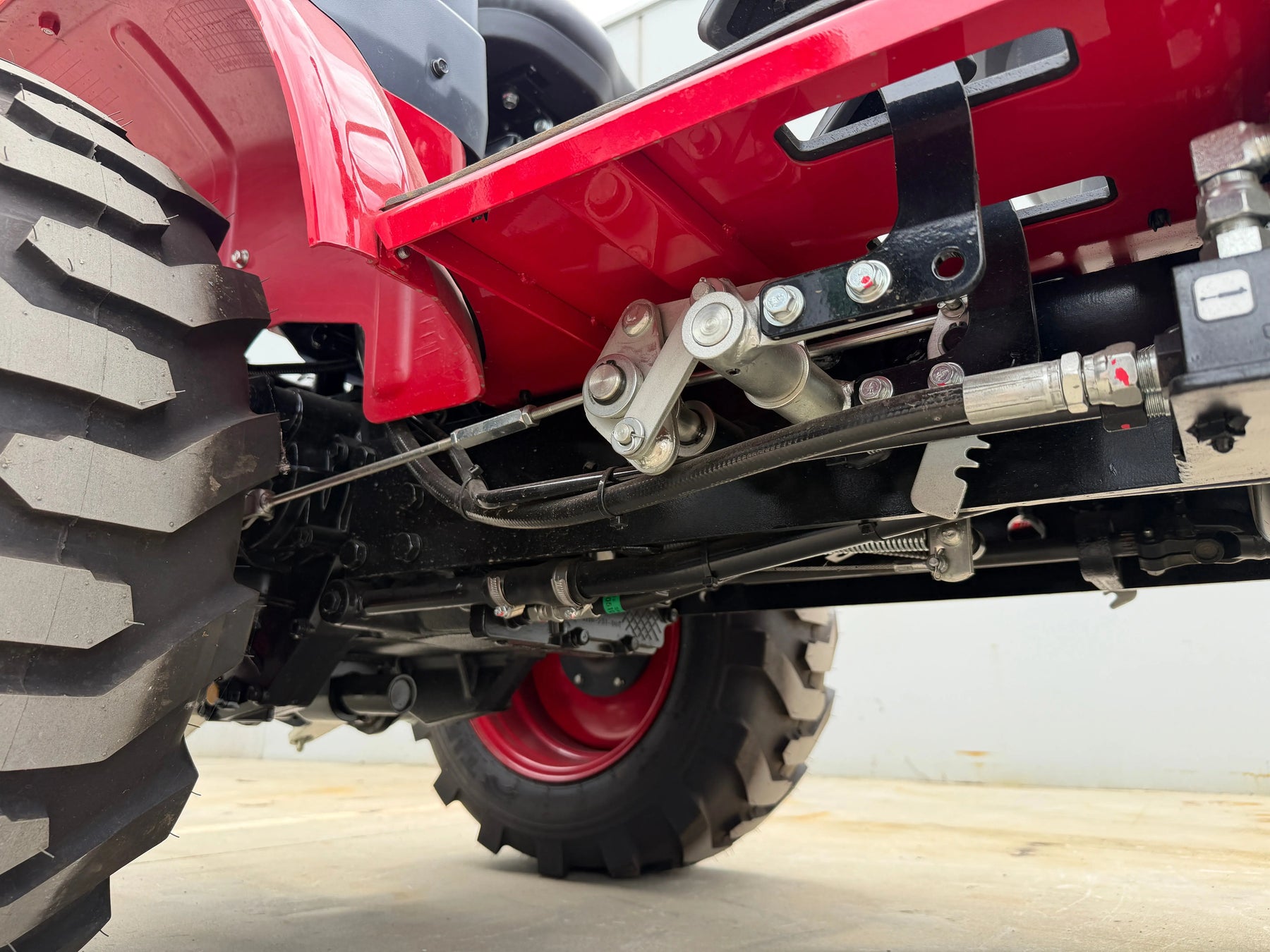

TYM TS25  Front Axel
  • The heavy duty front axle performs in tough working conditions and handles loads with ease
  • A long wheel base and wide stance increases stability in all conditions
TYM TS25 4wdDiffLock
  • 4WD and the Diff Lock provides better traction, control and performance
  • 4WD mode is controlled by a lever on the left hand side of the operator
  • Quick response and durable wet disc brake
  • Ergonically designed foot brake located on LHS of the floor

PTO, HYDRAULICS AND LINKAGE

TYM TS25 PTO Function
  • Easy selection of Mid/Rear PTO which can be operated either independently or simultaneously
  • Fully independant rear PTO(540rpm) & mid PTO(2000rpm) activated by electro-hydraulic clutch
  • PTO engagement is easily operated by push button control on the dash
  • The rear linkage is Category 1 with a large lift capacity of 600kg (at ball ends)
  • Flat Tow Bar for towing of trailers
TYM TS25 Tractor PTO
  • The PTO drive is a smiple and direct design for high efficiency and power
  • The PTO clutch is and independant oil immersed clutch pack for long life and simple push button operation

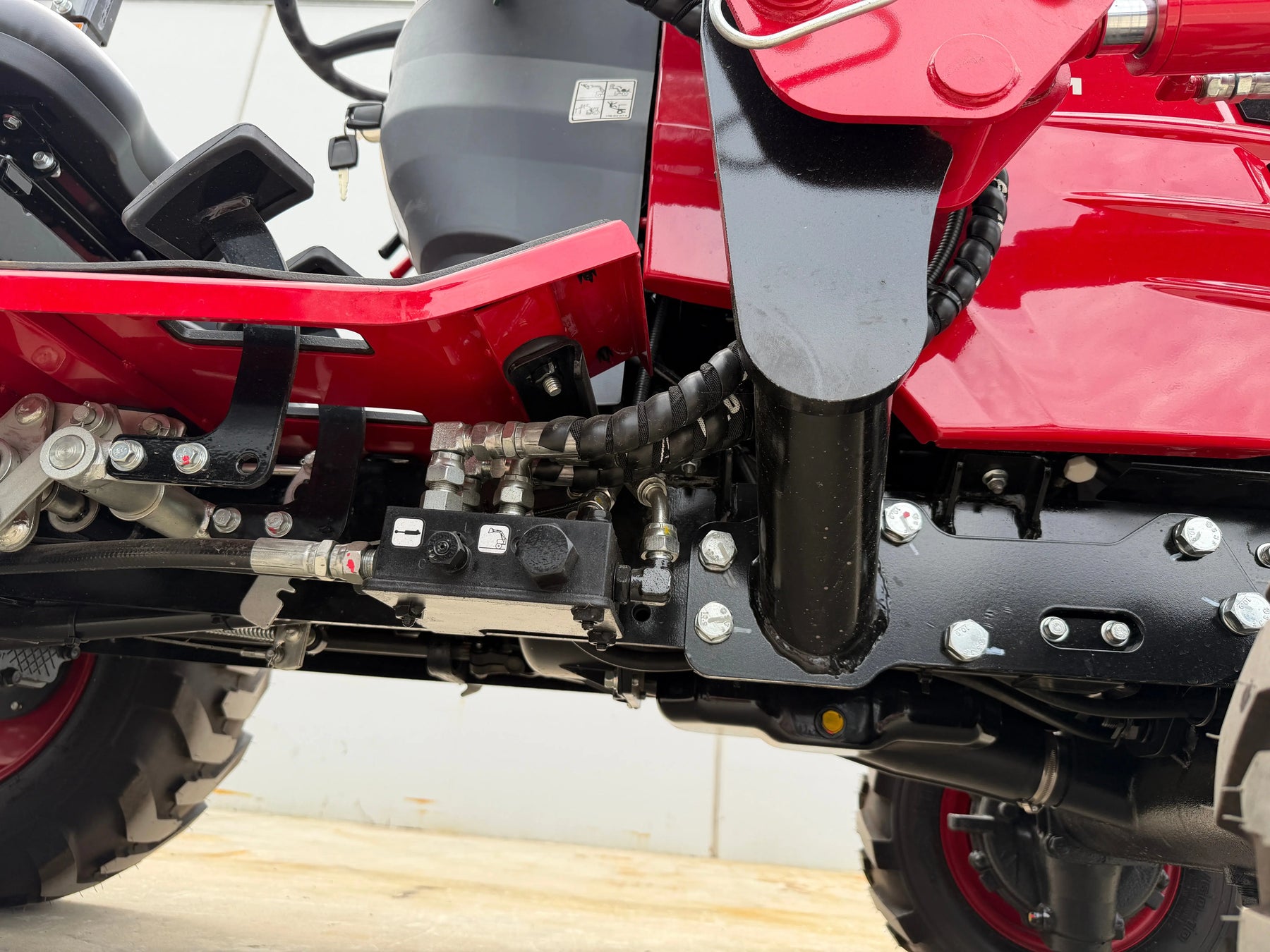

TYM TS25 Tractor Auxiliary hydraulic valve
  • Hydraulic 3 point linkage lowering speed control

CONTROLS

TYM TS25 Tractor Controls
  • The ergonomic design has the controls within easy reach of the operator
  • The modern instrument panel is easy to read and displays all the essential information
TYM TS25 Linkage Lever
  • Right Hand Side controls:
    • 3 point linkage lever

TYM TS25 RHS Controls

  • Left Hand Side Controls
    • 4WD
    • PTO
    • High-Low transmission range lever

LAYOUT

TYM TS25 Tractor Access
  • Clean uncluttered access provides generous room for access on and off the tractor

OPTIONS

TYM TS25 Auxiliary Hydraulic Valve

  • For the operation of log splitters or TYM TX25 Backhoe

TYM TS25 Tractor  folding rops

  • 2 post folding ROPS for working under trees or low clearance areas
TYM TS25 Tractor Hood Open
  • One-touch opening hood allows complete access for daily service checks and maintenance
  • Side panels are easily removed without the need of special tools

TYM TS25 Tractor Air Cleaner

  • Large cannister type air cleaner for dusty Australian conditions

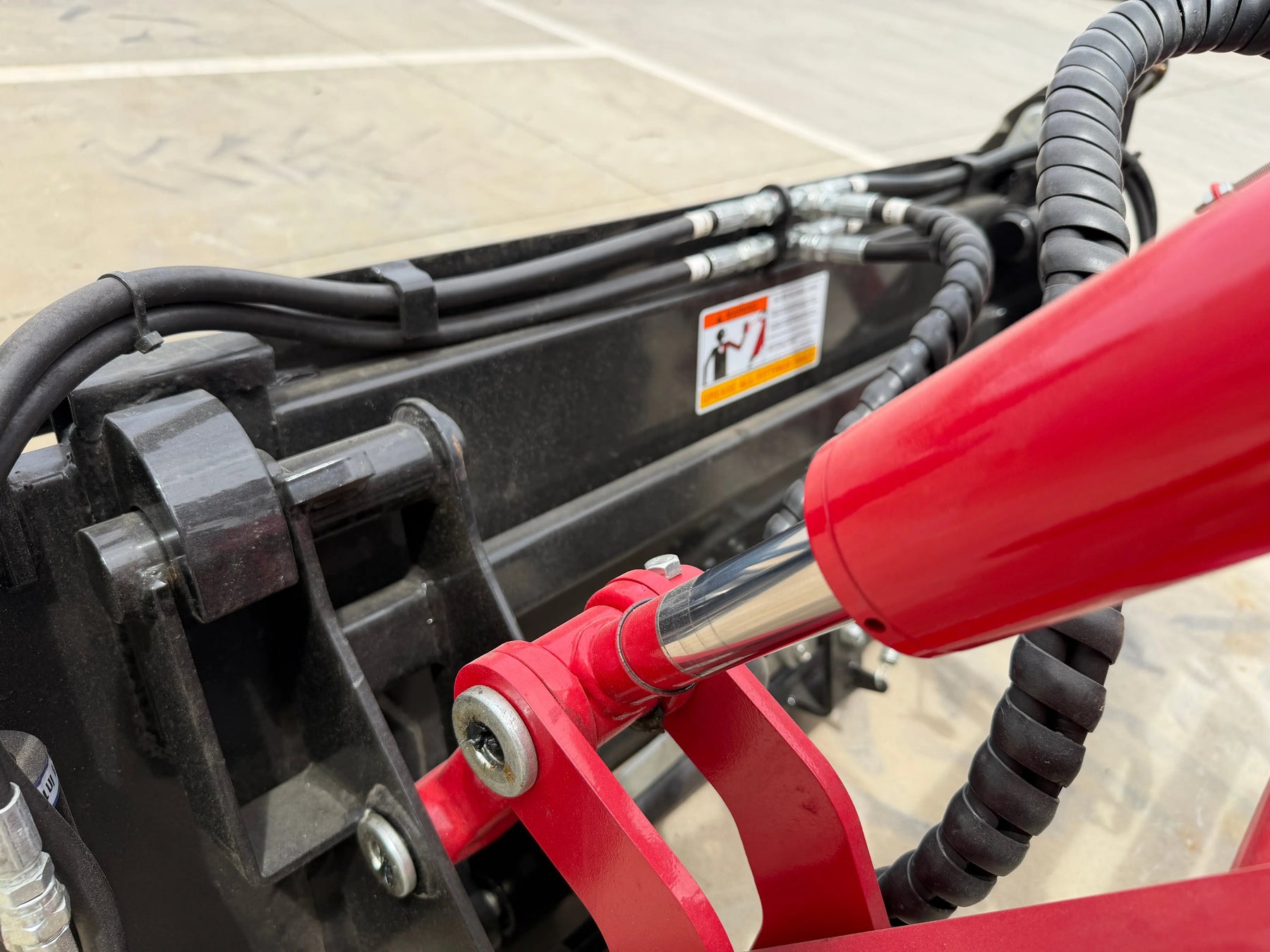

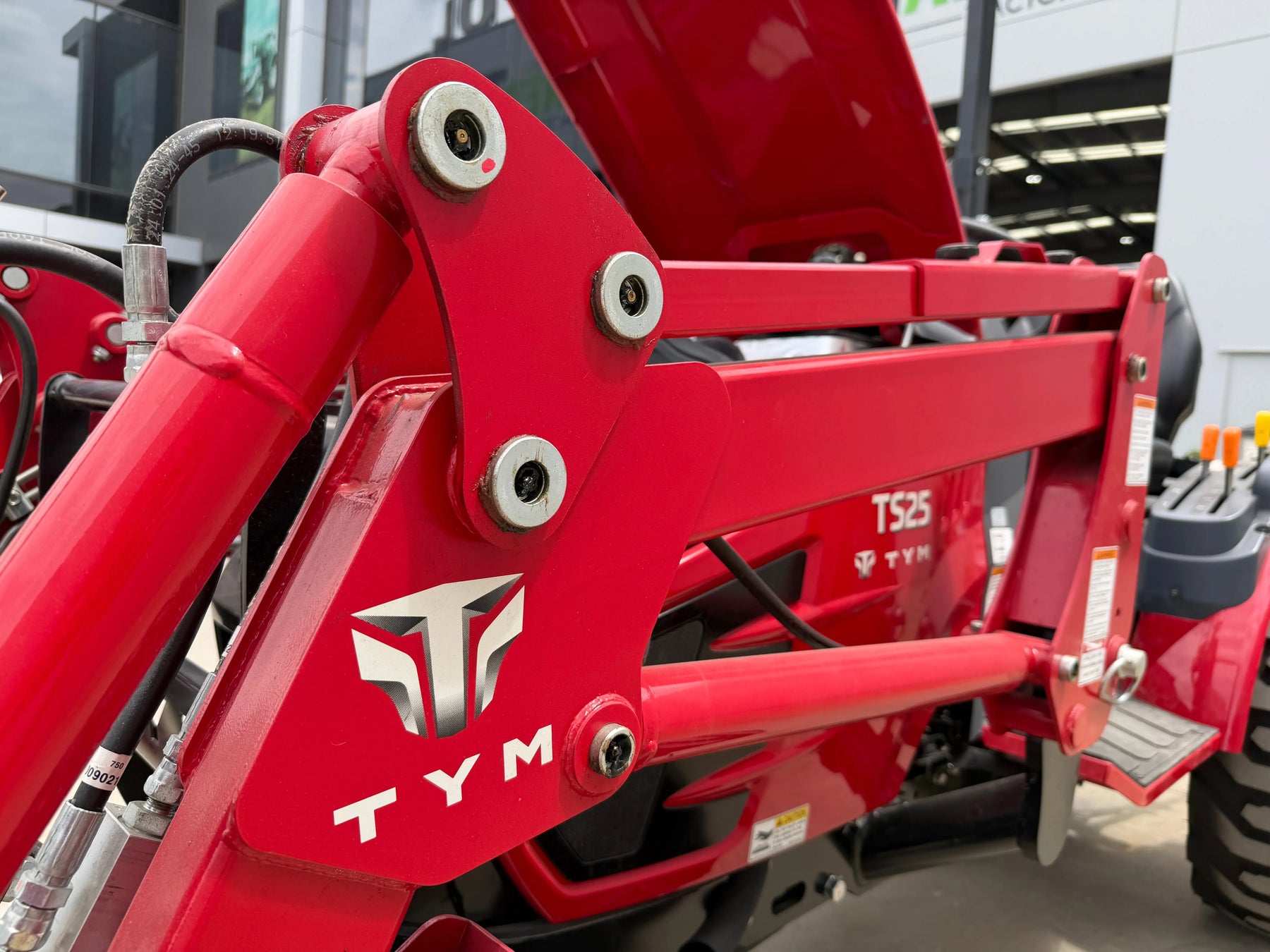

ACCESSORIES

  • Quick detach from tractor and quick detach bucket
  • Fast Cycle times (Raise/Lower)
  • Inbuilt loader parking stands for safety when servicing
  • Counter Ballast Box aids stability when lifting heavy loads
  • Full width adjustable bump guard for tractor bonnet protection
  • Heavy duty 4 in 1 bucket
  • Single Joystick delivers ergonomic operation of front end loader

BT25 Backhoe

  • Easy to remove
  • Swivelling operators seat
TS25 Mid Mount Mower
  • Quick detach from tractor and quick detach bucket
  • Fast Cycle times (Raise/Lower)
  • Inbuilt loader parking stands for safety when servicing
  • Counter Ballast Box aids stability when lifting heavy loads
  • Full width adjustable bump guard for tractor bonnet protection
  • Heavy duty 4 in 1 bucket
  • Single Joystick delivers ergonomic operation of front end loader

SPECIFICATIONS

TS25 HST
Engine Type (Model 3TNV80F-SDSA) Yanmar
Number of Cylinders 3
Engine Power (hp/kW) 25/18.4
Transmission Type Hydrostatic
Forward / Reverse Shuttle Type HST
Number Speed Ranges 2
Maximum Speed (km/h) 18.1
PTO Speeds (rpm) 540
Mid PTO
Tick
Independent Push Button PTO engagement (Electro-Hydraulic) Tick
3-point Linkage Lift Capacity (kg) 600
Number of Hydraulic Remotes Optional
Integrated Joystick Control for Front-end Loader Tick
Weight - Tractor Only (kg) 730
