LOVOL M504 TB-1, 50hp Cabin Tractor

$34,990.00
/
Tax included.

Do you have questions about this product? Our experts are here to help! Frequently Asked Questions

Contact Us

Do you crave a tractor that tackles diverse tasks with exceptional performance and unmatched versatility? Look no further than the LOVOL M504 50HP TB-1 – a feature-rich machine meticulously crafted to elevate your workload efficiency and transform your land management capabilities.

The LOVOL M504 50HP TB-1 isn't just a tractor; it's your ultimate multi-tasking champion:

  • Unleash Reliable Power: Command a robust 50-horsepower engine designed to conquer various tasks. Effortlessly handle tilling, mowing, light groundwork, and more, while the efficient TB-1 transmission ensures smooth operation and seamless gear changes.
  • Unmatched Versatility at Your Fingertips: Experience the true potential of the M504 with its extensive attachment compatibility (sold separately). Transform it into a loader for lifting and hauling heavy materials, a backhoe for digging trenches, or a mower for maintaining expansive fields – eliminating the need for a large fleet of specialized vehicles.
  • Operator Comfort Redefined: Ascend to the throne of the ergonomically designed cabin. Experience minimized fatigue during long hours on the job thanks to the spacious legroom, plush seating, and intuitively placed controls designed to prioritize your comfort and maximize focus.
  • All-Weather Capability: Embrace any season with confidence. The M504 boasts an enclosed cabin option (sold separately) to shield you from the elements, allowing you to work productively year-round in Narre Warren North's diverse climate.

Choosing the LOVOL M504 50HP TB-1 Tractor guarantees:

  • Dominate Diverse Workloads: Experience a surge in efficiency and conquer any task with the M504's perfect combination of power, versatility, and user-friendly operation.
  • Reduced Operating Costs: The fuel-efficient engine and minimal maintenance requirements help you save money where it counts, allowing you to focus on growing your business.
  • Unparalleled Comfort, Extended Productivity: The ergonomically designed cabin prioritizes your well-being, allowing you to work comfortably for extended hours and achieve maximum productivity in any season.
  • An Investment Built to Last: The LOVOL M504 50HP TB-1 Tractor is more than a tractor; it's a long-term investment in the future of your land and your business success.

Ready to experience the power to transform your land management? Visit your nearest LOVOL dealer in Pakenham Victoria for a test drive and experience the unmatched versatility, operator comfort, and performance of the M504 50HP TB-1 Tractor firsthand. Don't settle for anything less – unlock the full potential of your land with the adaptable and powerful LOVOL M504.

Contact Us

FEATURES

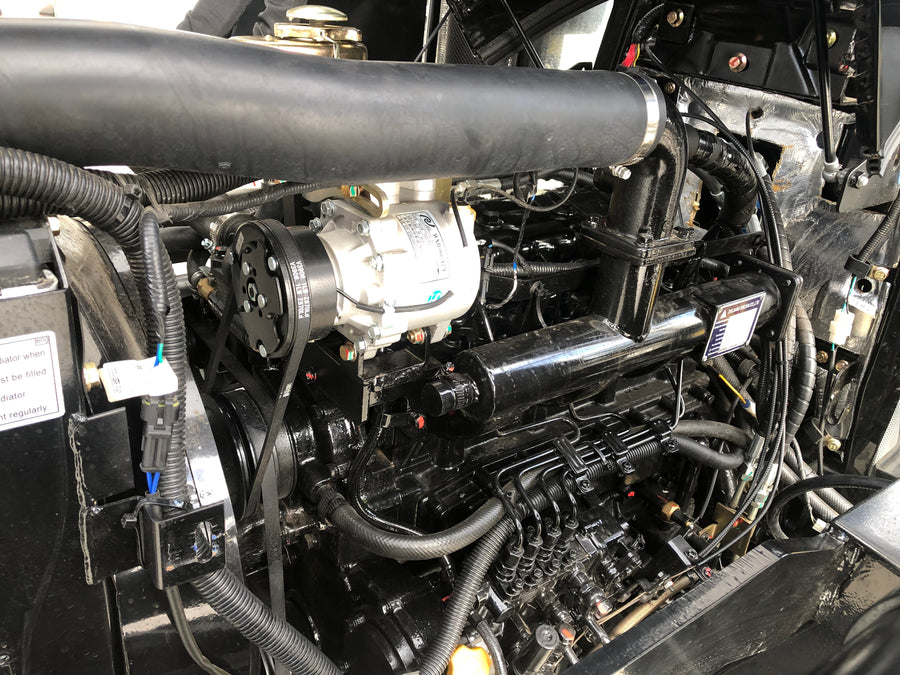

ENGINE

Large capacity engine giving more torque and hp

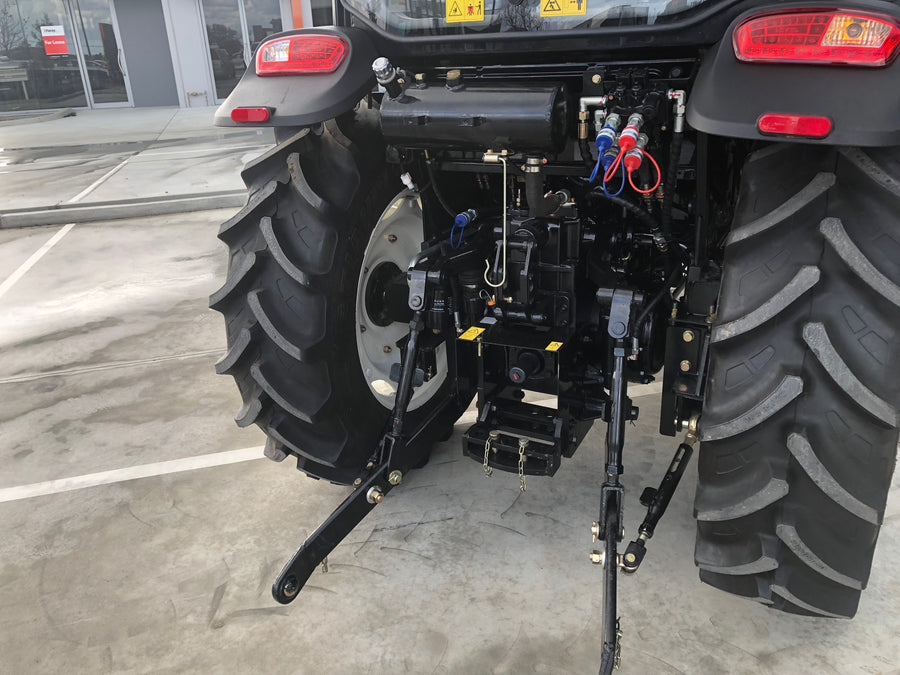

AXLES

LOVOL manufactures their own axles to suit the TB-2 tractor

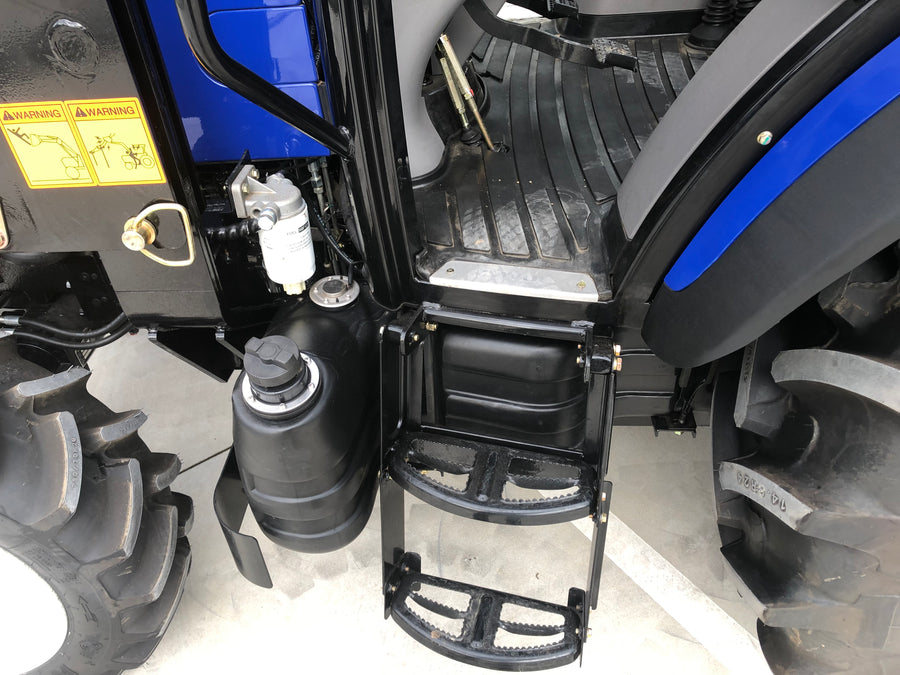

ACCESS

Easy access steps, Easy to fill fuel tank, Plenty of room to move in and out of tractor

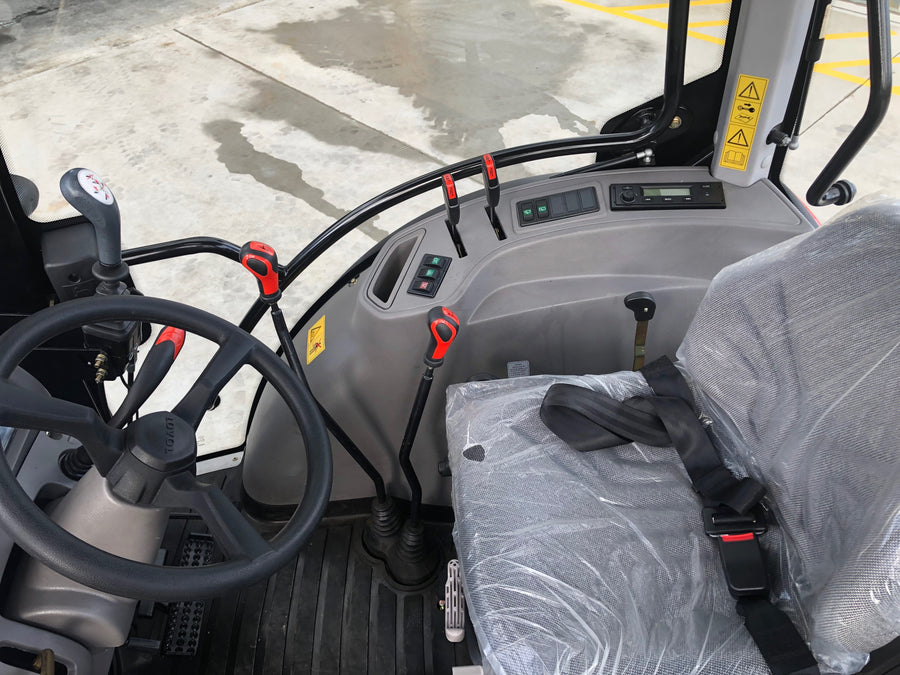

CONTROLS

Ergonomic cabin with easy access to controls.

Single joystick with push button 3rd function

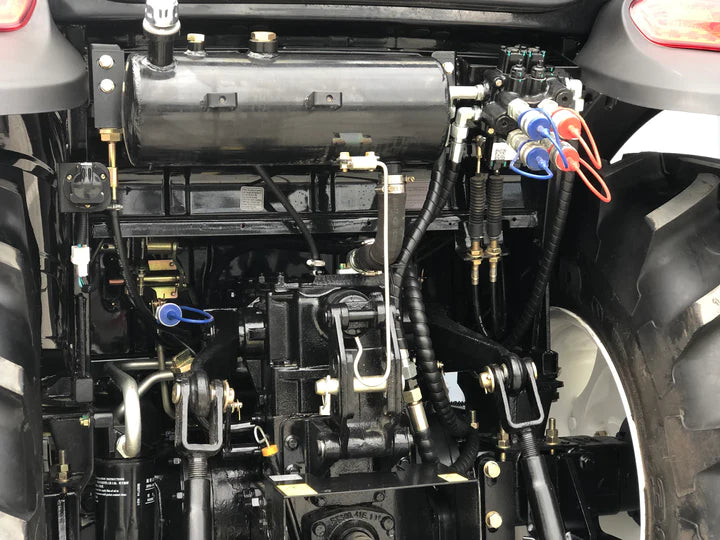

REMOTES

2 Pairs of rear remotes

SPECIFICATIONS

  • Engine Model XINCHAI 498BT
  • Engine type Diesel
  • Engine gross power 50hp 37kW
  • PTO Power 34.4kw
  • No. of cylinders 4
  • Total displacement 3.17cc
  • Rated speed 2400 rpm
  • Inline Mechanical pump - NO Computers
  • Fuel tank capacity 60L

TRANSMISSION:

  • 12x12 Shuttle Shift, Synchromesh Gearbox
  • Low Medium High - Transfer Case
  • 1 - 2 - 3 - 4 Synchromesh Gears
  • Forward - Reverse Shuttle

CLUTCH:

  • Dry, Dual Stage clutch for responsive engagement and smooth power delivery.
  • 11 Inch Ceramic Plate Drive Plate with torsional springs
  • 11 Inch Ceramic Plate PTO Plate

DIFFERENTIAL:

  • Mechanical gear differential providing basic traction control and power distribution between rear wheels.
  • Rear Diff Lock

AXLES:

  • Front Axle: Bevel gear final drive
  • Lovol axles made in house by LOVOL
  • Rear Axle: Standard LOVOL H/Duty Rear Axle

4WD:

  • 4wd - Front Wheel Assist
  • Single lever engagement

HYDRAULIC SYSTEM:

  • Implement Flow rate 30 L/min , sufficient for operating standard implements.
  • Steering Flow Rate 12 L/min
  • 2 Pairs of rear remotes
  • Dual filtration, Suction and Return

PTO

  • 540/760 PTO Speeds

Linkage

  • Standard Cat-2 Rear 3pl
  • Adjustable side links
  • 1050kg Lift @610mm Behind hitch point
  • Radial Tyres
  • Front - 280/70R20
  • Rear - 380/85R24
  • Dual rear wheel weights, Total 180 kg
  • Standard control layout with gear sticks on the right side.
  • Shuttle shift stick on left side of dash
  • FEL Joystick positioned for right hand operation
  • Single joystick with push button 3rd function
  • 4wd & Diff lock are positioned at floor pan
  • Rear remote and 3pl controls are beside the seat
  • Fully adjustable seat to get the perfect position
  • Roof mounted air con controls
  • Radio with USB charger
  • 4in1 Bucket standard with front teeth
  • Self Level Lift Design
  • Euro Mount hitch
  • Quick release couplers for bucket hoses
  • 600 kg Safe Working Load - SWL
  • 1000 kg Max Lift Recommended
  • Level rod indicator
  • Parking stands
  • Safety locks for working under loader
  • Greasable pins
