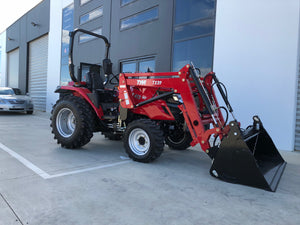

TYM T265, 25hp Tractor with Front end Loader

TYM T265, 25hp Tractor with Front end Loader

No review yet. Write Review
Regular Price $23,500.00

Product Type : Tractor

-
+
in stock SOLD OUT
Tannertrack Logo TYM & Lovol Tractors

FEATURES OF THE TYM 'T265' TRACTOR

ENGINE

Mitsubishi Engine
  • Powered by 24.5hp TYM naturally aspirated 3 cylinder water-cooled Diesel engine.
  • TYM Diesel engine, a Tier 4 engine producing plenty of torque at low enging RPM providing outstanding in field performance.
  • Engine certified to meet the stringent Tier 4 engine and noise emission standards.
  • Dual dry element air cleaner for Australia's dusty conditions.
  • A generous 25 litre fuel tank for many working hours between refueling.

DRIVELINE

T265 Chassis
  • The tractor weight of 865kg is a reflection of the heavy duty transmission, driveline and axles. The tractor weight is in part, a result of the heavy front axle, which is important for a tractor fitted with a front end loader as substantial loads are applied during loader operation
  • The high efficiency two range (2) hydrostatic transmission gives infinitely variable drive speed from stationary to 16km/h in the forward and reverse direction
TYM T265 Foot Controls
  • The Hydrostatic drive controlled by side-by-side forward and reverse pedals for ease of operation.
  • Hydrostatic power steering lightens steering especially important with front end loaders
  • Cruise control for tireless driving when mowing large areas.
TYM T265 Rear Tyre
  • Industrial front and rear tyres are ideal for front-end loader applications
  • Large 23x8.5-12 Front tyres
  • Large 12-16.5 Rear tyres
TYM T265 Axle
  • The heavy duty front axle performs in tough working conditions and handles loads with ease
  • A long wheel base and wide stance increases stability in all conditions
TYM T265 4WD Lever
  • 4WD and the Diff Lock provides better traction, control and performance
  • 4WD mode is controlled by a lever on the left hand side of the operator
  • Rear axle with diff-lock for difficult traction situations
  • Inboard wet disc brakes with LHS-RHS brake splitting for brake assisted turning in tight situations

PTO, HYDRAULICS & LINKAGE

TYM T265 Rear Linkage
  • 1 set of double-acting hydraulic remotes
  • Category 1, 3-point linkage with manual position controls
  • 700kg lifting capacity gives the tractor great versatility and will handle many attachments
TYM T265 PTO
  • The PTO drive is a smiple and direct design for high efficiency and power
  • The PTO clutch is and independant oil immersed clutch pack for long life and simple operation

CONTROLS

TYM T265 Dash
  • Ergonomic design - easy to reach controls
  • Easy to read instrument panel
  • Combination S/W
  • Cruise Control
  • Push button PTO On/Off Switch
TYM T265 Joystick
  • Throttle lever (orange lever) is conveniently located adjacent to the steering wheel
  • 3 point linkage position lever
  • Fully integrated single joystick for control delivers ergonomic operation of front end loader

LAYOUT

TYM T265 Tractor Access
  • Clean uncluttered access
TYM T265 Brake Steer
  • Turning brakes located on operator's left to improve turning in confined areas.

AUXILIARY HYDRAULIC VALVE

TYM T265 Tractor Auxiliary hydraulic valve
  • For the operation of log splitters

OPTIONS

FRONT END LOADER

Options
  • Level lift Front-end Loader ideal for materials handling and utility work around the small farm.
  • Easy quick detach bucket and loader with inbuilt quick release loader parking stands
  • Inegrated loader joystick with "trigger" button control for 4-in-1 bucket
  • Superb visability to loader bucket
  • Level lift indicator
  • Full details & specifications on the optional front end loader

SPECIFICATIONS

T265
Engine Type TYM
Engine Power (hp/kW) 24.5 / 18
Rated power @engine RPM 2600
Number of Cylinders/cc 3/1175
Transmission Type Hydrostatic
Forward / Reverse Shuttle Type HST
Number Speed Ranges 2
Maximum Speed (km/h) 16
PTO Speeds (rpm) 540
Mid PTO Tick
Independent Push Button PTO engagement Tick
Steering brakes Tick
3-point Linkage Lift Capacity (kg) 700
Number of Hydraulic Remotes 1 set
Integrated Joystick Control for Front-end Loader Tick
Weight - Tractor Only (kg) 865
